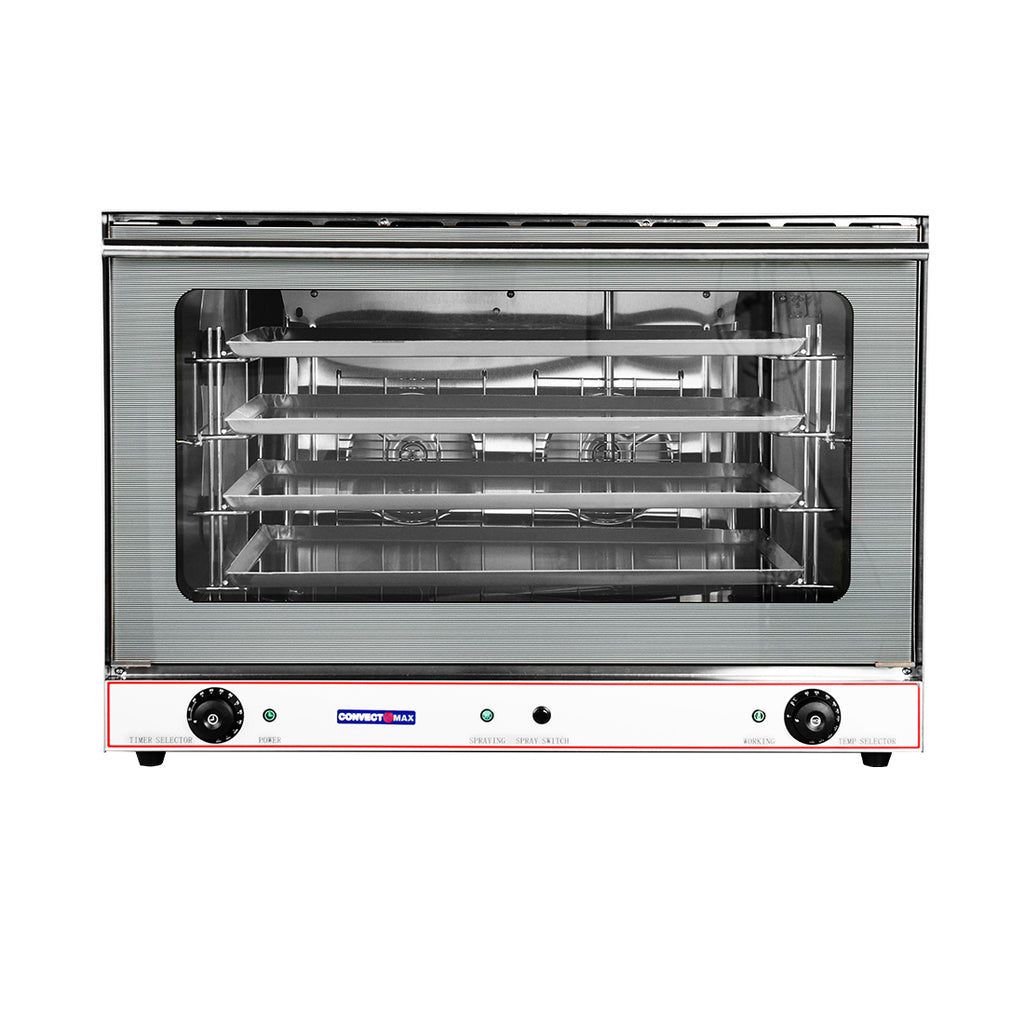

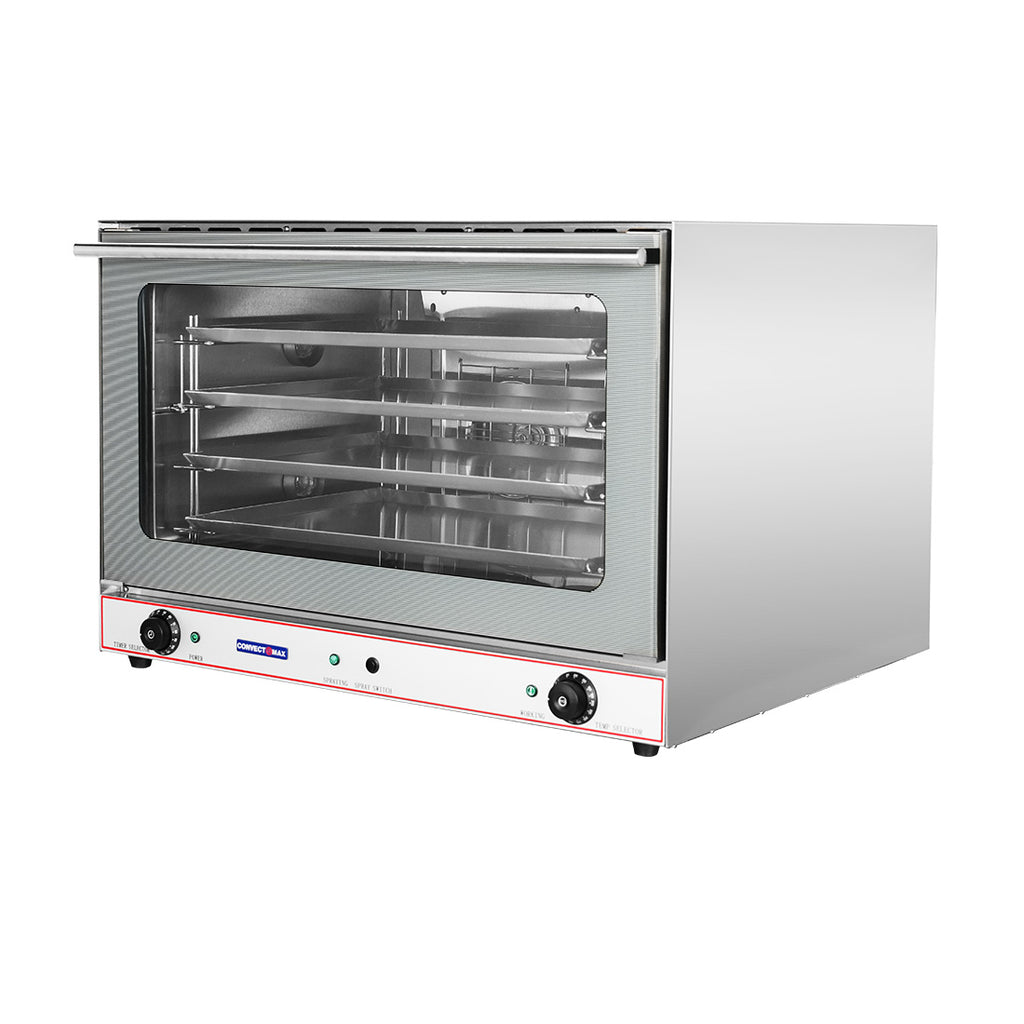

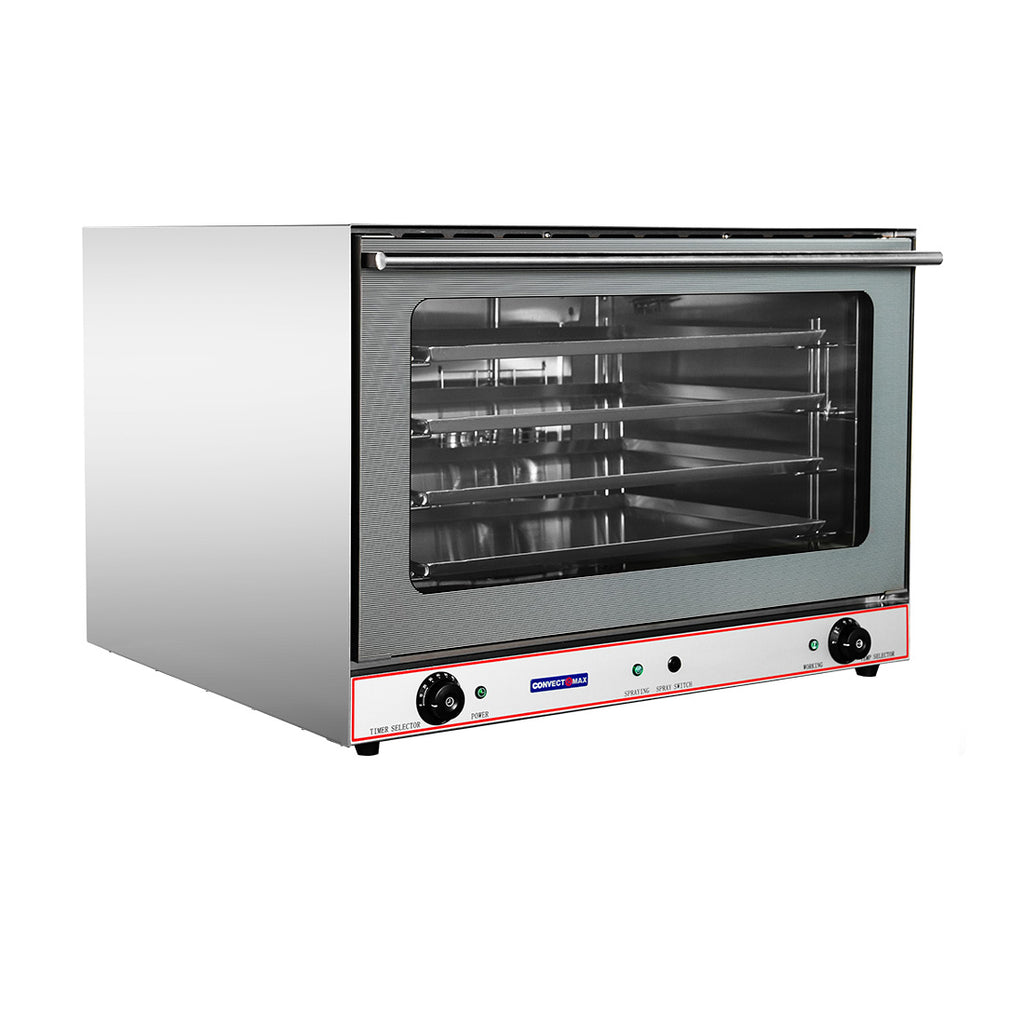

ConvectMax YXD-8A/15E - 4 Tray 600x400 Convection Oven with Steam, 15A

ConvectMax YXD-8A/15E - 4 Tray 600x400 Convection Oven with Steam, 15A

Bakeries and cafes that bake in full-size trays will like the ConvectMax YXD-8A/15E: it takes four 600 x 400mm bakery trays, has press-button steam for crusty bread and pastry, and plugs into a 15 A outlet. Two reversing fans bake evenly from 50 to 300°C, and the aluminium trays are included. It is the plug-in 3.3 kW version of the hard-wired YXD-8AE, in the same 834mm wide body.

Key features:

• Takes 4 x 600 x 400mm trays (4 aluminium trays included)
• Press-button steam function
• Temperature range 50–300°C, with a 360°C safety high-limit

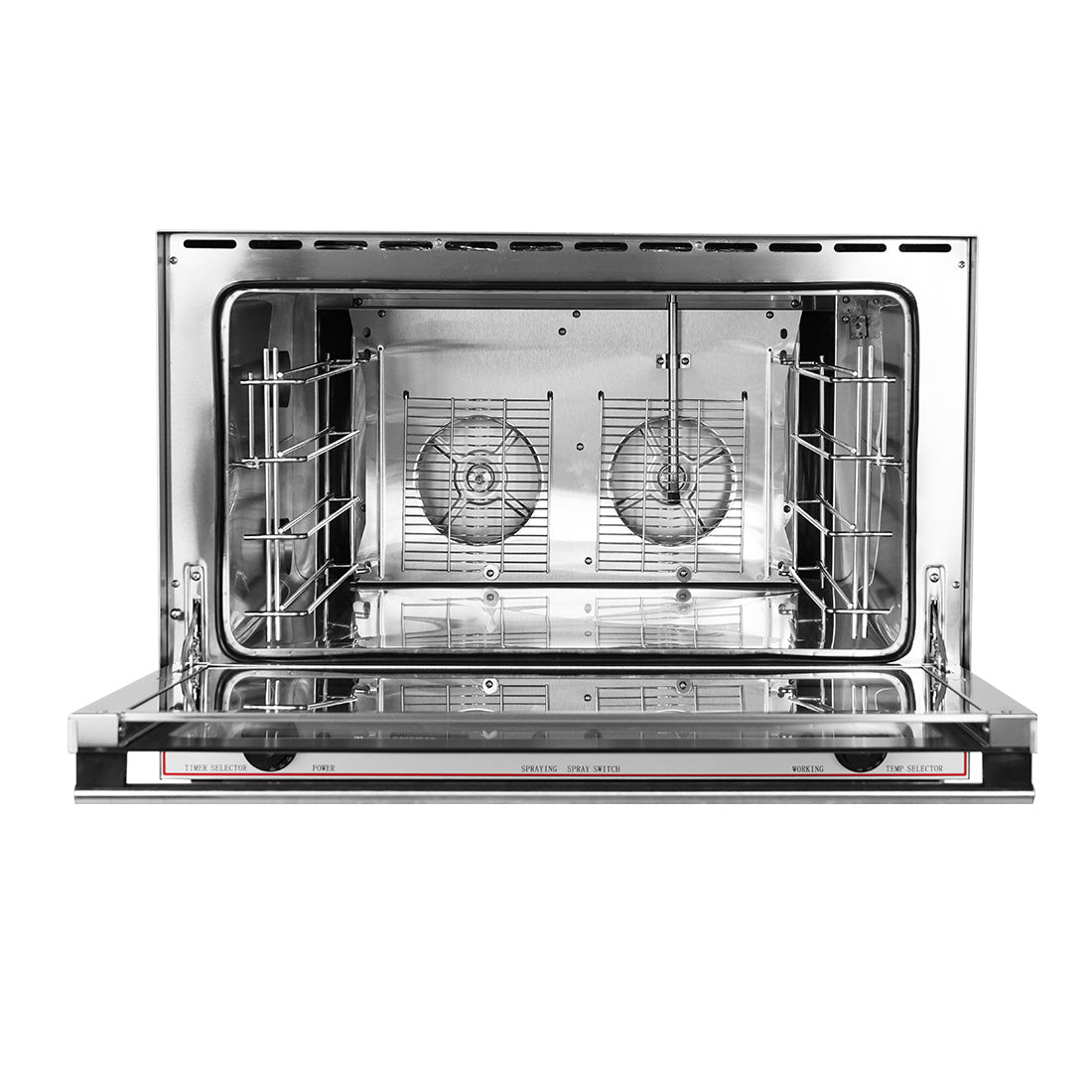

• Two reversing fans and a stainless steel baffle for even baking
• 120-minute timer with bell

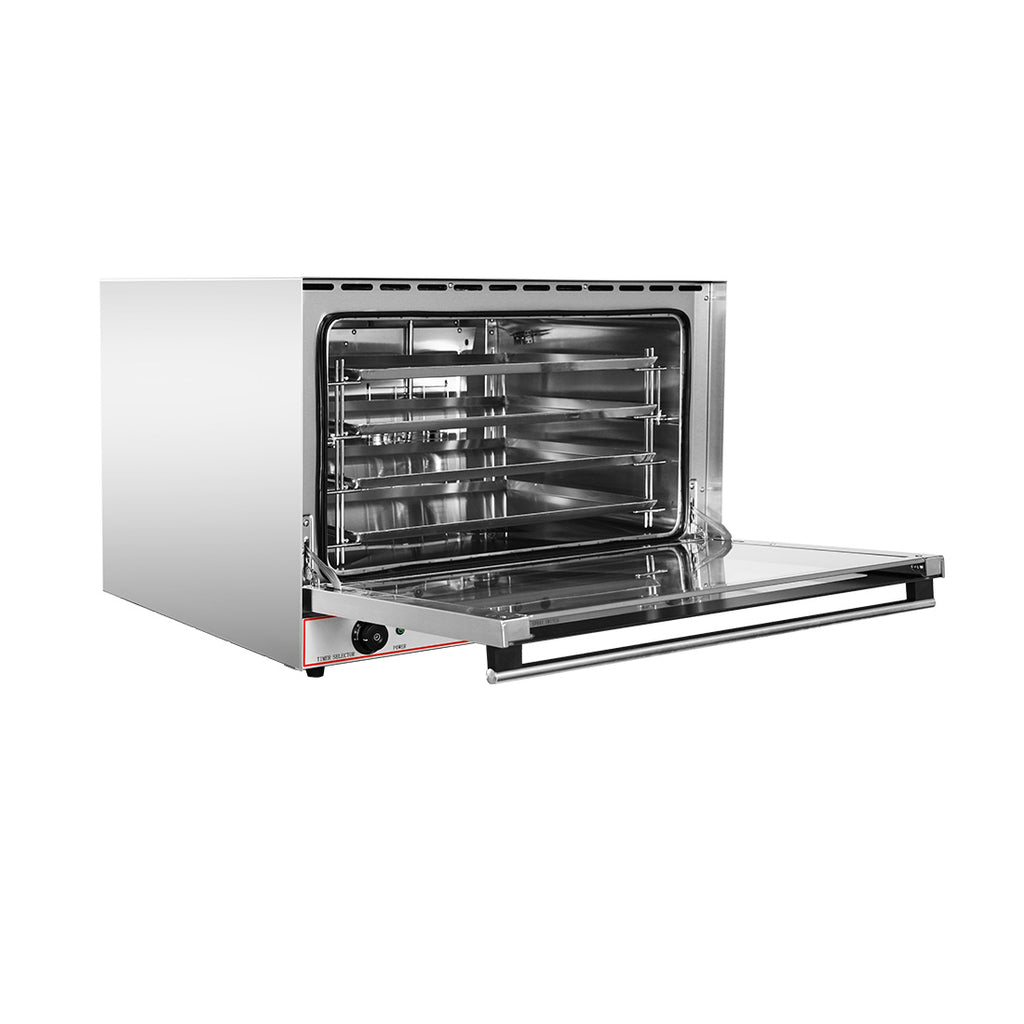

• Chamber light and double toughened glass door that latches open at 90°

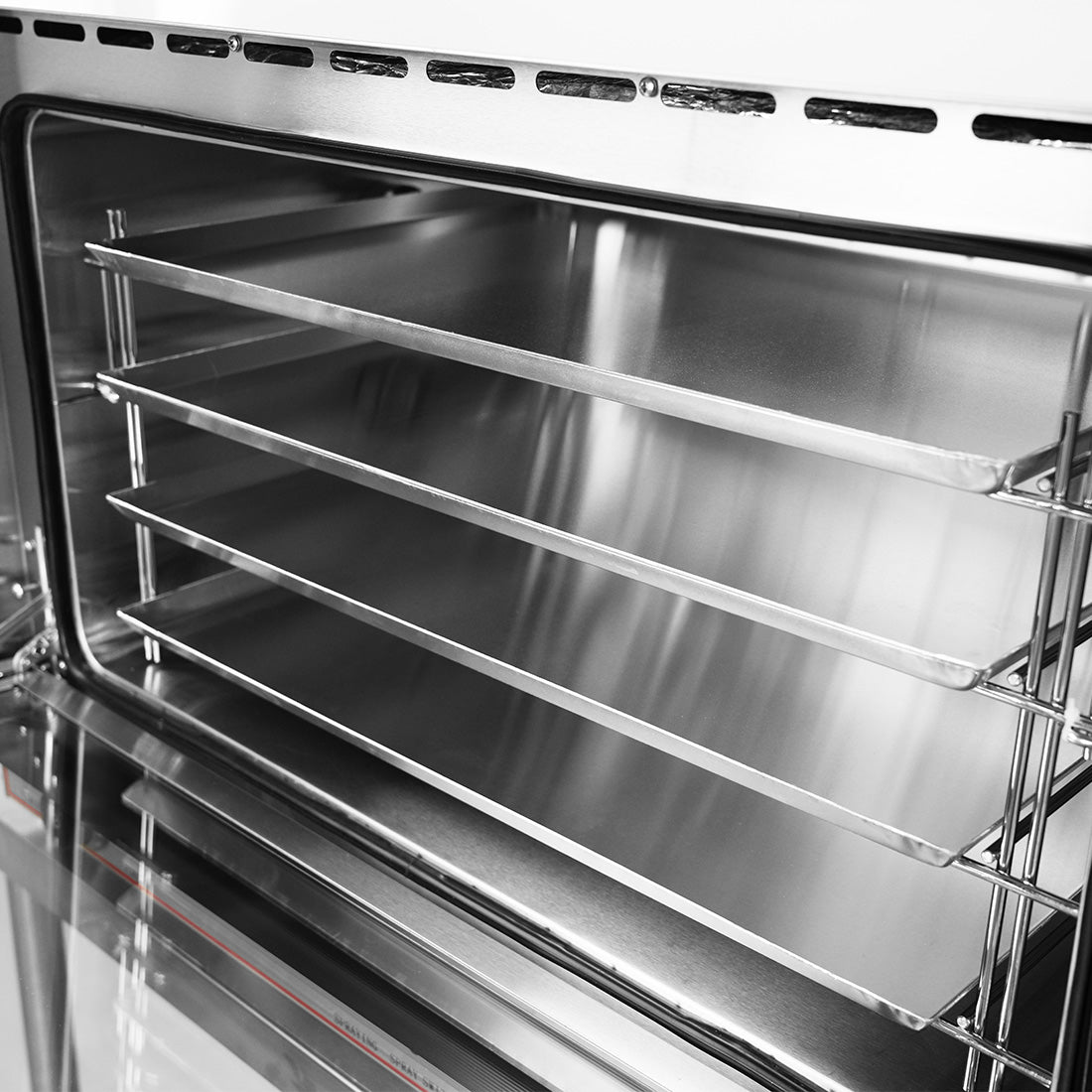

• 80mm tray spacing on nickel-coated pan supports
• Heavy-duty stainless steel body with insulation on 5 sides
• Optional wire shelf and matching stands available

Specifications:

• Model: ConvectMax YXD-8A/15E
• Capacity: 4 x 600 x 400mm trays (included)
• Tray spacing: 80mm
• Temperature range: 50–300°C
• Internal chamber: 700 W x 460 D x 360 H mm
• Dimensions: 834 W x 765 D x 572 H mm
• Power: 3.3 kW, 240V, 15 A plug
• Packed size for delivery: 950 W x 910 D x 700 H mm

Good to know before you buy:

• Power: it has a 15 A plug, so it needs a 15 A outlet. If you don't have one, have a licensed electrician install it.
• Water for steam: the steam function is fed through a water solenoid valve, so plan for a water connection made by a licensed plumber. We supply the equipment only.
• Stands: ConvectMax YXD-APE-6-SN and YXD-APE-8-SN stainless steel stands suit the YXD range. Ask us for a price.
• Access: it is packed at 950 x 910mm and delivered by tailgate truck to the front of your premises.

Compare similar models:

• ConvectMax YXD-8AE: same size with steam, 6.4 kW, hard-wired (27 A)
• ConvectMax YXD-8A-3E: lower-height oven for 3 x 600 x 400mm trays, 15 A
• ConvectMax YXD-6A/15: 4 x GN 1/1 oven with grill, 15 A

Common questions:

What is the difference between the YXD-8A/15E and YXD-8AE?
Same size, trays and steam. The YXD-8A/15E is 3.3 kW on a 15 A plug, while the YXD-8AE is 6.4 kW and must be hard-wired.

Are the trays included?
Yes. Four 600 x 400mm aluminium trays are included. A wire shelf is available as an option; ask us.

Do you install it?
We supply the equipment only. The water for the steam function must be connected by a licensed plumber, and a 15 A outlet installed by a licensed electrician if needed.

See all our commercial convection ovens.

Warranty: 1 year parts and labour.
