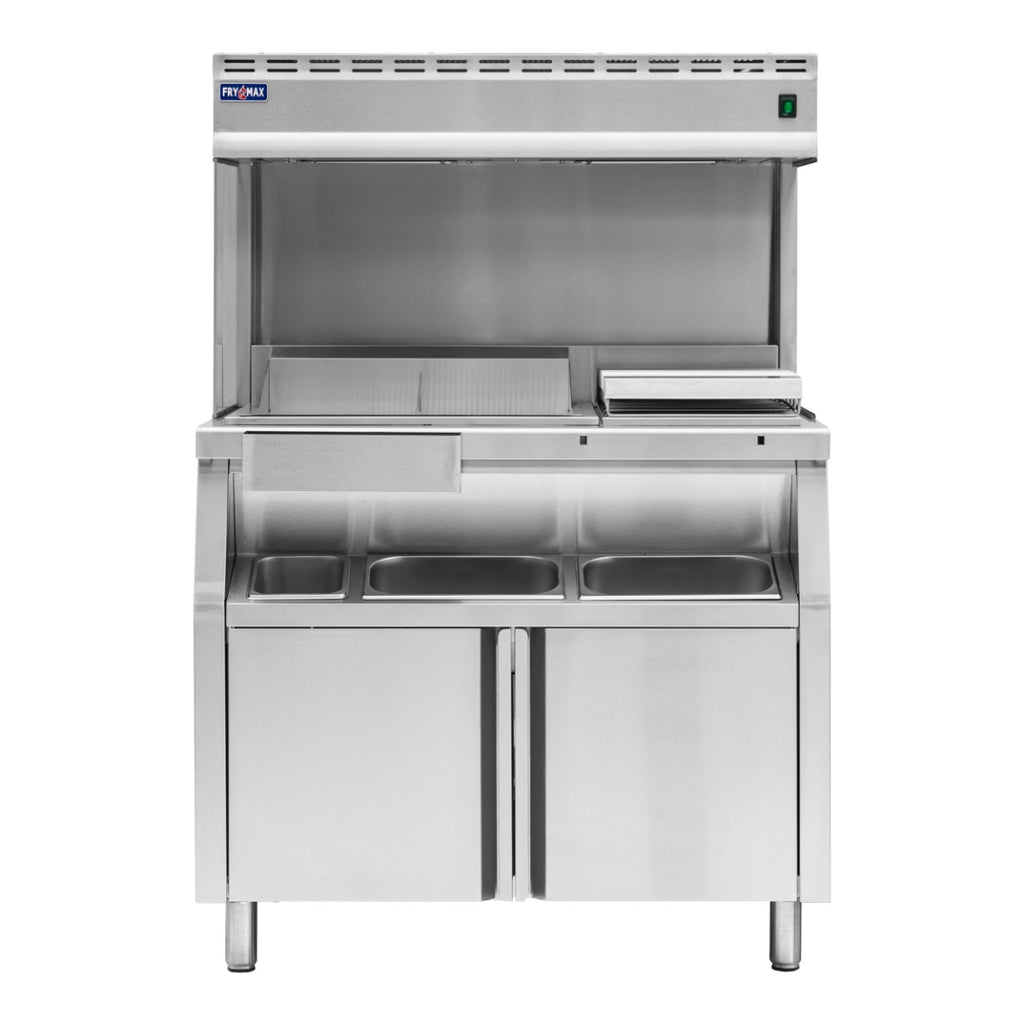

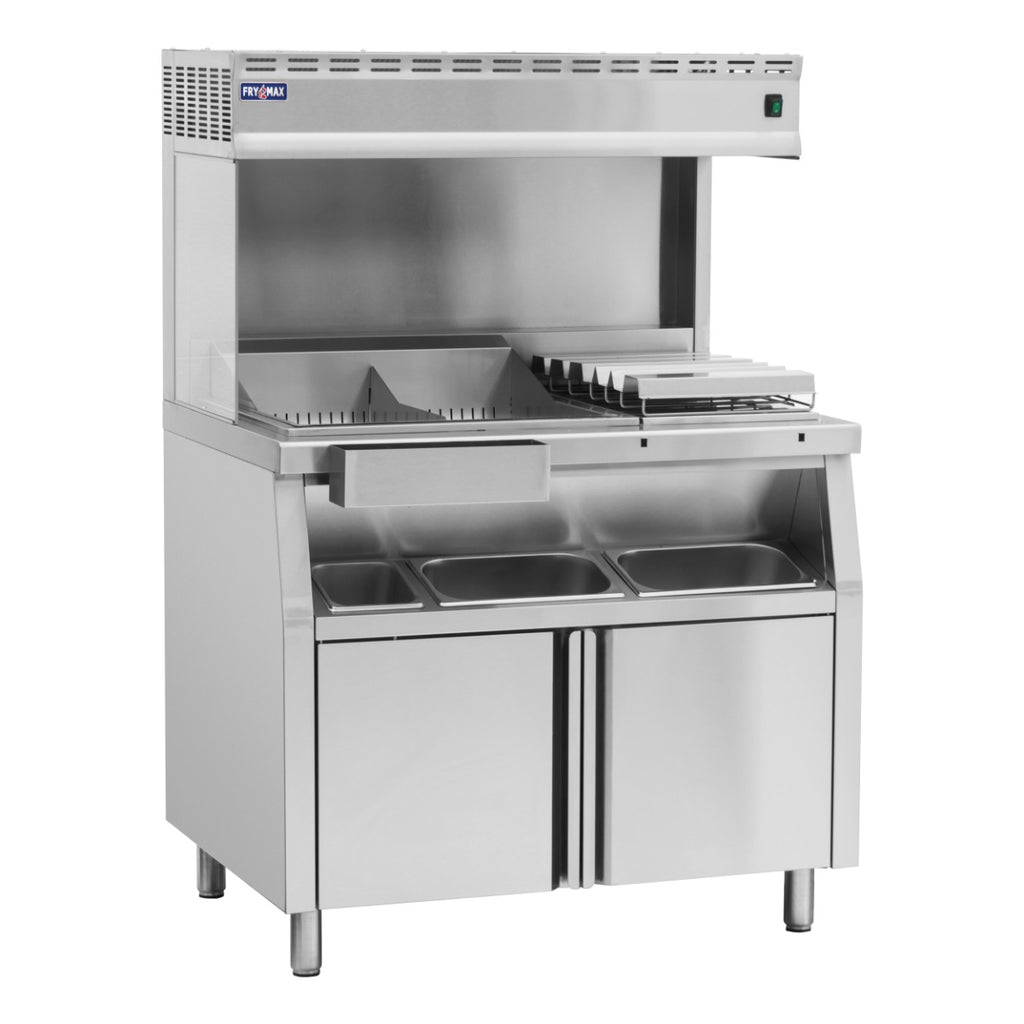

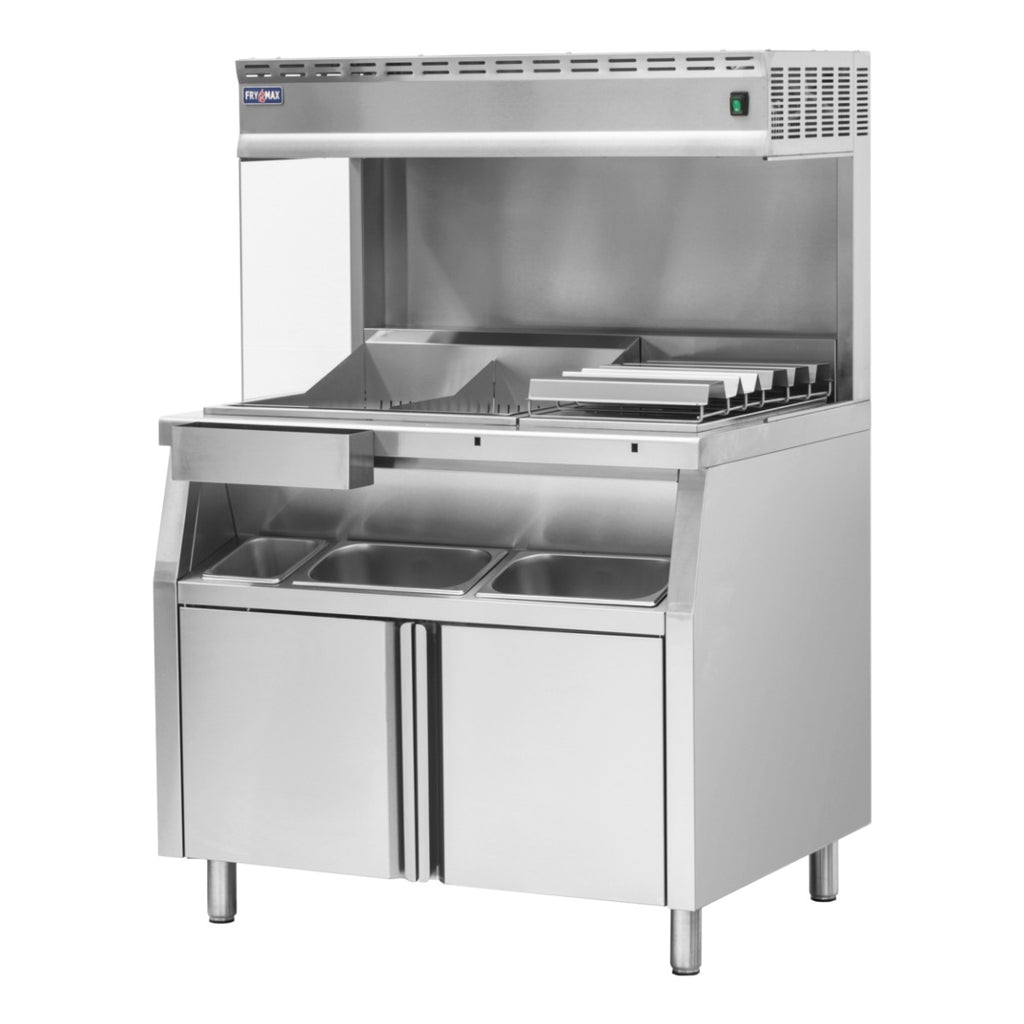

Electmax EFS-10 - Electric Fries Station 1000mm

Electmax EFS-10 - Electric Fries Station 1000mm

The Electmax EFS-10 is a 1000mm fries station for fish and chip shops, burger bars and takeaways that need plenty of holding space at the pass. Infrared ceramic heaters and four 60 W lamps sit over the dump pan, with a mirror-polished radiant plate to make the most of the heat, and a perforated pan lets excess oil drain away. It is 200mm wider than the EFS-8 and adds a third front GN pan and a 6mm glass board.

Key features:

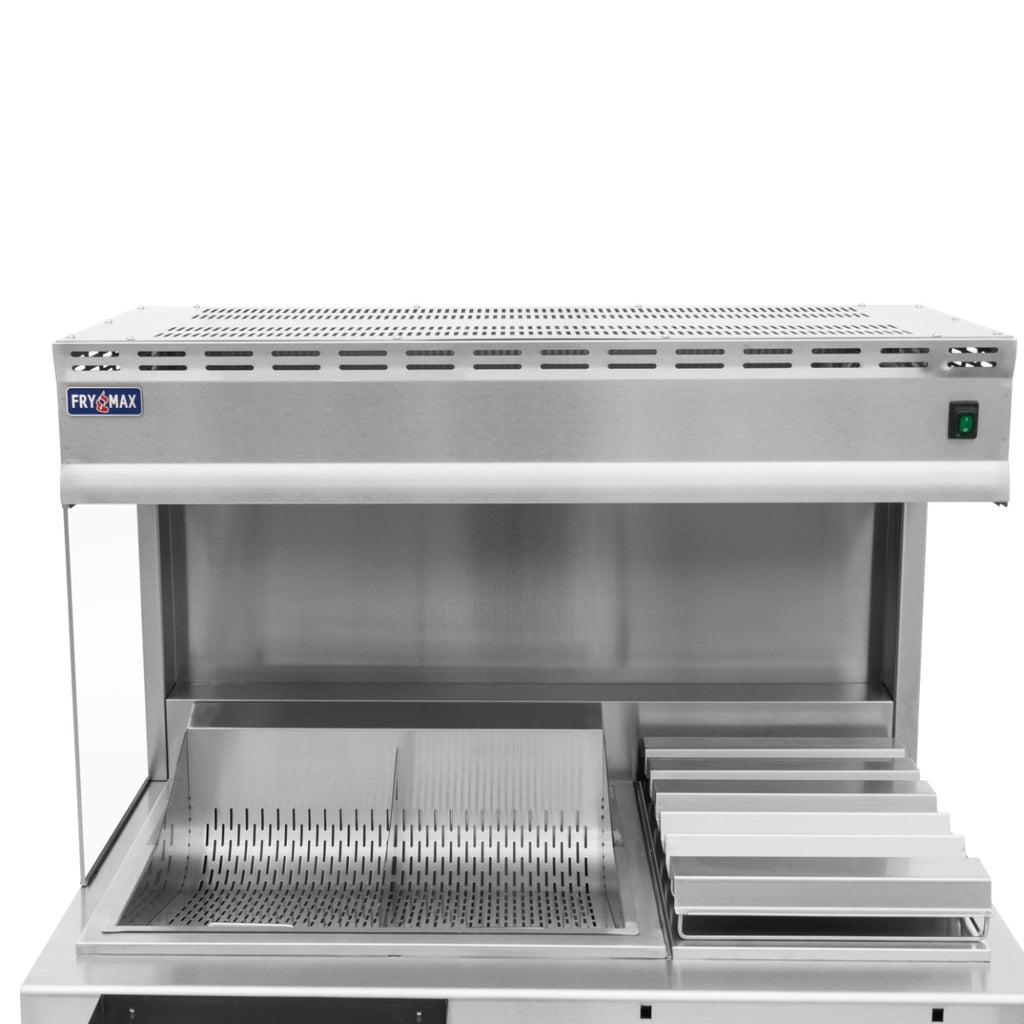

• Infrared ceramic top heaters plus four 60 W heat lamps
• Mirror-polished radiant plate behind the heaters to improve efficiency
• Heated dump pan (110 W) with a partition to separate different foods

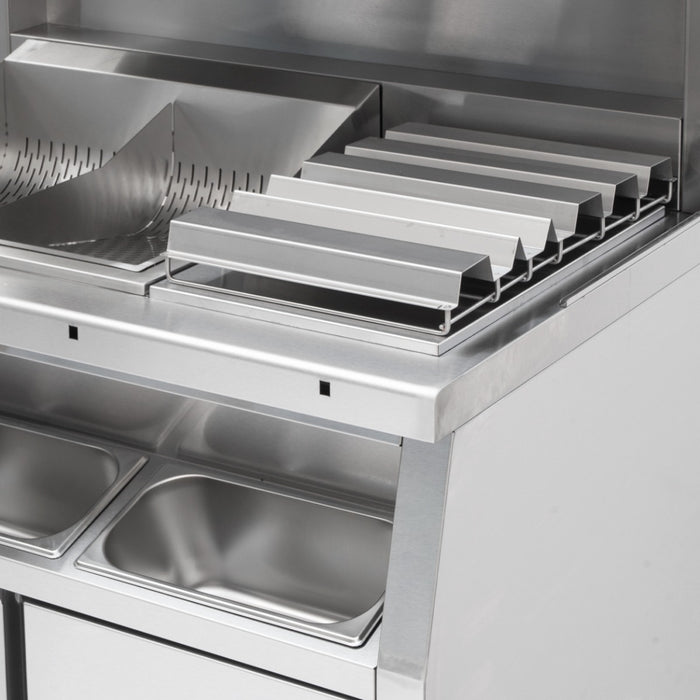

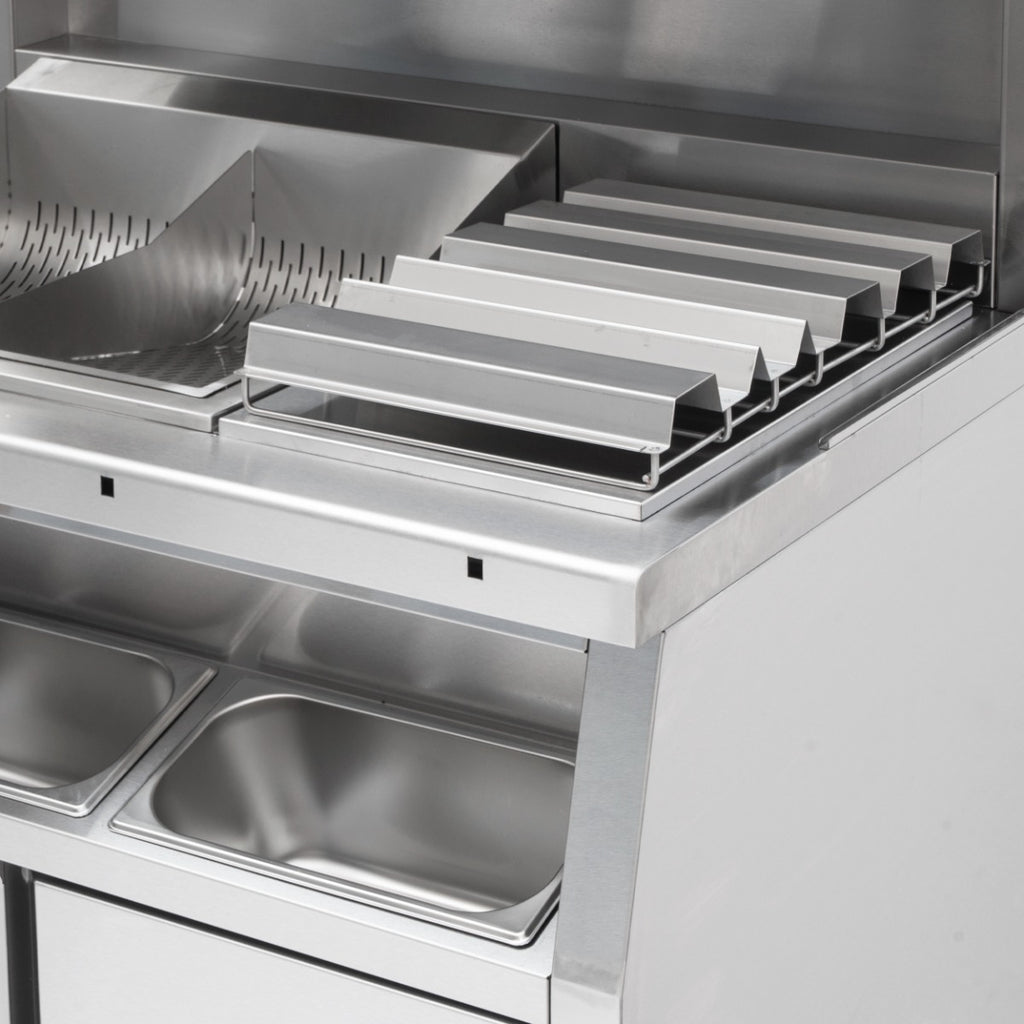

• Dump pan can be swapped for a wire rack; perforated pan removes excess oil
• Front stainless steel box with 2 x 1/3 and 1 x 1/6 GN pans, 150mm deep
• 6mm thick glass board and top cover plate
• Storage cabinet underneath with hinged doors
• Stainless steel structure on adjustable stainless legs

Specifications:

• Model: Electmax EFS-10
• Top heat: infrared ceramic heaters and 4 x 60 W lamps
• Dump pan heater: 110 W
• Dimensions: 1000 W x 720 D x 1500 H mm
• Weight: 85 kg
• Power: 1.45 kW, 240V, 10 A
• Pans included: 2 x 1/3 GN and 1 x 1/6 GN, 150mm deep
• Packed size for delivery: 840 x 1150 x 1640 mm

Good to know before you buy:

• Power: it runs on 240V single-phase power and plugs into a standard 10 A outlet.
• Placement: the manual calls for a firm, level, non-combustible surface, indoor use only, and about 150mm clear between the back of the unit and the wall.
• Access: the carton is about 840 x 1150 x 1640 mm and the unit weighs 85 kg. Delivery is by tailgate truck to the front of your premises; standard delivery doesn't include bringing it inside, up stairs or unpacking.

Compare similar models:

• Electmax EFS-8: 800mm fries station with a polycarbonate shield and 2 front GN pans
• Frymax VX15E: freestanding chip dump and fry warming station
• Anvil CDA1003: chip warmer with top and bottom heat

Common questions:

What power does it need?
Standard 240V single-phase. It is rated at 1.45 kW and 10 A, so it plugs into a normal 10 A power point.

Which GN pans come with it?
The front stainless steel box comes with two 1/3 GN pans and one 1/6 GN pan, all 150mm deep.

Can I use a rack instead of the dump pan?
Yes. FED says the dump pan can be interchanged with a wire rack, and a perforated pan helps drain excess oil.

See all our commercial deep fryers.

Warranty: 1 year parts and labour.
