FED-X XSS8C20S3V - Three Door Sandwich Prep Counter 2020 x 800mm
SKU: XSS8C20S3V
Prefer to talk? Call 0447 483 035 Mon–Fri, 9am–5pm (Sydney time)
- Australia-wide delivery, usually 2–5 business days to Sydney, Melbourne, Brisbane and Adelaide. Delivery info
- Price-Beat Guarantee. Found it cheaper? Send us the link
- Warranty: 2 years parts and labour, plus an extra 2 years on parts when you register the product with FED within 14 days of invoice. Warranty claims
- Tax invoice with our ABN for every order
- Secure checkout
Before it arrives
- Size: 2020 W x 800 D x 1406 H mm. Check doorways and access on the way in.
- Weight: 150 kg. Delivered by tailgate truck to your door, so plan for help or a trolley to move it inside.
- Power: 320W, 240V, 10 A plug.
We supply the equipment only. Connection and installation are by your own licensed trades. Full specifications are in the product details below.
Product details

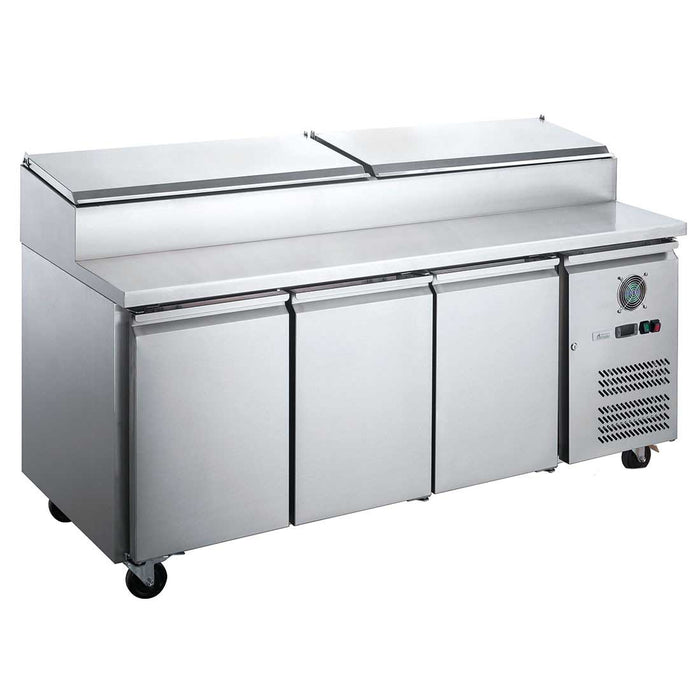

FED-X XSS8C20S3V - Three Door Sandwich Prep Counter 2020 x 800mm
The biggest FED-X sandwich counter, the XSS8C20S3V runs 2020mm long and 800mm deep, with a refrigerated top for 10 x GN 1/3 pans and 580 litres gross of storage behind three self-closing doors. It suits high-volume sandwich, salad and burrito lines where one counter has to hold a whole service. Fan-forced EBM-Papst cooling holds +2°C to +8°C and it is tropicalised for rooms up to 43°C.
Key features:
- Refrigerated top for 10 x GN 1/3 pans up to 150mm deep (pans not included)

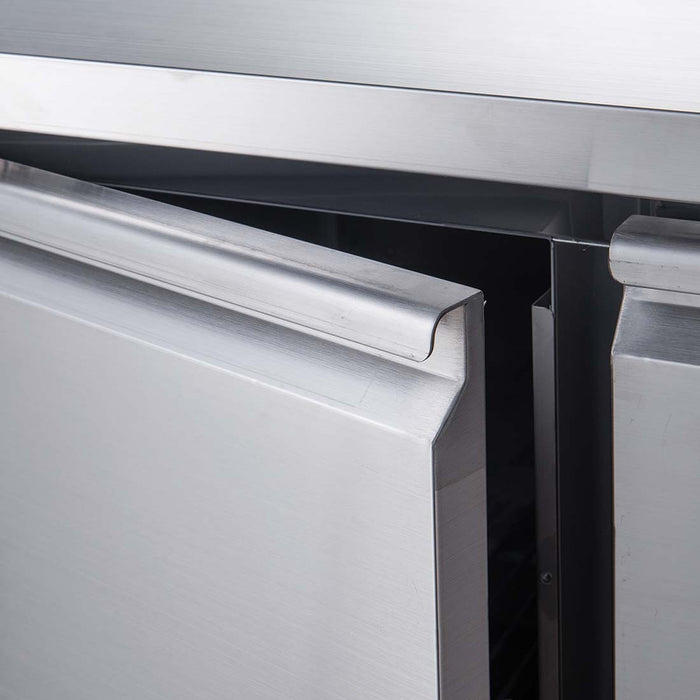

- Three self-closing doors with heavy-duty magnetic seals

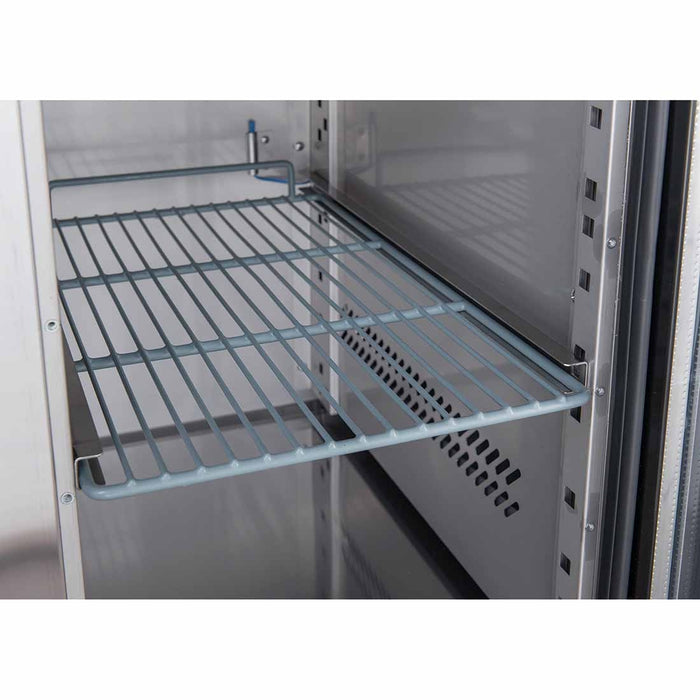

- One GN 1/1 compatible shelf per door, 40 kg rating

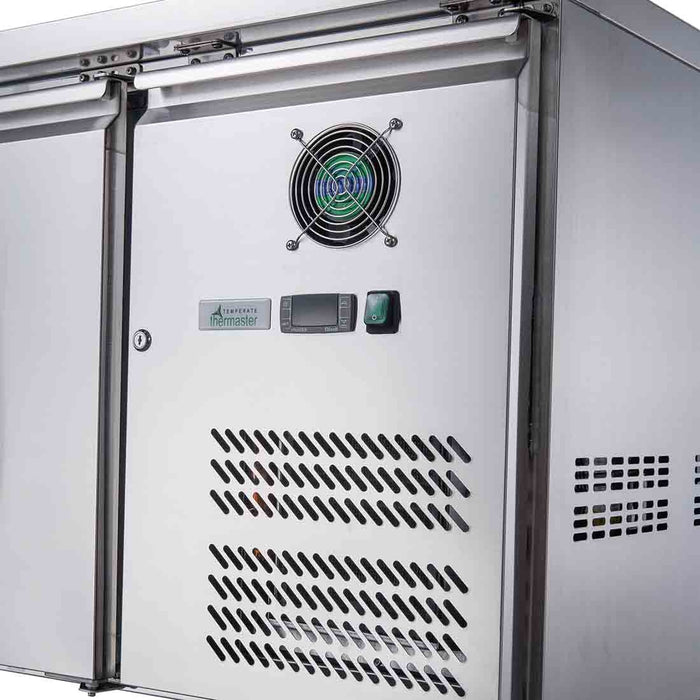

- Fan-forced cooling with EBM-Papst evaporator and condenser fans

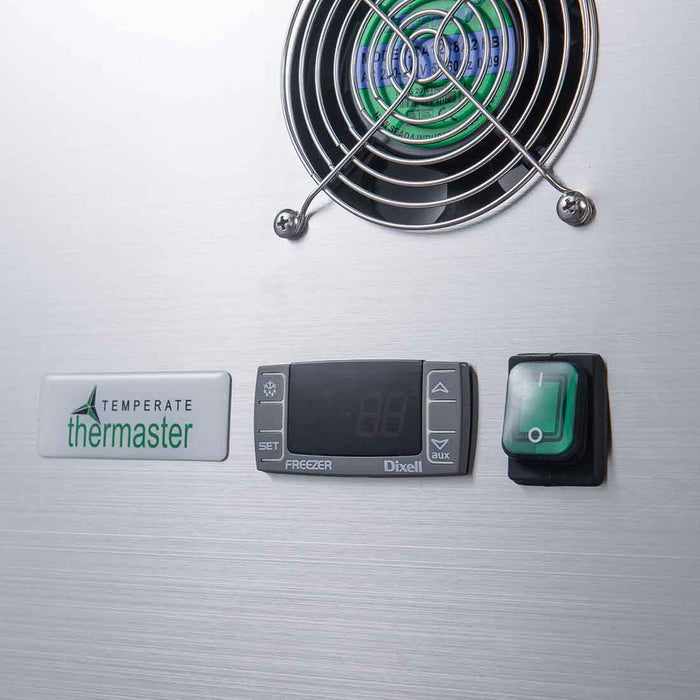

- Cubigel compressor, Dixell digital controller
- Tropicalised, rapid recovery, 60mm CFC-free insulation
- Stainless steel inside and out with rounded corners

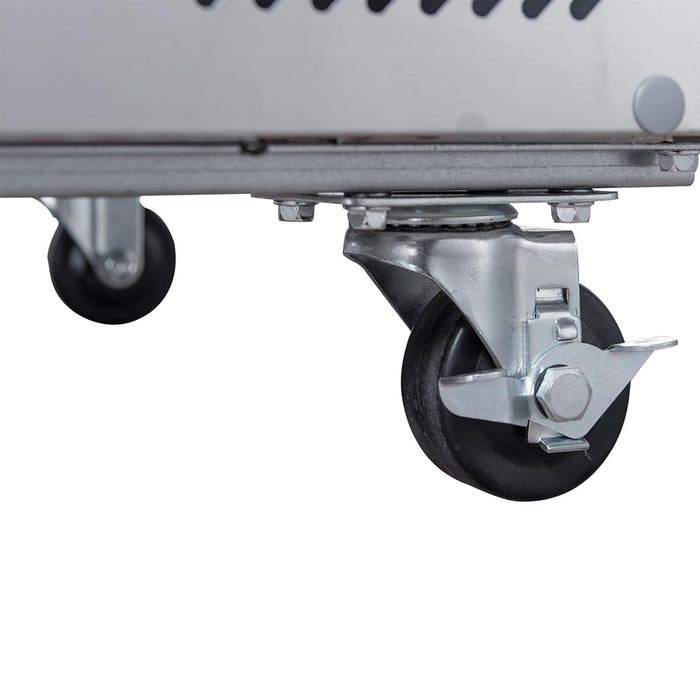

- Heavy-duty castors with braked front wheels
Specifications:
- Model: FED-X XSS8C20S3V
- Capacity: 580 litres gross
- Top pans: 10 x GN 1/3, up to 150mm deep (not included)
- Dimensions: 2020 W x 800 D x 1406 H mm
- Internal dimensions: 1459 W x 680 D x 564 H mm
- Weight: 150 kg
- Temperature range: +2°C to +8°C
- Maximum room temperature: 43°C at 60% relative humidity
- Refrigerant: R290
- Power: 320W, 240V, 10 A plug
Good to know before you buy:
- Access: a 2020mm-long, 1406mm-high, 150 kg unit needs a clear path in. Measure doorways, corridors and corners. It is delivered by tailgate truck to the front of your premises, and standard delivery doesn't include bringing it inside, up stairs or unpacking.
- Display top: FED says the top holds temperature for up to 4 hours from a pre-chilled environment.
- Extras: FED offers an 800mm-deep shelf set and 662mm runner sets for this model. Ask us.
- Power: plugs into a standard 10 A power point.
Compare similar models:
- FED-X XSS8C15S2V: two-door, 1510mm version with 8 x GN 1/3 on top
- FED-X XSS7C18S3V: 700mm-deep, 1795mm three-door counter, 8 x GN 1/3
- FED-X XPZ3600TN: same 2020 x 800mm footprint, 990mm high, no pan top
- FED-X XPZ3600TND: 2020mm marble-top pizza bench with two doors and seven drawers
Common questions:
How many pans does the top hold?
10 x GN 1/3 pans, up to 150mm deep. Pans are sold separately.
Does it suit a hot kitchen?
Yes. FED tropicalises it and rates it for rooms up to 43°C at 60% relative humidity.
Do you install it?
There's nothing to install: it plugs into a standard 10 A power point. We supply the equipment only.
See all our food prep stations.
Warranty: 2 years parts and labour, plus an extra 2 years on parts when you register the product with FED within 14 days of invoice.
