Gasmax GGS-24 - 600mm Gas Griddle and Toaster with Cabinet
Gasmax GGS-24 - 600mm Gas Griddle and Toaster with Cabinet
SKU: GGS-24
Prefer to talk? Call 0447 483 035 Mon–Fri, 9am–5pm (Sydney time)
- Australia-wide delivery, usually 2–5 business days to Sydney, Melbourne, Brisbane and Adelaide. Delivery info
- Price-Beat Guarantee. Found it cheaper? Send us the link
- Warranty: 2 years parts and labour, plus a further 2 years on parts when the unit is registered with FED within 14 days of invoice. Warranty claims
- Tax invoice with our ABN for every order
- Secure checkout
Before it arrives
- Size: 610 W x 815 D x 970 H mm. Check doorways and access on the way in.
- Weight: 126 kg. Delivered by tailgate truck to your door, so plan for help or a trolley to move it inside.
- Gas: needs a licensed gas fitter to connect. Choose natural gas or LPG when you order, where offered.
We supply the equipment only. Connection and installation are by your own licensed trades. Full specifications are in the product details below.
Product details

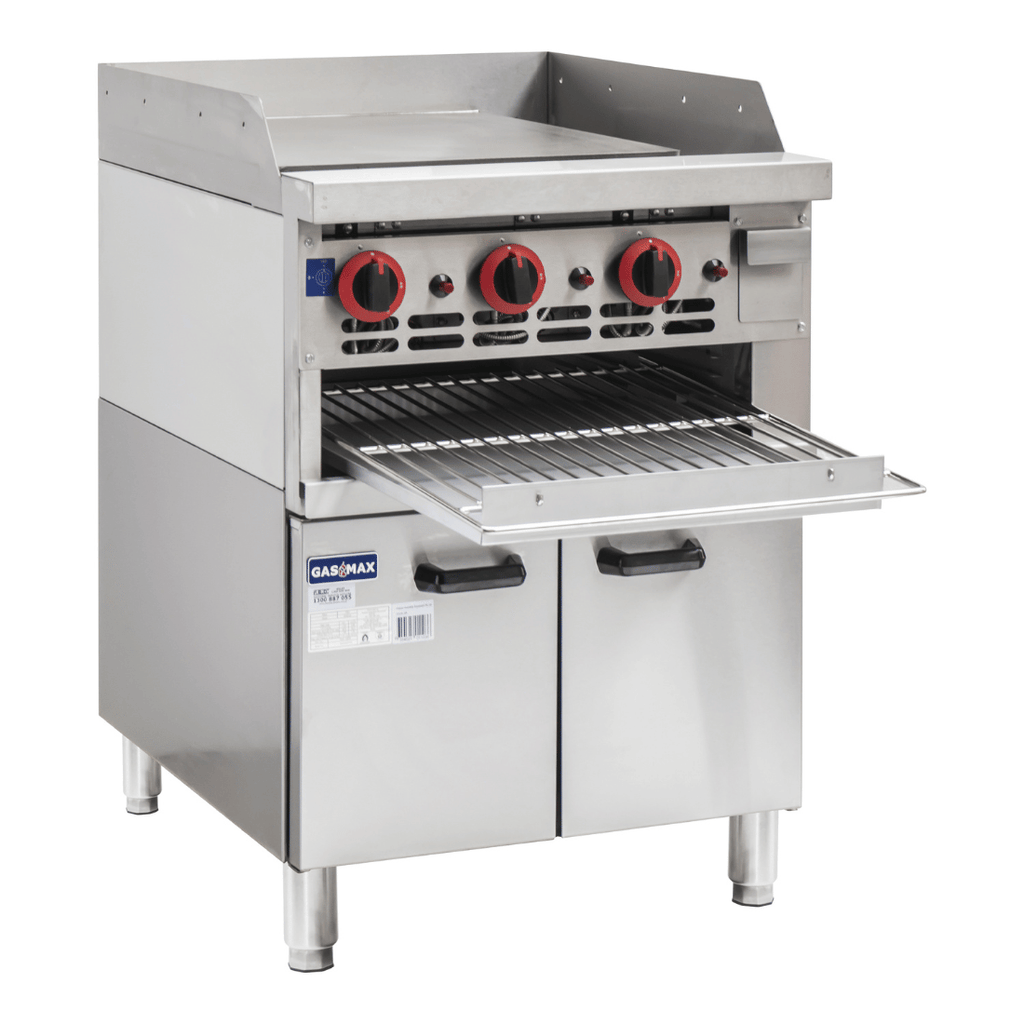

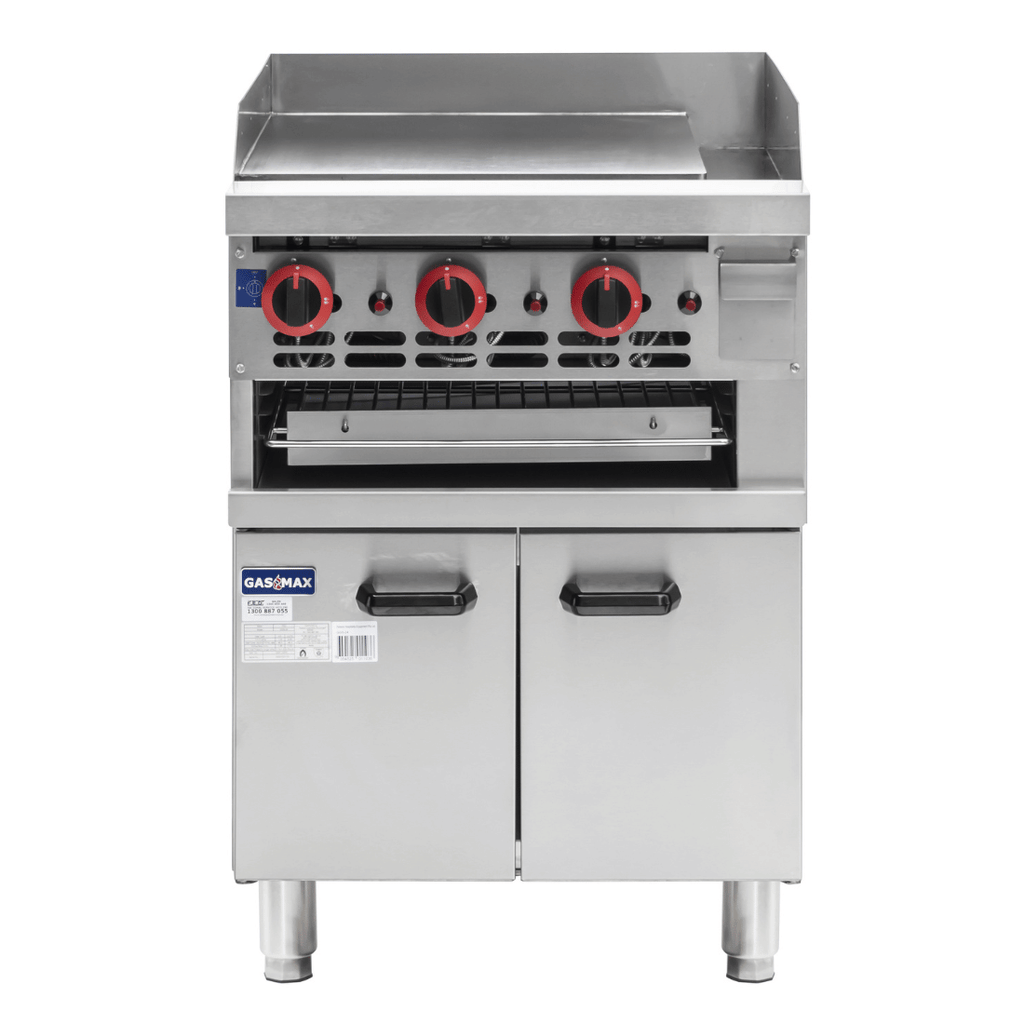

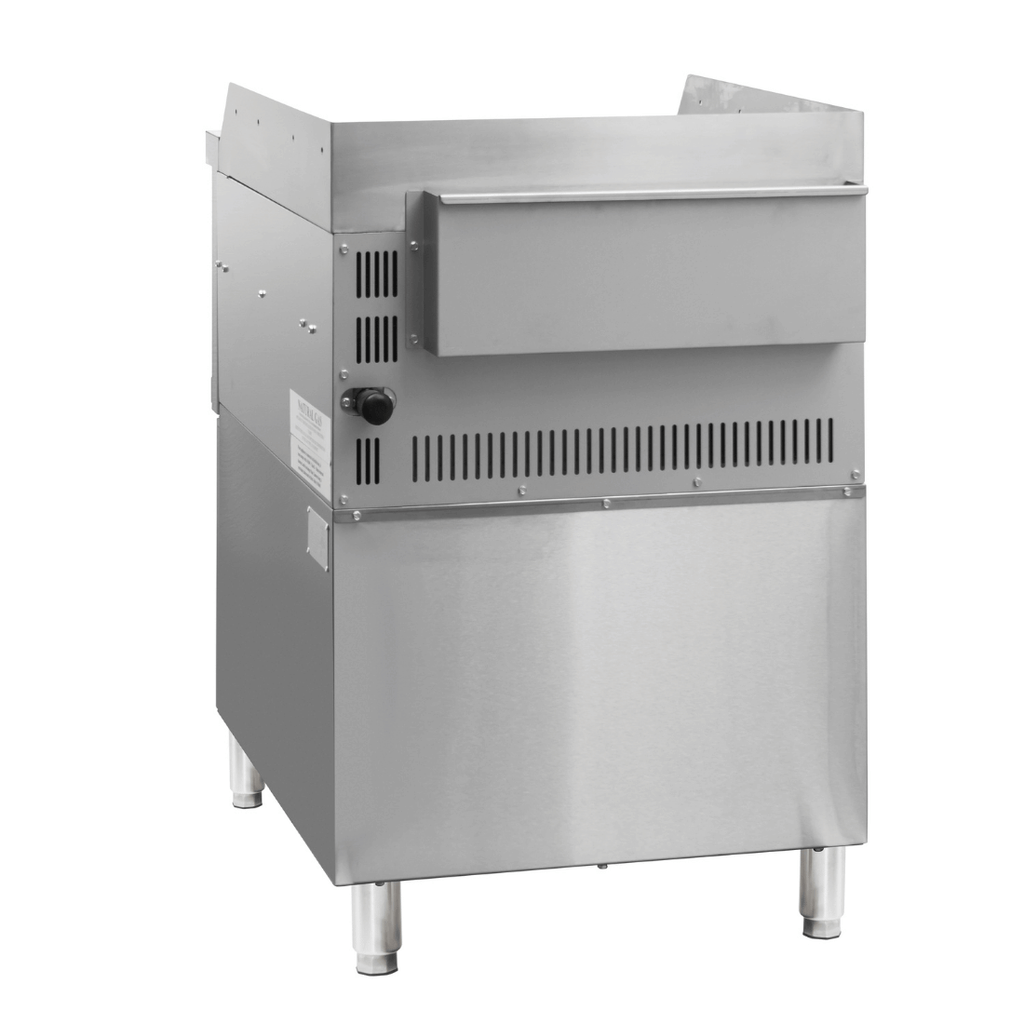

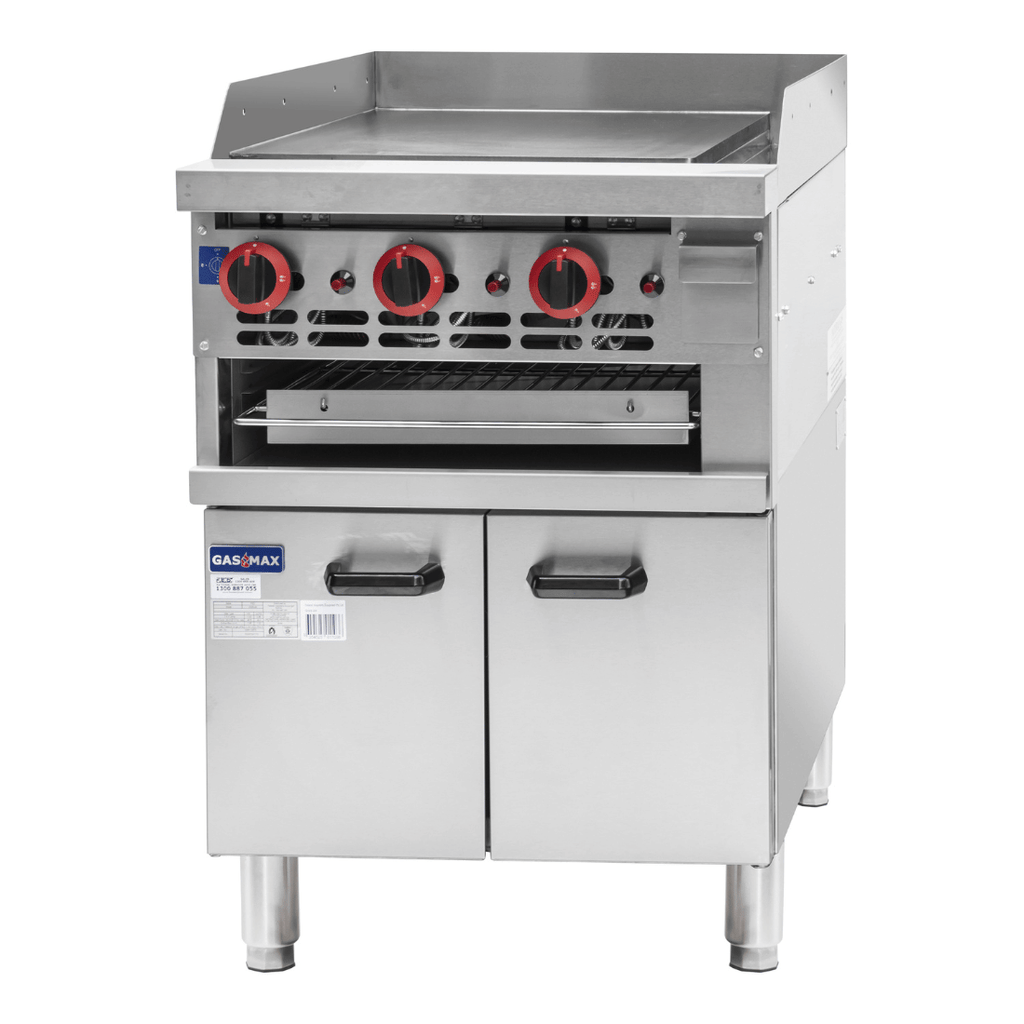

Gasmax GGS-24 - 600mm Gas Griddle and Toaster with Cabinet
The Gasmax GGS-24 combines three jobs in one 610mm freestanding unit: a 19mm steel griddle plate for eggs, patties and onions, a gas toaster (broiler) with a sliding rack for toasting buns or melting cheese, and a double-door cabinet for storage. It suits burger bars, diners and breakfast cafes that want a compact cooking station. Every burner has its own flame failure control, and it is the 600mm version of the larger GGS-36.
Key features:

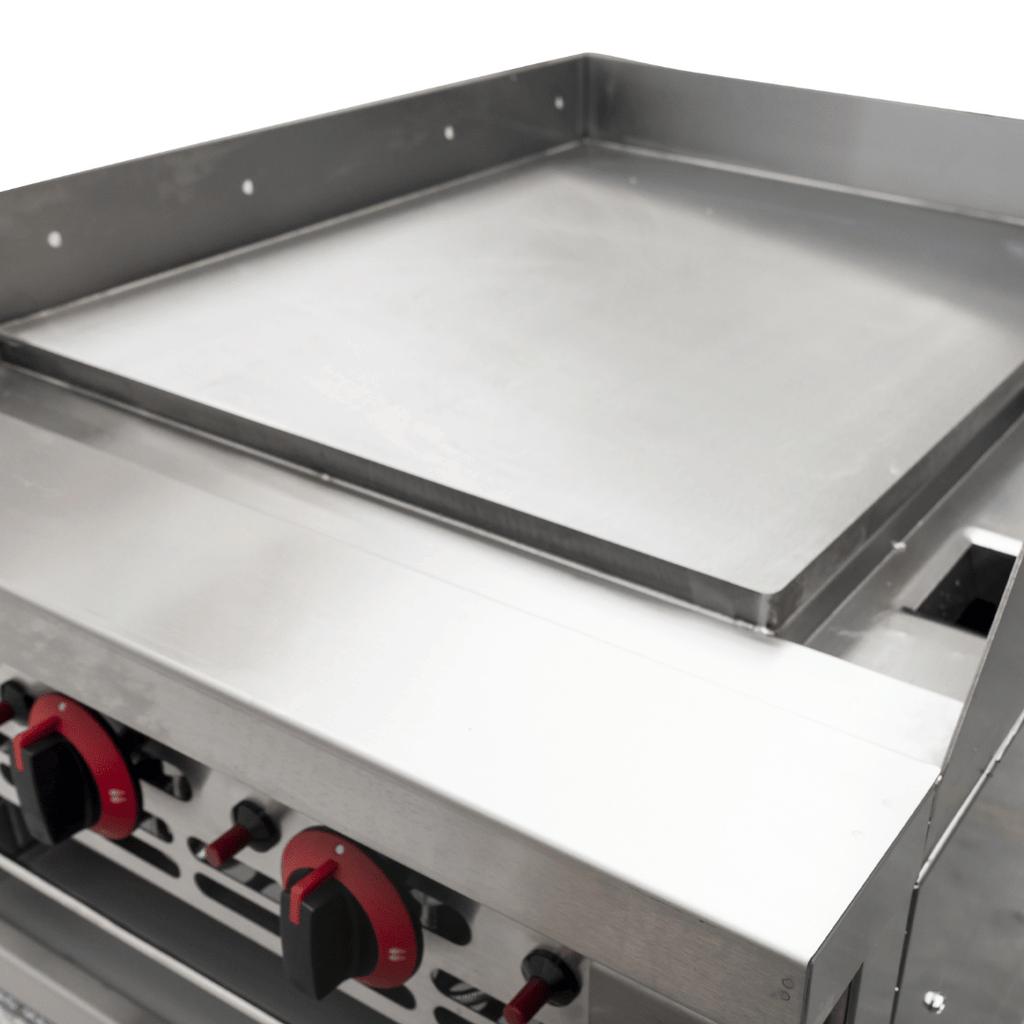

- 19mm heavy-duty mild steel griddle plate
- Gas toaster (broiler) with an 8.25 inch (about 210mm) high opening and a built-in sliding rack

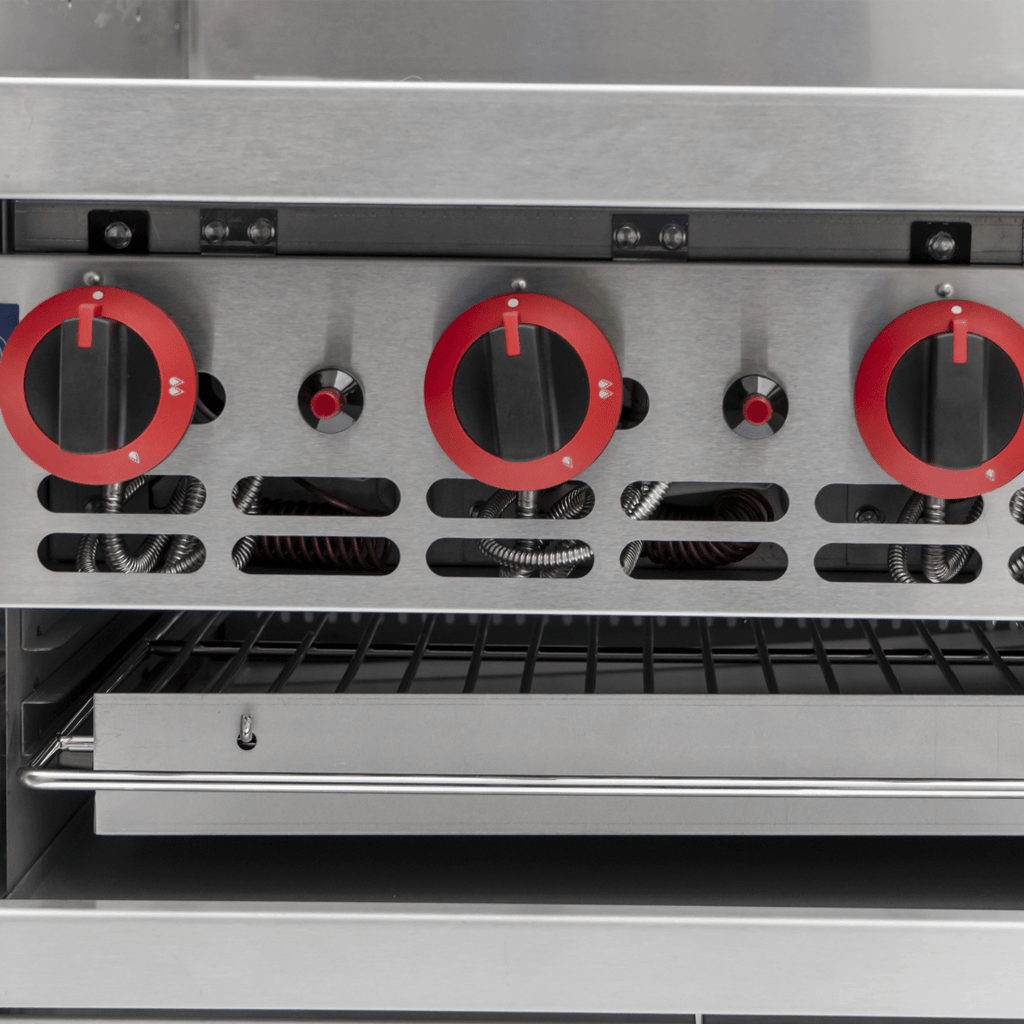

- 3 cast iron open burners, 14.8 MJ/h each
- Flame failure control on each burner
- Piezo igniter and continuous pilot
- Pull-out crumb tray with an angled front handle, plus a large grease collector
- Cabinet with double doors
- Welded frame for stability, with adjustable heavy-duty legs
- Stainless steel front, galvanised sides
Specifications:
- Model: Gasmax GGS-24 (natural gas), GGS-24LPG (LPG)
- Griddle plate: 19mm mild steel
- Burners: 3 cast iron, 14.8 MJ/h each
- Gas consumption: 46.5 MJ/h
- Gas connection: 3/4 inch NPT, rear
- Dimensions: 610 W x 815 D x 970 H mm
- Weight: 126 kg
- Gas type: natural gas or LPG (choose when ordering)
- Construction: stainless steel front, galvanised sides, welded frame
Good to know before you buy:
- Gas type: choose Natural Gas or LPG when you order, to match your gas supply.
- Installation: gas appliances must be installed by a licensed gas fitter, to local regulations and under suitable ventilation or an exhaust canopy. We supply the equipment only.
- Freestanding: it stands on its own legs with the cabinet built in, so no separate stand or bench is needed.
- Access: it weighs 126 kg and is 815mm deep. Delivery is by tailgate truck to the front of your premises, so check doorways and arrange lifting help.
Compare similar models:
- Gasmax GGS-36: 915mm griddle and toaster with cabinet, 5 burners
- Gasmax GG-24: 610mm griddle top only, 22mm plate
- Gasmax RGT-24E: 610mm griddle top with a removable plate
- Gasmax REB-02E: separate gas salamander with infrared burners
Common questions:
What can I do with the toaster section?
The broiler has a sliding rack and an opening about 210mm high, handy for toasting buns, browning and melting cheese while the griddle handles the patties.
Does every burner have flame failure?
Yes. FED lists flame failure control on each burner.
Do you install it?
We supply the equipment only. It must be connected by a licensed gas fitter in your area.
See all our commercial grills.
Warranty: 2 years parts and labour, plus a further 2 years on parts when the unit is registered with FED within 14 days of invoice.
