Gasmax KB-4 - 4 Burner Gas Kebab Machine 45kg

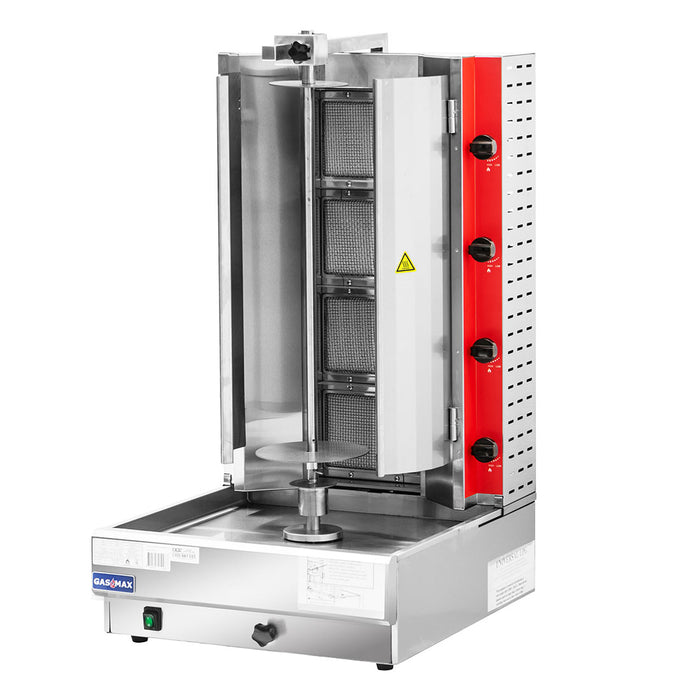

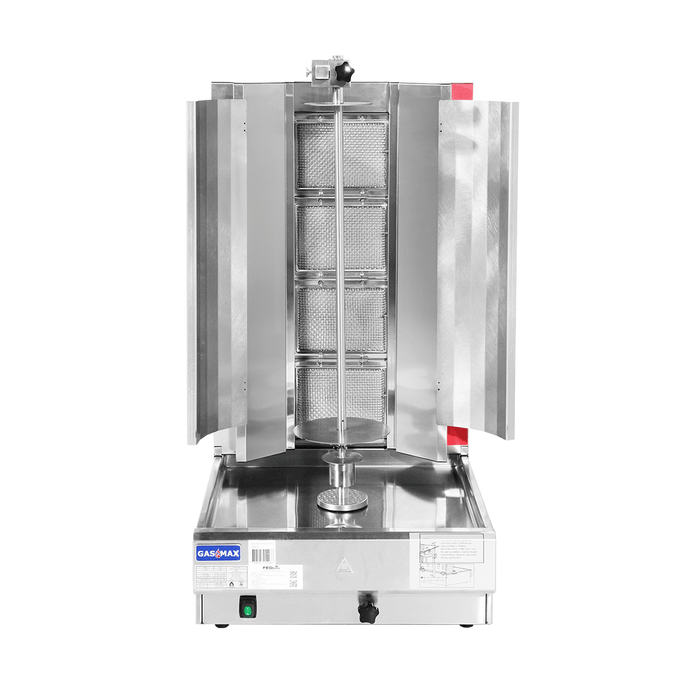

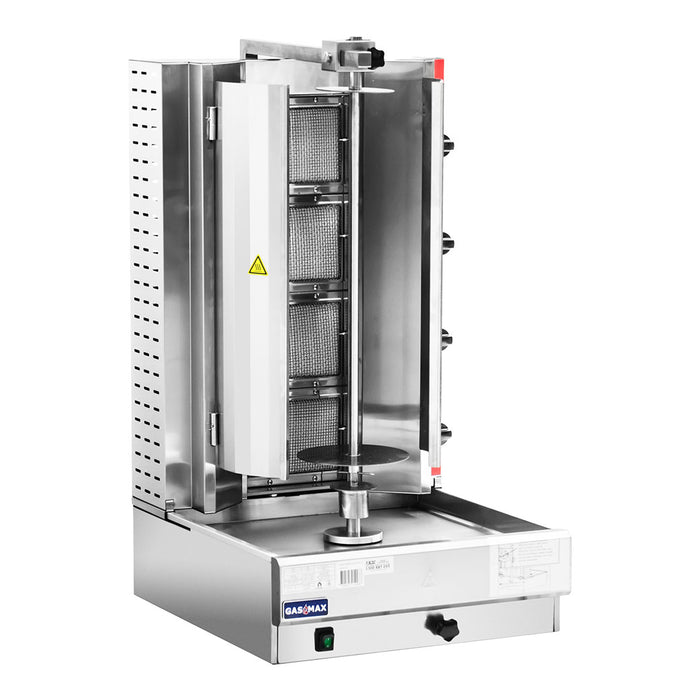

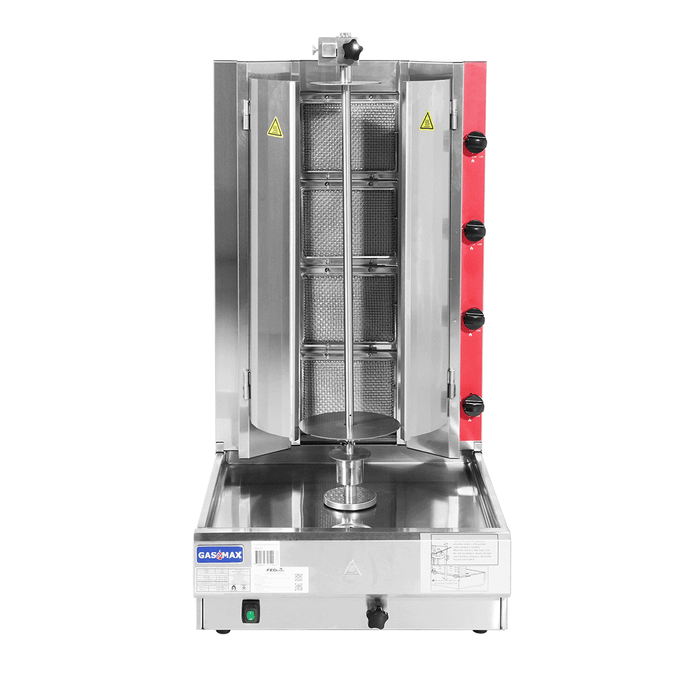

For a kebab shop or takeaway with steady trade, the Gasmax KB-4 is a semi-automatic gas vertical broiler that holds up to 45 kg of meat on a 711mm spit. Four infrared ceramic burners give even, intense heat for doner, gyros and shawarma with a crisp outside and juicy centre. It is the middle model in the KB range: a taller spit and one more burner than the KB-3, on the same 537 x 639mm footprint.

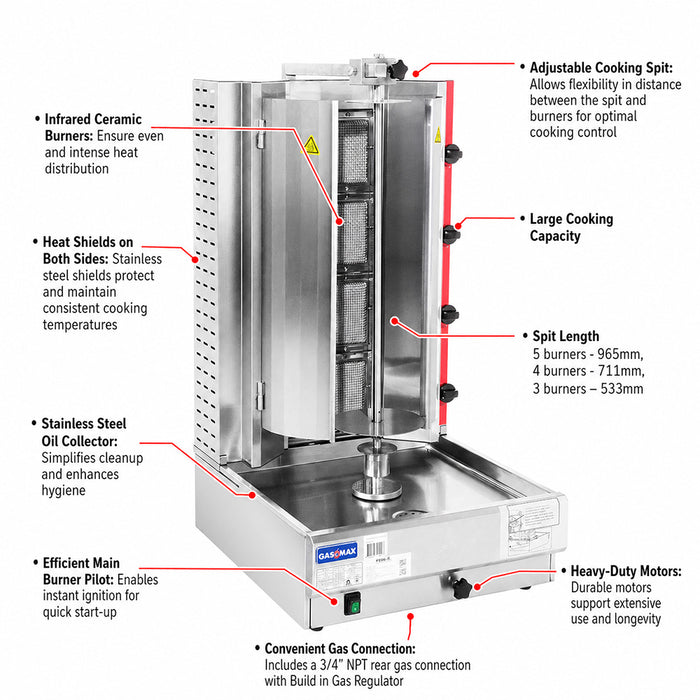

Key features:

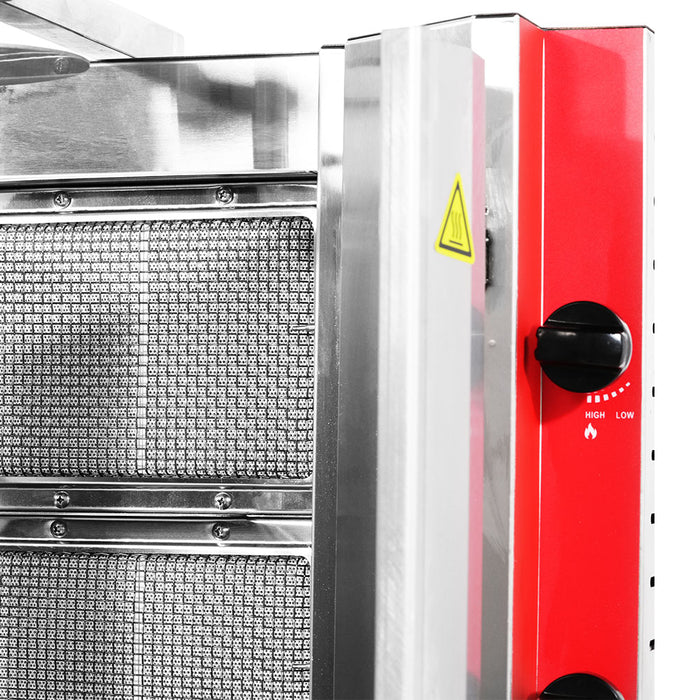

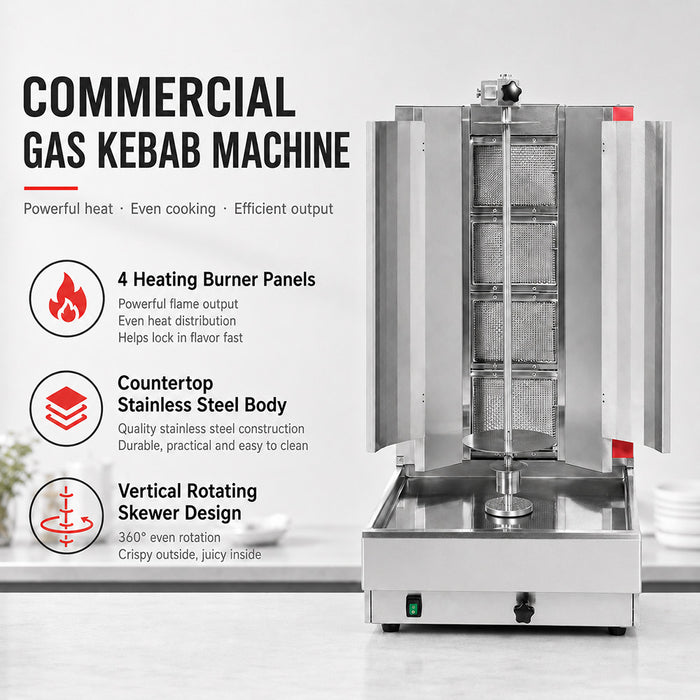

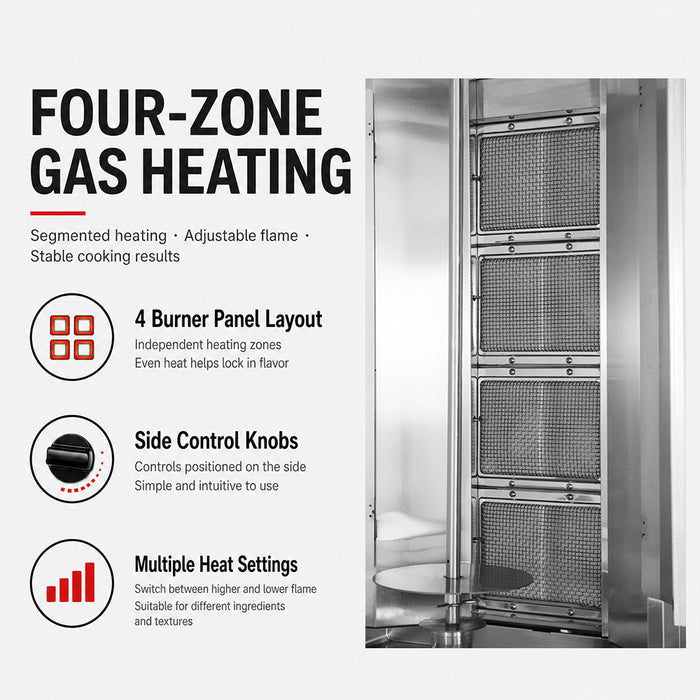

- 4 infrared ceramic burners for even, intense heat
- Up to 45 kg of meat on a 711mm spit

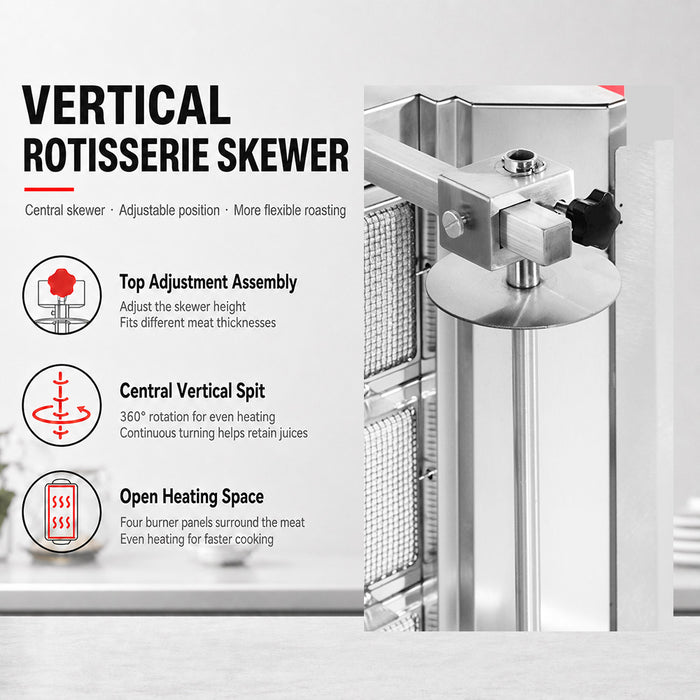

- Adjustable spit distance from the burners

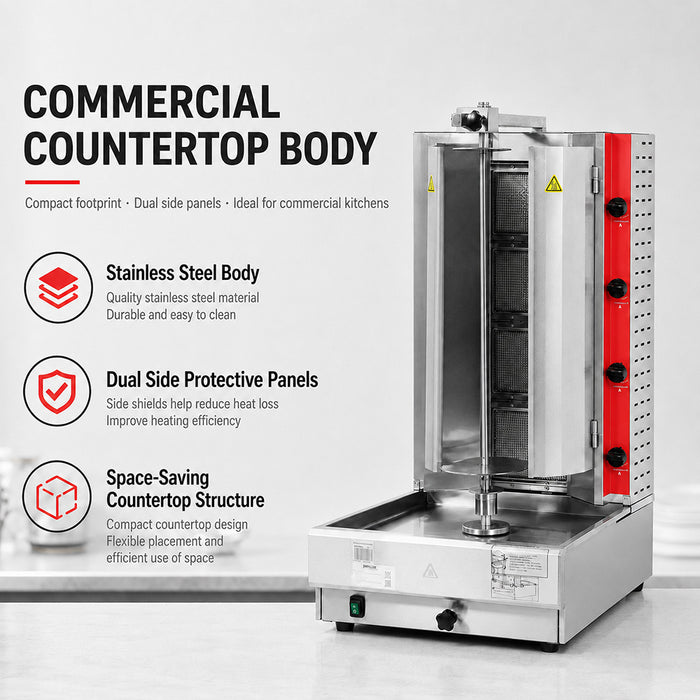

- Stainless steel heat shields on both sides to hold cooking temperatures
- Main burner pilot for instant ignition
- Heavy-duty motor built for extended use
- Sturdy stainless steel structure
- 3/4 inch NPT rear gas connection with a built-in gas regulator
Specifications:
- Model: Gasmax KB-4 (natural gas), KB-4LPG (LPG)
- Meat capacity: 45 kg
- Spit length: 711mm
- Burners: 4 infrared ceramic
- Gas consumption: 52 MJ/h natural gas, 48 MJ/h LPG

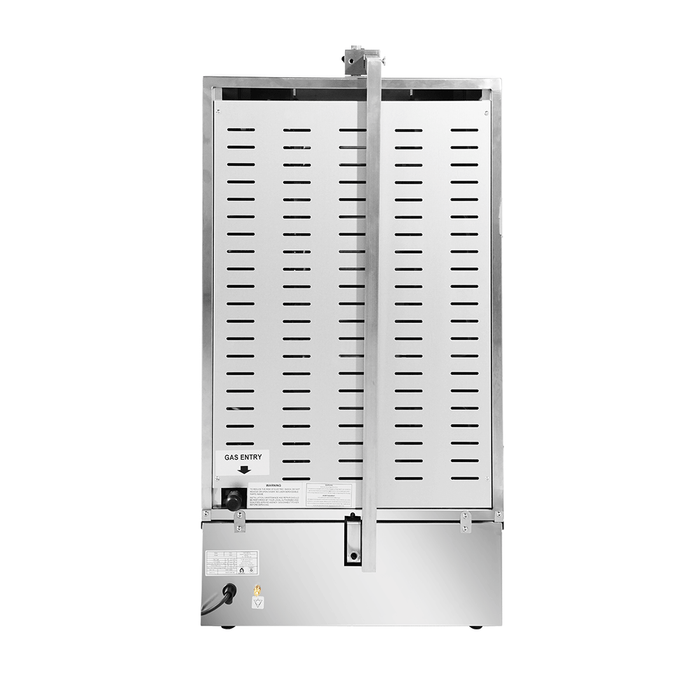

- Gas connection: 3/4 inch NPT, rear, with built-in regulator
- Power: 10 A plug

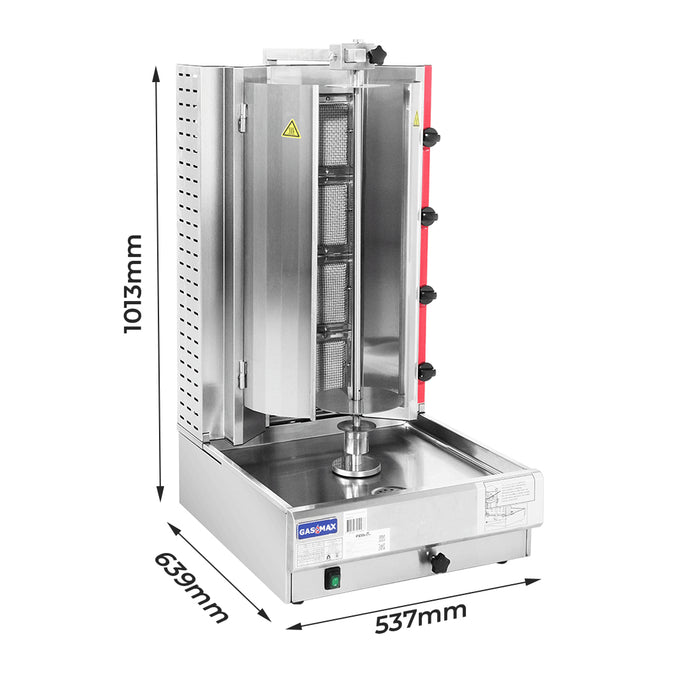

- Dimensions: 537 W x 639 D x 1013 H mm
- Weight: 39 kg
- Packed size for delivery: 650 x 780 x 1200 mm
Good to know before you buy:
- Gas type: choose Natural Gas or LPG when you order, to suit your premises.
- Power: it also needs a standard 10 A power point, as FED lists a 10 A plug.
- Installation: gas appliances must be installed by a licensed gas fitter, to local regulations and under suitable ventilation or an exhaust canopy. We supply the equipment only.
- Height: at 1013mm tall, check it fits under your canopy and any shelving above the bench.
- Access: packed at about 650 x 780 x 1200 mm, delivered by tailgate truck to the front of your premises.
Compare similar models:
- Gasmax KB-3: 3 burners, up to 29 kg on a 533mm spit
- Gasmax KB-5: 5 burners, up to 56 kg on a 965mm spit
Common questions:
Which size should I choose?
Pick by the size of cone you cook. The KB-4 takes up to 45 kg, while the KB-3 suits up to 29 kg and the KB-5 up to 56 kg.
Is a spare meat rod available?
Yes. FED offers the KB-4-MS meat rod assembly for this model. Ask us for a price.
Do you install it?
We supply the equipment only. It must be connected by a licensed gas fitter in your area.
See all our commercial grills.
Warranty: 2 years parts and labour, plus a further 2 years on parts when the unit is registered with FED within 14 days of invoice.
