Gasmax KB-5 - 5 Burner Gas Kebab Machine 56kg
SKU: KB-5
Prefer to talk? Call 0447 483 035 Mon–Fri, 9am–5pm (Sydney time)
- Australia-wide delivery, usually 2–5 business days to Sydney, Melbourne, Brisbane and Adelaide. Delivery info
- Price-Beat Guarantee. Found it cheaper? Send us the link
- Warranty: 2 years parts and labour, plus a further 2 years on parts when the unit is registered with FED within 14 days of invoice. Warranty claims
- Tax invoice with our ABN for every order
- Secure checkout
Before it arrives
- Weight: 44 kg. Delivered by tailgate truck to your door, so plan for help or a trolley to move it inside.
- Power: 10 A plug.
- Gas: needs a licensed gas fitter to connect. Choose natural gas or LPG when you order, where offered.
We supply the equipment only. Connection and installation are by your own licensed trades. Full specifications are in the product details below.
Product details
Gasmax KB-5 - 5 Burner Gas Kebab Machine 56kg

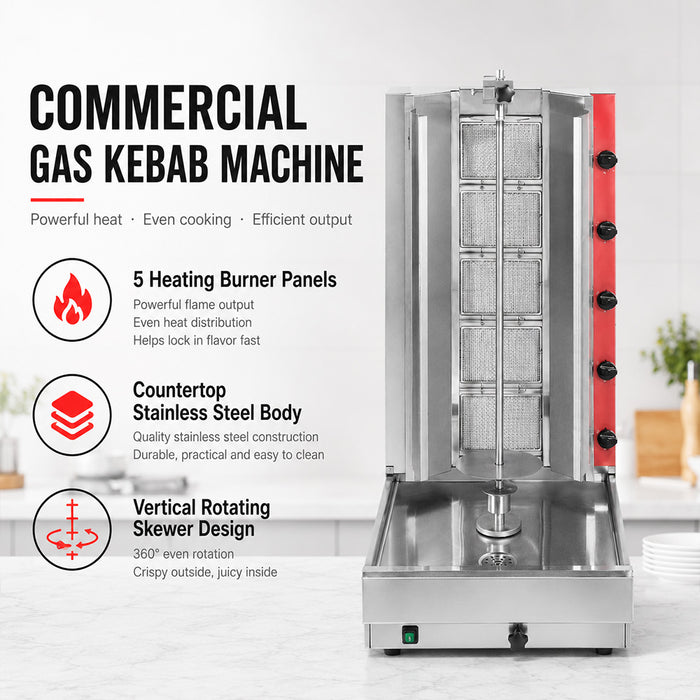

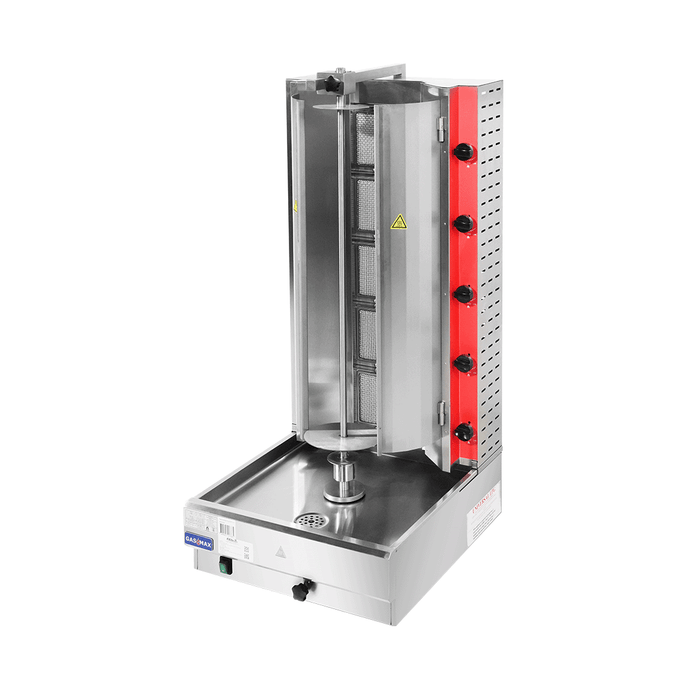

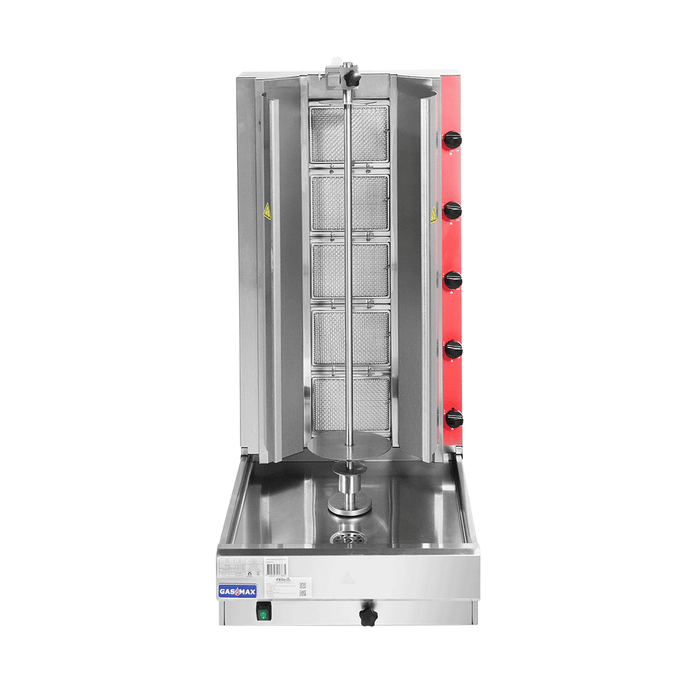

The Gasmax KB-5 is the largest semi-automatic gas kebab machine in the KB range, taking up to 56 kg of meat on a 965mm spit. Five infrared ceramic burners spread intense, even heat down the full height of the cone, which suits busy kebab, gyros and shawarma shops that carve all day. It keeps the same 537 x 639mm footprint as the KB-3 and KB-4, just taller, with one more burner than the KB-4.

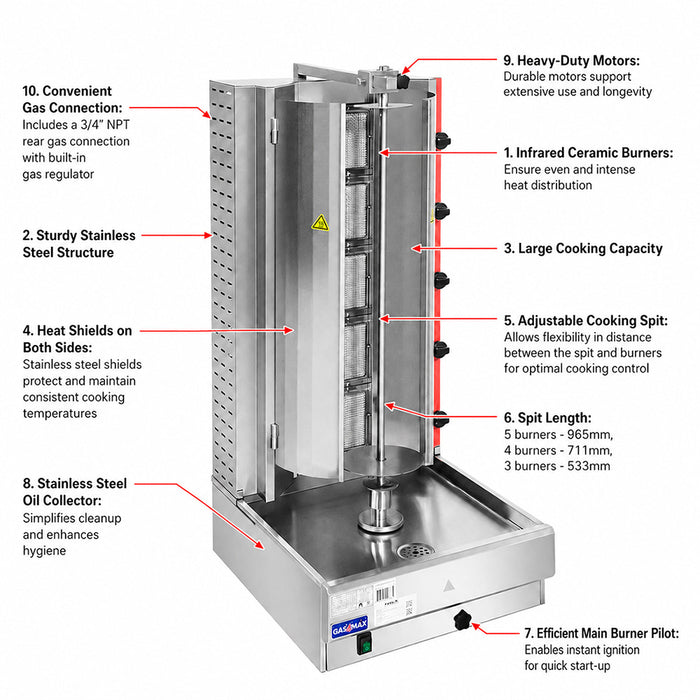

Key features:

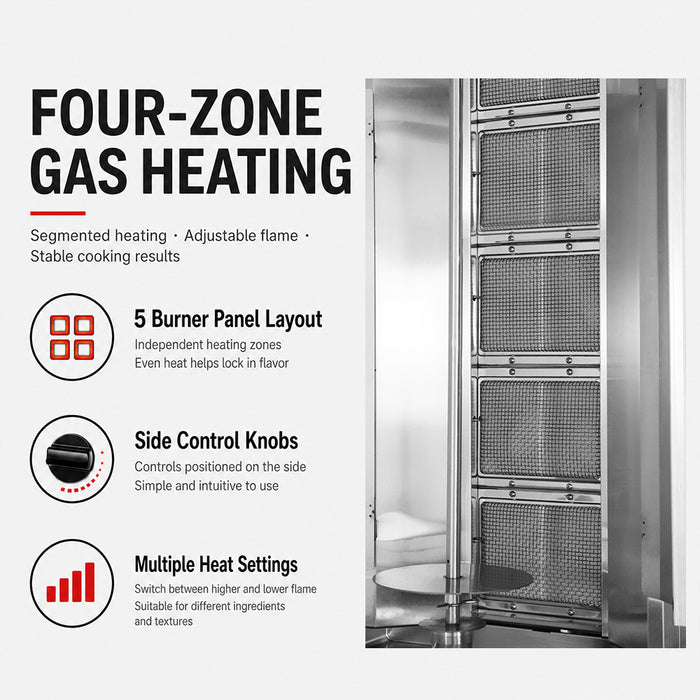

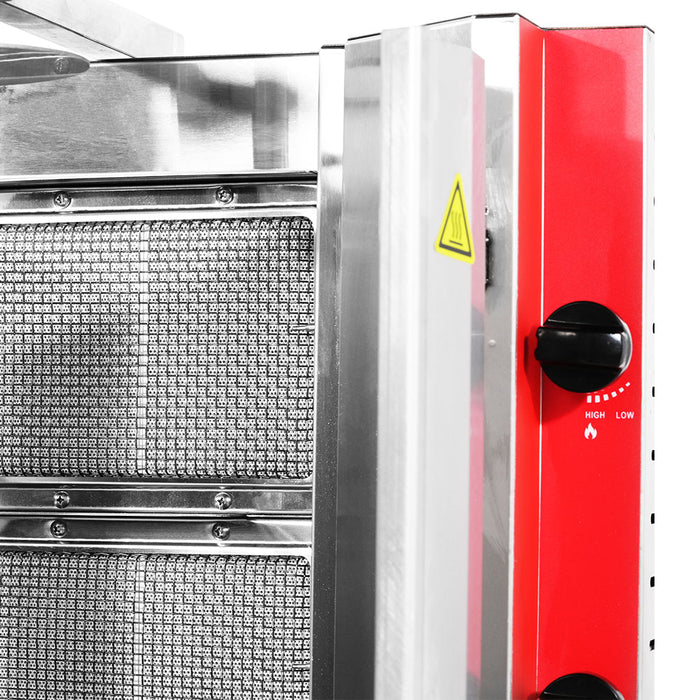

- 5 infrared ceramic burners for even, intense heat
- Up to 56 kg of meat on a 965mm spit

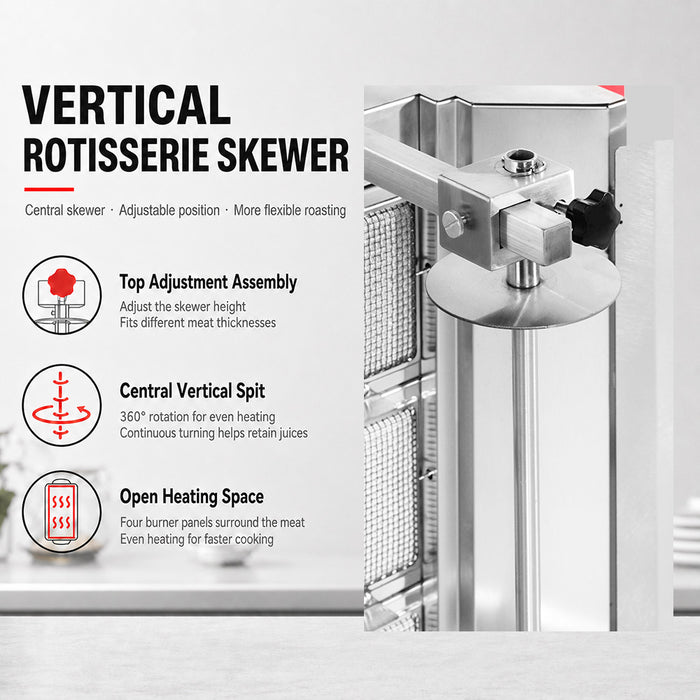

- Adjustable spit distance from the burners

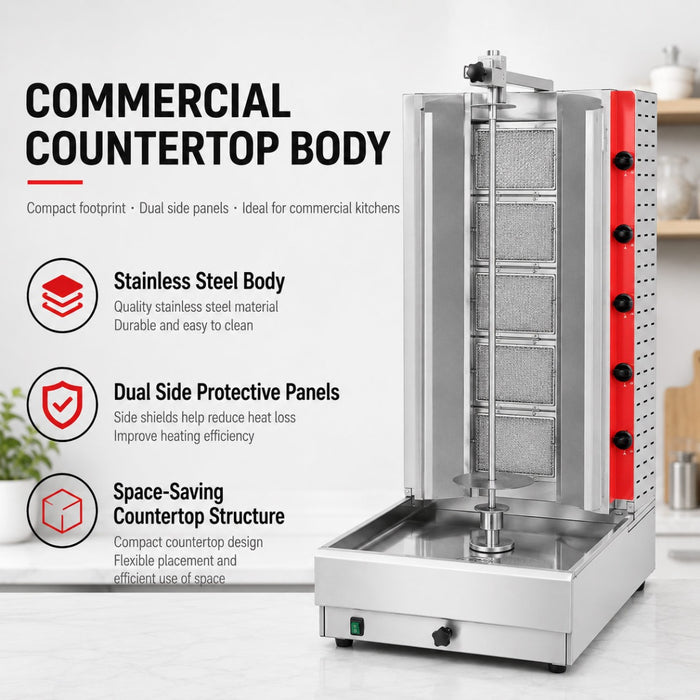

- Stainless steel heat shields on both sides

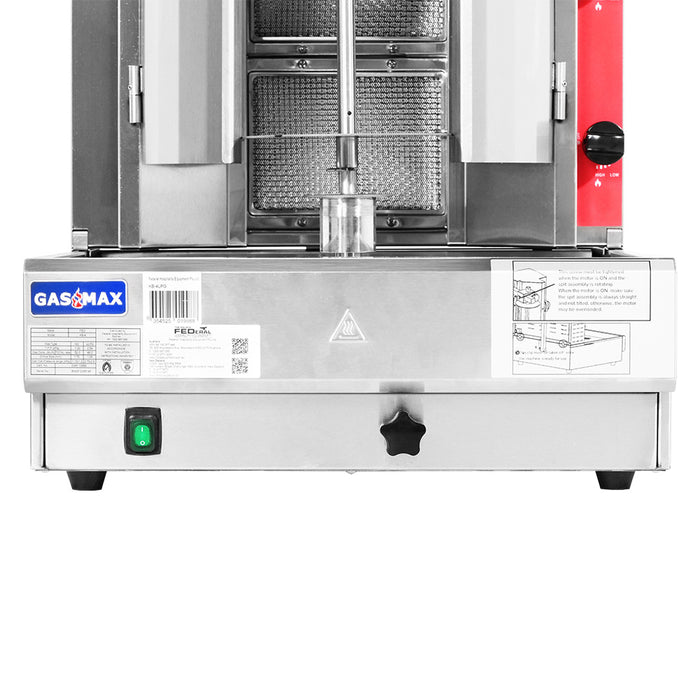

- Main burner pilot for instant ignition
- Heavy-duty motor for long working days
- Sturdy stainless steel structure

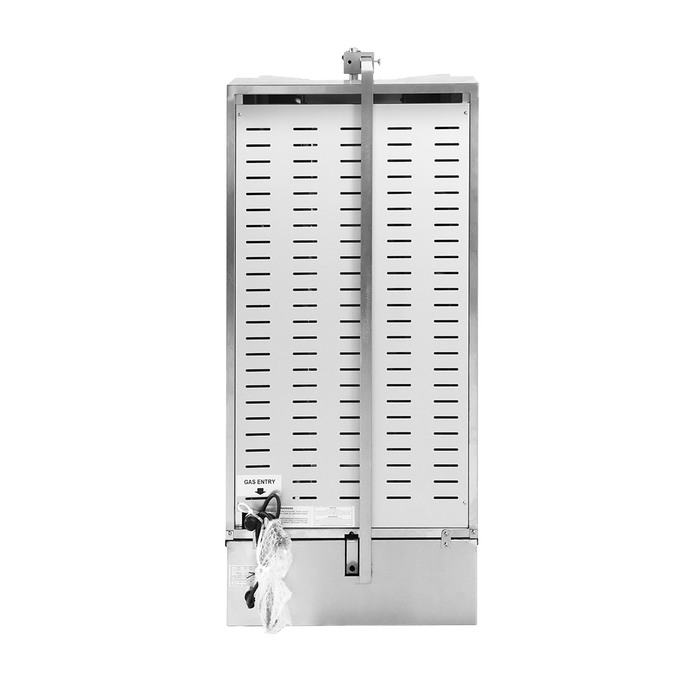

- 3/4 inch NPT rear gas connection with a built-in gas regulator
Specifications:
- Model: Gasmax KB-5 (natural gas), KB-5LPG (LPG)
- Meat capacity: 56 kg
- Spit length: 965mm
- Burners: 5 infrared ceramic
- Gas consumption: 65 MJ/h natural gas, 60 MJ/h LPG
- Gas connection: 3/4 inch NPT, rear, with built-in regulator
- Power: 10 A plug

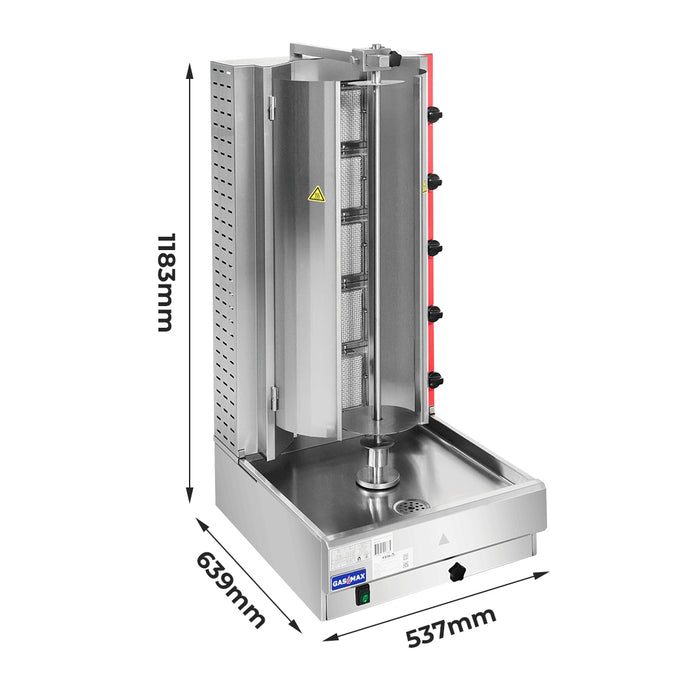

- Footprint: 537 W x 639 D mm
- Weight: 44 kg
- Packed size for delivery: 650 x 780 x 1300 mm
Good to know before you buy:
- Gas type: choose Natural Gas or LPG when you order, to match your gas supply.
- Power: it also needs a standard 10 A power point, as FED lists a 10 A plug.
- Installation: gas appliances must be installed by a licensed gas fitter, to local regulations and under suitable ventilation or an exhaust canopy. We supply the equipment only.
- Height: this is the tallest KB model. Ask us to confirm the exact height if it has to fit under a canopy or shelf.
- Access: packed at about 650 x 780 x 1300 mm, delivered by tailgate truck to the front of your premises.
Compare similar models:
- Gasmax KB-4: 4 burners, up to 45 kg on a 711mm spit
- Gasmax KB-3: 3 burners, up to 29 kg on a 533mm spit
Common questions:
Do I have to load the full 56 kg?
No. 56 kg is the maximum. If you usually cook much smaller cones, the KB-4 or KB-3 may suit you better.
Can I order an extra meat rod?
Yes. FED offers the KB-5-MS meat rod assembly for this model. Ask us for a price.
Do you install it?
We supply the equipment only. It must be connected by a licensed gas fitter in your area.
See all our commercial grills.
Warranty: 2 years parts and labour, plus a further 2 years on parts when the unit is registered with FED within 14 days of invoice.
