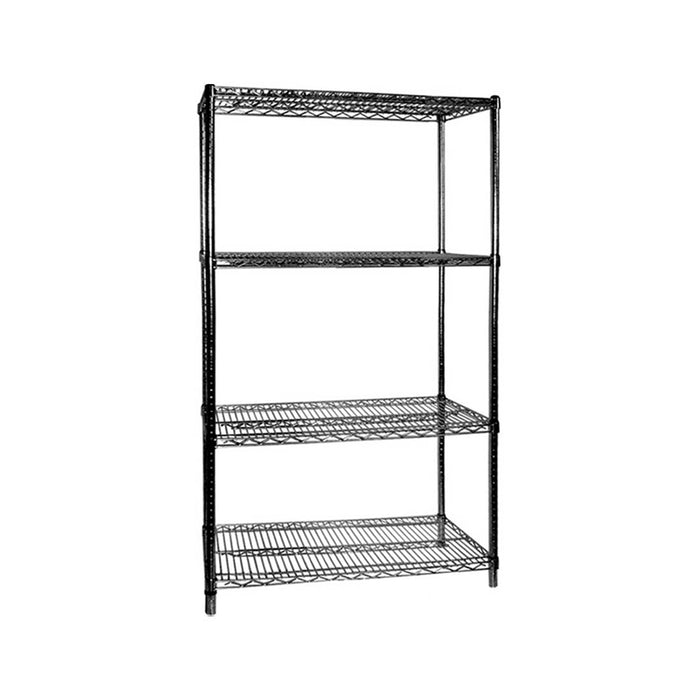

Modular Systems B18/72 - Black Plasticised 4 Tier Shelving 1830 x 457 x 1880mm

Modular Systems B18/72 - Black Plasticised 4 Tier Shelving 1830 x 457 x 1880mm

Black plasticised shelves and posts make the B18/72 a good fit for cold storage, and FED rates it for both coolrooms and freezers. This kit is 1830mm wide, 457mm deep and 1880mm high, with four shelves rated at 150kg each. At 1830mm, it is the widest kit in the range, so one bay covers a long wall. Need deeper shelves? The B24/72 is the same width at 610mm deep.

Key features:

• Four tiers of black plasticised shelving on black plasticised posts, 1830 W x 457 D x 1880 H mm
• Each shelf rated to carry 150kg
• Suitable for coolrooms and freezers
• Easily adjustable corner lock clips for setting shelf heights
• Bullet feet fitted as standard
• Optional castors, with or without brakes, if you want it mobile
• Extra shelves, plus 910mm and 2184mm posts, available to change the layout
• FED states it meets appropriate health department requirements

Specifications:

• Model: Modular Systems B18/72
• Type: 4-tier shelving kit
• Dimensions: 1830 W x 457 D x 1880 H mm
• Shelf load rating: 150kg per shelf
• Finish: black plasticised shelves and posts
• Feet: bullet feet as standard (castors optional, sold separately)
• Packed size for delivery: 475 x 1850 x 165 mm

Good to know before you buy:

• What's included: the shelves and posts for one four-tier unit, standing on bullet feet. Accessories are not included: castors (sold in pairs, with or without brake), extra shelves and 910mm or 2184mm posts (sets of 4) are extra.
• Access: the kit ships in a flat carton (475 x 1850 x 165 mm), so it's easy to bring through a standard doorway. Delivery is by tailgate truck to the front of your premises; standard delivery doesn't include bringing it inside or unpacking.
• Space: the assembled unit needs 1830 x 457mm of floor space and 1880mm of height. In a coolroom, keep it clear of the evaporator fan so cold air can circulate.
• Loading: each shelf is rated to 150kg. Keep the heaviest stock on the lower shelves and spread the weight evenly.

Compare similar models:

• Modular Systems B24/72: same 1830mm width, deeper 610mm shelves
• Modular Systems B18/60: narrower 1525mm bay, same 457mm depth
• Modular Systems PCU18/72: poly-coated vented starter kit, 1825 x 455 x 1800mm, rated 250kg per shelf

Common questions:

Can the B18/72 go in a freezer?
Yes. FED describes the black plasticised shelves and posts as suitable for coolrooms and freezers, so the B18/72 can go in either.

Does the B18/72 come with castors?
No. The B18/72 stands on bullet feet as standard. Castors are optional and come in pairs, with or without brakes. Ask us if you'd like to add them.

Do you put it together?
We supply the equipment only. The B18/72 arrives in a flat carton (475 x 1850 x 165 mm) for assembly on site, and shelf heights are set with the corner lock clips.

See all our coolroom and dry store shelving.

Warranty: 2 years parts only.
