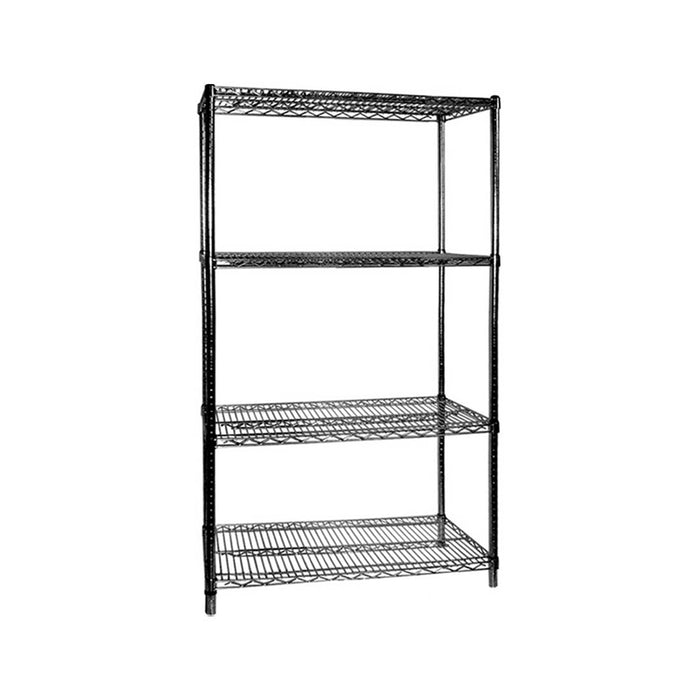

Modular Systems B24/42 - Black Plasticised 4 Tier Shelving 1067 x 610 x 1880mm

Modular Systems B24/42 - Black Plasticised 4 Tier Shelving 1067 x 610 x 1880mm

Black plasticised shelves and posts make the B24/42 a good fit for cold storage, and FED rates it for both coolrooms and freezers. This kit is 1067mm wide, 610mm deep and 1880mm high, with four shelves rated at 150kg each. Just over a metre wide, it gives a good run of shelf on each tier without taking over the room. For a slimmer footprint, the B18/42 is the same width at 457mm deep.

Key features:

• Four tiers of black plasticised shelving on black plasticised posts, 1067 W x 610 D x 1880 H mm
• Each shelf rated to carry 150kg
• Suitable for coolrooms and freezers
• Easily adjustable corner lock clips for setting shelf heights
• Bullet feet fitted as standard
• Optional castors, with or without brakes, if you want it mobile
• Extra shelves, plus 910mm and 2184mm posts, available to change the layout
• FED states it meets appropriate health department requirements

Specifications:

• Model: Modular Systems B24/42
• Type: 4-tier shelving kit
• Dimensions: 1067 W x 610 D x 1880 H mm
• Shelf load rating: 150kg per shelf
• Finish: black plasticised shelves and posts
• Feet: bullet feet as standard (castors optional, sold separately)
• Packed size for delivery: 630 x 1085 x 165 mm

Good to know before you buy:

• What's included: the shelves and posts for one four-tier unit, standing on bullet feet. Accessories are not included: castors (sold in pairs, with or without brake), extra shelves and 910mm or 2184mm posts (sets of 4) are extra.
• Access: the kit ships in a flat carton (630 x 1085 x 165 mm), so it's easy to bring through a standard doorway. Delivery is by tailgate truck to the front of your premises; standard delivery doesn't include bringing it inside or unpacking.
• Space: the assembled unit needs 1067 x 610mm of floor space and 1880mm of height. In a coolroom, keep it clear of the evaporator fan so cold air can circulate.
• Loading: each shelf is rated to 150kg. Keep the heaviest stock on the lower shelves and spread the weight evenly.

Compare similar models:

• Modular Systems B18/42: same 1067mm width, slimmer 457mm shelves
• Modular Systems B24/36: narrower 915mm bay, same 610mm depth
• Modular Systems B24/48: wider 1220mm bay, same 610mm depth
• Modular Systems PCU24/42: poly-coated vented starter kit, 1060 x 610 x 1800mm, rated 250kg per shelf

Common questions:

Is it suitable for a food business?
FED states the B24/42 meets appropriate health department requirements. If you're unsure what your local inspector expects, check with your council.

Can the B24/42 go in a freezer?
Yes. FED describes the black plasticised shelves and posts as suitable for coolrooms and freezers, so the B24/42 can go in either.

Can I add another shelf or make it taller?
Yes. Extra shelves to suit the B24/42 are available, and posts come in sets of four in 910mm and 2184mm heights as well as the standard 1880mm. Ask us for a price.

See all our coolroom and dry store shelving.

Warranty: 2 years parts only.
