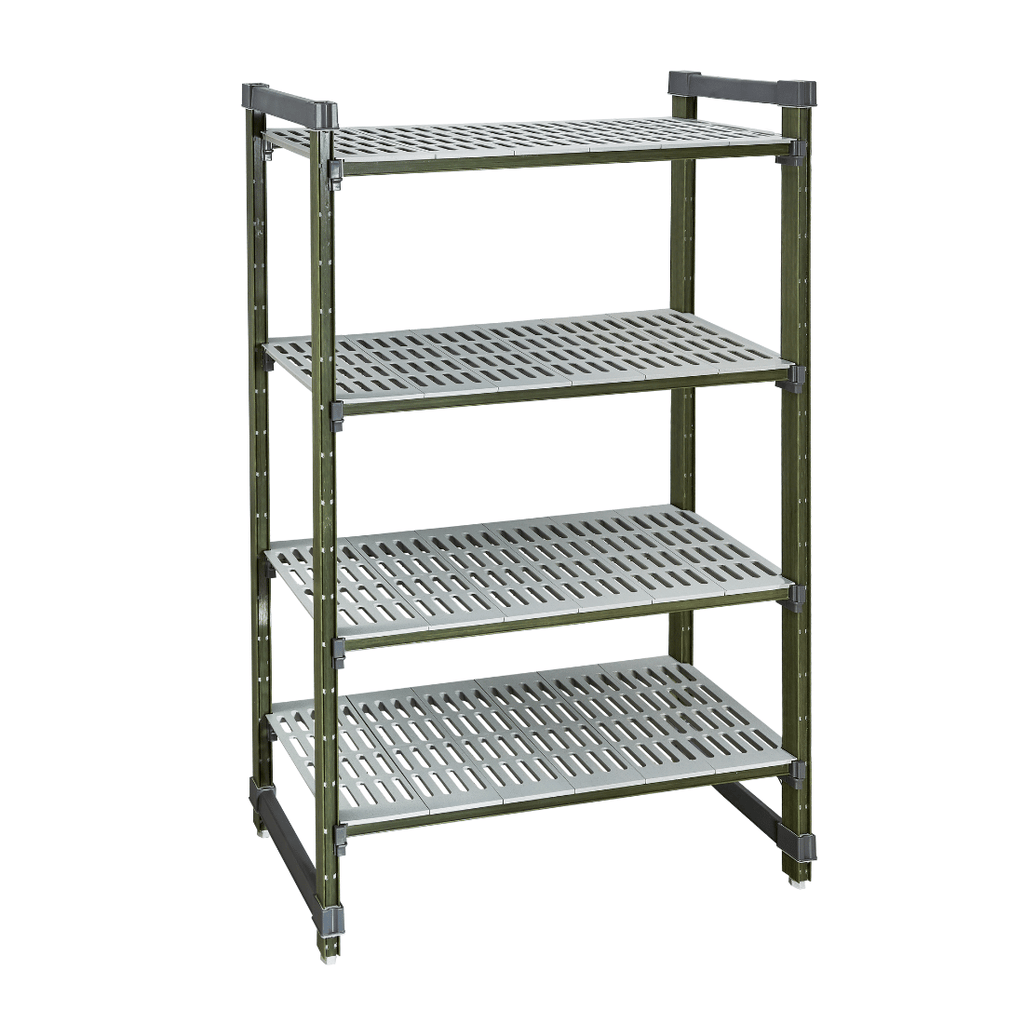

Modular Systems PCU18/36 - Poly Coolroom Shelving Starter Kit 910 x 455mm

Modular Systems PCU18/36 - Poly Coolroom Shelving Starter Kit 910 x 455mm

Rust and mould are what you want to avoid in coolroom shelving, and FED describes the PCU18/36 as rust-proof, mould-proof and fungus-proof, with vented shelf plates that can go through a dishwasher. This starter kit gives you four tiers in a 910 x 455mm footprint, 1800mm high, at 250kg per shelf. The 455mm depth keeps aisles clear in tighter coolrooms. If you need deeper shelves, the PCU24/36 is the same width at 610mm deep.

Key features:

• Four tiers of vented composite shelf plates on poly-coated steel posts, 910 W x 455 D x 1800 H mm
• Each shelf rated to 250kg (200kg per shelf in a corner unit)
• Shelf plates contain an antibacterial agent and can be washed in a dishwasher
• Rust-proof, mould-proof and fungus-proof, and suitable for wet kitchen areas

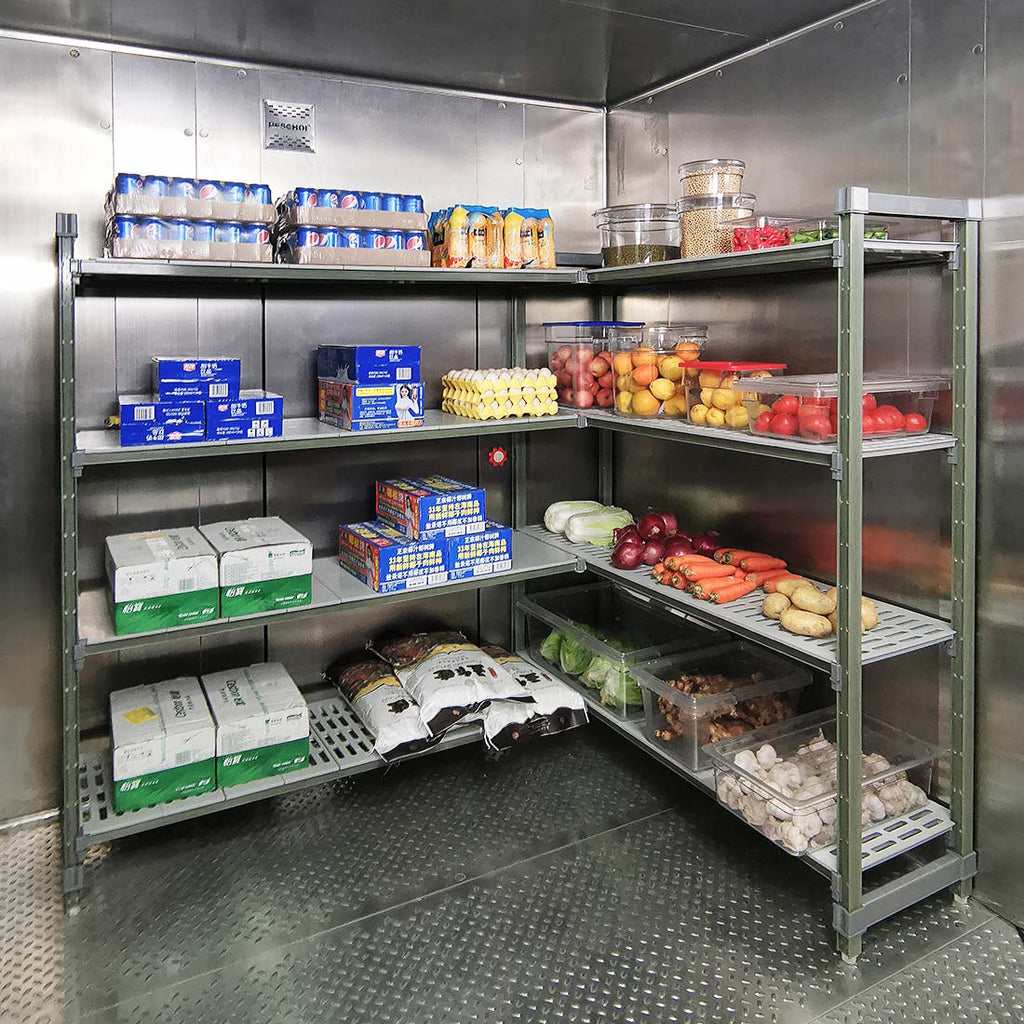

• Rated for low, sub-zero temperatures, so it suits coolrooms and freezers

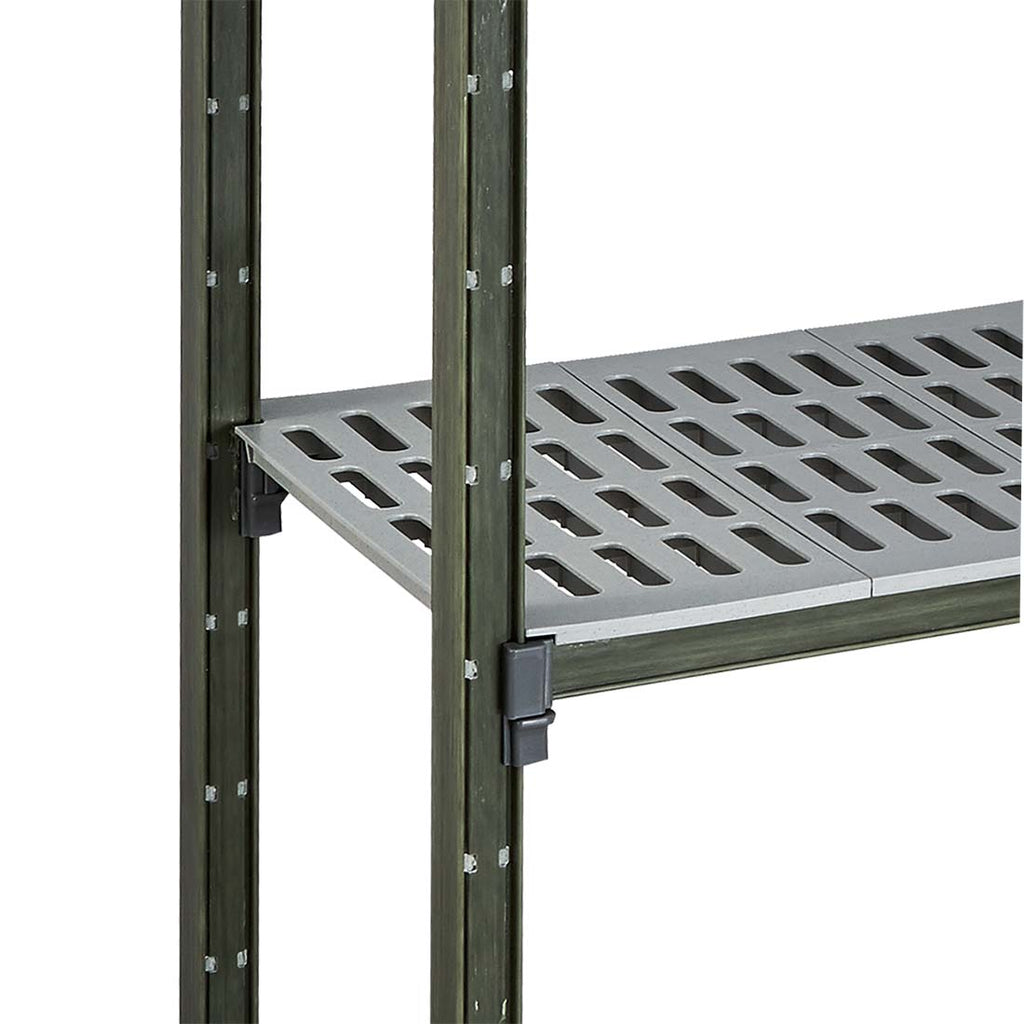

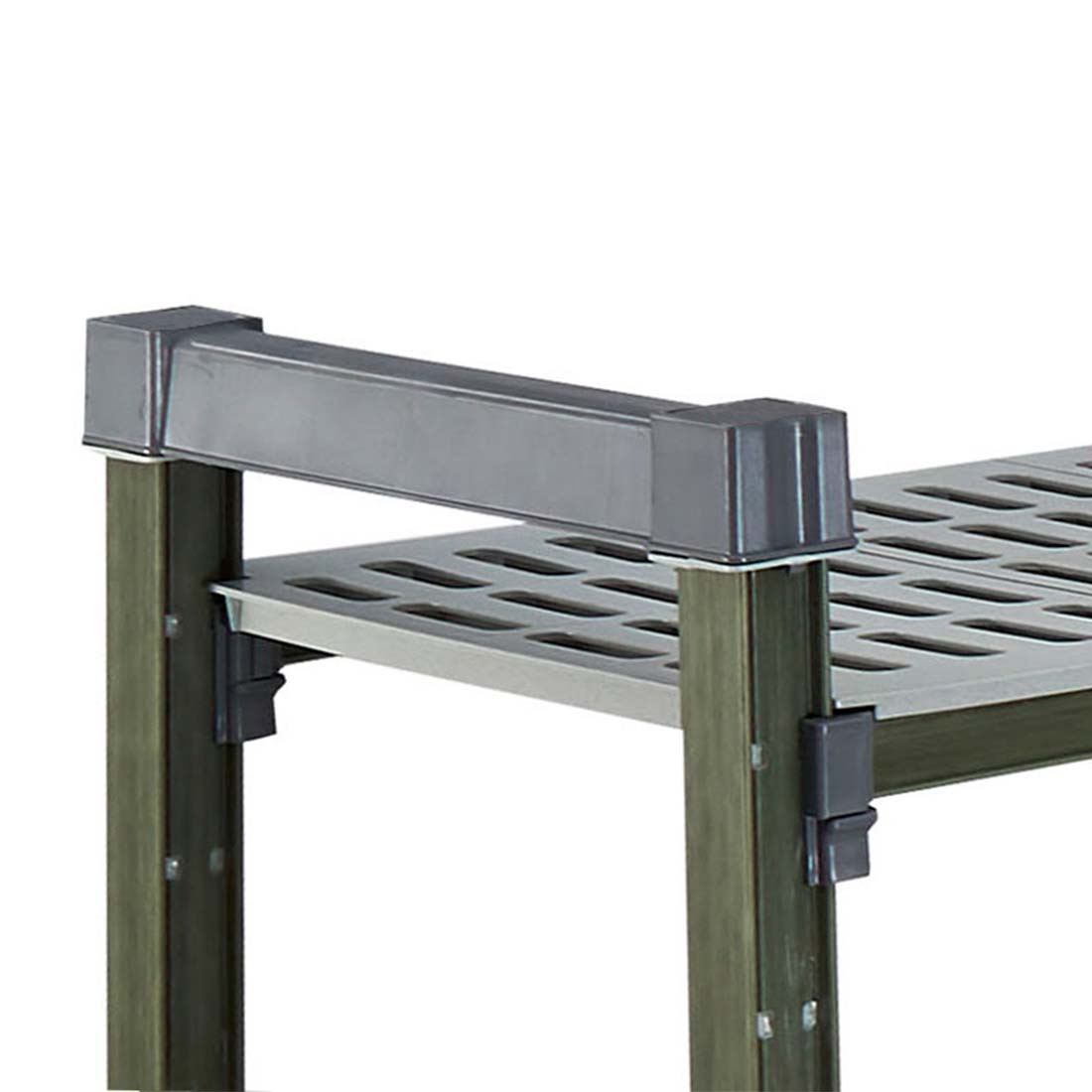

• Buckle design makes assembly and shelf adjustment easier
• Notch-embedded posts and a smooth, easy-to-clean surface
• Adjustable feet
• Matching PCA18/36 add-on unit available to extend the run

Specifications:

• Model: Modular Systems PCU18/36
• Type: 4-tier vented shelving starter kit
• Dimensions: 910 W x 455 D x 1800 H mm
• Shelf load rating: 250kg per shelf (200kg per shelf in a corner unit)
• Mobile unit rating: 300kg for the whole unit on castors (castors sold separately)
• Construction: poly-coated steel posts, composite vented shelf plates with antibacterial agent
• Feet: adjustable
• Matching add-on unit: PCA18/36
• Packed size for delivery: 500 x 1000 x 1900 mm

Good to know before you buy:

• Access: the carton is 500 x 1000 x 1900 mm, so check your doorways, corridors and any tight corners for the 1900mm length. Delivery is by tailgate truck to the front of your premises; standard delivery doesn't include bringing it inside or unpacking.
• What's included: this is the starter kit for one four-tier unit with adjustable feet. Castors (5 inch, with or without brake, sold individually), corner connectors and the PCA18/36 add-on unit are extra.
• Going mobile: on castors the whole unit is rated to 300kg in total, far less than four fully loaded shelves, so lighten the load if you fit wheels.

Compare similar models:

• Modular Systems PCU24/36: same 910mm width, deeper 610mm shelves
• Modular Systems PCU18/30: narrower 760mm starter kit, same 455mm depth
• Modular Systems PCU18/42: wider 1060mm starter kit, same 455mm depth
• Modular Systems B18/36: black plasticised 4-tier kit, 915 x 457 x 1880mm, rated 150kg per shelf

Common questions:

Will the PCU18/36 rust in a coolroom or wet area?
FED describes this system as rust-proof, mould-proof and fungus-proof, and suitable for wet kitchens. The PCU18/36 has poly-coated steel posts and composite shelf plates.

How do I build a longer run or a corner?

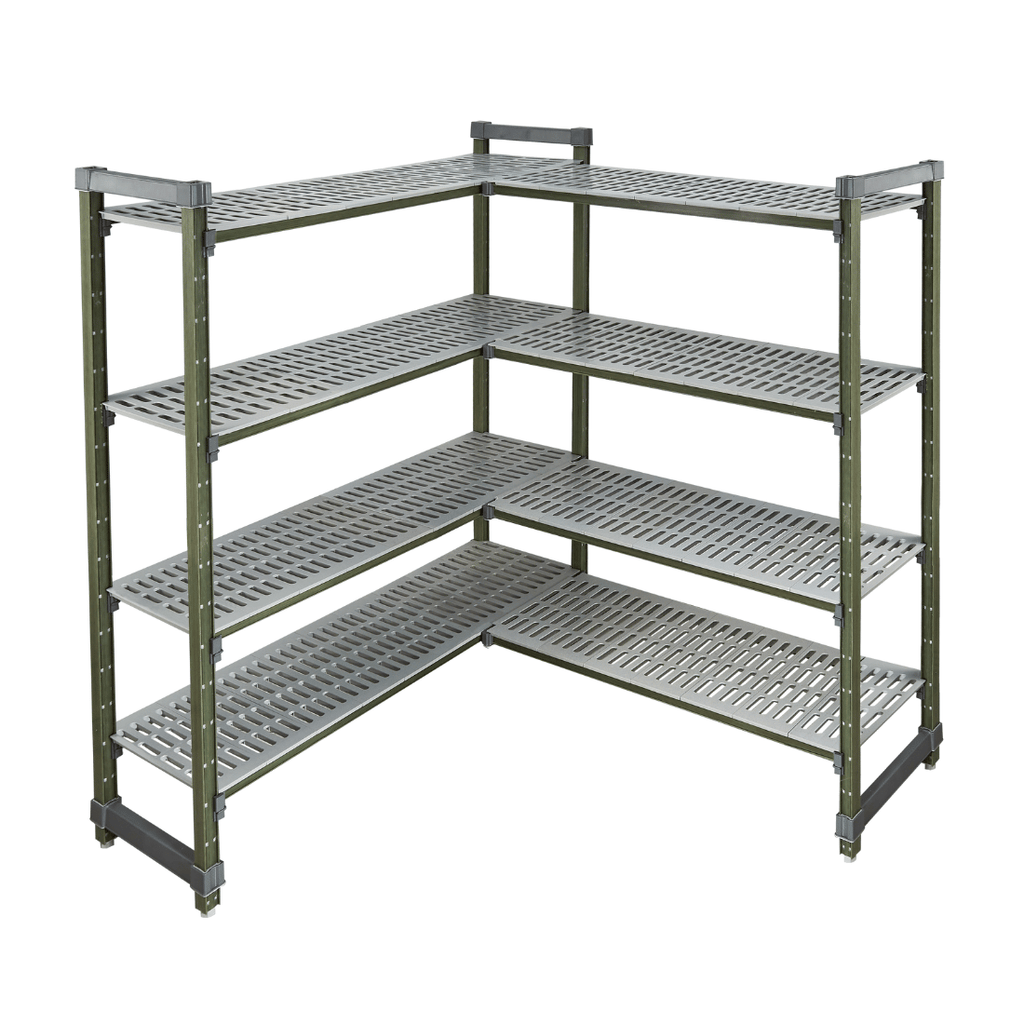

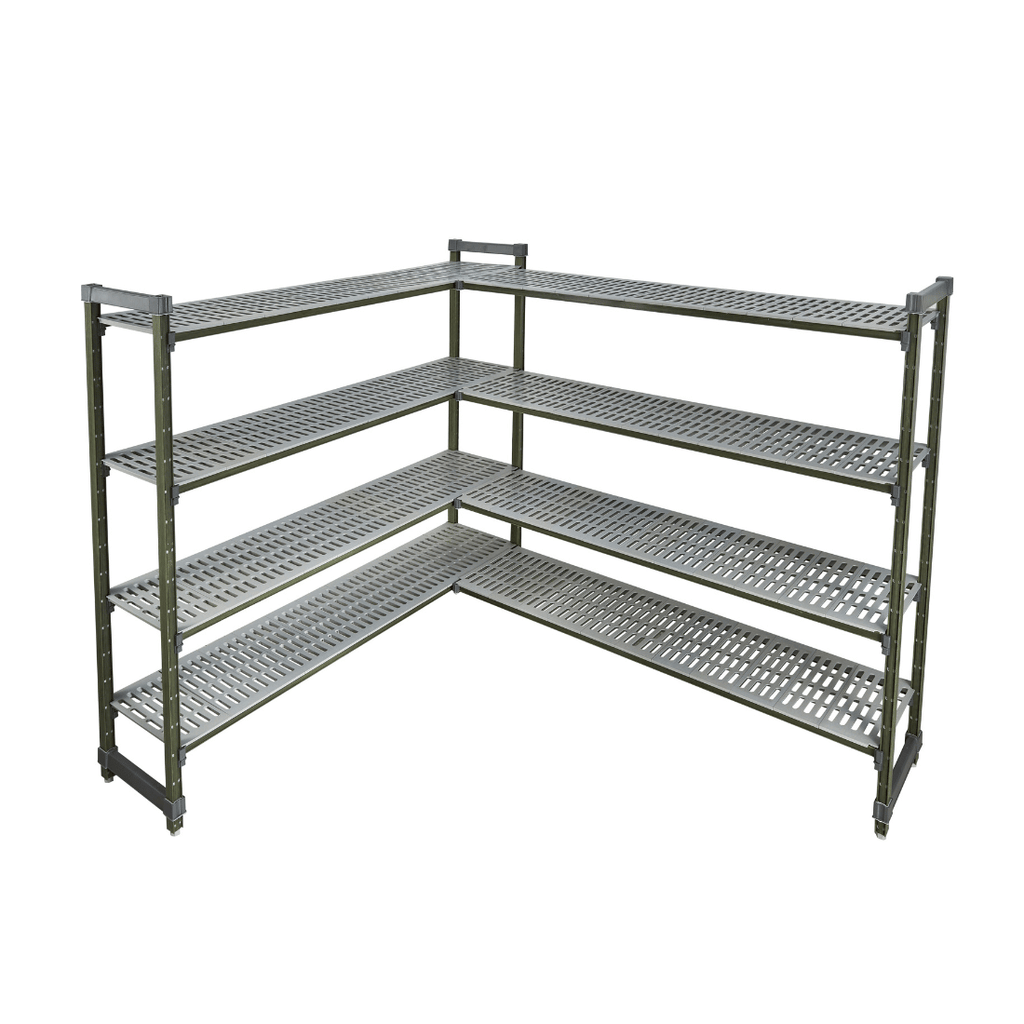

Use the matching PCA18/36 add-on unit to extend the run, and corner connectors to make an L-shape. In a corner unit each shelf is rated to 200kg. Ask us about the add-on parts.

What's the difference between PCU and PCA kits?
PCU kits like this one are the starter units. PCA kits are the matching add-on units, so the PCA18/36 is the one to pair with this 910mm kit.

See all our coolroom and dry store shelving.

Warranty: 2 years parts only.
