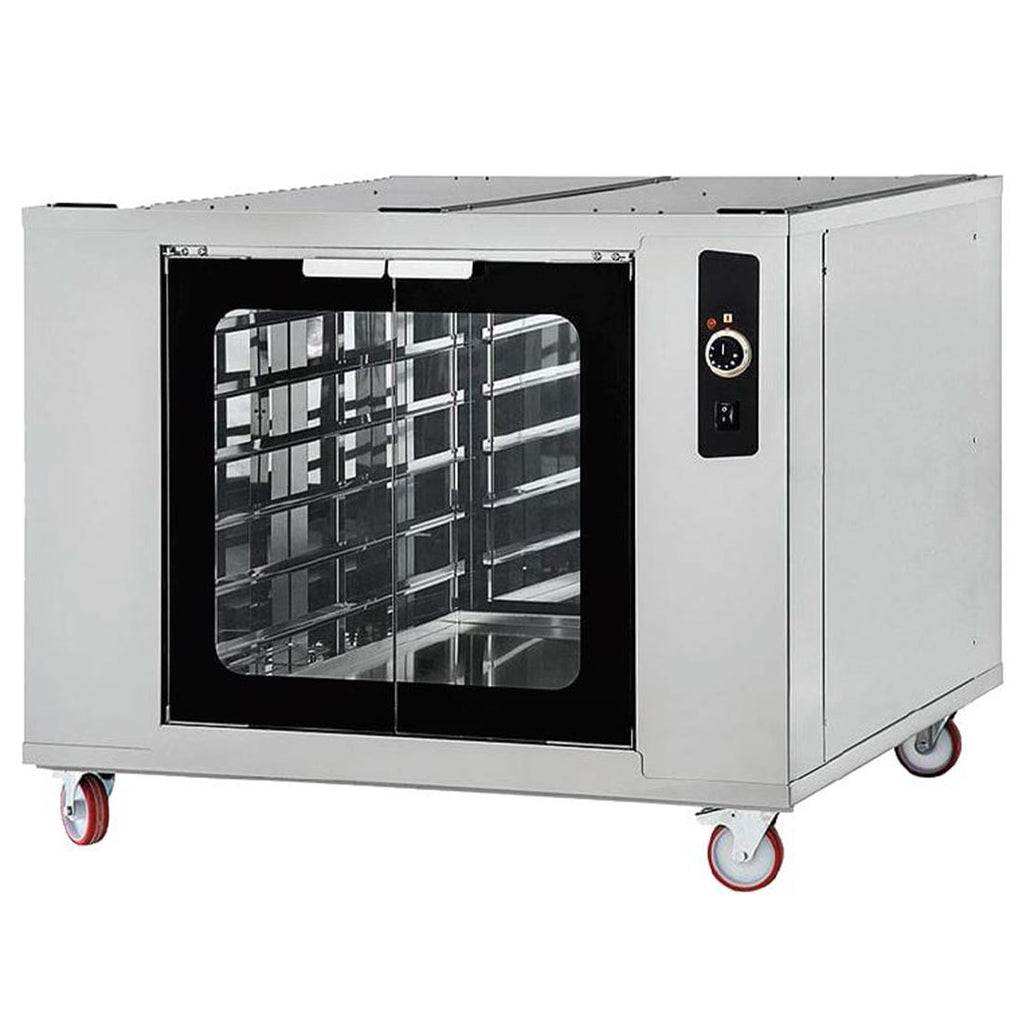

Prismafood TP4-44 - Double Door 12 Tray Dough Proofer

Prismafood TP4-44 - Double Door 12 Tray Dough Proofer

The Prismafood TP4-44 is a double-door proving chamber that holds 12 trays and keeps dough warm at up to 60°C so it rises evenly before baking. At 1100 mm wide and 900 mm high it matches the width of the Prismafood TP-2 deck ovens, and it runs on a standard 240V, 10 A supply. Compared with the upright Baker Max MPR-16, it is a low, wide cabinet with two doors for easy loading.

Key features:

• Holds 12 trays
• Double doors for easy loading
• Working temperature up to 60°C
• 120 mm spacing between trays
• 2 kW heating on a 10 A supply

Specifications:

• Model: Prismafood TP4-44
• Capacity: 12 trays
• Tray spacing: 120 mm
• Temperature: up to 60°C
• Dimensions: 1100 W x 964 D x 900 H mm
• Weight: 82 kg
• Power: 2 kW, 240V, 10 A
• Packed size for delivery: 1130 W x 1130 D x 1040 H mm

Good to know before you buy:

• Tray size: FED lists the capacity as 12 trays but doesn't state the tray size in our data. Ask us to confirm it suits your trays.
• Power: runs on a standard 240V, 10 A supply.
• Access: it arrives packed at about 1130 x 1130 x 1040 mm and weighs 82 kg. Delivery is by tailgate truck to the front of your premises, so check your doorways.

Compare similar models:

• Baker Max MPR-16: upright 16 tray proofer for 600 x 400 trays, with humidity control
• Baker Max MPR-6: compact 6 tray proofer for 600 x 400 trays
• Baker Max MPR-18: 18 tray retarder proofer, -5 to +60°C

Common questions:

How hot does it get?
FED lists a working range of 0 to 60°C.

Does it need special power?
No. It is rated 2 kW on a 240V, 10 A supply.

Will it line up with a TP-2 oven?
Both are 1100 mm wide, so they line up neatly side by side or in the same run of equipment. Ask us if you want to use it with a specific oven setup.

See all our commercial dough proofers.

Warranty: 1 year parts and labour.
