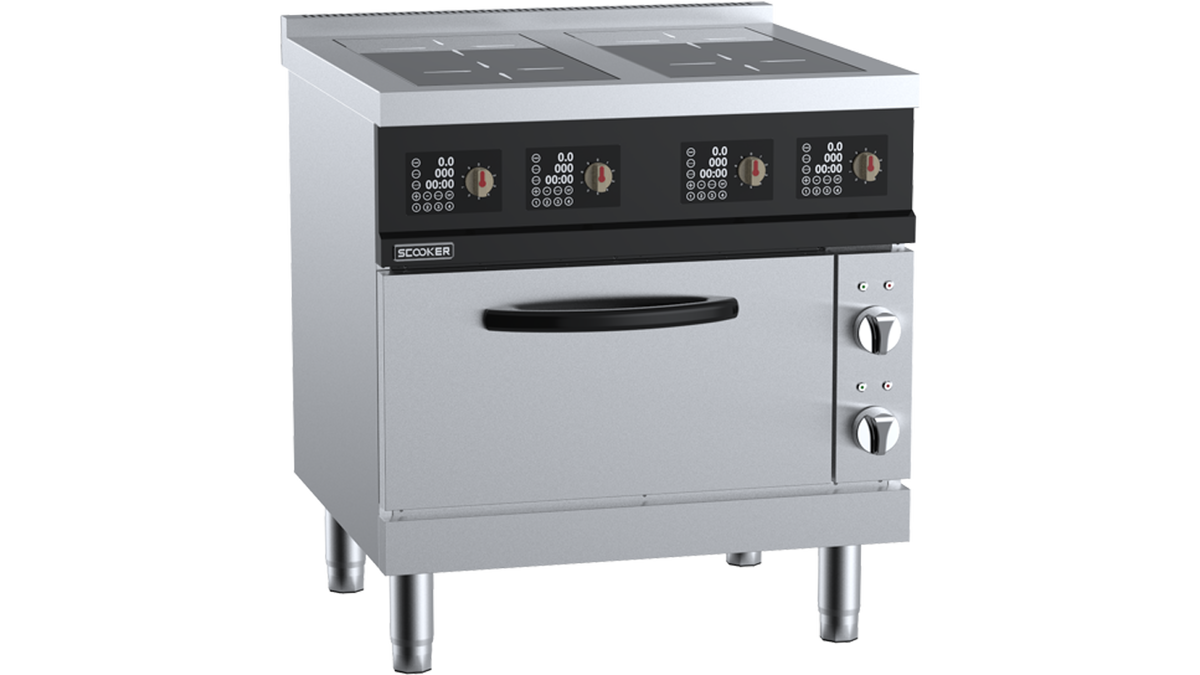

SCooker HLBZJ4N-C19 - 800mm 4 Zone Induction Range with Oven 19kW

SCooker HLBZJ4N-C19 - 800mm 4 Zone Induction Range with Oven 19kW

For a cafe or restaurant going all-electric in 800 mm of line, the SCooker HLBZJ4N-C19 puts a GN 1/1 electric oven under four 3.5 kW induction zones. Allow for 19 kW in total, 14 kW for the top and 5 kW for the oven. The HLBZ4N-C14 is the same top with no oven, and the 1200 mm HLBZJ6N-C26 adds two more zones and a storage cabinet.

Key features:

• Four induction cook zones of 3.5 kW each, plus 5 kW dual oven heating elements
• Full length seamless microcrystalline glass plates, 300 W x 600 D x 6 mm thick
• High frequency heating coil and magnetic aggregation technology
• Infinitely variable power control knob and intuitive IPX5 rated display
• Automatic cookware detection system for safer cooking
• Heavy duty drop down door with spring hinge system
• 50°C to 300°C thermostatic oven with rotary controls and indicators
• Internal oven 540 D x 525 W x 200 H mm, GN 1/1 capacity with 3 position racking
• One-piece machine pressed top 2 mm thick, on a heavy duty AISI grade stainless steel frame, with front access to all components

Specifications:

• Model: HLBZJ4N-C19
• Dimensions: 800 W x 750 D x 905 H mm
• Electrical: 19 kW (3.5 kW x 4 top + 5 kW oven), 415 V, 3-phase (3P+N+E), 50/60 Hz, 25 A per phase
• Connection: hard wired or plug and lead
• Weight: 110 kg
• Standards: AS/NZS CISPR 14.1

Good to know before you buy:

• Installation: must be connected by a licensed electrician, to AS/NZS 3000. It needs a 3-phase supply. We supply the equipment only.
• Access: delivered by tailgate truck to the front of your premises. Check doorways for an 800 x 750 x 905 mm unit, about 110 kg.
• Options: B+S also offers an 800 x 50 mm plinth kit, coloured front and door panels (red or royal blue) and non-swivel rear castors (set of two). Ask us for a price.

Compare similar models:

• HLBZ4N-C14: the same top with no oven, 14 kW, 65 kg.
• HLBZJ6N-C26: six zones, the same oven and a 400 mm cabinet, 1200 mm wide, 26 kW.
• SCooker DLGBJ4N-C14D6: four infrared zones with a 5 kW oven, 14.6 kW, 110 kg.
• SCooker DLZSJ4N-C14D2: four solid cast iron plates with a 5 kW oven, 14.2 kW, 110 kg.

Common questions:

Induction or solid plate range?
At 800 mm both weigh 110 kg and draw 25 A per phase. This one has higher powered zones, at 19 kW in total, with a display and cookware detection. The DLZSJ4N-C14D2 keeps to cast iron plates at 14.2 kW.

What can I fit in the oven?
It takes GN 1/1 pans on three rack positions, in a cavity 200 mm high. Check the height of your deepest tray or roasting pan against that figure.

Does it need a neutral?
Yes. It runs on 415 V three phase with neutral and earth (3P+N+E), at 25 A per phase, so give your electrician those details when you order.

See all our commercial stoves.

Warranty: 24-month B+S parts and labour warranty, from the date of installation.
