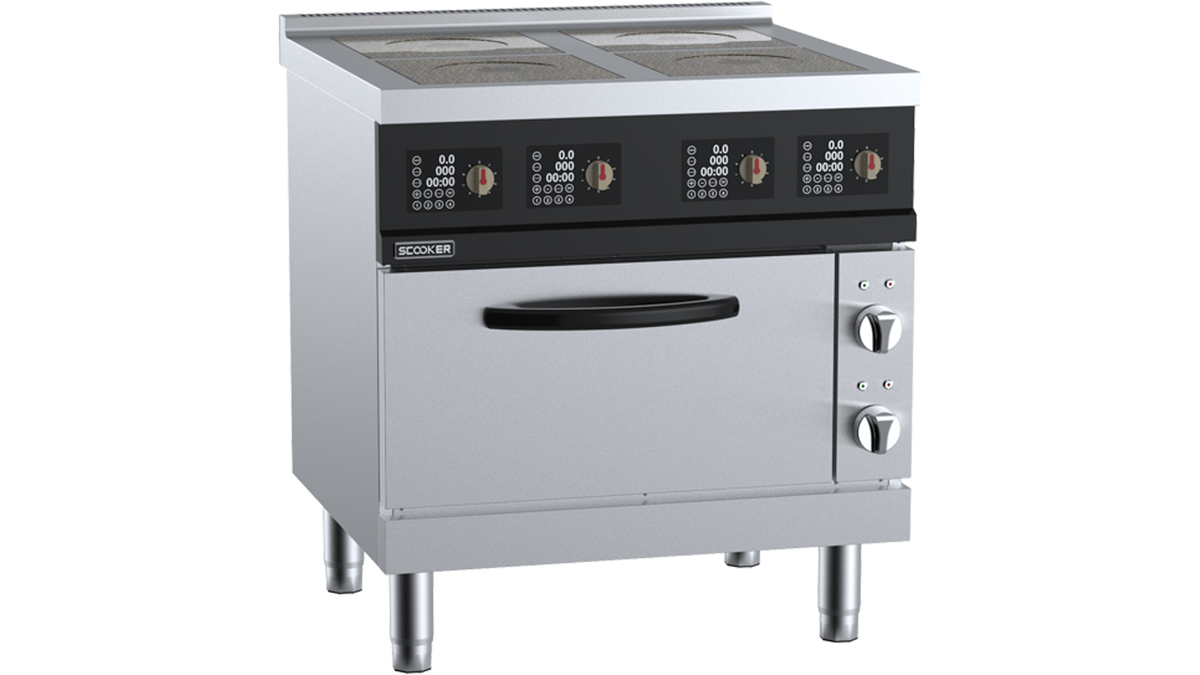

SCooker DLGBJ4N-C14D6 - 800mm 4 Zone Infrared Electric Range with Oven 14.6kW

SCooker DLGBJ4N-C14D6 - 800mm 4 Zone Infrared Electric Range with Oven 14.6kW

The SCooker DLGBJ4N-C14D6 combines a four zone infrared cooktop with a GN 1/1 electric oven below, for a cafe or restaurant that needs both in 800 mm of line. The four 2.4 kW zones and 5 kW oven add up to 14.6 kW. It has the same top as the DLGB4N-C9D6 in the same footprint, and the DLGBJ6N-C19D4 adds two more zones in a 1200 mm body.

Key features:

• Four infrared cook zones of 2.4 kW each, with integrated high-performance wire plates
• Seamless microcrystalline glass plates, 300 W x 300 D x 6 mm thick, with circular heating sections 200 mm in diameter
• Infinitely variable power control knob for each heating level
• Intuitive IPX5 rated display
• Heavy duty drop down door with spring hinge system
• 50°C to 300°C thermostatic oven with rotary controls and indicators
• Internal oven 540 D x 525 W x 200 H mm, GN 1/1 capacity with 3 position racking
• Internal cooling fans for the electronics, and a rotary control knob with red and green operation indicators
• One-piece machine pressed top 1.5 mm thick, on a heavy duty AISI grade stainless steel frame

Specifications:

• Model: DLGBJ4N-C14D6
• Dimensions: 800 W x 750 D x 905 H mm
• Electrical: 14.6 kW (2.4 kW x 4 top + 5 kW oven), 415 V, 3-phase (3P+N+E), 50/60 Hz, 25 A per phase
• Connection: hard wired or plug and lead
• Weight: 110 kg
• Standards: AS/NZS CISPR 14.1

Good to know before you buy:

• Installation: must be connected by a licensed electrician, to AS/NZS 3000. It needs a 3-phase supply. We supply the equipment only.
• Access: delivered by tailgate truck to the front of your premises. Check doorways for an 800 x 750 x 905 mm unit, about 110 kg.
• Options: B+S also offers an 800 x 50 mm plinth kit, coloured front and door panels (red or royal blue) and non-swivel rear castors (set of two). Ask us for a price.

Compare similar models:

• DLGB4N-C9D6: the same top with no oven, 9.6 kW, 60 kg.
• DLGBJ6N-C19D4: six zones and the same oven, 1200 mm wide, 19.4 kW.
• SCooker HLBZJ4N-C19: four induction zones and a 5 kW oven, 19 kW.
• SCooker DLZSJ4N-C14D2: four solid cast iron plates and a 5 kW oven, 14.2 kW.

Common questions:

Should I get the version without the oven?
The DLGB4N-C9D6 has the same top in the same 800 mm footprint with no oven. It weighs 60 kg against 110 kg here, and draws 15 A per phase against 25 A.

What can I fit in the oven?
It takes GN 1/1 pans on three rack positions, in a cavity 200 mm high. Check the height of your deepest tray or roasting pan against that figure.

What does the display show?
It shows output power, cumulative energy consumption and malfunction codes, and it lets you program the menu settings.

See all our commercial stoves.

Warranty: 24-month B+S parts and labour warranty, from the date of installation.
