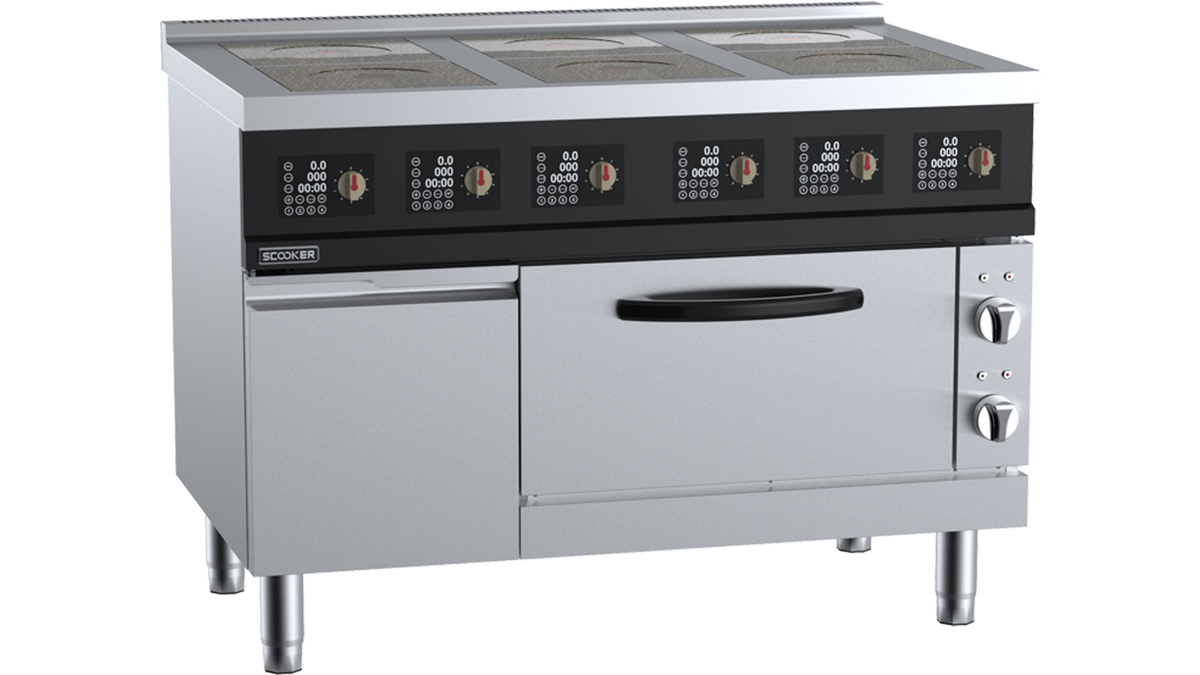

SCooker DLGBJ6N-C19D4 - 1200mm 6 Zone Infrared Electric Range with Oven 19.4kW

SCooker DLGBJ6N-C19D4 - 1200mm 6 Zone Infrared Electric Range with Oven 19.4kW

The SCooker DLGBJ6N-C19D4 pairs a six zone infrared cooktop with a GN 1/1 electric oven below, for restaurants that want one piece to cover pans and baking in 1200 mm of line. The six 2.4 kW zones and 5 kW oven add up to 19.4 kW. It is the largest SCooker infrared range, with two more zones than the 800 mm DLGBJ4N-C14D6 and the same oven.

Key features:

• Six infrared cook zones of 2.4 kW each, with integrated high-performance wire plates
• Seamless microcrystalline glass plates, 300 W x 300 D x 6 mm thick, with circular heating sections 200 mm in diameter
• Infinitely variable power control knob for each heating level
• Intuitive IPX5 rated display
• Heavy duty drop down door with spring hinge system
• 50°C to 300°C thermostatic oven with rotary controls and indicators
• Internal oven 540 D x 525 W x 200 H mm, GN 1/1 capacity with 3 position racking
• Internal cooling fans for the electronics, and a rotary control knob with red and green operation indicators
• One-piece machine pressed top 1.5 mm thick, on a heavy duty AISI grade stainless steel frame

Specifications:

• Model: DLGBJ6N-C19D4
• Dimensions: 1200 W x 750 D x 905 H mm
• Electrical: 19.4 kW (2.4 kW x 6 top + 5 kW oven), 415 V, 3-phase (3P+N+E), 50/60 Hz, 36 A per phase
• Connection: hard wired or plug and lead
• Weight: 140 kg
• Standards: AS/NZS CISPR 14.1

Good to know before you buy:

• Installation: must be connected by a licensed electrician, to AS/NZS 3000. It needs a 3-phase supply. We supply the equipment only.
• Access: delivered by tailgate truck to the front of your premises. Check doorways for a 1200 x 750 x 905 mm unit, about 140 kg.
• Options: B+S also offers a 1200 x 50 mm plinth kit, coloured front and door panels (red or royal blue) and non-swivel rear castors (set of two). Ask us for a price.

Compare similar models:

• DLGBJ4N-C14D6: four zones and the same oven, 800 mm wide, 14.6 kW.
• DLGB6N-C14D4: the same top with no oven, 14.4 kW, 90 kg.
• SCooker HLBZJ6N-C26: six induction zones, a 5 kW oven and a 400 mm storage cabinet, 26 kW.
• SCooker DLZSJ6N-C18D8: six solid cast iron plates, a 5 kW oven and a storage cabinet, 18.8 kW.

Common questions:

Does the oven run the full 1200 mm?
No. It is 525 mm wide inside, the same oven as the 800 mm DLGBJ4N-C14D6, so the extra width gets you two more cook zones rather than a bigger oven.

What does the oven add over the same top without one?
Against the DLGB6N-C14D4, the oven adds 5 kW and 50 kg, and takes the supply from 22 A to 36 A per phase.

How big a pan suits each zone?
Each glass plate is 300 x 300 mm, but the heating section is a 200 mm circle, so a pan close to that size makes the most of the heat.

See all our commercial stoves.

Warranty: 24-month B+S parts and labour warranty, from the date of installation.
