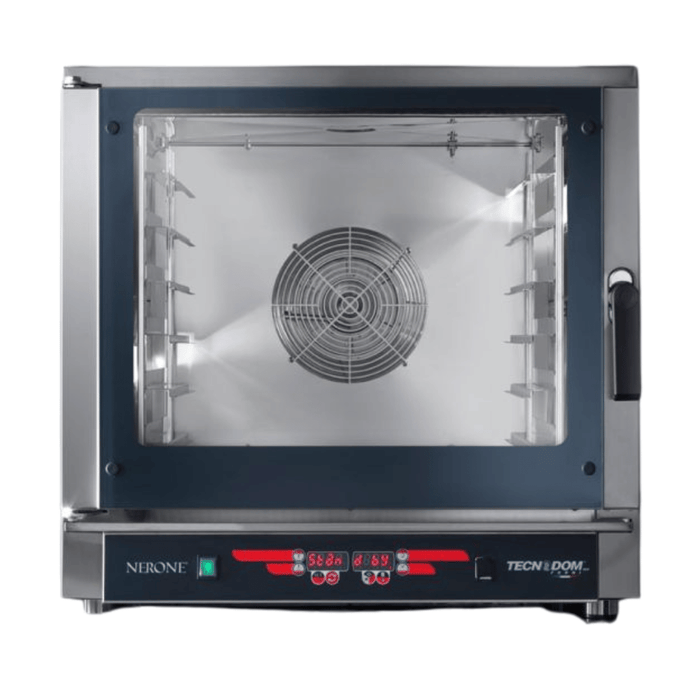

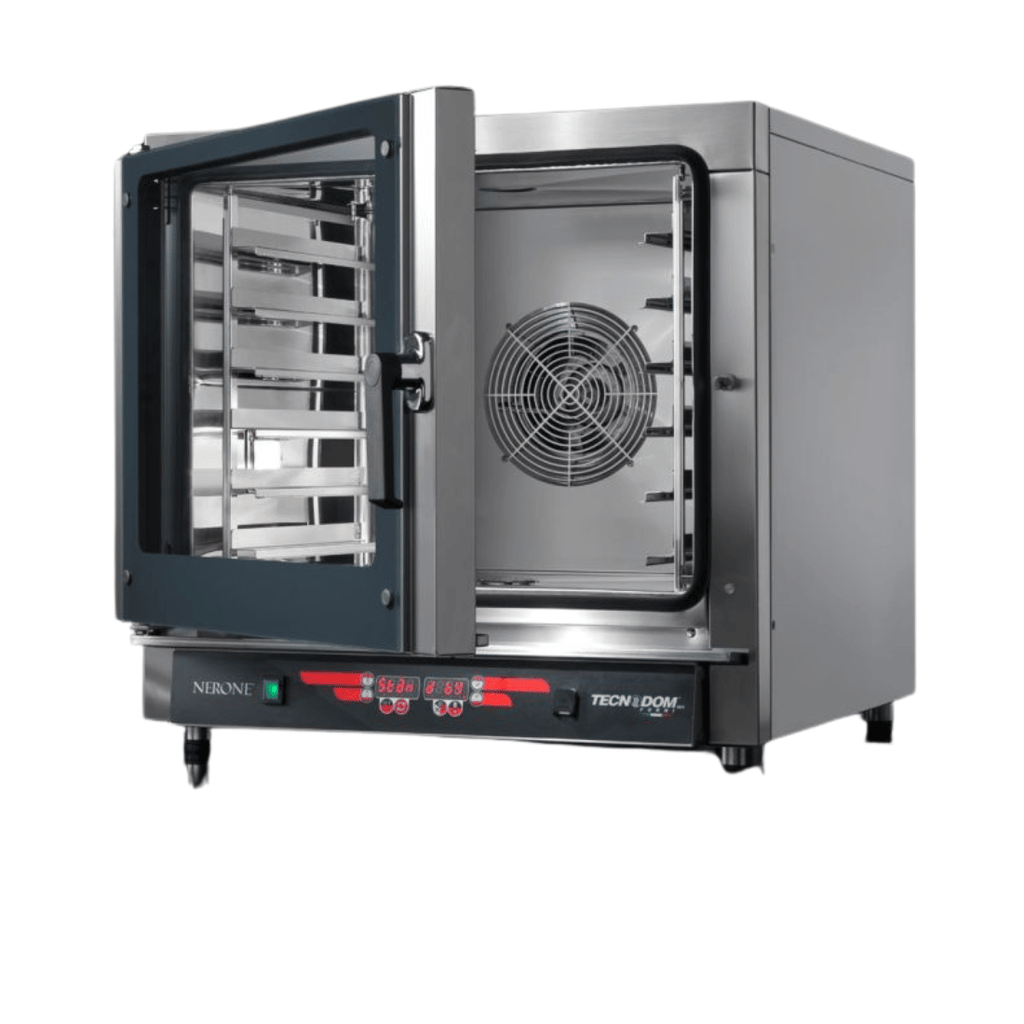

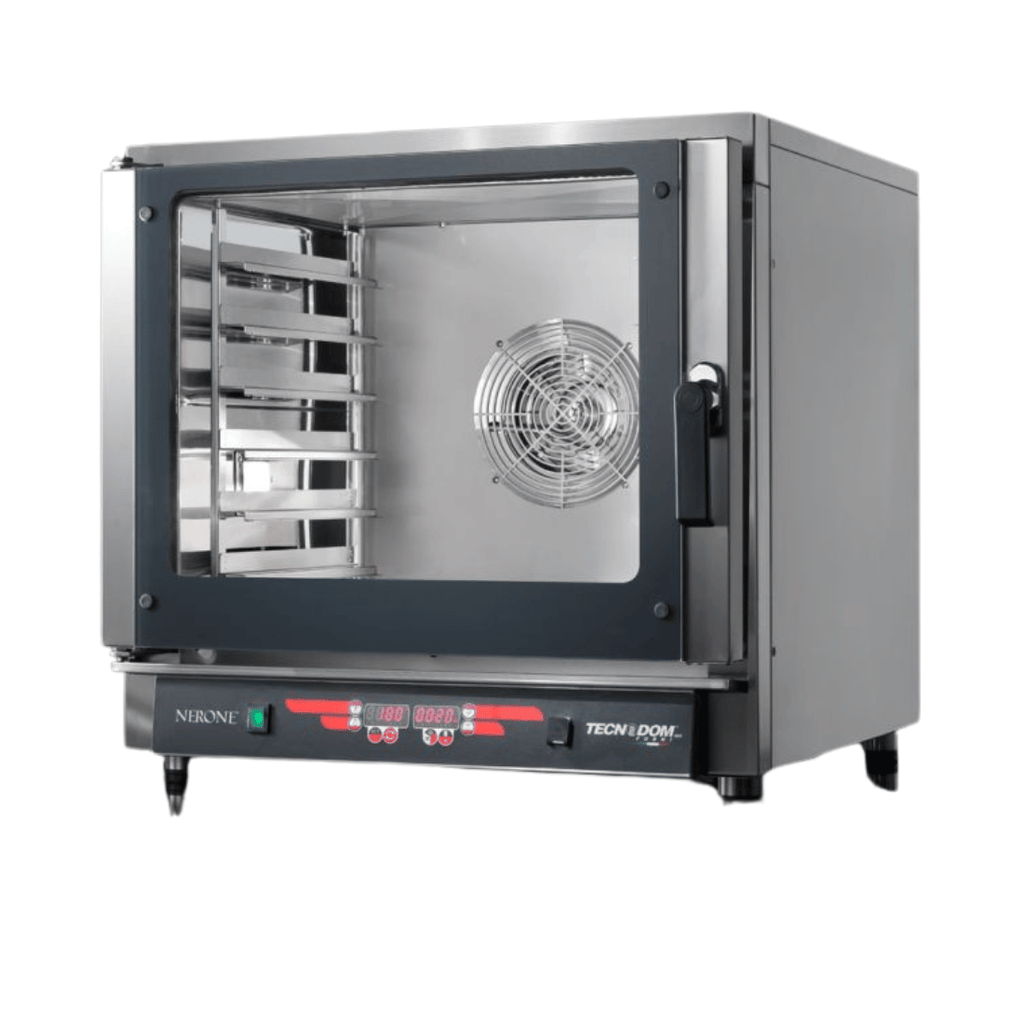

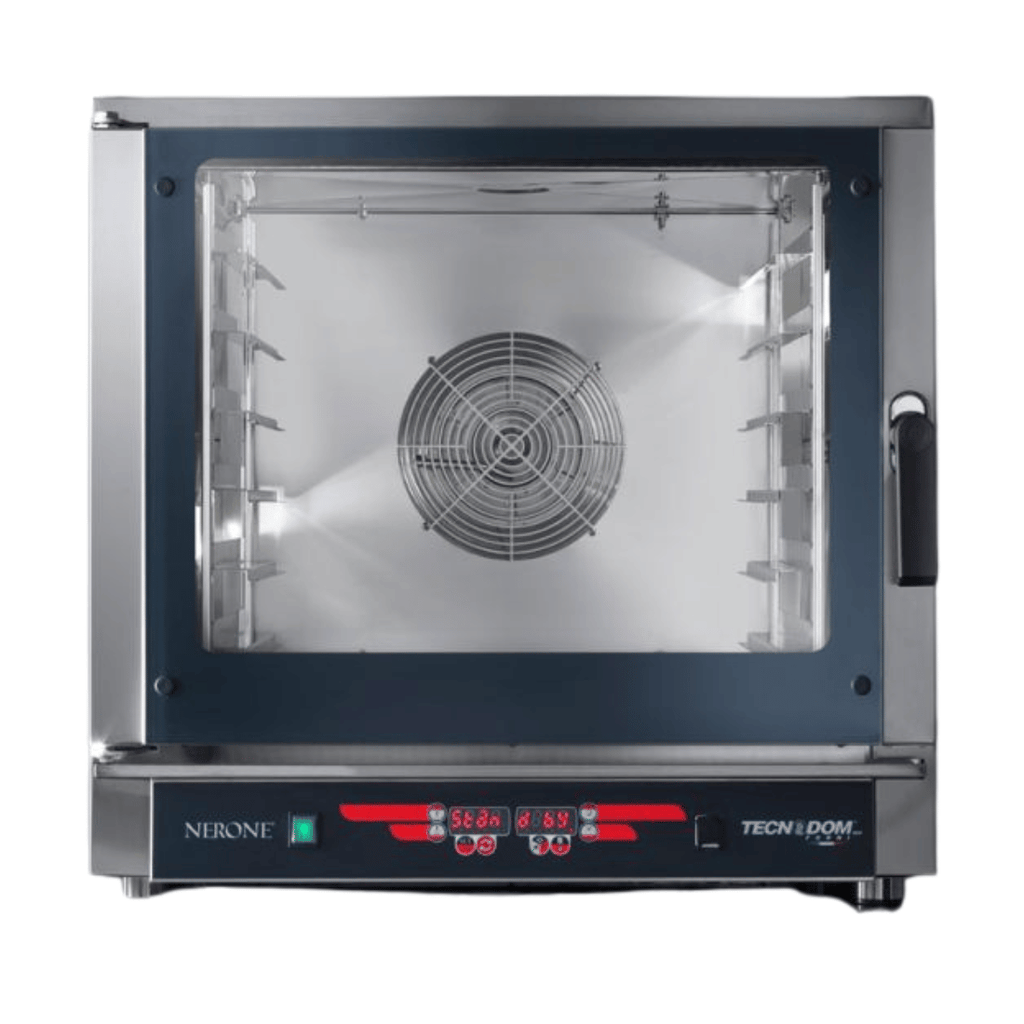

Tecnodom TD-6NE - Nerone MID 6 Tray Digital Combi Oven, 600x400 or GN 1/1

Tecnodom TD-6NE - Nerone MID 6 Tray Digital Combi Oven, 600x400 or GN 1/1

The Tecnodom Nerone MID TD-6NE is an Italian-made electric combi oven that takes six 600 x 400 mm bakery trays or six GN 1/1 pans, so the same oven can bake pastries in the morning and roast or reheat in GN pans at lunch. It cooks by convection from 30°C to 280°C, with or without water injection for moist cooking, controlled from a digital panel. It suits cafes, bakeries and restaurants that want combi cooking in a compact footprint. It is the smallest of the Nerone MID ovens; the TD-7NE and TD-10NE add capacity.

Key features:

• 100% made in Italy
• Takes 6 x 600 x 400 mm trays or 6 x GN 1/1 pans, with 80 mm between trays
• Digital controls, 30°C to 280°C
• Convection cooking with or without water injection (steam)
• Water injection can be manual or automatic, with adjustable water dosage
• Electric, three-phase 7.65 kW
• Grids and pans not included

Specifications:

• Model: Tecnodom TD-6NE (Nerone MID)
• Capacity: 6 x 600 x 400 mm or 6 x GN 1/1
• Tray spacing: 80 mm
• Temperature: 30°C to 280°C
• Oven chamber: 680 W x 480 D x 520 H mm
• Dimensions: 840 W x 920 D x 835 H mm
• Weight: about 90 kg
• Power: 7.65 kW, 380–415V three-phase plus neutral, 11 A per phase
• Water: 3/4 inch mains connection, 1.5–2.5 bar; drain with 30 mm siphon
• Packed size for delivery: up to 880 x 995 x 980 mm, 114 kg

Good to know before you buy:

• Power: three-phase 415V. The power cable and three-phase plug are not included, and it must be connected by a licensed electrician. We supply the equipment only.
• Water / drain: for steam it connects to the mains water through a shut-off valve and drains through a 30 mm siphon. This must be done by a licensed plumber. Tecnodom recommends a water softener to keep hardness below 3°F, as scale damage from untreated water is not covered by the warranty.
• Clearances: Tecnodom asks for at least 100 mm from the sides and back of the oven.
• Not included: grids and pans.

Compare similar models:

• Tecnodom TD-7NE: 7 trays, taller 620 mm chamber, 10.7 kW
• Tecnodom TD-10NE: 10 trays, 12.7 kW
• Tecnodom TDC-5VH: Nerone CL 5 tray with 100% steam, core probe and auto cleaning

Common questions:

Can I use it without a water connection?
It can cook as a convection oven without water injection, but you need the water connection to use the steam function.

Does it take bakery trays and GN pans?
Yes, both: 600 x 400 mm trays or GN 1/1 pans, six levels at 80 mm spacing.

Do you install it?
We supply the equipment only. It must be connected by a licensed electrician (three-phase) and a licensed plumber (water and drain) in your area.

See all our commercial combi ovens.

Warranty: 1 year parts and labour (FED).
