Tecnodom TDC-10VH - Nerone CL 10 Tray Digital Combi Oven with Auto Clean

Tecnodom TDC-10VH - Nerone CL 10 Tray Digital Combi Oven with Auto Clean

Built for busy restaurants, hotels and caterers, the Tecnodom Nerone CL TDC-10VH is a 10 tray digital combi oven with true 100% steam, a multi-sensing core probe and 99 programmable recipes. Its chamber takes 600 x 400 mm bakery trays as well as GN 1/1 pans, so one oven can cover baking, roasting and steaming across a full service. Automatic 4-stage cleaning with liquid lines takes care of the chamber at close. It has the same features as the 5 tray TDC-5VH with double the capacity, and steps up from the simpler Nerone MID TD-10NE.

Key features:

• Convection 30–280°C, 100% steam at 100°C and combination cooking
• Auto-reversing fans with 4-speed control for even cooking
• Delta-T and stove cooking modes, plus infinity mode for continuous operation

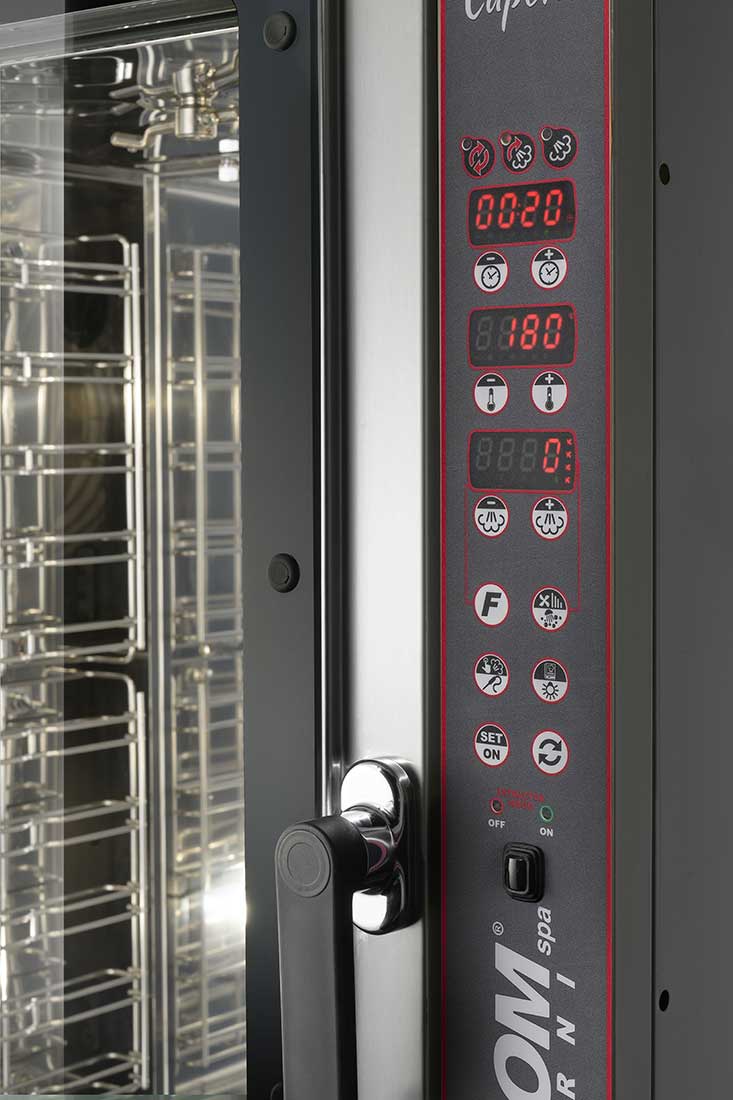

• 99 programmable, editable recipes with up to 5 stages each
• Multi-sensing core probe as standard
• Automatic 4-stage cleaning system with liquid lines as standard

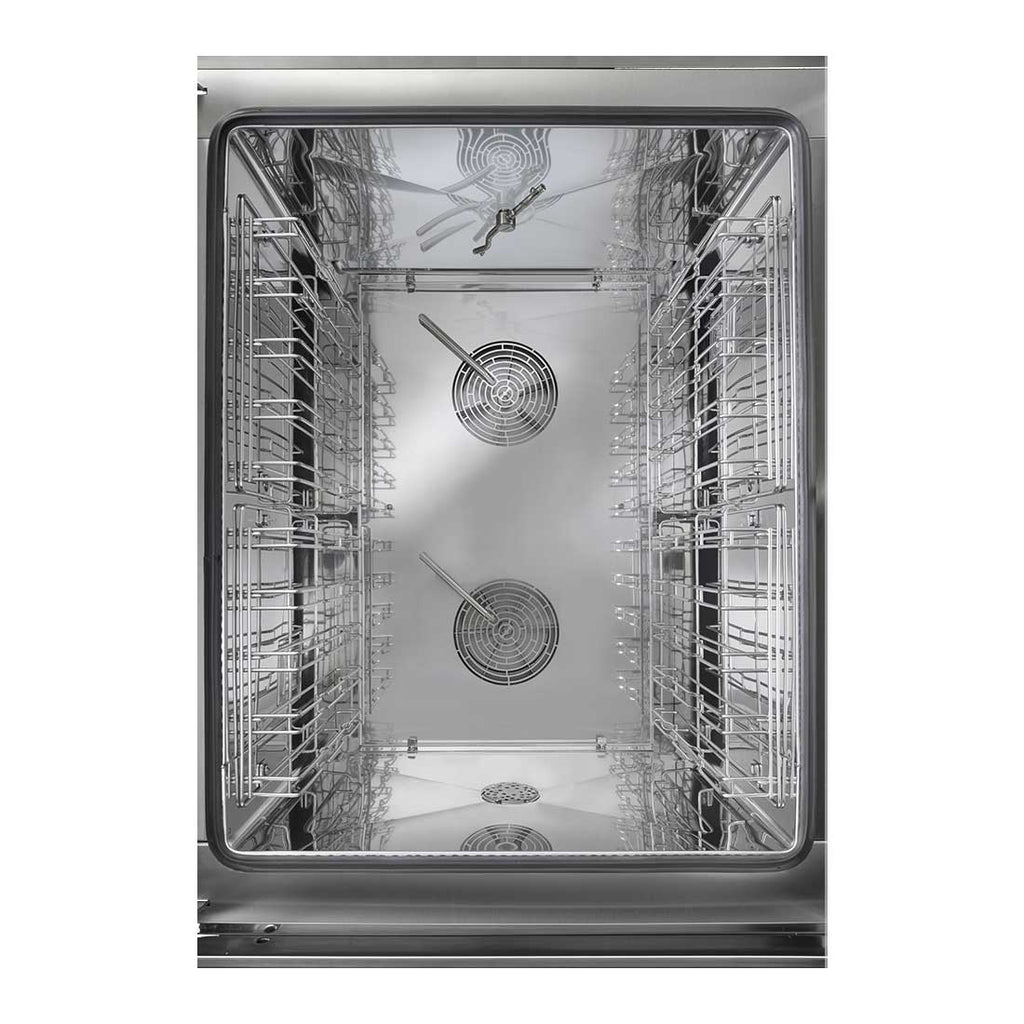

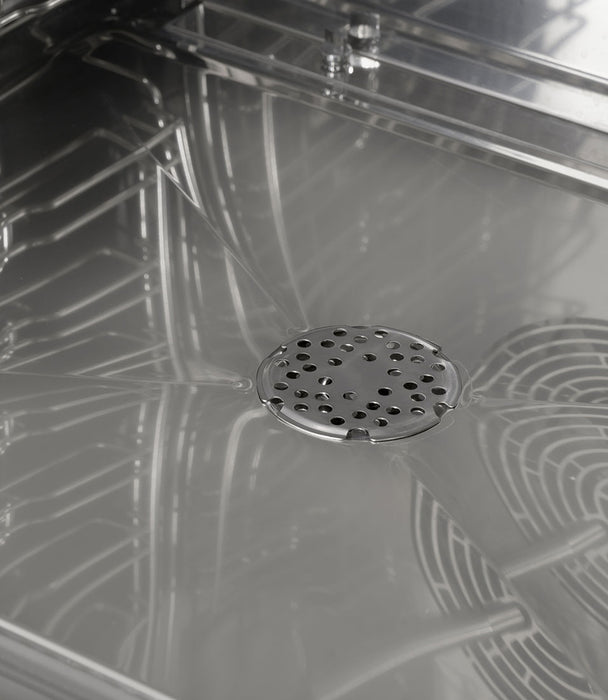

• Full stainless steel chamber with removable chromed tray supports

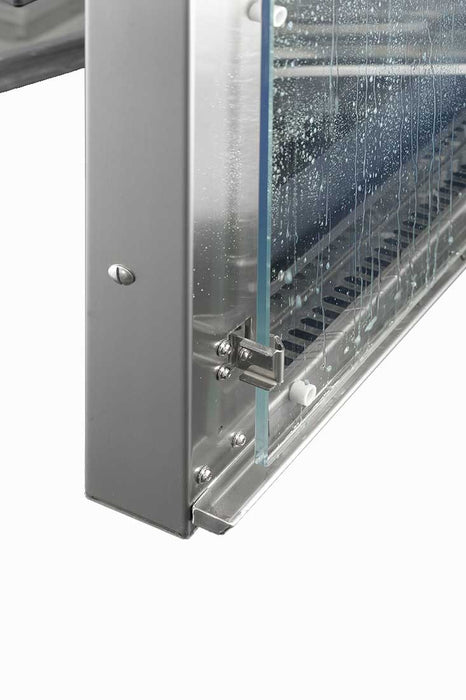

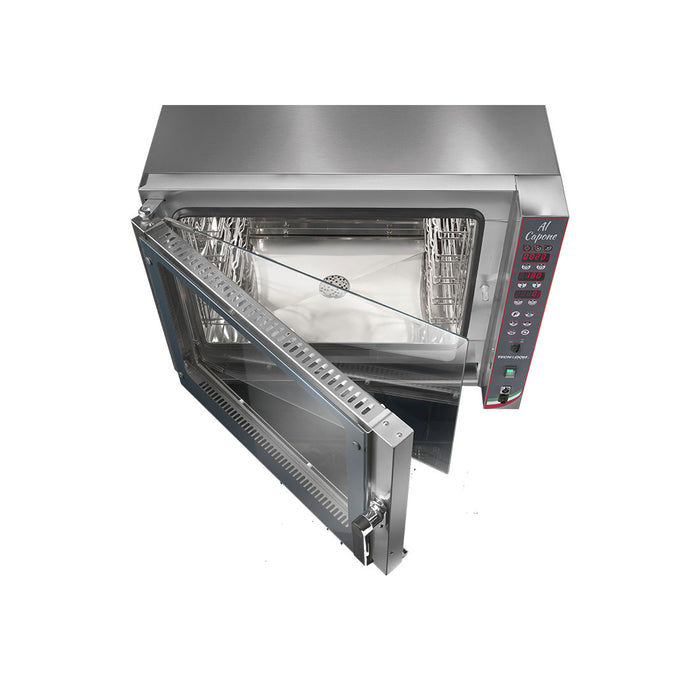

• Two-stage door opening to let steam escape safely; twin glass door reduces heat on the window
• Optional steamless condenser canopy (TD-FECL)

Specifications:

• Model: Tecnodom TDC-10VH (Nerone CL)
• Capacity: 10 x 600 x 400 mm or 10 x GN 1/1
• Tray spacing: 75 mm
• Temperature: 30°C to 280°C convection; 100°C steam
• Oven chamber: 660 W x 455 D x 840 H mm
• Dimensions: 920 W x 840 D x 1170 H mm
• Weight: 130 kg
• Power: 12.7 kW, 380–415V three-phase plus neutral
• Water: 3/4 inch mains connection, 150–250 kPa; drain with 30 mm siphon
• Packed size for delivery: 960 x 880 x 1300 mm, 153 kg

Good to know before you buy:

• Power: three-phase 415V at 12.7 kW, connected by a licensed electrician. We supply the equipment only.
• Water / drain: needs mains water through a shut-off valve and a 30 mm siphon drain, connected by a licensed plumber. Tecnodom recommends a water softener (hardness below 3°F); scale damage from untreated water is not covered by the warranty.
• Ventilation: Tecnodom's manual says it must be used under an extraction hood, with the exhaust chimney on top left uncovered.
• Access: packed, it is 960 x 880 x 1300 mm and about 153 kg, delivered by tailgate truck to the front of your premises.
• Not included: pans and trays.

Compare similar models:

• Tecnodom TDC-5VH: same Nerone CL features, 5 trays and 6.45 kW
• Tecnodom TD-10NE: Nerone MID 10 tray, convection with water injection, no auto clean
• Tecnodom TD-7NE: Nerone MID 7 tray

Common questions:

Can I store recipes?
Yes. It holds 99 programmable, editable recipes, each with up to 5 stages.

Is there a hood to suit?
Yes. The TD-FECL steamless canopy with steam condenser suits the TDC-5VH and TDC-10VH. Ask us for details.

Do you install it?
We supply the equipment only. It must be connected by a licensed electrician (three-phase) and a licensed plumber (water and drain) in your area.

See all our commercial combi ovens.

Warranty: 1 year parts and labour (FED).
