Tecnodom TDC-5VH - Nerone CL 5 Tray Digital Combi Oven with Auto Clean

Tecnodom TDC-5VH - Nerone CL 5 Tray Digital Combi Oven with Auto Clean

The Tecnodom Nerone CL TDC-5VH is a fully featured 5 tray combi oven for restaurants, hotels and cafes that want true combi cooking without a big footprint. It offers convection from 30°C to 280°C, a 100% moisture steam mode at 100°C, a multi-sensing core probe and 99 programmable recipes of up to 5 stages each. An automatic 4-stage cleaning system with liquid lines saves staff time at close. Compared with the Nerone MID ovens, the CL adds full steam, core-probe cooking and auto cleaning; the TDC-10VH is the 10 tray version.

Key features:

• Convection 30–280°C, 100% steam at 100°C and combination cooking
• Auto-reversing fans with 4-speed control for even cooking, even on low fan speeds
• Delta-T and stove cooking modes, plus infinity mode for continuous operation in busy service

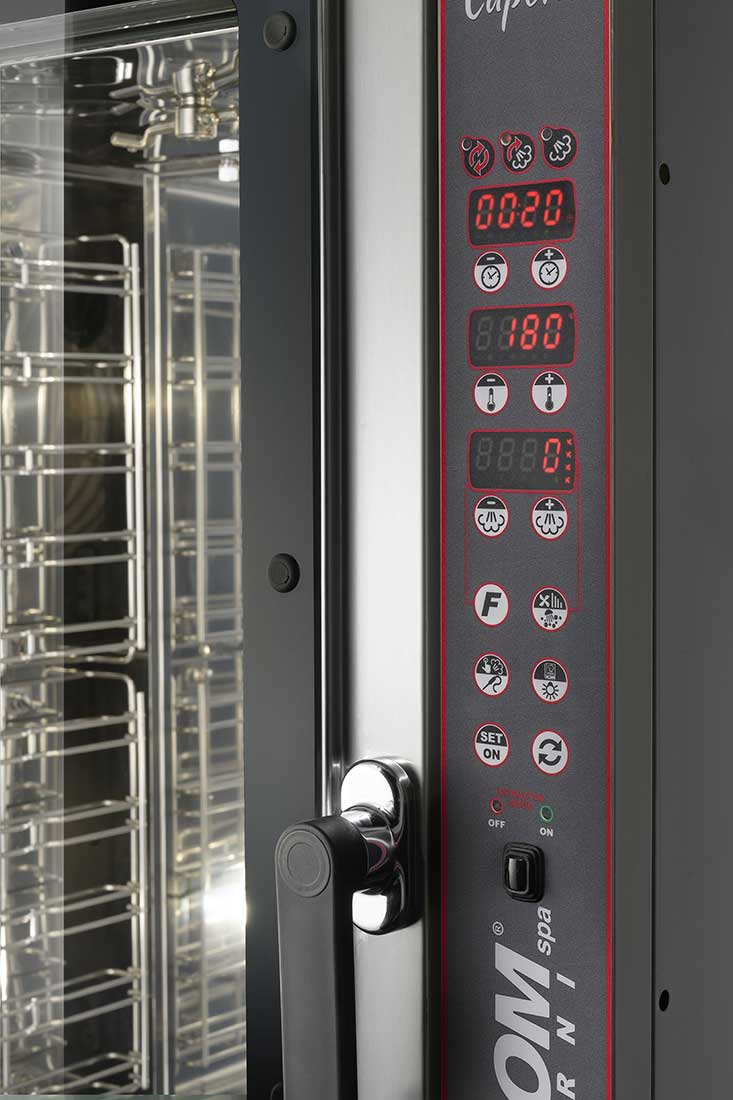

• 99 programmable, editable recipes with up to 5 stages each
• Multi-sensing core probe as standard
• Automatic 4-stage cleaning system with liquid lines as standard

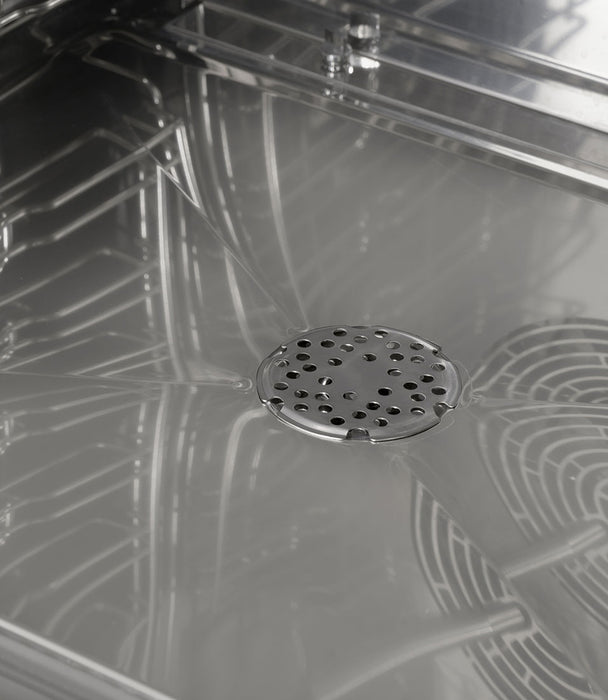

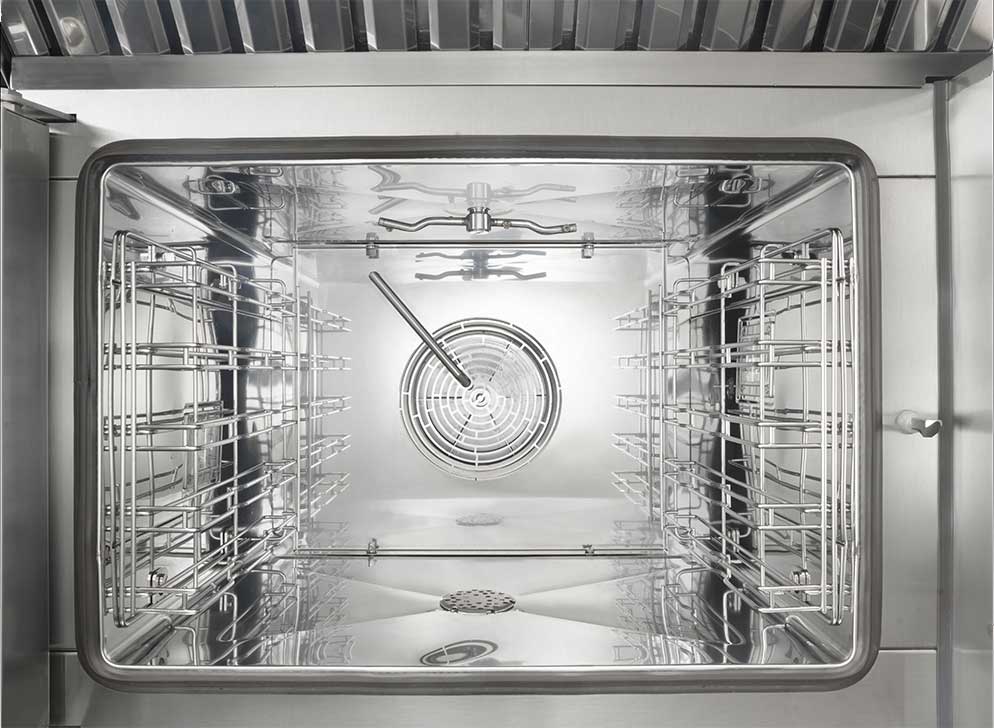

• Stainless steel chamber with removable chromed tray supports; takes 600 x 400 mm trays or GN pans

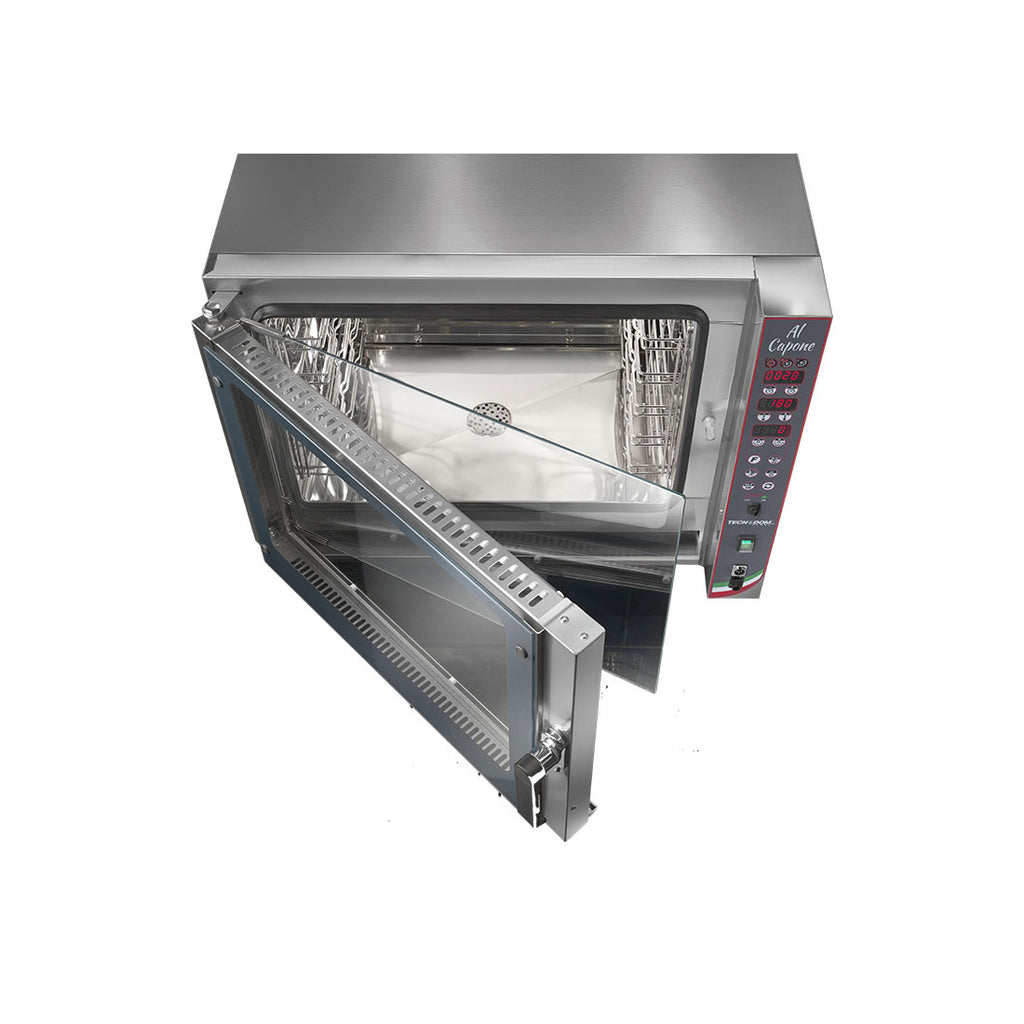

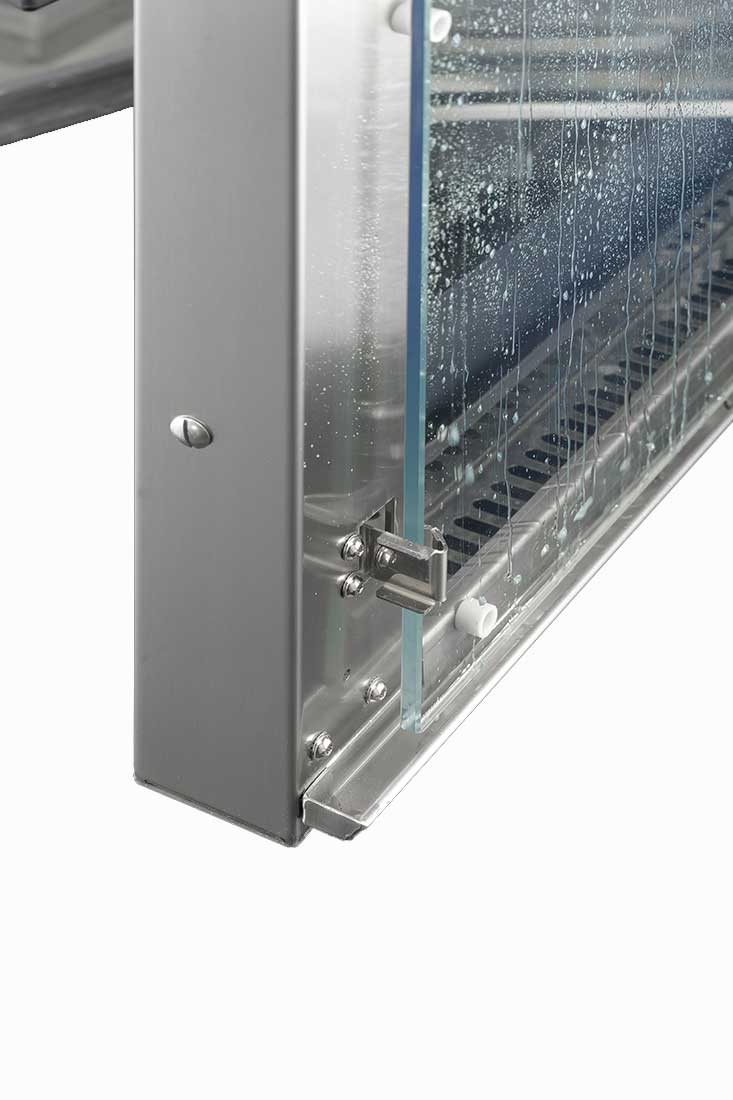

• Two-stage door opening lets steam and hot air escape safely; twin glass door keeps the window cooler
• Optional steamless condenser canopy (TD-FECL)

Specifications:

• Model: Tecnodom TDC-5VH (Nerone CL)
• Capacity: 5 x 600 x 400 mm or 5 x GN 1/1
• Tray spacing: 75 mm
• Temperature: 30°C to 280°C convection; 100°C steam
• Oven chamber: 660 W x 450 D x 440 H mm
• Dimensions: 920 W x 840 D x 770 H mm
• Weight: 89 kg
• Power: 6.45 kW, 380–415V three-phase plus neutral
• Water: 3/4 inch mains connection, 150–250 kPa; drain with 30 mm siphon
• Packed size for delivery: 966 x 830 x 900 mm, 112 kg

Good to know before you buy:

• Power: three-phase 415V, connected by a licensed electrician. We supply the equipment only.
• Water / drain: needs mains water through a shut-off valve and a 30 mm siphon drain, connected by a licensed plumber. Tecnodom recommends a water softener (hardness below 3°F); scale damage from untreated water is not covered by the warranty.
• Ventilation: Tecnodom's manual says the oven must be used under an extraction hood and the exhaust chimney on top must not be covered. Ask us about the optional TD-FECL steamless canopy.
• Clearances: at least 100 mm at the sides and top, or 600 mm if there are other heat sources nearby.
• Not included: pans and trays.

Compare similar models:

• Tecnodom TDC-10VH: same Nerone CL features with 10 trays and 12.7 kW
• Tecnodom TD-6NE: Nerone MID 6 tray, convection with water injection, no auto clean
• Tecnodom TD-7NE: Nerone MID 7 tray, 10.7 kW

Common questions:

Does it clean itself?
Yes. It has an automatic 4-stage cleaning system with liquid lines as standard.

Does it need a hood?
Tecnodom's manual says it must be used with an extraction hood above it. The TD-FECL steamless canopy with steam condenser is designed for the TDC range. Ask us about it.

Do you install it?
We supply the equipment only. It must be connected by a licensed electrician (three-phase) and a licensed plumber (water and drain) in your area.

See all our commercial combi ovens.

Warranty: 1 year parts and labour (FED).
