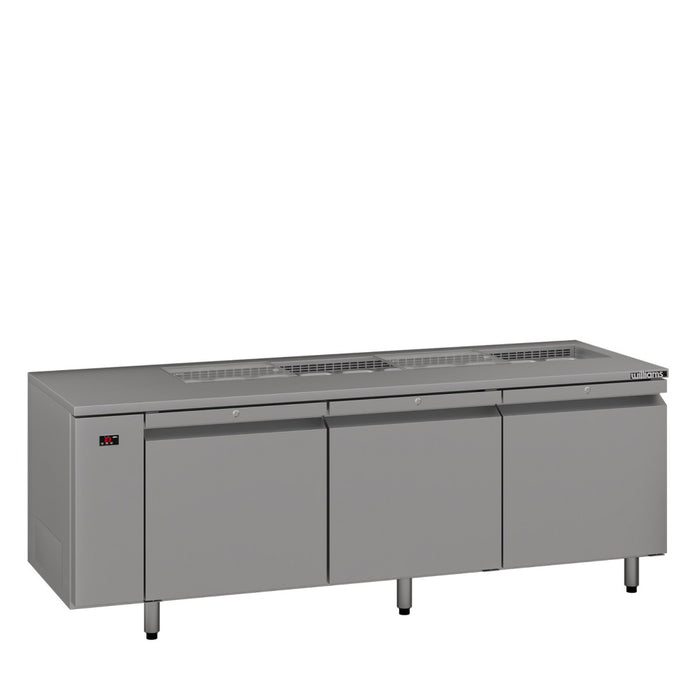

Williams Emerald HE3USSBA / HE3RSSBA - 3 Door Stainless Steel Undercounter Fridge With Blown Air Well 2506mm 900L

Williams Emerald HE3USSBA / HE3RSSBA - 3 Door Stainless Steel Undercounter Fridge With Blown Air Well 2506mm 900L

The Williams Emerald HE3USSBA is the biggest prep counter in the Williams foodservice range: a refrigerated blown-air well for 10 x 1/3 GN pans along the top and 900 litres of 2/1 GN-compatible storage behind three solid doors below, on an 800mm deep, 2506mm wide stainless steel cabinet. Cold air is directed above and below the pans for consistent temperatures, and the 100mm deep pans and polycarbonate lids are included. It holds +1°C to +4°C, is rated for 40°C kitchens and breathes through the front. Order the self-contained HE3USSBA (10 amp plug, R134a) or the HE3RSSBA remote, 2324mm wide and supplied without a condensing unit for your own refrigeration plant. Made by Williams in Australia.

Key features:

• Blown-air well for 10 x 1/3 GN pans, 100mm deep, with directional airflow above and below the pans
• Pans and polycarbonate lids included
• 900 litres of 2/1 GN-compatible storage behind three solid stainless steel doors, 800mm deep
• Holds +1°C to +4°C and is rated for room temperatures up to 40°C
• Front-breathing removable refrigeration cassette on the self-contained model, no external drain needed
• CoolSmart electronic controller and intelligent ducted airflow for even temperatures
• Longer-life anti-corrosive coating on the evaporator coil
• Stainless steel interior and exterior (excluding rear and underside) with an easy-clean coved liner
• 1 adjustable shelf per door on strips and clips, optional 2/1 GN racking with anti-tilt slides

Specifications:

• Model: Williams HE3USSBA (self-contained) or HE3RSSBA (remote, no condensing unit)
• Capacity: 900 litres
• Blown-air well: 10 x 1/3 GN pans, 100mm deep (included)
• Temperature range: +1°C to +4°C
• Maximum room temperature: 40°C
• Dimensions, self-contained: 2506 W x 800 D x 850 H mm on 120mm castors
• Dimensions, remote: 2324 W x 800 D x 880 H mm on 150mm legs
• Weight: 200 kg (both versions)
• Refrigerant: R134a (self-contained); remote cabinets are built for R448A
• Power: 10 amp plug; running current 5.2 A self-contained, 0.6 A remote
• Remote refrigeration duty: 980 W at –10°C SST
• Doors: 3 solid doors (two-drawer sets optional; pass-through not available on blown-air well models)
• Finish: stainless steel interior and exterior, excluding rear and underside
• Shelves: 1 adjustable shelf per door (3 in total)
• Origin: made in Australia

Good to know before you buy:

• Refrigeration option: the self-contained HE3USSBA plugs in and is ready to work. The HE3RSSBA remote is the same cabinet without a condensing unit: your refrigeration mechanic sizes, supplies and installs the condensing unit, pipework and controls (solenoids are not fitted or supplied). Williams can advise on sizing. We supply the equipment only.
• Power: a standard 10 amp outlet. The self-contained model draws 5.2 A while running, the most of any Williams undercounter, so give it a dedicated power point.
• Pan depth: the well takes GN pans up to 100mm deep; deeper pans will not fit.
• Access: 2.5 m long, 800mm deep and 200 kg. It is delivered by tailgate truck to the front of your premises and standard delivery does not include carrying it inside, so measure the whole route before you order.
• Airflow: keep the front grille clear on the self-contained model, and keep the open well out of direct sun and away from heat lamps and cooking equipment.

Compare similar models:

• Williams HE3USS / HE3RSS: the same three-door Emerald with a flat top and 2 shelves per door
• Williams HE2USSBA / HE2RSSBA: two doors, 610 litres, well for 7 x 1/3 GN pans
• Williams Opal HO4USSBA / HO4RSSBA: 700mm deep four-door counter with the same 10-pan well, 670 litres
• Williams Opal HO3USSBA / HO3RSSBA: 700mm deep three-door counter, 510 litres, well for 7 x 1/3 GN pans

Common questions:

How many shelves does it come with?
Williams supplies blown-air well models with one adjustable shelf per door (three in total), where the flat-top Emerald fridges have two per door. Extra shelves and a 2/1 GN racking system are available as options. Ask us for a price.

Can I have drawers under the well?
Yes, in a two-drawer configuration only: a 100mm deep top drawer and a 150mm deep bottom drawer in place of a door. Drawer pans are not included.

Do you install it?
We supply the equipment only. The self-contained model plugs into a power point. The remote cabinet must be connected to a condensing unit by a licensed refrigeration mechanic in your area.

See all our undercounter fridges.

Warranty: Williams 24-month parts and labour warranty from the date of invoice on the self-contained HE3USSBA (12 months parts only on the HE3RSSBA once connected to a remote condensing unit), carried out by Williams authorised service agents on the Australian mainland. Warranty repairs must be logged with Williams first.
