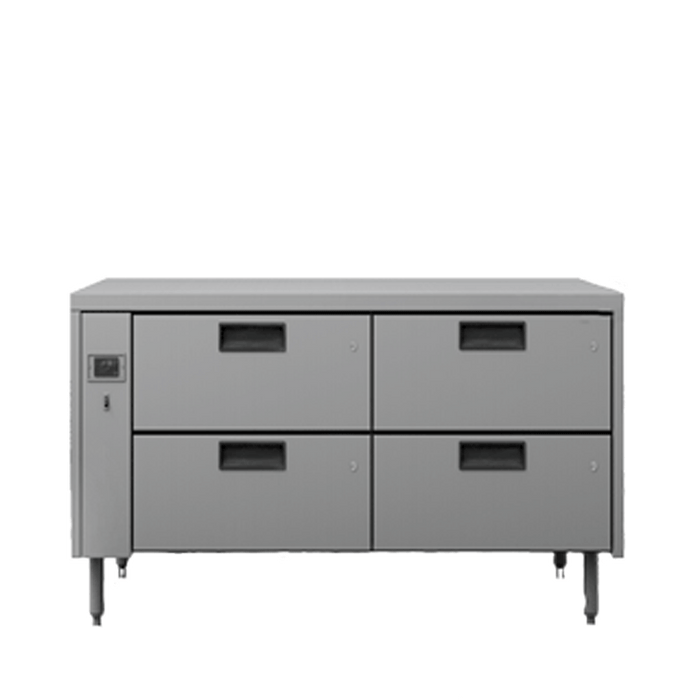

Williams Jarrah JH4R - 4 Drawer Hiline Fridge 1210mm
The Williams Jarrah JH4R is the hiline Jarrah: 750mm high instead of 640mm, which makes room for deeper drawers. Each of its four drawers takes a 1/1 GN pan 150mm deep, pans included, in a cabinet just 1210mm wide, so you get four separate lines of stock under a shorter run of cooking equipment. It is a remote cabinet made in Australia, supplied with evaporator, TX valve, controller, condensate drain and a 10 amp plug, for connection by your refrigeration mechanic to a condensing unit elsewhere. The heat-shielded worktop carries up to 290 kg, and the JH models can have their pipes exit through the bottom or the rear as standard. The JL4R gives you four shallower drawers across 1820mm.
Key features:
- Remote refrigerated base for connection to a condensing unit supplied by others
- Four deep drawers, each holding a 1/1 GN pan 150mm deep (pans included)
- Hiline 750mm height, with a fibre cement heat shield in the worktop rated for 290 kg of cooking equipment
- Bottom or rear exiting pipes as standard on JH models
- Designed for 40°C kitchen environments
- Adjustable electronic controller with digital temperature display
- Forced air refrigeration system
- Heavy-duty drawer runners with reinforced nylon and stainless steel bushes
- Coved internal floor, stainless steel interior and exterior, castors plus legs supplied
Specifications:
- Model: Williams JH4R
- Capacity: 4 x 1/1 GN pans, 150mm deep (1 per drawer)
- Dimensions: 1210 W x 650 D x 750 H mm (on 150mm legs)
- Weight: 150 kg unpacked
- Worktop load limit: 290 kg
- Temperature range: +1°C to +4°C
- Maximum room temperature: 40°C
- Refrigeration: remote, 400 W duty at -5°C SST, condensing unit not included
- Refrigerant: R448A (as specified by Williams for the remote system)
- Power: 10 amp plug for the controller and evaporator fan, 0.5 A running current, 2 m cable
- Drawers: 4
- Finish: stainless steel interior and exterior (excluding rear and underside)
- Pipework: bottom or rear exit as standard
- Origin: made in Australia
Good to know before you buy:
- Refrigeration: there is no condensing unit in the box. A licensed refrigeration mechanic must supply, size and install the condensing unit, pipework and controls. Solenoids are not fitted or supplied. Williams can advise on sizing. We supply the equipment only.
- Drain: a condensate drain is fitted. Have your plumber confirm where it will run to.
- Power: standard 10 amp power point for the controller and fan.
- Access: 1210mm wide, 650mm deep, 750mm high and 150 kg. Delivery is by tailgate truck to the front of your premises.
Compare similar models:
- Williams JL6R: six-drawer hiline remote base, 1675mm wide, same 150mm deep pans
- Williams JL4R: four-drawer lowline remote base, 1820mm wide, 640mm high, 100mm deep pans
- Williams JL2R: two-drawer lowline remote base, 1030mm wide
- Williams HUBC7: self-contained two-drawer base, 1300mm wide, plugs straight in
Common questions:
What is the difference between lowline and hiline?
Lowline JL models are 640mm high and take 100mm deep pans, two per drawer. Hiline JH models are 750mm high and take one 150mm deep 1/1 GN pan per drawer.
Can I get it as a freezer?
Williams lists a freezer option for the JH models on application. Ask us and we will find out for you.
Do you install it?
We supply the equipment only. It must be connected to a condensing unit by a licensed refrigeration mechanic in your area.
See all our chef drawers.
Warranty: Williams 12-month parts only warranty from the date of invoice on this remote cabinet, which is designed for connection to a condensing unit supplied by others. Warranty repairs must be logged with Williams first.
