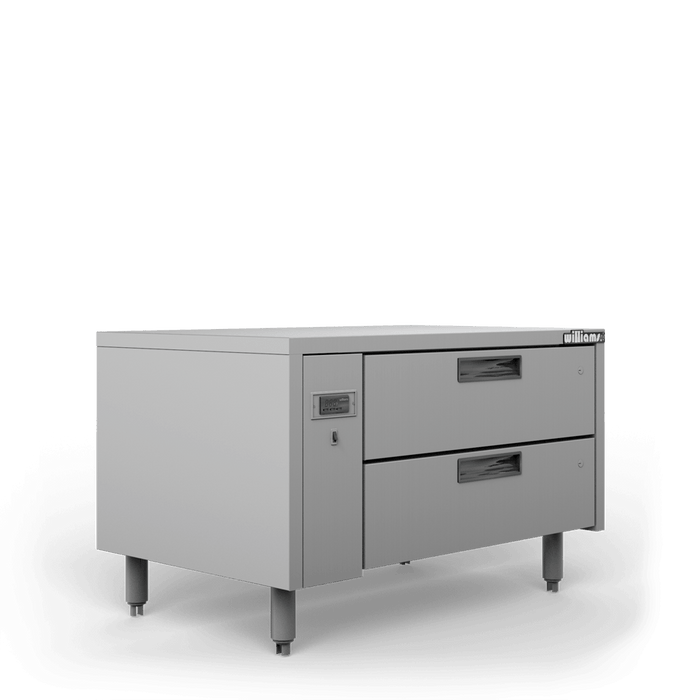

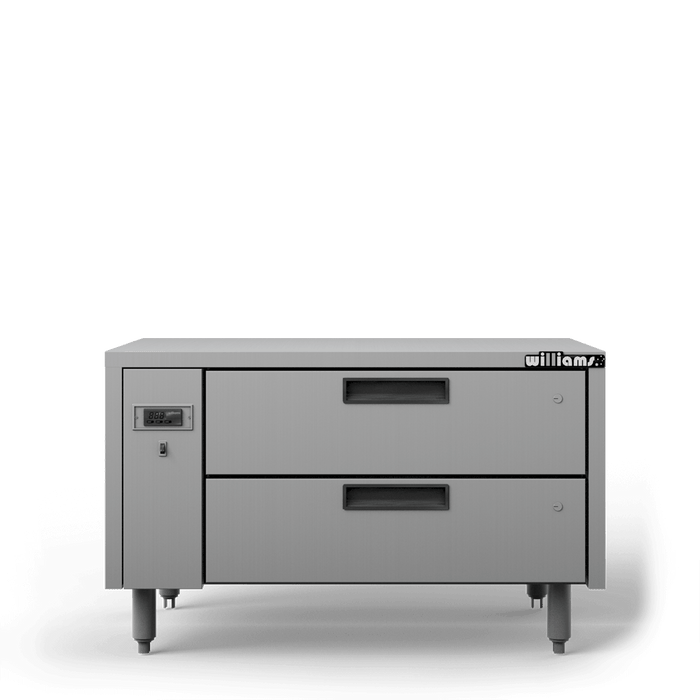

Williams Jarrah JL2R - 2 Drawer Lowline Fridge 1030mm

Williams Jarrah JL2R - 2 Drawer Lowline Fridge 1030mm

The Williams Jarrah JL2R is a remote two-drawer refrigerated base made in Australia to sit under a chargrill or griddle. It is supplied without a condensing unit: the cabinet comes with its evaporator, TX valve, controller, condensate drain and a fitted 10 amp plug, and your refrigeration mechanic connects it to a condensing unit elsewhere, which keeps the compressor heat out of your cooking line. Each of the two drawers takes two 1/1 GN pans 100mm deep, and the pans are included. At 1030mm wide and 640mm high on its legs, with a heat-shielded stainless steel top rated to carry 170 kg, it suits a compact grill section. The JL4R is the four-drawer version at 1820mm, and the HUBC5 is the self-contained alternative.

Key features:

• Remote cabinet for connection to a condensing unit supplied by others, so the heat stays away from the grill line
• Two drawers, each holding 2 x 1/1 GN pans 100mm deep (pans included); a 2/1 GN pan can be used instead (not supplied)
• Low 640mm height with a fibre cement heat shield built into the worktop, rated for 170 kg of cooking equipment
• Designed for 40°C kitchen environments
• Adjustable electronic controller with digital temperature display
• Forced air refrigeration with an end-mounted evaporator
• Heavy-duty drawer runners with reinforced nylon and stainless steel bushes
• Coved internal floor for easy cleaning, stainless steel interior and exterior
• Castors for mobility, with legs also supplied

Specifications:

• Model: Williams JL2R
• Capacity: 4 x 1/1 GN pans, 100mm deep (2 per drawer)
• Dimensions: 1030 W x 650 D x 640 H mm (on 150mm legs)
• Weight: 140 kg unpacked
• Worktop load limit: 170 kg
• Temperature range: +1°C to +4°C
• Maximum room temperature: 40°C
• Refrigeration: remote, 400 W duty at -5°C SST, condensing unit not included
• Refrigerant: R448A (as specified by Williams for the remote system)
• Power: 10 amp plug for the controller and evaporator fan, 0.5 A running current, 2 m cable
• Drawers: 2
• Finish: stainless steel interior and exterior (excluding rear and underside)
• Pipework and drain: exit through the floor as standard; rear-exit pipes are an option that must be specified at order
• Origin: made in Australia

Good to know before you buy:

• Refrigeration: this is a remote cabinet with no condensing unit. A licensed refrigeration mechanic must supply, size and install a suitable condensing unit, pipework and controls. Solenoids are not fitted or supplied. Williams can advise on condensing unit sizing. We supply the equipment only.
• Drain: the condensate drain and refrigeration pipes exit through the floor, so you need a waste point under the unit. Ask for rear-exit pipes when you order if that suits your site better.
• Power: plugs into a standard 10 amp power point for the controller and fan.
• Access: 1030mm wide, 650mm deep and 140 kg. Delivery is by tailgate truck to the front of your premises.

Compare similar models:

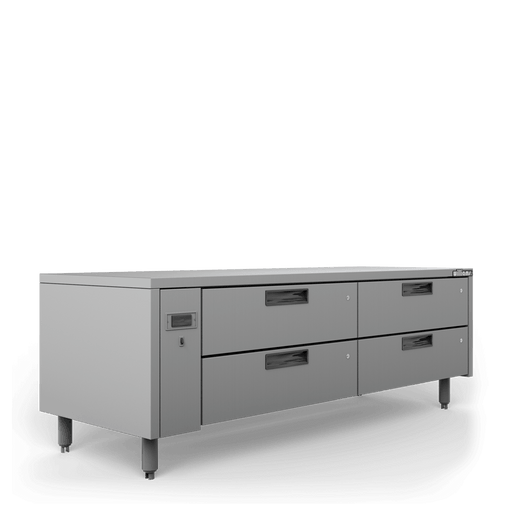

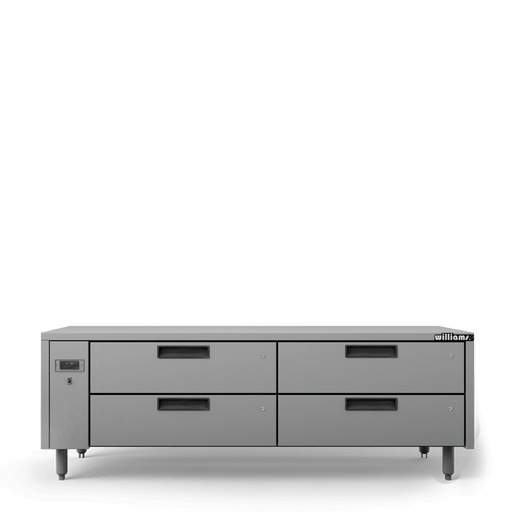

• Williams JL4R: four-drawer lowline remote base, 1820mm wide, 8 x 1/1 GN pans

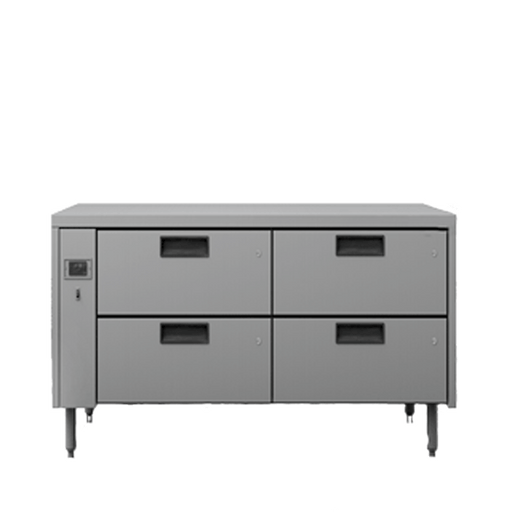

• Williams JH4R: four-drawer hiline remote base, 1210mm wide, 750mm high, 150mm deep pans

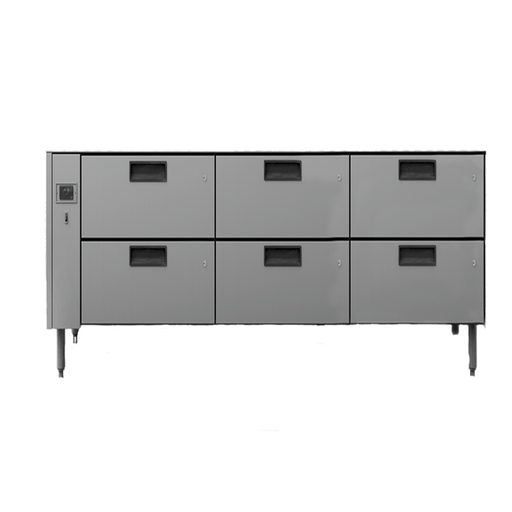

• Williams JL6R: six-drawer hiline remote base, 1675mm wide
• Williams HUBC5: self-contained two-drawer base, 1000mm wide, plugs in with its own refrigeration

Common questions:

Does it come with a condensing unit?
No. The Jarrah is a remote cabinet. Your refrigeration mechanic supplies and fits a condensing unit rated for about 400 W at -5°C SST, plus the pipework and controls.

Are the GN pans included?
Yes. The JL2R comes with four 1/1 GN pans 100mm deep, two per drawer. If you prefer one 2/1 pan per drawer, that size fits but is not supplied.

Do you install it?
We supply the equipment only. It must be connected to a condensing unit by a licensed refrigeration mechanic in your area.

See all our chef drawers.

Warranty: Williams 12-month parts only warranty from the date of invoice on this remote cabinet, which is designed for connection to a condensing unit supplied by others. Warranty repairs must be logged with Williams first.
