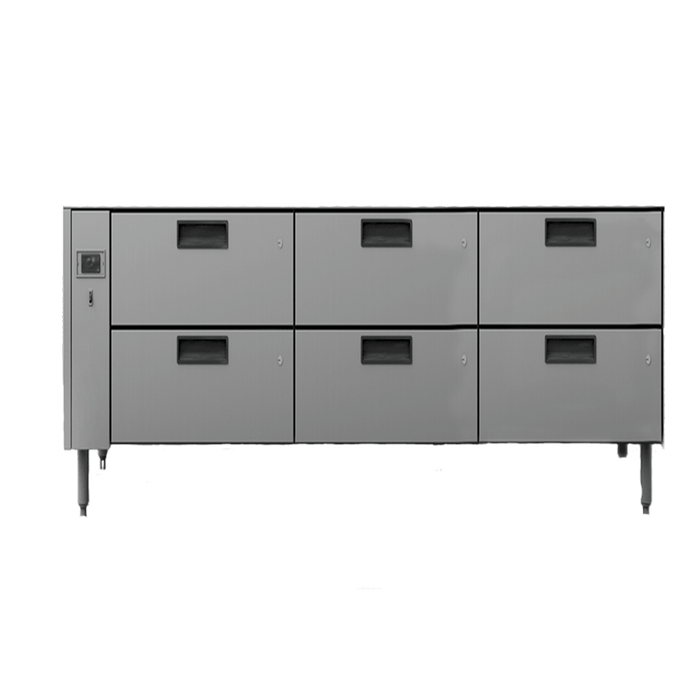

Williams Jarrah JL6R - 6 Drawer Hiline Fridge 1675mm

Williams Jarrah JL6R - 6 Drawer Hiline Fridge 1675mm

Six drawers, six 150mm deep 1/1 GN pans, one long grill line: the Williams Jarrah JL6R is the largest hiline base in the Australian-made Jarrah range. Williams lists this six-drawer hiline model as the JH6R in its price guide, and it shares the 750mm height and deep single-pan drawers of the JH4R, stretched to 1675mm. It is a remote cabinet, supplied with its evaporator, TX valve, controller, condensate drain and a 10 amp plug but no condensing unit, which your refrigeration mechanic installs away from the heat of the cooking line. The pans are included, the stainless steel top has a built-in heat shield, and the cabinet is designed for 40°C kitchens.

Key features:

• Remote refrigerated base for connection to a condensing unit supplied by others
• Six deep drawers, each holding a 1/1 GN pan 150mm deep (pans included)
• Hiline 750mm height with a fibre cement heat shield in the worktop for chargrills and griddles
• Bottom or rear exiting pipes as standard on hiline models
• Designed for 40°C kitchen environments
• Adjustable electronic controller with digital temperature display
• Forced air refrigeration system
• Heavy-duty drawer runners with reinforced nylon and stainless steel bushes
• Coved internal floor, stainless steel interior and exterior, castors plus legs supplied

Specifications:

• Model: Williams JL6R (Williams price guide code JH6R)
• Capacity: 6 x 1/1 GN pans, 150mm deep (1 per drawer)
• Dimensions: 1675 W x 650 D x 750 H mm (on legs)
• Weight: 180 kg unpacked
• Temperature range: +1°C to +4°C
• Maximum room temperature: 40°C
• Refrigeration: remote, 500 W duty at -5°C SST, condensing unit not included
• Refrigerant: R448A (as specified by Williams for the remote system)
• Power: 10 amp plug for the controller and evaporator fan, 0.6 A running current
• Drawers: 6
• Finish: stainless steel interior and exterior (excluding rear and underside)
• Pipework: bottom or rear exit as standard
• Origin: made in Australia

Good to know before you buy:

• Refrigeration: no condensing unit is supplied. A licensed refrigeration mechanic must supply, size and install the condensing unit, pipework and controls. Solenoids are not fitted or supplied. Williams can advise on sizing. We supply the equipment only.
• Drain: a condensate drain is fitted. Confirm the waste point with your plumber before delivery.
• Access: 1675mm long, 650mm deep and 180 kg. Delivery is by tailgate truck to the front of your premises; moving it into the kitchen is up to you.
• Power: standard 10 amp power point for the controller and fan.

Compare similar models:

• Williams JH4R: four-drawer hiline remote base, 1210mm wide, same 150mm deep pans
• Williams JL4R: four-drawer lowline remote base, 1820mm wide, 640mm high, 8 x 100mm deep pans
• Williams JL2R: two-drawer lowline remote base, 1030mm wide
• Williams HUBC6: self-contained six-drawer base, 2010mm wide, plugs straight in

Common questions:

Is this the same as the Williams JH6R?
Yes. Williams' price guide and data lists the six-drawer hiline Jarrah as the JH6R. It is the same 1675mm, six-drawer, 750mm high remote cabinet.

Are the pans included?
Yes. Hiline Jarrah models come with a 1/1 GN pan 150mm deep in each drawer, six in total.

Do you install it?
We supply the equipment only. A licensed refrigeration mechanic must connect it to a suitably sized condensing unit, rated by Williams at 500 W at -5°C SST.

See all our chef drawers.

Warranty: Williams 12-month parts only warranty from the date of invoice on this remote cabinet, which is designed for connection to a condensing unit supplied by others. Warranty repairs must be logged with Williams first.
