Small enough to sit on a cafe counter, the Bonvue CGD-03B puts a few flavours of gelato right where customers order. It takes 3 x 5L gelato pans, one 65mm deep 1/1 GN pan or 2 popsicle insert discs under a glass display lid with LED lighting, and holds -16°C to -18°C with static cooling on R290 natural refrigerant. The black stainless steel cabinet is 670mm wide and 392mm high. For a full scoop counter, look at the floor-standing SGD range.

Key features:

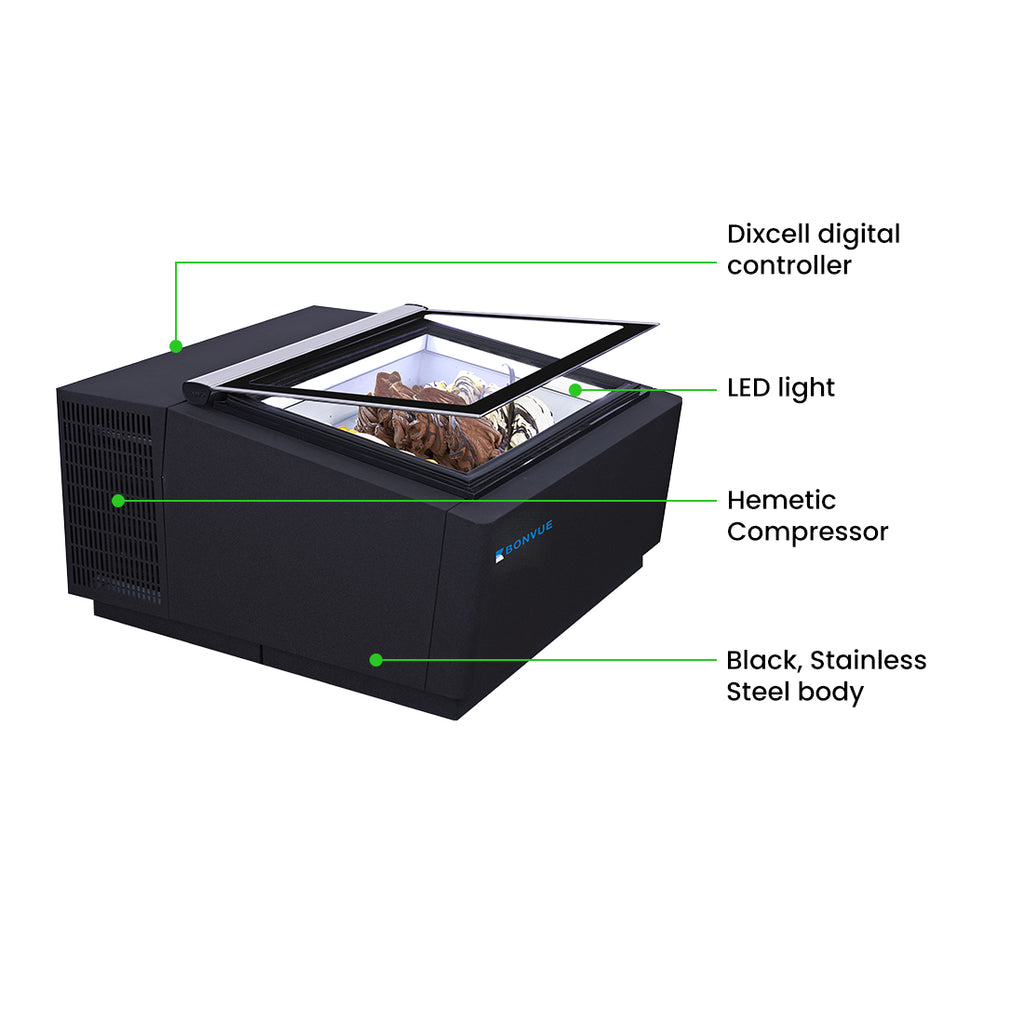

• Takes 3 x 5L gelato pans, 1 x 65mm deep 1/1 GN pan, or 2 popsicle insert discs
• Glass viewing lid with LED interior lighting
• Static cooling holds -16°C to -18°C
• Hermetic compressor running on R290 natural refrigerant
• Dixell digital temperature controller
• Downtime defrosting to keep maintenance simple
• Black stainless steel cabinet
• 8 star GEMS rating, 3.203 kWh per 24 hours (FED brochure)

Specifications:

• Model: Bonvue CGD-03B
• Capacity: 45 litres
• Pans: 3 x 5L gelato pans, or 1 x 1/1 GN 65mm deep, or 2 popsicle insert discs

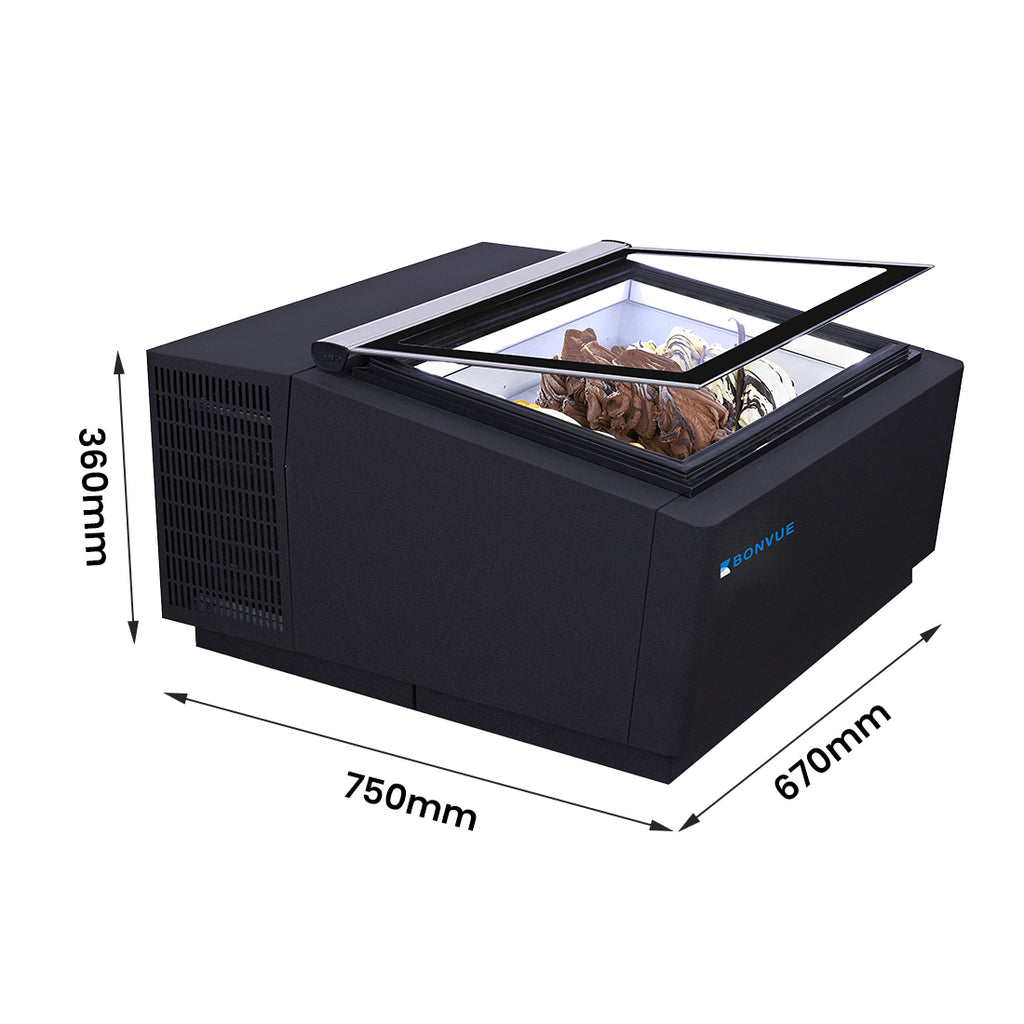

• Dimensions: 670 W x 750 D x 392 H mm
• Weight: 44 kg
• Temperature range: -16°C to -18°C
• Maximum room conditions: 30°C, 55% relative humidity
• Refrigerant: R290
• Power: 240V, 10 A plug
• Energy use: 3.203 kWh per 24 hours
• Packed size for delivery: 810 x 740 x 570 mm

Good to know before you buy:

• Counter space: it needs a bench at least 750mm deep and 670mm wide. Leave space around it and keep the air vents clear so the compressor can breathe.
• Access: packed, it is 810 x 740 x 570 mm and the unit weighs 44 kg, so allow two people to lift it onto the counter. Delivery is by tailgate truck to the front of your premises; standard delivery doesn't include bringing it inside or unpacking.
• Power: plugs into a standard 10 A power point.
• Pans: FED sells 5L stainless steel gelato pans separately (code GELATO-5L).

Compare similar models:

• Bonvue SGD-12B: floor-standing square glass gelato display for 12 x 5L pans
• FED Thermaster SD-325P: gelato display freezer for 6 x 5L pans, 300 litres
• Tecnocrio CFT0004: countertop ice cream freezer for 4 x 5L tubs

Common questions:

Are gelato pans included?
FED lists its 5L stainless steel gelato pans as a separate item. Ask us for a price on pans or popsicle discs.

What can I put in it?
Three 5L gelato pans, one 65mm deep 1/1 GN pan, or two popsicle insert discs. It holds -16°C to -18°C, which suits gelato and frozen desserts.

Does it need a special power point?
No. It runs on 240V from a standard 10 A power point.

See all our ice cream and gelato display freezers.

Warranty: 1 year parts and labour, plus an extra 1 year on parts when you register the product with FED within 14 days of invoice.
