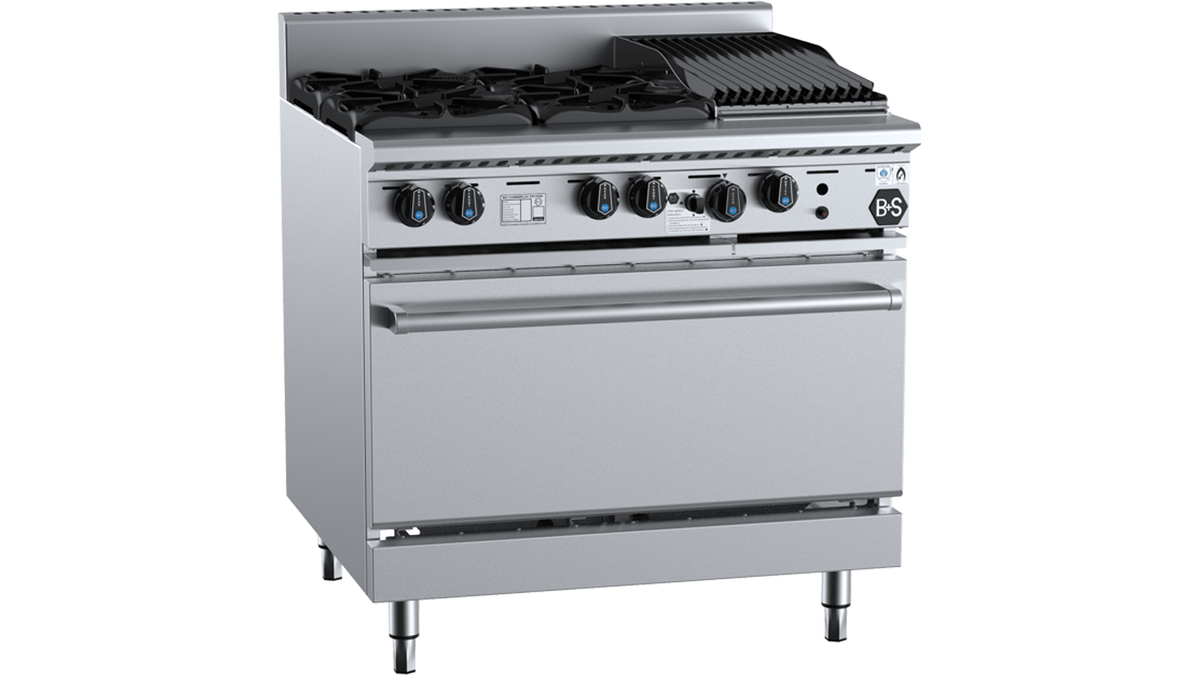

B+S Black OV-SB4-CBR3 - 900mm 4 Burner & Char Broiler Gas Range with Oven
B+S Black OV-SB4-CBR3 - 900mm 4 Burner & Char Broiler Gas Range with Oven
SKU: OV-SB4-CBR3
Prefer to talk? Call 0447 483 035 Mon–Fri, 9am–5pm (Sydney time)
- Australia-wide delivery, usually 2–5 business days to Sydney, Melbourne, Brisbane and Adelaide. Delivery info
- Price-Beat Guarantee. Found it cheaper? Send us the link
- Warranty: 24-month B+S parts and labour warranty, from the date of installation. Warranty claims
- Tax invoice with our ABN for every order
- Secure checkout
Before it arrives
- Size: 900 W x 840 D x 1030 H mm. Check doorways and access on the way in.
- Gas: needs a licensed gas fitter to connect. Choose natural gas or LPG when you order, where offered.
- Installation type: Floor standing.
We supply the equipment only. Connection and installation are by your own licensed trades. Full specifications are in the product details below.
Product details
B+S Black OV-SB4-CBR3 - 900mm 4 Burner & Char Broiler Gas Range with Oven
The OV-SB4-CBR3 is a 900mm wide range with four 31 MJ open burners, a 300mm char broiler and a gas oven. It suits a restaurant or cafe kitchen that wants a full cooking line in one unit. It has twice the burners of the OV-SB2-CBR3 and a wider oven, and the OV-SB6-CBR3 adds two burners and a storage cabinet.
Key features:
- 4 x 31 MJ black enamelled, Italian made open burners on vitreous enamelled trivets
- 300mm char broiler with a 34 MJ U-burner, cast iron radiant hood and reversible J-grates for an inclined or flat surface
- 29 MJ stainless steel oven burner with natural convection and a solid mild steel base plate for even heat
- German made thermostat for accurate temperature control
- Insulated drop down door with a spring hinge system
- Flame failure standard, with a multi-setting gas valve
- Heavy duty AISI grade stainless steel frame, fat spillage trays and easy access to components
Specifications:
- Model: OV-SB4-CBR3
- Dimensions: 900 W x 840 D x 1030 H mm
- Gas: 187 MJ/h natural gas, 158 MJ/h LPG
- Burners: 4 x 31 MJ open, 1 x 34 MJ char broiler, 1 x 29 MJ oven
- Internal oven: 630 D x 785 W x 290 H mm (height from lowest rack position)
- Gas connection: 3/4 inch BSP female, regulator included
- Supply pressure: 1.0 kPa natural gas, 2.6 kPa LPG
- Fan forced option: 10 A plug, 1.2 m lead, 30 W fan
- Gas approval: GMK 10686
Good to know before you buy:
- Gas type: choose Natural Gas or LPG when you order, to match your gas supply.
- Installation: gas appliances must be connected by a licensed gas fitter, to local regulations and under a suitable exhaust canopy. We supply the equipment only.
- Access: delivered by tailgate truck to the front of your premises. Check doorways for a 900 x 840 x 1030 mm unit.
- Options: B+S also offers a fan forced oven, a pilot per burner, non-swivel rear castors and a 900 x 50 mm plinth kit. Ask us for a price.
Compare similar models:
- OV-SB4-GRP3 (900mm): same layout with a 300mm grill plate instead of the char broiler.
- OV-SB6 (900mm): same width with six open burners and no char section.
- OV-SB6-CBR3 (1200mm): six burners, the same oven width and a 300mm storage cabinet.
Common questions:
How much bigger is the oven than on the 600mm range?
It is 785 mm wide compared with 485 mm, at the same depth and height. That extra 300 mm is the main reason to step up.
Is there a version with a plate instead of grates?
Yes, the OV-SB4-GRP3 has a 300mm grill plate instead. It uses 175 MJ/h on natural gas, against 187 MJ/h here.
Can I fit a pilot on each burner?
Pilots are priced per burner, so a full set here is four. Tell us how many you want and we will quote it.
See all our commercial stoves and oven ranges.
Warranty: 24-month B+S parts and labour warranty, from the date of installation.
