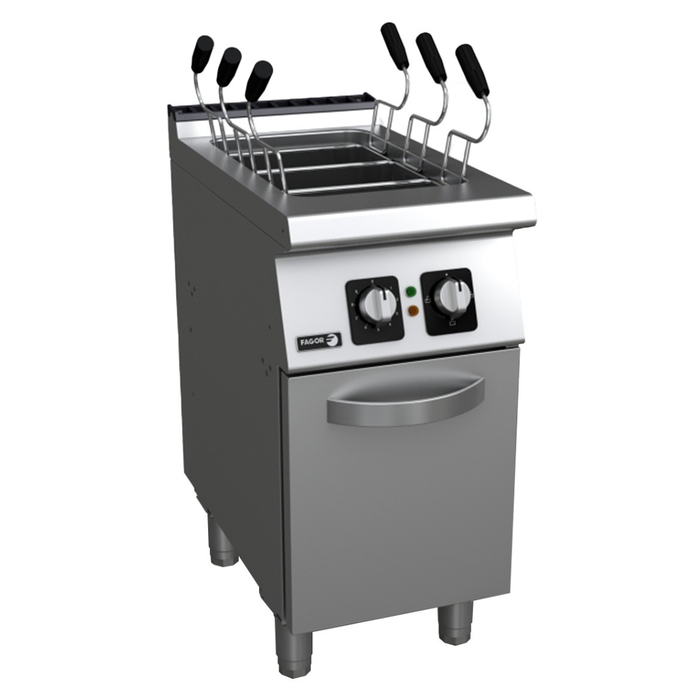

Fagor CP-E7140 - Kore 700 Series Electric Pasta Cooker 3 Baskets

Fagor CP-E7140 - Kore 700 Series Electric Pasta Cooker 3 Baskets

The Fagor CP-E7140 packs a full 40 litre GN 1/1 well into a 400mm wide Kore 700 module, with three 1/3 size baskets for restaurants and noodle bars that cook pasta or noodles in volume but are short on line space. Its 12 kW of element power sits inside the well to heat the water directly. It holds more water and one more basket than the 26 litre CP-E7126, in the same footprint.

Key features:

• 40 litre GN 1/1 well in 1.5mm AISI-316L stainless steel, built into the top
• Three 1/3 size baskets supplied; other basket layouts also fit
• 12 kW of AISI-304 stainless steel elements inside the well
• Energy regulator controls the heating
• Two-speed solenoid fill (medium and fast)
• High-temperature ball valve drain with a safety overflow
• Automatic safety cut-out if the water runs out
• 1.5mm AISI-304 stainless steel top with laser-cut joints and hidden screws
• IPX5 water protection, controls guarded against water getting in, and adjustable feet

Specifications:

• Model: Fagor CP-E7140
• Well: 1 x 40 litres, GN 1/1
• Baskets: 3 x 1/3 size, supplied
• Dimensions: 400 W x 730 D x 850 H mm
• Weight: 50 kg
• Power: 12 kW, 415V three-phase plus neutral (3N~), 17.4 A
• Water supply: 200–400 kPa, 3/4 inch inlet
• Range: Fagor Kore 700 Series (freestanding)
• Packed size for delivery: 440 x 822 x 1255 mm, 65 kg

Good to know before you buy:

• Power: 12 kW on 415V three-phase, connected by a licensed electrician.
• Water and drain: it needs a water supply at 200–400 kPa, and the well drains through a ball valve, so plan for the drained water. Connection by a licensed plumber. We supply the equipment only.
• Access: it ships packed at 440 x 822 x 1255 mm and 65 kg, by tailgate truck to the front of your premises.

Compare similar models:

• Fagor CP-E7126: same width, smaller 26 litre GN 2/3 well, 2 baskets, 9 kW
• Fagor CP-E7240: 800mm, two 40 litre wells, 6 baskets, 24 kW
• Fagor CP-E905: Kore 900 version with a 40 litre GN 1/1 well, 930mm deep
• Fagor CP-G905: Kore 900 gas pasta cooker, 40 litres, 3 baskets

Common questions:

What's the difference between the CP-E7140 and CP-E7126?
Both are 400mm wide. The CP-E7140 has a 40 litre GN 1/1 well with 3 baskets and 12 kW. The CP-E7126 has a 26 litre GN 2/3 well with 2 baskets and 9 kW.

Can I use different baskets?
Yes. The well suits different basket sizes and layouts, and Fagor lists optional kits such as 6 x 1/6 square or round baskets. Ask us for pricing.

Do you install it?
We supply the equipment only. It needs a licensed electrician for the power and a licensed plumber for the water.

See all our commercial noodle cookers and steamers.

Warranty: 2 years parts and labour, plus an extra 2 years on parts when you register the product with FED within 14 days of invoice.
