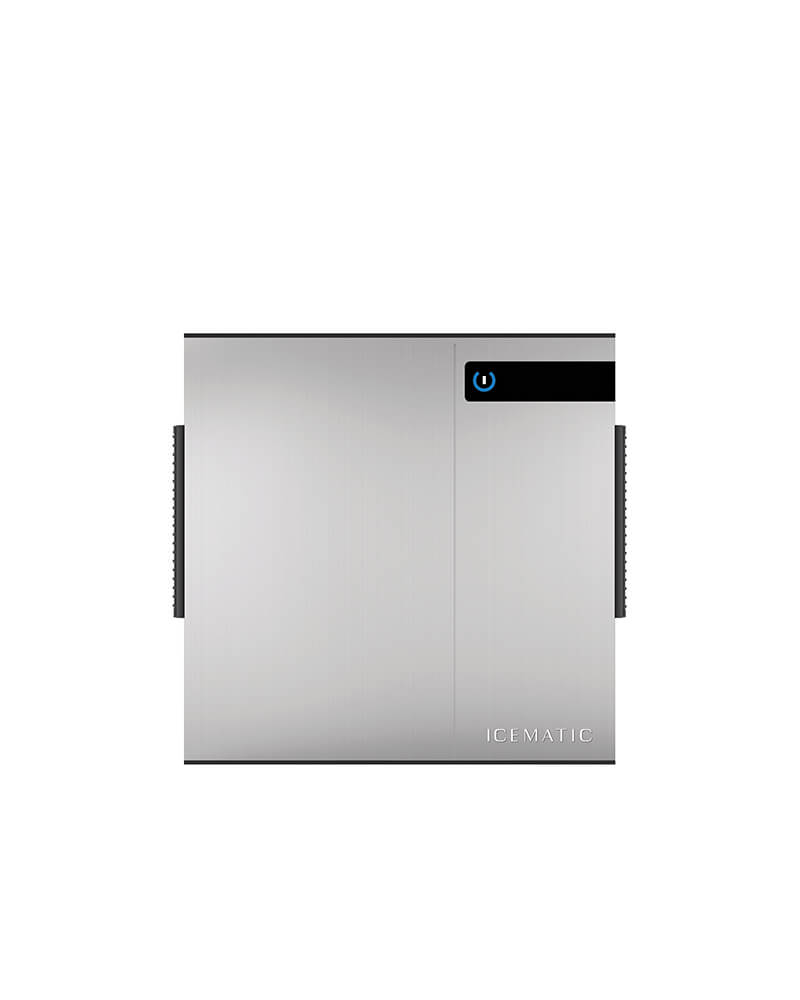

Icematic M145-A - 145kg High Production Full Dice Ice Machine

Icematic M145-A - 145kg High Production Full Dice Ice Machine

The Icematic M145-A is the entry point to the Maracuja modular range: an ice-making head that sits on a separate storage bin and makes up to 145kg a day of 10g full dice cubes. Full dice is the all-rounder cube for spirits, soft drinks and cocktails, so this suits bars, bistros, motels and clubs that have outgrown an under-counter machine. It comes in a 560mm wide cabinet, and the same size head is also available as the MH145-A (half dice) and ML145-A (large dice).

Key features:

• Up to 145kg a day of 10g full dice cubes
• Modular head only: pair it with a storage bin (sold separately)
• Rainbow Technology as standard, a patented treatment that helps protect the evaporator from aggressive agents and limescale
• Vertical evaporator and Auto-Alert indicator lights
• My Ice app control by Wi-Fi or Bluetooth, plus touch controls and scheduled production
• Sanitisation cycle, audible and light alarms, HACCP alarm report
• External cube weight adjustment and USB connection for updates and HACCP data
• Stainless steel construction, supplied with water and drain hoses

Specifications:

• Model: Icematic M145-A
• Production: up to 145kg per 24 hours
• Ice type: 10g full dice, approx. 22 x 22 x 24 mm
• Storage: none built in (head only)
• Dimensions: 560 W x 620 D x 575 H mm
• Weight: 53 kg
• Power: 0.65 kW, 240V single phase, 10 amp
• Refrigerant: R290
• Cooling: air-cooled
• Operating range: room 10–40°C, water 5–35°C, water pressure 1–10 bar
• Made in Italy
• Packed size for delivery: 630 W x 690 D x 740 H mm, 65 kg

Good to know before you buy:

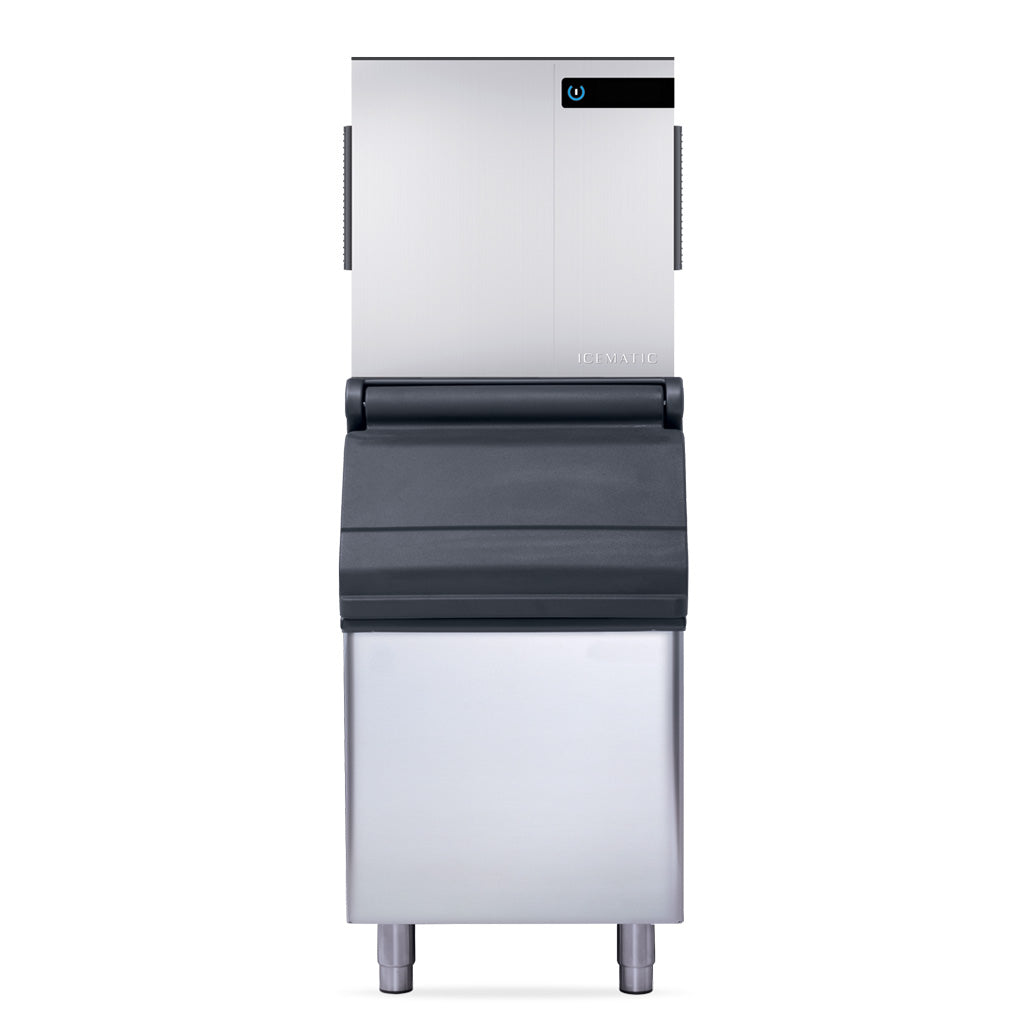

• Storage bin: this is the ice-making head only. Icematic's Australian distributor suggests the Icematic BH56 120kg bin, sold separately.
• Water and drain: the head and bin need a cold water supply and drainage, connected by a licensed plumber. A water filter is recommended by Icematic's Australian distributor. We supply the equipment only.
• Power: standard 240V, 10 amp single-phase supply.
• Height: the BH56 is 1090 mm high, so with the 575 mm head on top allow about 1665 mm of height overall.

Compare similar models:

• Icematic MH145-A: same head making 6g half dice cubes
• Icematic ML145-A: same head making 17g large dice cubes
• Icematic M195-A: same 560mm width, up to 212kg a day
• Icematic M205-A: wider 760mm head, up to 220kg a day

Common questions:

Does it come with a storage bin?
No. The M145-A is the head only. The suggested bin is the BH56, which holds up to 120kg and comes with an ice scoop and drain hose.

What does the "-A" mean?
Air-cooled, the standard version. Water-cooled versions can be supplied on request only. Ask us if you need one.

Do you install it?
We supply the equipment only. It must be connected to water and drain by a licensed plumber in your area.

See all our ice machines.

Warranty: 2 years parts and 2 years labour (24 months each) through Icematic's Australian distributor, Scots Ice. Exclusions apply.
