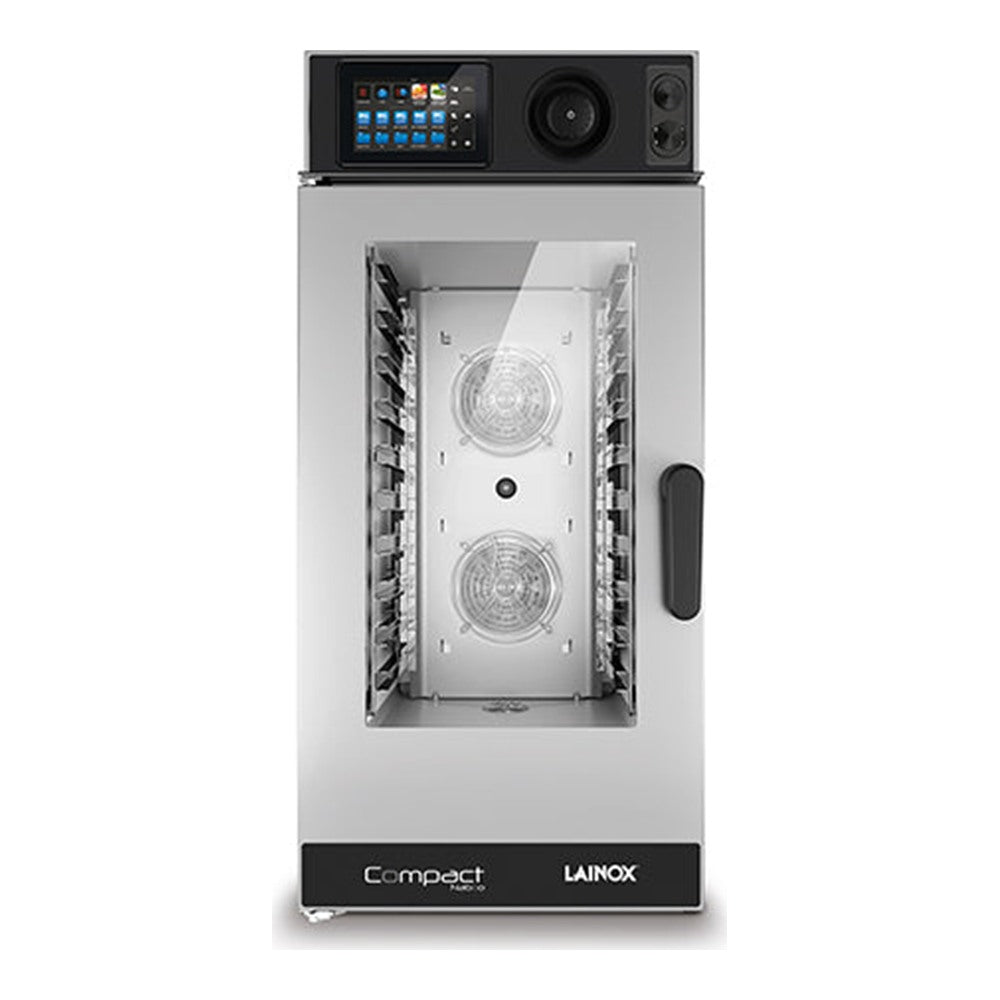

Lainox Compact Naboo COEN101B - 10 x 1/1 GN Electric Combi Oven

Lainox Compact Naboo COEN101B - 10 x 1/1 GN Electric Combi Oven

The Lainox Compact Naboo COEN101B packs 10 x 1/1 GN into a body only 510mm wide, so busy restaurants, pubs and clubs get a high-capacity combi without giving up a full-size footprint. It has the Naboo 7 inch touch screen, Wi-Fi connection to Lainox's recipe cloud and automatic vapour cleaning. It is the tallest Compact Naboo at 1046mm, adding four more tray positions over the 6 x 1/1 GN COEN061B.

Key features:

• 10 x 1/1 GN capacity, up to 50 kg per load
• Multi-Rack variable spacing: up to 21 x 20mm pans, 10 x 40mm or 6 x 65mm
• Convection, steam and combination cooking from 30°C, with steam to 130°C and convection to 300°C
• 7 inch capacitive touch screen with 227 recipes and automatic one-touch cooking
• Just in Time mode for finishing different dishes together, and Multilevel Plus for mixed loads
• Wi-Fi to Nabook Plus for recipe downloads, food-cost and menu tools and HACCP records
• Up to 6 fan speeds, auto reverse, Autoclima and Fast-Dry Boosted
• VCS Vapor Cleaning System with Smart Chemical Control and Bag-in-Box detergent
• Multipoint core probe with external connector; 5 micron water filter supplied

Specifications:

• Model: Lainox COEN101B
• Capacity: 10 x 1/1 GN (max. load 50 kg, 15 kg per tray)
• Dimensions: 510 W x 800 D x 1046 H mm
• Weight: 101 kg
• Temperature: convection and combi 30–300°C, steam 30–130°C
• Power: 400 V three phase (3N), 50/60 Hz, 18 A, 11.5 kW, with 3 m cable
• Water: 3/4 inch inlet
• Drain: 50mm
• Origin: Italy
• Packed size for delivery: 650 W x 970 D x 1230 H mm, 115 kg

Good to know before you buy:

• Power: 11.5 kW on three-phase 400 V (18 A), with a type B RCD specified. It must be connected by a licensed electrician. We supply the equipment only.
• Water / drain: a licensed plumber must connect the water supply and the 50mm drain.
• Clearances: Lainox asks for at least 50mm on the left and rear, and 500mm free on the right-hand side.
• Access: the packed unit is 650 x 970 x 1230mm and 115 kg. It comes by tailgate truck to the front of your premises, and standard delivery doesn't include bringing it inside, up stairs or unpacking.

Compare similar models:

• Lainox Compact Naboo COEN061B: 6 x 1/1 GN, 835mm high, 7.8 kW
• Lainox Compact Sapiens COES101B: same size and power with manual electronic controls
• Lainox Naboo NAE101B: full-size 10 x 1/1 GN, 852mm wide, 10 inch screen

Common questions:

How many pans fit if I use shallow trays?
The runners can be set at 26mm spacing, which Lainox rates for up to 21 pans 20mm deep. At 52mm spacing it takes 10 x 40mm pans, and at 78mm, 6 x 65mm pans.

Can I sit it on a bench?
It is a 1046mm-high countertop unit, so check the total working height before choosing a bench or stand. Lainox sets the top shelf limit at 160cm using the correct support. Ask us about stands.

Do you install it?
We supply the equipment only. It must be connected by a licensed electrician and a licensed plumber in your area.

See all our commercial combi ovens.

Warranty: 2 years parts and 2 years labour (24 months each) through Lainox's Australian distributor, Scots Ice. Exclusions apply.
