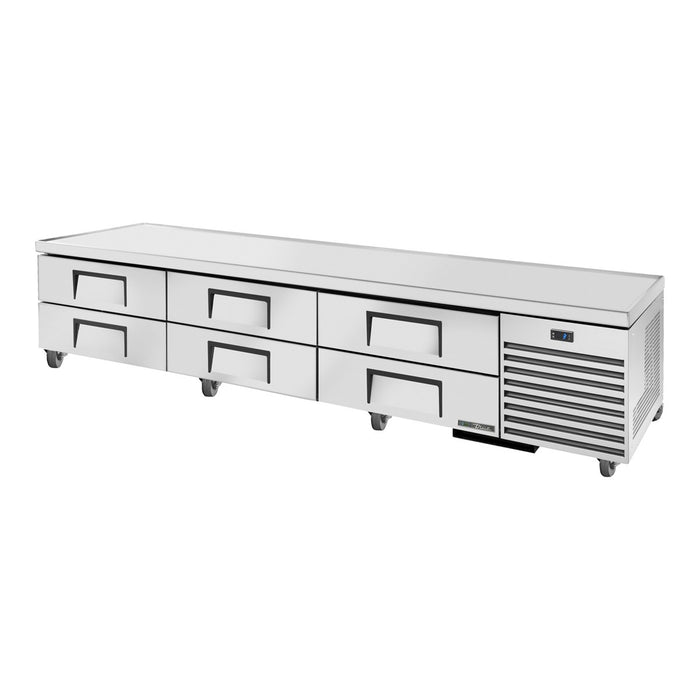

True TRCB-110-HC - 6 Drawer Refrigerated Chef Base 2794mm

True TRCB-110-HC - 6 Drawer Refrigerated Chef Base 2794mm

The True TRCB-110-HC is the largest chef base in True's range: 2794 mm long with six refrigerated drawers beneath one continuous stainless steel top. Each drawer takes two 1/1 GN pans, so a full line of cooks can each have their own chilled drawer, and the cabinet holds 156 litres net and 623 litres gross at 0.5°C to 3.3°C. Its top supports up to 908 kg, the highest rating in the range, and the cabinet is a slimmer 775 mm deep. Like every TRCB, it is Climate Class 5 certified for kitchens up to 40°C.

Key features:

• 6 drawers, each holding 2 x 1/1 GN pans up to 100 mm deep
• Continuous 2794 mm top that supports up to 908 kg
• Made to sit under grills and griddles, putting chilled storage right at the cooking line
• One-piece reinforced stainless steel top, insulated to eliminate heat transfer into the cabinet
• Drip-resistant "V" edge to help protect against grease spills; flat tops can be specified
• Climate Class 5 certified for ambient temperatures up to 40°C
• Digital control and automatic defrost
• Condenser coil reached from the front, plus True's patented RCU feature
• Heavy-duty lock-in-place castors and R290 refrigerant

Specifications:

• Model: True TRCB-110-HC
• Capacity: 156 litres net, 623 litres gross
• Drawers: 6, each holding 2 x 1/1 GN pans, maximum 100 mm deep (pans not included)
• Dimensions: 2794 W x 775 D x 648 H mm (depth excludes 26 mm rear bumpers)
• Weight: 257 kg
• Maximum weight supported on the top: 908 kg
• Temperature range: 0.5°C to 3.3°C
• Maximum room temperature: 40°C (Climate Class 5, EN 16825)
• Refrigerant: R290
• Power: single-phase 220–240 V, 50–60 Hz, 2 A running current, 460 W, supplied with a 2.13 m power cord
• Energy use: 3.946 kWh per 24 hours, 1440 kWh per year; 3-star energy rating (True's price list)
• Construction: stainless steel front and top, aluminium sides and rear; clear-coated aluminium interior with stainless steel base
• Airflow: air intake at the front, ventilation on the right side
• Castors: 102 mm diameter, lock-in-place (127 mm high)
• Packed size for delivery: 2946 x 889 x 787 mm, 268 kg

Good to know before you buy:

• Access: the crate is nearly 3 metres long (2946 mm) and weighs 268 kg. Measure doorways, corridors and corners before ordering. Delivery is by tailgate truck to the front of your premises; standard delivery does not include bringing it inside or unpacking.
• Cooking equipment on top: the top carries up to 908 kg. Keep at least 102 mm between the bottom of each heating element and the top. All appliances must be connected by a licensed gas fitter or electrician. We supply the equipment only.
• Clearances: True asks for 26 mm at the rear and 26 mm on the right side.
• Locks: not standard, but available as a build option when ordering. Ask us.
• Pricing: This model is priced on application. Ask us for a quote.

Compare similar models:

• True TRCB-96-HC: 2426 mm with 4 drawers of 3 x 1/1 GN pans, 816 mm deep
• True TRCB-79-HC: 2013 mm, 4 drawers, same 775 mm depth
• True TRCB-82-86-HC: 4 drawers under an extended 2191 mm top

Common questions:

How many pans fit in total?
Twelve 1/1 GN pans: two in each of the six drawers, up to 100 mm deep. Pans are sold separately.

How much power does a six-drawer base use?
True lists 3.946 kWh per 24 hours (1440 kWh a year) at 2 A running current. That is slightly less than the 4.033 kWh of the four-drawer TRCB-96-HC.

Do you install it?
We supply the equipment only. The base runs on single-phase power with a 2.13 m cord, and the cooking equipment on top must be connected by a licensed gas fitter or electrician.

See all our chef drawers.

Warranty: True 5-year parts and labour warranty, including the compressor.
