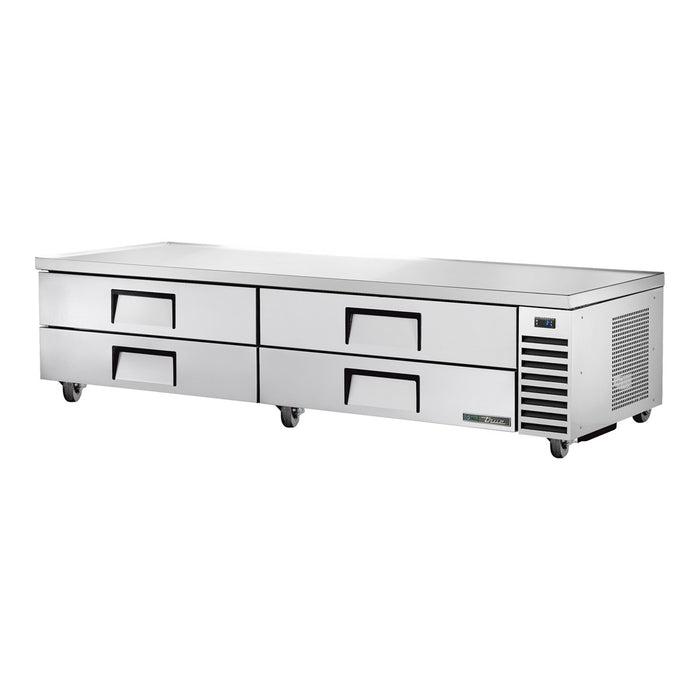

True TRCB-96-HC - 4 Drawer Refrigerated Chef Base 2426mm
Built for long, heavy cook lines, the True TRCB-96-HC is a 2426 mm chef base whose four drawers each take three 1/1 GN pans, twelve pans in all. Inside there are 156 litres net and 589 litres gross at 0.5°C to 3.3°C, and the reinforced stainless steel top supports up to 651 kg, more than any of the shorter four-drawer models. It shares the TRCB range's Climate Class 5 certification for 40°C kitchens. If you need even more drawers, the 2794 mm TRCB-110-HC has six.
Key features:
- 4 large drawers, each holding 3 x 1/1 GN pans up to 100 mm deep
- Top rated to support up to 651 kg of cooking equipment
- Designed to sit directly under grills and griddles, keeping chilled food at the cooking line
- One-piece, reinforced stainless steel top, insulated to stop heat reaching the cabinet
- Drip-resistant "V" edge to help protect against grease spills; flat tops can be specified
- Climate Class 5 certified for kitchens up to 40°C
- Digital control and automatic defrost
- Condenser coil accessed from the front, with True's patented RCU feature
- Heavy-duty lock-in-place castors and R290 refrigerant
Specifications:
- Model: True TRCB-96-HC
- Capacity: 156 litres net, 589 litres gross
- Drawers: 4, each holding 3 x 1/1 GN pans, maximum 100 mm deep (pans not included)
- Dimensions: 2426 W x 816 D x 648 H mm (depth excludes 26 mm rear bumpers)
- Weight: 223 kg
- Maximum weight supported on the top: 651 kg
- Temperature range: 0.5°C to 3.3°C
- Maximum room temperature: 40°C (Climate Class 5, EN 16825)
- Refrigerant: R290
- Power: single-phase 220–240 V, 50–60 Hz, 2 A running current, 460 W, supplied with a 2.13 m power cord
- Energy use: 4.033 kWh per 24 hours, 1472 kWh per year; 3-star energy rating (True's price list)
- Construction: stainless steel front and top, aluminium sides and rear; clear-coated aluminium interior with stainless steel base
- Airflow: front air intake, ventilation on the right side
- Castors: 102 mm diameter, lock-in-place (127 mm high)
- Packed size for delivery: 2565 x 914 x 775 mm, 234 kg
Good to know before you buy:
- Access: packed, it is 2565 mm long and 234 kg, so check that the route from the kerb to the kitchen has room to manoeuvre. Delivery is by tailgate truck to the front of your premises; standard delivery does not include bringing it inside or unpacking.
- Cooking equipment on top: leave at least 102 mm between the bottom of each heating element and the top, and keep the combined load within 651 kg. Appliances must be connected by a licensed gas fitter or electrician. We supply the equipment only.
- Clearances: 26 mm at the back and 26 mm on the right side for ventilation.
- Power: single-phase 220–240 V, 2 A running current, 2.13 m power cord.
- Pricing: This model is priced on application. Ask us for a quote.
Compare similar models:
- True TRCB-110-HC: 2794 mm with 6 drawers and a 908 kg top load
- True TRCB-82-86-HC: 2191 mm extended top, 3-pan drawers on the left only
- True TRCB-82-HC: 2091 mm, 130 litres net, 492 kg top load
- True TRCB-72-HC: 1839 mm, 2 x 1/1 GN pans per drawer
Common questions:
How many GN pans does it hold?
Twelve 1/1 GN pans, three in each of the four drawers, up to 100 mm deep. Pans are not included. Ask us about pans to suit.
Can it take heavy equipment like a large griddle and char grill side by side?
True rates the top for up to 651 kg. Check the combined weight of your equipment, and keep at least 102 mm between each heating element and the top.
Can I order it with drawer locks?
Yes, as a build option. Locks are not standard, so they need to be requested at the time of order.
See all our chef drawers.
Warranty: True 5-year parts and labour warranty, including the compressor.
