True TRCB-72-HC - 4 Drawer Refrigerated Chef Base 1839mm

True TRCB-72-HC - 4 Drawer Refrigerated Chef Base 1839mm

SKU: TRCB-72-HC

Price on application

Contact us for current pricing and lead times. Click Get a Quote below.

Get a Quote bulk or fit-out pricing

Prefer to talk? Call 0447 483 035 Mon–Fri, 9am–5pm (Sydney time)

Silver Chef
Rather rent than pay upfront? Silver Chef Rent-Try-Buy finance is available on most of our range. Apply nowHow it works Finance provided by Silver Chef, subject to approval.
Running cost: about $409 a year Based on 3.199 kWh per 24 hours at 35c per kWh. Your cost depends on your tariff and how it’s used. Work out your own cost
Before it arrives
  • Size: 1839 W x 816 D x 648 H mm. Check doorways and access on the way in.
  • Weight: 186 kg. Delivered by tailgate truck to your door, so plan for help or a trolley to move it inside.
  • Power: single-phase 220–240 V, 50–60 Hz, 2 A running current, 460 W, supplied with a 2.13 m power cord.
  • Installation type: Under counter.

We supply the equipment only. Connection and installation are by your own licensed trades. Full specifications are in the product details below.

Ask a question about this product

Product details

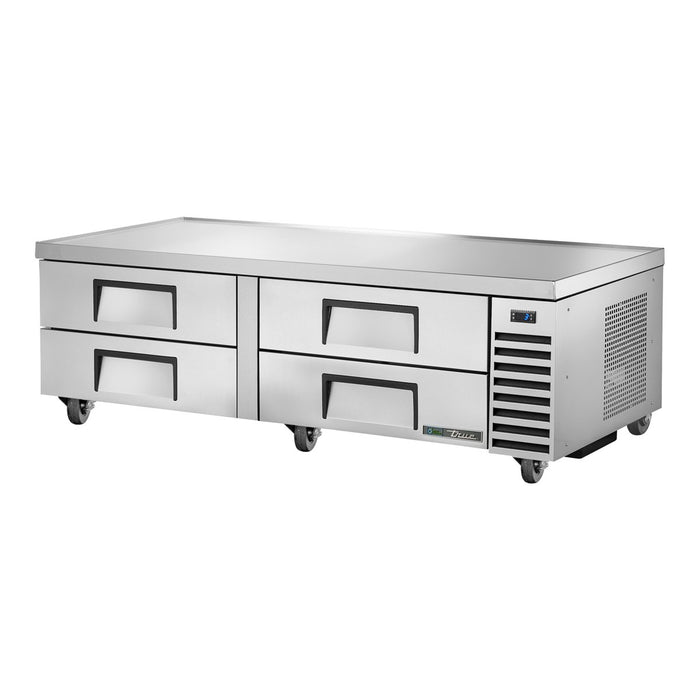

True TRCB-72-HC - 4 Drawer Refrigerated Chef Base 1839mm

The True TRCB-72-HC is the first four-drawer model in True's chef base range, giving a busy grill station 1839 mm of refrigerated storage right under the cooking surface. Its four drawers each hold two 1/1 GN pans, eight in all, with 104 litres net and 425 litres gross at 0.5°C to 3.3°C. The reinforced, insulated top is rated for 492 kg, a big step up from the 326 kg of the two-drawer bases, so it can carry heavier griddles and char grills. It is Climate Class 5 certified for kitchens up to 40°C and has a 4-star energy rating (True's price list).

Key features:

  • 4 refrigerated drawers, each taking 2 x 1/1 GN pans up to 100 mm deep
  • Made to sit directly under grills and griddles, so chefs reach chilled food without leaving the line
  • One-piece reinforced stainless steel top, insulated to eliminate heat transfer, supporting up to 492 kg
  • Drip-resistant "V" edge to help contain grease; flat tops can be specified
  • Climate Class 5 certified for 40°C ambient temperatures
  • Digital temperature control with automatic defrost
  • Condenser coil reached from the front of the unit, plus True's patented RCU feature
  • Heavy-duty lock-in-place 102 mm castors
  • R290 hydrocarbon refrigerant

Specifications:

  • Model: True TRCB-72-HC
  • Capacity: 104 litres net, 425 litres gross
  • Drawers: 4, each holding 2 x 1/1 GN pans, maximum 100 mm deep (pans not included)
  • Dimensions: 1839 W x 816 D x 648 H mm (depth excludes 26 mm rear bumpers)
  • Weight: 186 kg
  • Maximum weight supported on the top: 492 kg
  • Temperature range: 0.5°C to 3.3°C
  • Maximum room temperature: 40°C (Climate Class 5, EN 16825)
  • Refrigerant: R290
  • Power: single-phase 220–240 V, 50–60 Hz, 2 A running current, 460 W, supplied with a 2.13 m power cord
  • Energy use: 3.199 kWh per 24 hours, 1168 kWh per year; 4-star energy rating (True's price list)
  • Construction: stainless steel front and top, aluminium sides and rear; clear-coated aluminium interior with stainless steel base
  • Airflow: front air intake, ventilation on the right side
  • Castors: 102 mm diameter, lock-in-place (127 mm high)
  • Packed size for delivery: 2032 x 914 x 775 mm, 197 kg

Good to know before you buy:

  • Cooking equipment on top: allow a minimum 102 mm gap between the bottom of the heating element and the top, and keep the load within 492 kg. Gas and electric appliances must be connected by a licensed gas fitter or electrician. We supply the equipment only.
  • Clearances: 26 mm at the rear and 26 mm on the right side, where it ventilates.
  • Access: the crate is just over 2 metres long (2032 x 914 x 775 mm) and weighs 197 kg. Delivery is by tailgate truck to the front of your premises; standard delivery does not include bringing it inside or unpacking.
  • Power: single-phase 220–240 V, 2 A running current, 2.13 m power cord.
  • Pricing: This model is priced on application. Ask us for a quote.

Compare similar models:

Common questions:

How do I keep the condenser clean?
On the HC models True has moved condenser coil access to the front of the unit, so it is easy to reach, and its patented RCU feature helps reduce debris build-up on the coil.

How heavy can the cooking equipment be?
True rates the top to support up to 492 kg. Leave at least 102 mm between the bottom of the heating element and the top.

Are pans included?
No. Each drawer suits two 1/1 GN pans up to 100 mm deep, eight pans in total, sold separately. Ask us about pans.

See all our chef drawers.

Warranty: True 5-year parts and labour warranty, including the compressor.
