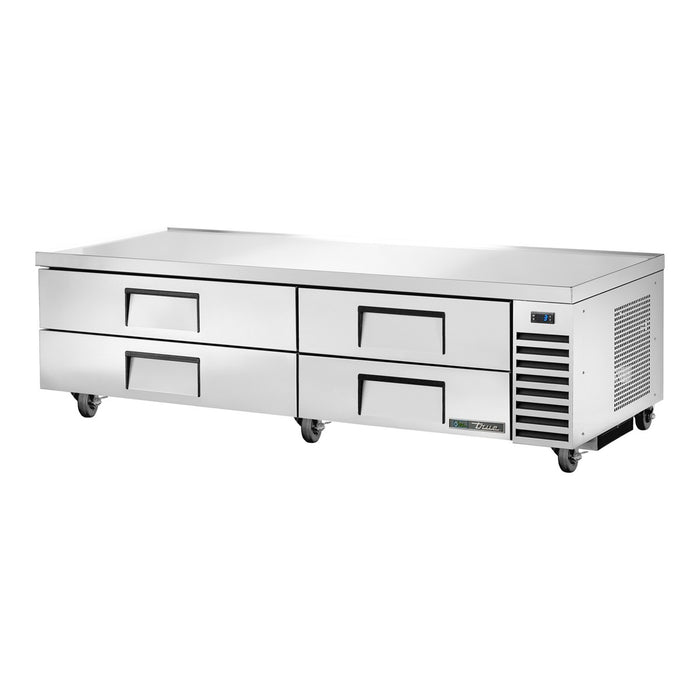

True TRCB-82-HC - 4 Drawer Refrigerated Chef Base 2091mm

True TRCB-82-HC - 4 Drawer Refrigerated Chef Base 2091mm

The True TRCB-82-HC mixes drawer sizes: the left-hand drawers each take three 1/1 GN pans and the right-hand drawers two, so you can give your high-use lines the wider drawers. It runs 2091 mm long and 816 mm deep, with 130 litres net and 496 litres gross at 0.5°C to 3.3°C, under a reinforced stainless steel top rated for 492 kg of cooking equipment. Climate Class 5 certification covers kitchens up to 40°C. It holds more than the 2013 mm TRCB-79-HC, and the TRCB-82-84-HC and TRCB-82-86-HC put the same base under longer tops.

Key features:

• 4 drawers: left-hand drawers take 3 x 1/1 GN pans, right-hand drawers take 2 x 1/1 GN pans
• 130 litres net, 496 litres gross
• Sits directly under grills and griddles for chilled storage at the point of cooking
• Insulated, one-piece reinforced stainless steel top supporting up to 492 kg
• Drip-resistant "V" edge on the top to help protect against grease spills
• Climate Class 5 certified for ambient temperatures up to 40°C
• Digital control and automatic defrost
• Condenser coil reached from the front, plus True's patented RCU feature
• Heavy-duty lock-in-place castors and R290 refrigerant

Specifications:

• Model: True TRCB-82-HC
• Capacity: 130 litres net, 496 litres gross
• Drawers: 4; left drawers hold 3 x 1/1 GN pans each, right drawers hold 2 x 1/1 GN pans each, maximum 100 mm deep (pans not included)
• Dimensions: 2091 W x 816 D x 648 H mm (depth excludes 26 mm rear bumpers)
• Weight: 204 kg
• Maximum weight supported on the top: 492 kg
• Temperature range: 0.5°C to 3.3°C
• Maximum room temperature: 40°C (Climate Class 5, EN 16825)
• Refrigerant: R290
• Power: single-phase 220–240 V, 50–60 Hz, 2 A running current, 460 W, supplied with a 2.13 m power cord
• Energy use: 3.671 kWh per 24 hours, 1340 kWh per year; 3-star energy rating (True's price list)
• Construction: stainless steel front and top, aluminium sides and rear; clear-coated aluminium interior with stainless steel base
• Airflow: air intake at the front, ventilation on the right side
• Castors: 102 mm diameter, lock-in-place (127 mm high)
• Packed size for delivery: 2286 x 914 x 762 mm, 215 kg

Good to know before you buy:

• Cooking equipment on top: leave at least 102 mm between the bottom of any heating element and the chef base top, and keep the total load within 492 kg. Gas or electric appliances must be connected by a licensed gas fitter or electrician. We supply the equipment only.
• Clearances: 26 mm at the rear and 26 mm on the right-hand side, where the unit ventilates.
• Locks: not standard, but drawer locks are a build option when ordering. Ask us.
• Access: the packed unit is 2286 x 914 x 762 mm and 215 kg. Delivery is by tailgate truck to the front of your premises; standard delivery does not include bringing it inside or unpacking.
• Pricing: This model is priced on application. Ask us for a quote.

Compare similar models:

• True TRCB-82-84-HC: the same base with a 2134 mm extended top
• True TRCB-82-86-HC: the same base with a 2191 mm extended top
• True TRCB-79-HC: 2013 mm, 775 mm deep, 2 x 1/1 GN pans in every drawer
• True TRCB-96-HC: 2426 mm, 3 x 1/1 GN pans in every drawer, 651 kg top load

Common questions:

Why are the left and right drawers different?
True builds this model with wider drawers on the left that take three 1/1 GN pans and narrower drawers on the right that take two. It lets you put the ingredients you reach for most in the larger drawers.

What energy rating does it have?
It has a 3-star energy rating (True's price list), and True lists 3.671 kWh per 24 hours (1340 kWh a year).

Will it handle a 40°C kitchen?
Yes. It is certified Climate Class 5 under EN 16825, tested at 40°C and 40% relative humidity.

See all our chef drawers.

Warranty: True 5-year parts and labour warranty, including the compressor.
