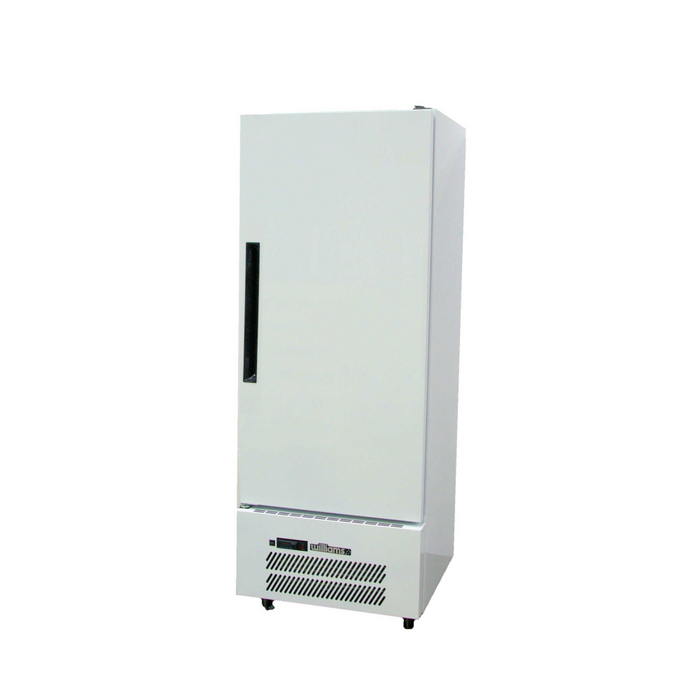

Williams Quartz Star HQS1SWHC - 1 Door White Colorbond Upright Storage Fridge 740mm 500L

Williams Quartz Star HQS1SWHC - 1 Door White Colorbond Upright Storage Fridge 740mm 500L

With a solid insulated door instead of glass, the Williams Quartz Star HQS1SWHC is the storage fridge of the single door Quartz Star family: built in Australia for back-of-house use in cafes, restaurants and takeaways where you want 500 litres of cold storage that shrugs off a hot kitchen. Williams rates this solid door model for room temperatures up to 43°C, higher than the 40°C rating of the glass door versions. It holds +1°C to +4°C, plugs into a 10 amp power point and has its refrigeration system in a removable cassette at the base. The HQS1GWHC is the glass door display version, and the HQS1SSHC is the same solid door fridge in stainless steel.

Key features:

• Solid insulated door, right-hand hinged as standard, for better cold retention in a busy kitchen
• Rated for room temperatures up to 43°C
• 500 litres of storage with 4 adjustable plastic-coated shelves on strips and clips
• Holds +1°C to +4°C with a CoolSmart electronic controller
• Bottom-mounted refrigeration in a removable cassette for simple servicing
• Waste heat recovery vaporiser evaporates defrost water, so no drain is needed
• Auto defrost
• White Colorbond interior and exterior with a stainless steel internal floor
• Threaded castors with a simple changeover to legs if required
• Designed and manufactured by Williams in Dandenong South, Victoria

Specifications:

• Model: Williams HQS1SWHC
• Capacity: 500 litres
• Dimensions: 740 W x 740 D x 2000 H mm (on 120mm castors)
• Weight: 160 kg unpacked
• Temperature range: +1°C to +4°C
• Maximum room temperature: 43°C
• Refrigerant: R290 hydrocarbon
• Power: 10 amp plug, 2.5 A running current, 2 m power cable
• Test standard: EN 16825 (professional storage cabinets)
• Door: 1 solid door, right-hand hinged as standard when facing the front
• Finish: white Colorbond interior and exterior (excluding rear and underside), stainless steel internal floor
• Shelves: 4 adjustable plastic-coated shelves
• Refrigeration: bottom-mounted, removable cassette
• Origin: made in Australia

Good to know before you buy:

• Access: 2000mm high on castors, 740mm wide, 740mm deep and 160 kg. Delivery is by tailgate truck to the front of your premises, so measure doorways and any tight turns before ordering. Lower castors and 150mm legs are available if height is a problem.
• Power: standard 10 amp plug with a 2 m cable. No electrician needed.
• Airflow: the cassette draws air at the base of the cabinet. Keep the lower grille clear and leave a little room around the unit.
• Lighting: solid door models do not have an interior light as standard. Ask us if you need one added.

Compare similar models:

• Williams HQS1GWHC: glass door display version with LED lighting
• Williams HQS1SSHC: the same solid door fridge in stainless steel
• Williams HQS2SWHC: two solid doors, 900 litres, 1225mm wide
• Williams HP1SWHC: Pearl range solid door fridge with top-mounted refrigeration, 520 litres

Common questions:

What is the difference between the solid door and glass door Quartz Star?
The solid door keeps more cold in, so Williams rates this model for 43°C rooms against 40°C for the glass door version. The glass door models add triple glazing and LED lighting for display.

Does it need a drain?
No. The waste heat recovery vaporiser evaporates the defrost water. It only needs a 10 amp power point. We supply the equipment only.

Can I get a lock or a pass-through door?
Yes. Cylindrical locks and pass-through doors (solid or glass to the rear) are options at the time of order. Ask us for details.

See all our upright fridges.

Warranty: Williams 24-month parts and labour warranty from the date of invoice on this self-contained unit, carried out by Williams authorised service agents on the Australian mainland. Warranty repairs must be logged with Williams first.
