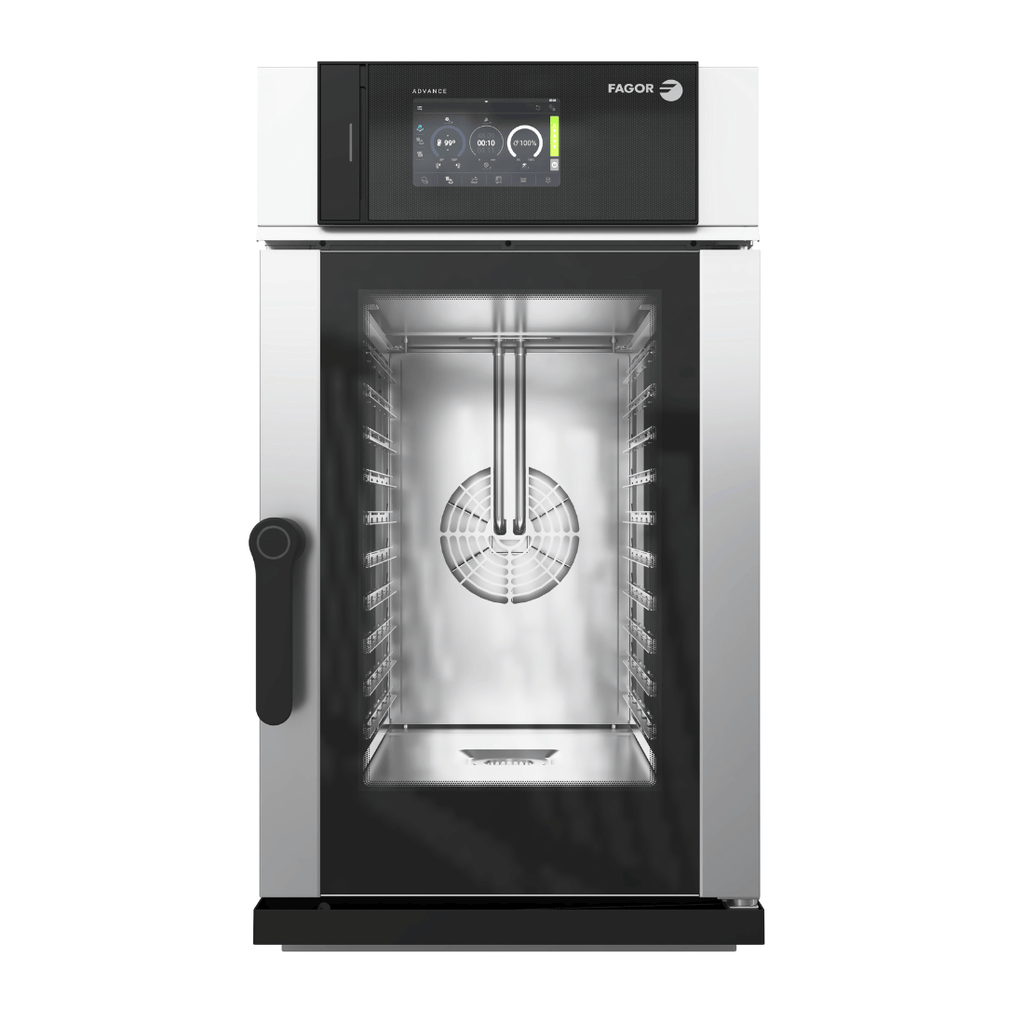

Fagor K-AW-101ESWR - iKore Kompact Advance 10 Tray GN 1/1 Electric Combi Oven

Fagor K-AW-101ESWR - iKore Kompact Advance 10 Tray GN 1/1 Electric Combi Oven

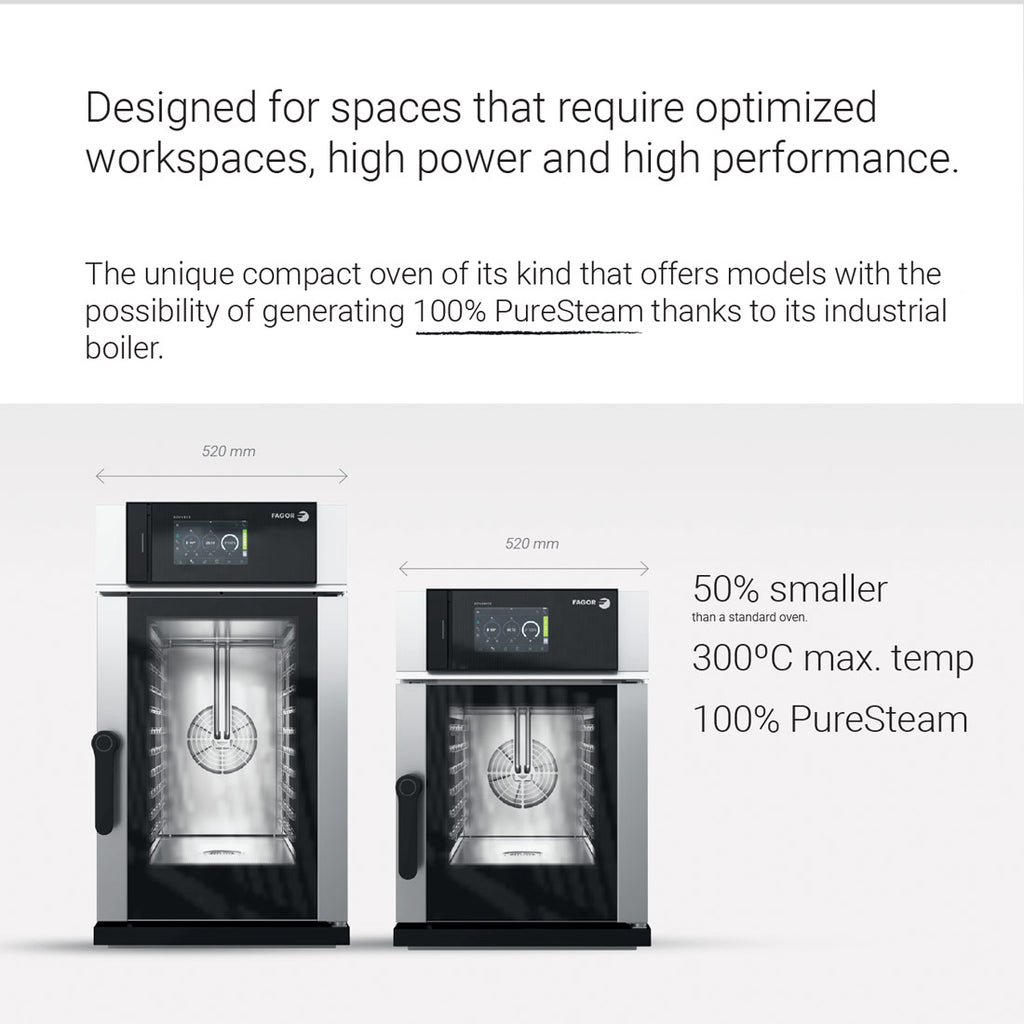

The Fagor K-AW-101ESWR gives you 10 GN 1/1 trays in a combi oven just 530mm wide, ideal for busy restaurants, hotel bars and kitchens that need serious capacity but have little wall space. It is the larger model in the iKore Kompact Advance range, using direct steam, humidity regulation within 1%, intelligent cooking processes and FagorKonnect connectivity. It has the same narrow footprint as the 6 tray K-AW-061ESWR but stands 940mm high and runs at 12.4 kW.

Key features:

• 10 x GN 1/1 capacity in a 530mm wide cabinet
• Direct steam generation
• Low and super steam (30–130°C), mixed (30–300°C) and convection (30–300°C) modes
• Chamber humidity measured and regulated within 1%
• Intelligent cooking processes that adjust automatically, with time and tray management in the same climate

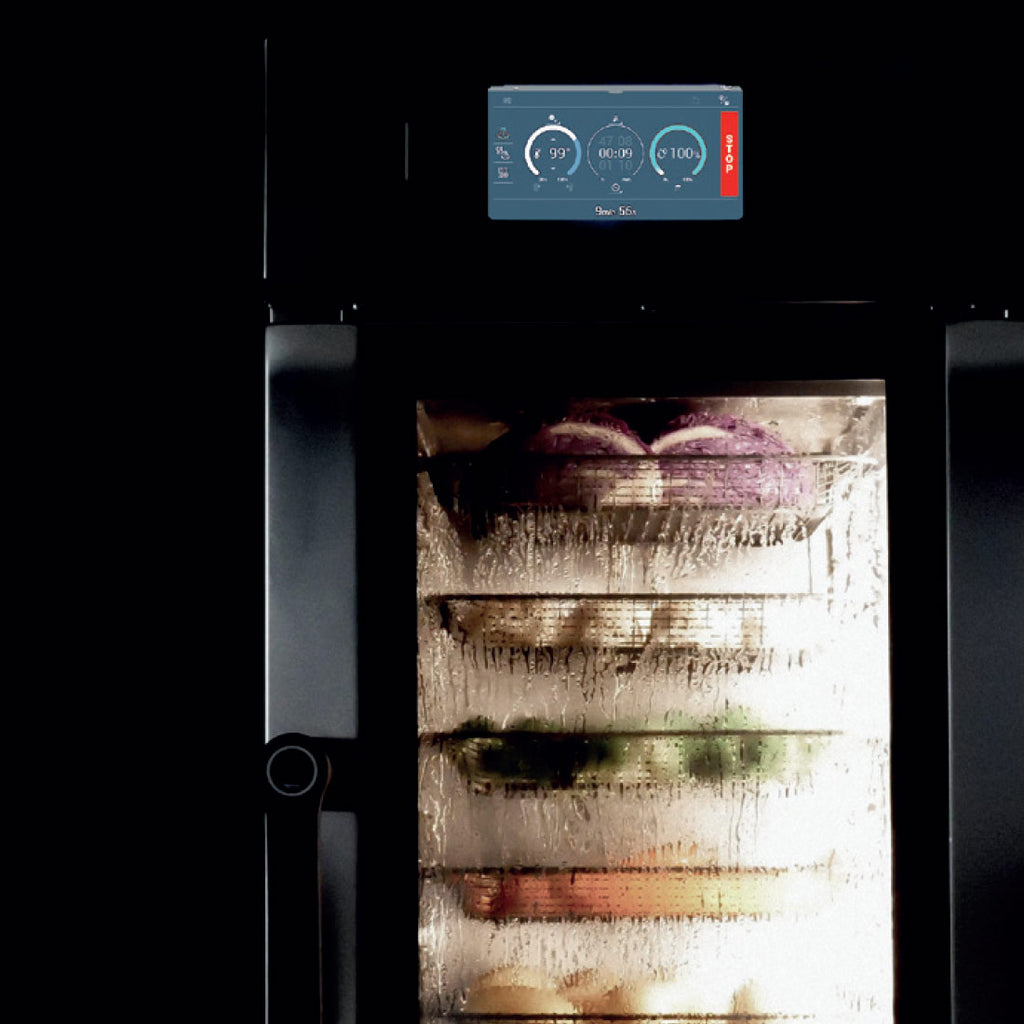

• Capacitive glass touchscreen, with a customisable interface and user and password control

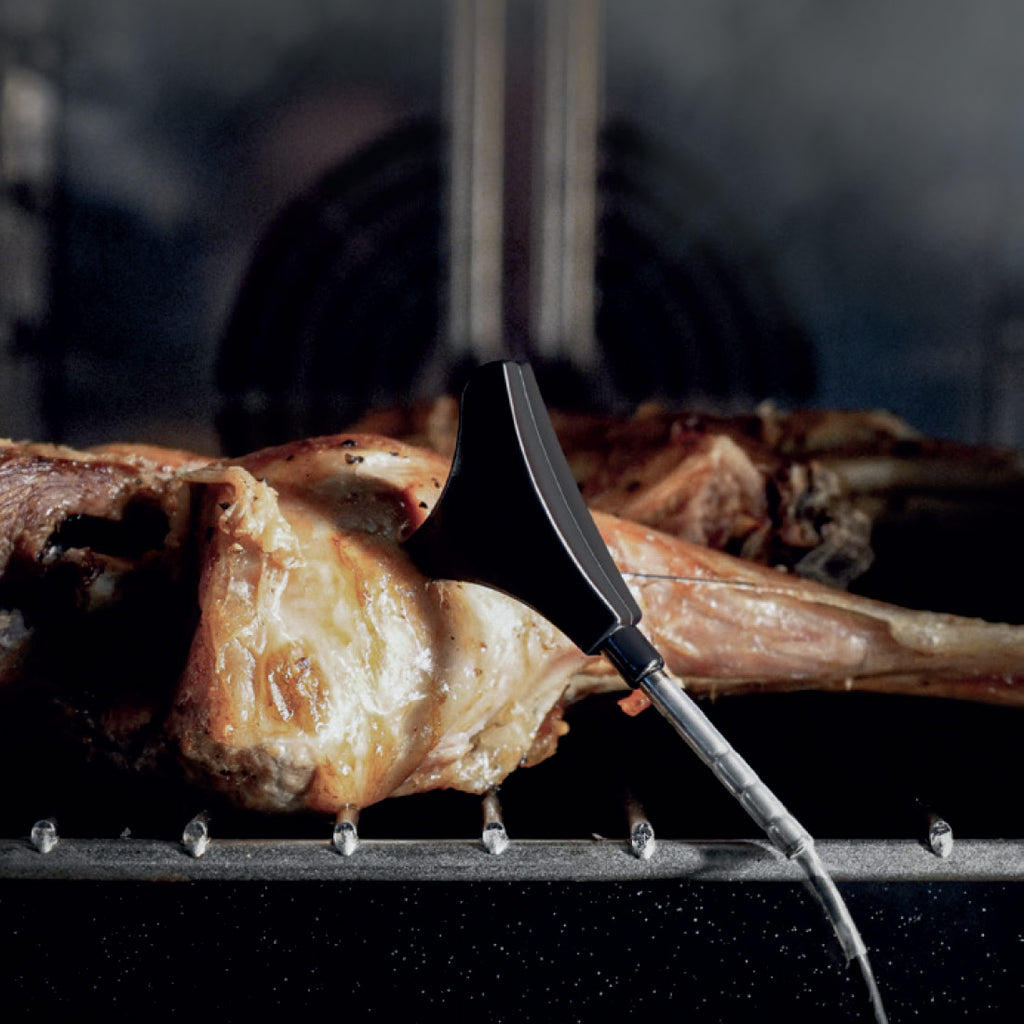

• Internal multi-point core temperature probe
• Solid-wash automatic cleaning system
• FagorKonnect compatible: Ethernet, Wi-Fi and USB, with HACCP

Specifications:

• Model: Fagor K-AW-101ESWR
• Capacity: 10 x GN 1/1 trays (pans and trays not included)
• Dimensions: 530 W x 874 D x 940 H mm
• Temperature range: 30°C to 300°C
• Power: 12.4 kW, 415V three-phase (3N~)
• Steam: direct injection
• Door: right-hand hinged
• Construction: stainless steel structure with IPX5 protection
• Packed size for delivery: 579 x 918 x 1107 mm

Good to know before you buy:

• Power: 12.4 kW on 415V three-phase, connected by a licensed electrician. We supply the equipment only.
• Water and drain: a licensed plumber needs to connect the water and drain. Ask us about Fagor combi water filter kits.
• Door hinge: this model is right-hand hinged. Left or right hinging is offered in the Kompact range, so ask us if you need the other side.
• Access: packed at 579 x 918 x 1107mm, it moves through standard doorways more easily than a full-size combi. Delivery is by tailgate truck to the front of your premises.

Compare similar models:

• Fagor K-AW-061ESWR: 6 tray Kompact Advance, 760mm high, 7.4 kW
• Fagor APW-101ERLWS: full-size 10 tray iKore Advance with a steam boiler, 898mm wide
• Fagor CW-101ERSWS: full-size 10 tray iKore Concept with knob controls

Common questions:

What stand suits it?
The Fagor SH-BK85-Kompact stand is made for Kompact 061 and 101 ovens. It is 850mm high, on castors, with rails for 9 GN 1/1 pans.

Can I connect it to a network?
Yes. It is FagorKonnect compatible and supports Ethernet, Wi-Fi and USB connection, including HACCP data.

Do you install it?
We supply the equipment only. It must be connected by a licensed electrician and a licensed plumber in your area.

See all our commercial combi ovens.

Warranty: 2 years parts and labour.
