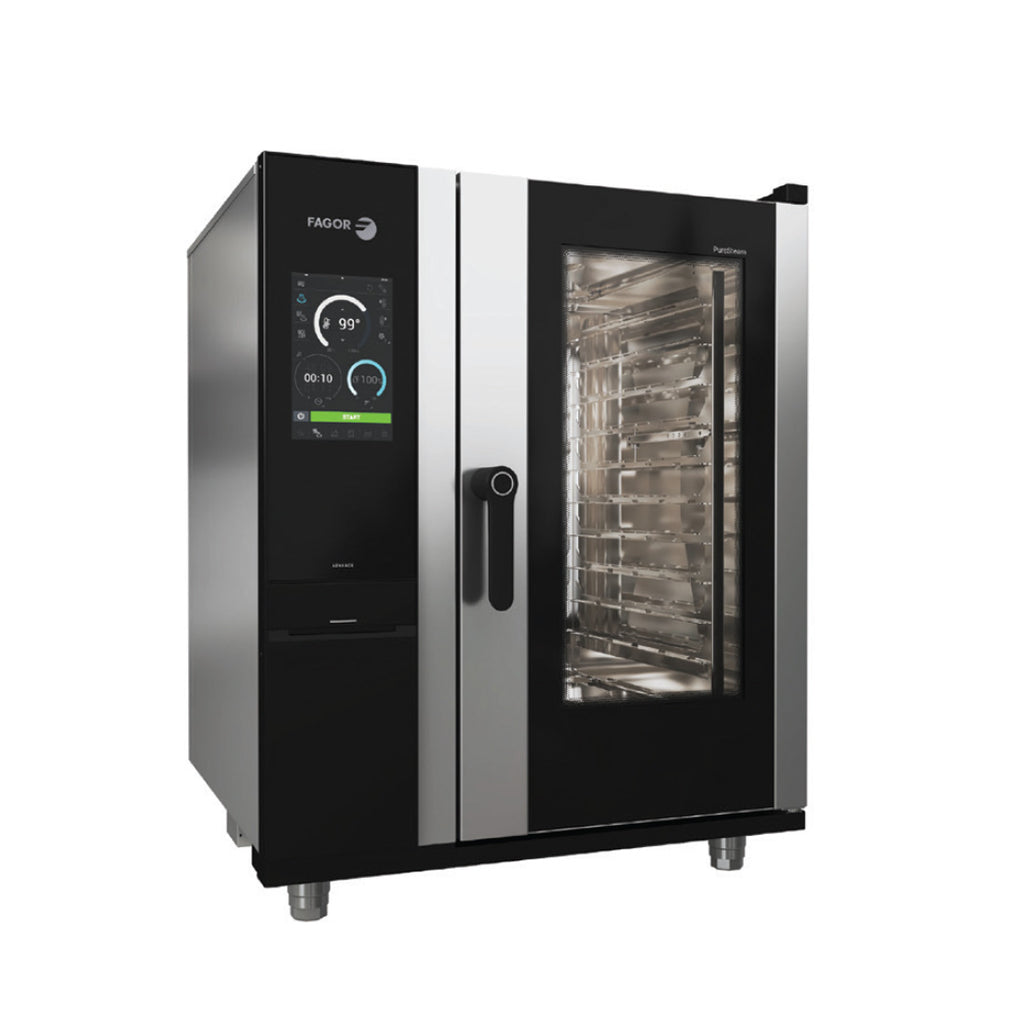

Fagor APW-101ERLWS - iKore Advance 10 Tray GN 1/1 Electric Combi Oven

Fagor APW-101ERLWS - iKore Advance 10 Tray GN 1/1 Electric Combi Oven

With 10 GN 1/1 shelves, the Fagor APW-101ERLWS is the workhorse of the iKore Advance range, sized for restaurants, function rooms and hotel kitchens that run several dishes at once. It makes steam in a dedicated boiler and is driven from a 10.1 inch glass touchscreen, with iCooking smart processes, 200 tested recipes and 1% humidity control. It has the same features as the 6 tray APW-061ERLWS but adds 4 more shelves (271mm more height) and 18.6 kW of power.

Key features:

• 10 x GN 1/1 capacity with Multitray management, so different foods cook in the same climate
• Boiler steam generation, with modes from low-temperature steam (30–98°C) to super steam (100–130°C), mixed and convection (30–300°C)
• 10.1 inch glass touchscreen; iCooking processes adjust automatically and can be edited during cooking
• iClima humidity sensor control with 1% regulation, plus chamber dehumidification for crisp roasts
• 200 factory-tested recipes and unlimited 9-stage recipe storage
• Extra functions: regeneration, sous vide, overnight cooking, fermentation, pasteurisation, smoking, charcuterie and dehydration

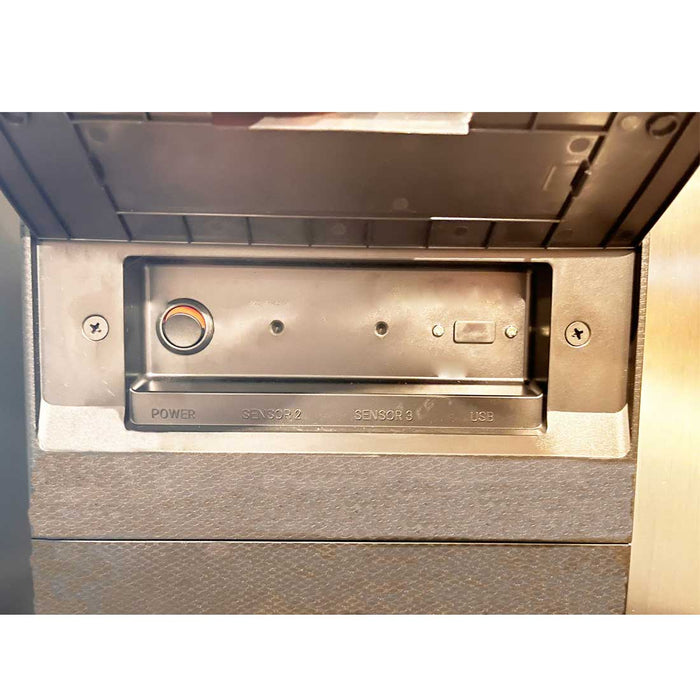

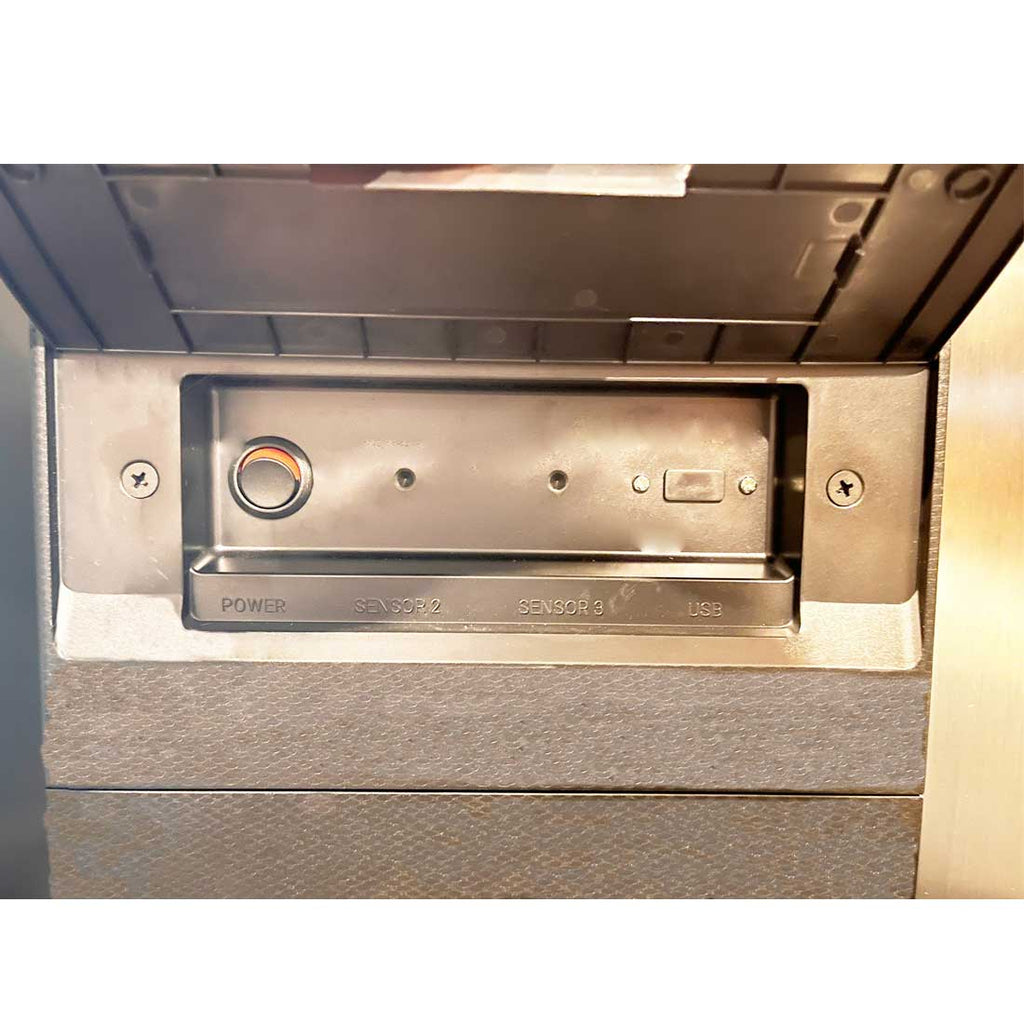

• Internal probe plus up to 2 external probes, and DeltaT cooking
• iWashing fully automatic liquid washing with detergent tank
• HACCP recording and data output, plus rapid air and water cool-down

Specifications:

• Model: Fagor APW-101ERLWS
• Capacity: 10 x GN 1/1 trays (pans and trays not included)
• Dimensions: 898 W x 817 D x 1117 H mm
• Weight: 148 kg
• Temperature range: 30°C to 300°C
• Power: 18.6 kW, 415V three-phase (3N~)
• Steam: boiler
• Door: right-hand opening, with hand shower
• Packed size for delivery: 953 x 980 x 1340 mm

Good to know before you buy:

• Power: 18.6 kW on 415V three-phase, connected by a licensed electrician. We supply the equipment only.
• Water and drain: a licensed plumber needs to connect the water supply and drain. Fagor combi water filter kits are available; ask us which suits your site.
• What's not included: GN pans and trays, the stand (SH-11-B-E-IKORE) and the condensing hood (EXH-061-101) are sold separately.
• Access: packed, it is about 980mm deep and 1340mm high, and the oven weighs 148 kg. Delivery is by tailgate truck to the front of your premises.

Compare similar models:

• Fagor APW-101GRLWS: the same 10 tray iKore Advance oven, gas fired (64.8 MJ/h)
• Fagor APW-061ERLWS: smaller 6 tray iKore Advance, 846mm high
• Fagor APW-201ERLWS: 20 tray floor-standing iKore Advance
• Fagor CPW-101ERLWS: iKore Concept PureSteam 10 tray boiler oven with simpler knob controls
• Fagor K-AW-101ESWR: iKore Kompact Advance 10 tray, 530mm wide

Common questions:

Can I put a 6 tray oven on top of it?
Yes. The 2AD-610-IKORE stacking kit puts an APW-061 on top of an APW-101. Fagor builds the column at the factory, so order the kit with both ovens.

What does it need to run?
A 415V three-phase supply, a water connection and a drain. Pans and trays are extra.

Do you install it?
We supply the equipment only. It must be connected by a licensed electrician and a licensed plumber in your area.

See all our commercial combi ovens.

Warranty: 2 years parts and labour.
