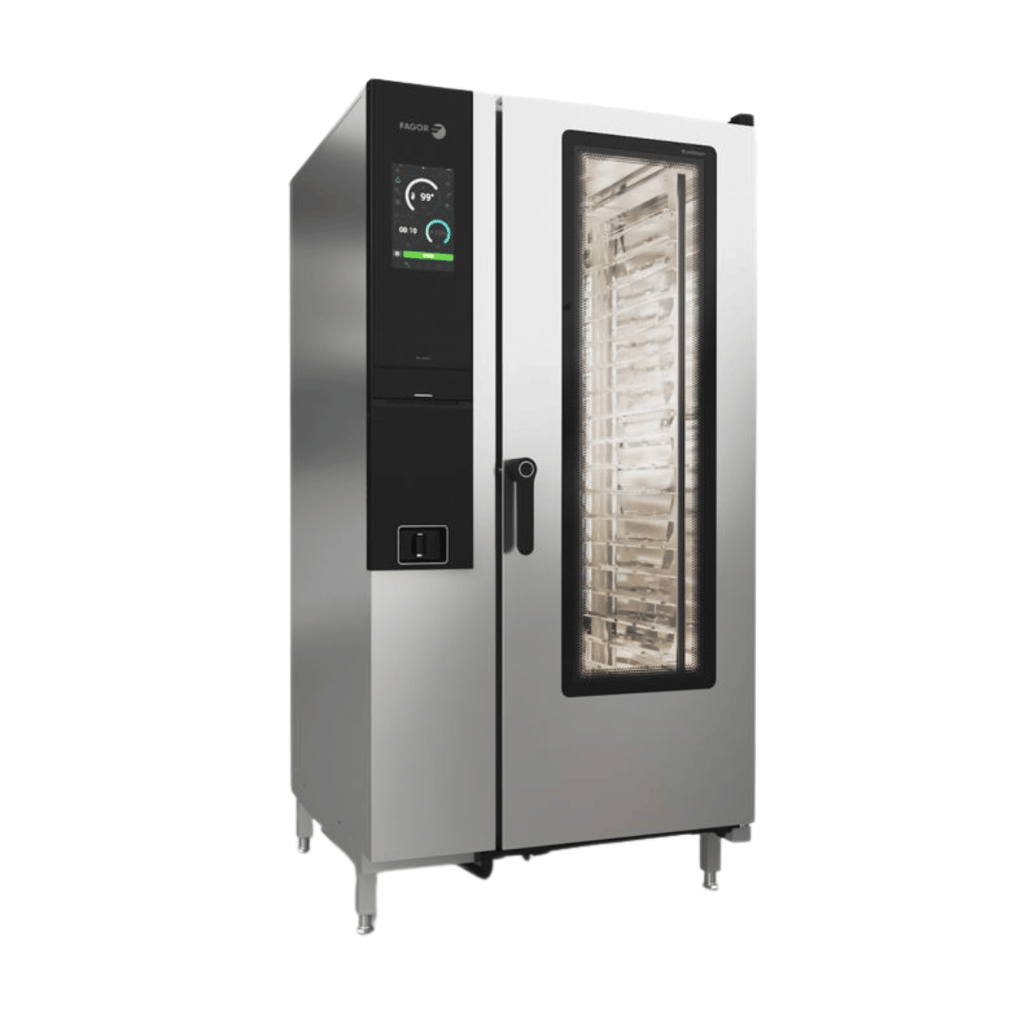

The Fagor APW-201ERLWS is a floor-standing, 20 tray GN 1/1 combi oven from the iKore Advance range, built for banquet halls, hotels, hospitals and central production kitchens. It generates steam in a dedicated boiler and is run from a 10.1 inch glass touchscreen, with iCooking processes that adjust themselves, 200 tested recipes and humidity controlled to 1%. It is the high-output version of the 6 and 10 tray Advance ovens, with 37.2 kW of power and twice the capacity of the APW-101ERLWS.

Key features:

• 20 x GN 1/1 capacity in a floor-standing cabinet
• Boiler steam, with modes from low-temperature steam (30–98°C) and super steam (100–130°C) to mixed and convection (30–300°C)
• 10.1 inch glass touchscreen with iCooking smart processes you can adjust during cooking
• End-of-cycle options such as hold temperature or repeat the process
• iClima humidity sensor control with 1% regulation, and chamber dehumidification
• 200 tested recipes, unlimited 9-stage recipe storage and Multitray cooking
• Extra functions: regeneration, sous vide, overnight cooking, fermentation, pasteurisation, smoking, charcuterie and dehydration
• iWashing fully automatic liquid washing with detergent tank
• HACCP recording and data output

Specifications:

• Model: Fagor APW-201ERLWS
• Capacity: 20 x GN 1/1 trays (pans and trays not included)
• Dimensions: 930 W x 964 D x 1841 H mm
• Weight: 306 kg
• Temperature range: 30°C to 300°C
• Power: 37.2 kW, 415V three-phase (3N~)
• Steam: boiler
• Door: right-hand opening, with hand shower
• Packed size for delivery: 1095 x 1015 x 2070 mm

Good to know before you buy:

• Access: the packed oven is about 2070mm tall and the oven weighs 306 kg. Check door heights and your route inside, and plan how you will move it from the kerb. Delivery is by tailgate truck to the front of your premises.
• Power: 37.2 kW on 415V three-phase. A licensed electrician must connect it and confirm your switchboard can handle the load. We supply the equipment only.
• Water and drain: water and drain connections are needed, by a licensed plumber. Ask us about Fagor combi water filter kits.
• What's not included: GN pans and trays are sold separately.

Compare similar models:

• Fagor APW-201GRLWS: the same 20 tray iKore Advance, gas fired (129.6 MJ/h)
• Fagor APW-101ERLWS: 10 tray iKore Advance, 18.6 kW
• Fagor CPW-201ERLWS: iKore Concept PureSteam 20 tray boiler oven with knob controls and 100 recipes
• Fagor CW-201ERSWS: iKore Concept 20 tray oven with direct steam injection

Common questions:

Is there a loading trolley for it?
Yes. The Fagor CEB-201 loading trolley suits 20 tray GN 1/1 (201) ovens, so you can load a full rack away from the oven. Ask us to confirm what comes with your oven.

What's the difference between the electric and gas 20 tray models?
Capacity and features are the same. The electric model needs 37.2 kW of three-phase power; the gas APW-201GRLWS uses 129.6 MJ/h of gas and only 1.55 kW of power.

Do you install it?
We supply the equipment only. It must be connected by a licensed electrician and a licensed plumber in your area.

See all our commercial combi ovens.

Warranty: 2 years parts and labour.
