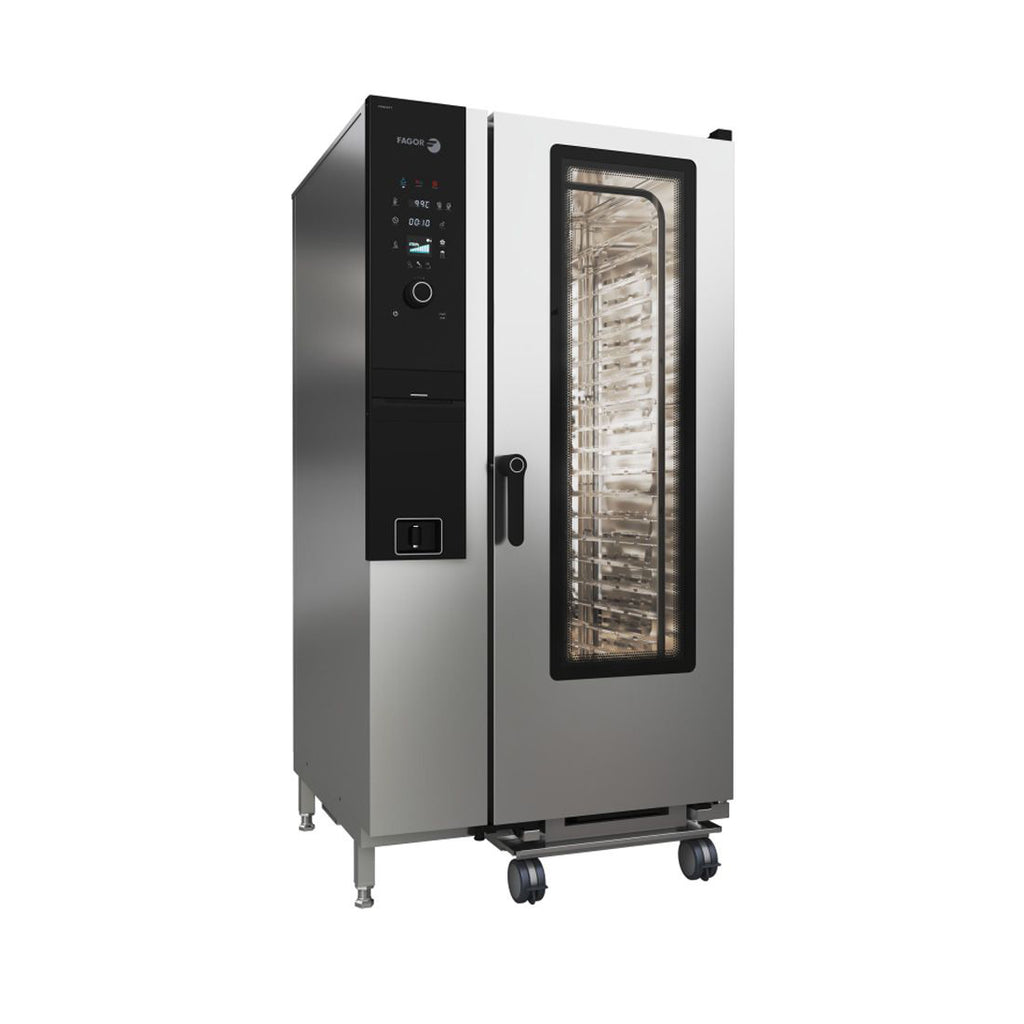

Fagor CW-201ERSWS - iKore Concept 20 Tray GN 1/1 Electric Combi Oven

Fagor CW-201ERSWS - iKore Concept 20 Tray GN 1/1 Electric Combi Oven

The Fagor CW-201ERSWS is a floor-standing, 20 tray GN 1/1 combi oven from the iKore Concept range, aimed at clubs, function centres, aged care and catering kitchens that cook in volume. Steam is made by injecting water into the fan, where it is atomised (DirectSteam), so there is no boiler to look after. The controls stay simple, with a 2.8 inch screen, rotary knob and 100 preset recipes, while features such as 6 fan speeds, a 4-point core probe and automatic washing handle the heavy lifting. For boiler steam in the same size, see the CPW-201ERLWS.

Key features:

• 20 x GN 1/1 capacity, floor-standing
• DirectSteam: water is injected into the fan and atomised into steam, plus manual steam injection
• Cooking modes: low-temperature steam 30–98°C, steam 99°C, super steam 100–130°C, mixed and convection 30–300°C
• iClima humidity sensor control (10% regulation), 5-level humidification and automatic dehumidification
• EZ-Sensor core probe with 4 measuring points
• 6 programmable fan speeds with auto-reverse, half-power option and delayed start
• Hold-open door with 3 positions, LED cabinet lighting and stainless steel inside and out
• iWashing with basic, 3 automatic, rinse and polish programmes, showing cleaning status and time left
• Automatically adjusts to the site (such as altitude), with self-testing and IPX5 protection

Specifications:

• Model: Fagor CW-201ERSWS
• Capacity: 20 x GN 1/1 trays (pans and trays not included)
• Dimensions: 930 W x 964 D x 1841 H mm
• Weight: 249 kg
• Temperature range: 30°C to 300°C
• Power: 37.2 kW, 415V three-phase (3N~)
• Steam: direct injection
• Materials: AISI 304 stainless steel inside and out, mirror-polished interior
• Recipes: 100 preset, storage for more than 100 of your own 9-stage recipes
• Packed size for delivery: 1095 x 1015 x 2070 mm

Good to know before you buy:

• Access: about 2070mm tall packed and 249 kg. Check doorways and ceiling heights along the route in. Delivery is by tailgate truck to the front of your premises.
• Power: 37.2 kW on 415V three-phase. A licensed electrician must connect it and confirm your supply can carry it. We supply the equipment only.
• Water and drain: connections by a licensed plumber are needed. Ask us about Fagor combi water filter kits.
• What's not included: pans and trays are sold separately.

Compare similar models:

• Fagor CW-202ERSWS: iKore Concept 20 x GN 2/1 model (40 x GN 1/1), 67.2 kW
• Fagor CW-101ERSWS: 10 tray iKore Concept, 18.6 kW
• Fagor CPW-201ERLWS: same 20 tray size with a PureSteam boiler and liquid washing
• Fagor APW-201ERLWS: iKore Advance 20 tray boiler oven with 10.1 inch touchscreen

Common questions:

Is there a loading trolley for it?
The Fagor CEB-201 loading trolley suits 20 tray GN 1/1 (201) ovens. Ask us to confirm what comes with your oven.

Can I run it at half power?
Yes. Fagor lists the ability to select half power as one of its features, along with delayed programming and a stop/start function.

Do you install it?
We supply the equipment only. It must be connected by a licensed electrician and a licensed plumber in your area.

See all our commercial combi ovens.

Warranty: 2 years parts and labour.
