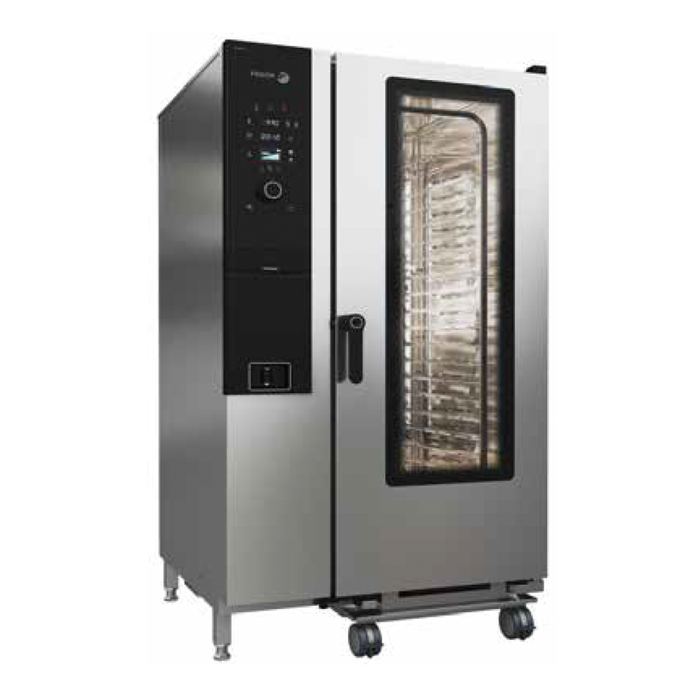

Fagor CW-202ERSWS - iKore Concept 20 Tray GN 2/1 Electric Combi Oven

Fagor CW-202ERSWS - iKore Concept 20 Tray GN 2/1 Electric Combi Oven

The Fagor CW-202ERSWS is the largest iKore Concept direct-steam combi: a floor-standing oven that takes 20 GN 2/1 trays (40 GN 1/1) for high-turnover production, institutional and banquet kitchens. Steam is injected rather than made in a boiler, and it shares the same simple 2.8 inch screen, rotary knob and 100-recipe platform as the smaller CW models, so recipes carry across from a 6 tray oven to this one. It has double the tray area of the CW-201ERSWS and comes with FED's 2 + 2 year warranty when registered.

Key features:

• 20 x GN 2/1 or 40 x GN 1/1 capacity
• Direct steam injection
• Cooking modes: low-temperature steam 30–98°C, steam 99°C, super steam 100–130°C, mixed and convection 30–300°C
• 2.8 inch screen with rotary knob, and 100 tested recipes in the Fagor Recipe Center
• iClima humidity sensor control, chamber dehumidification, Delta cooking and 10% regulation
• EZ-Sensor multi-point core probe, or use an external probe
• iWashing Solid automatic cleaning
• Triple-glazed door, rapid air and water cool-down, and HACCP recording
• Left-hand hinged door available on request

Specifications:

• Model: Fagor CW-202ERSWS
• Capacity: 20 x GN 2/1 (40 x GN 1/1) trays, pans and trays not included
• Dimensions: 1162 W x 1074 D x 1841 H mm
• Weight: 302 kg
• Temperature range: 30°C to 300°C
• Power: 67.2 kW, 415V three-phase (3N~)
• Steam: direct injection
• Packed size for delivery: 1180 x 1245 x 2080 mm

Good to know before you buy:

• Access: packed at about 1180 x 1245mm and 2080mm tall, weighing 302 kg. Measure doorways and the route in carefully. Delivery is by tailgate truck to the front of your premises.
• Power: 67.2 kW is a large three-phase load. It must be connected by a licensed electrician, who should confirm your supply. We supply the equipment only.
• Water filter: FED states the warranty is void if the correct water filtration system is not installed and in use. Water and drain connections must be made by a licensed plumber.
• What's not included: pans and trays are sold separately.

Compare similar models:

• Fagor CW-201ERSWS: iKore Concept 20 x GN 1/1, 930mm wide, 37.2 kW
• Fagor CPW-202ERLWS: same 20 x GN 2/1 size with a PureSteam boiler and liquid washing
• Fagor APW-201ERLWS: iKore Advance 20 x GN 1/1 with 10.1 inch touchscreen

Common questions:

Can I get the door hinged on the left?
Yes. FED offers a left-hand hinged door on request. Ask us before you order.

Is there a loading trolley to suit?
Yes. The Fagor CEB-202 trolley suits 20 tray GN 2/1 (202) ovens. Ask us to confirm what comes with your oven.

Do you install it?
We supply the equipment only. It must be connected by a licensed electrician and a licensed plumber in your area.

See all our commercial combi ovens.

Warranty: 2 years parts and labour, plus an extra 2 years on parts when you register the product with FED within 14 days of invoice. The warranty is void if the correct water filtration system is not installed and in use.
