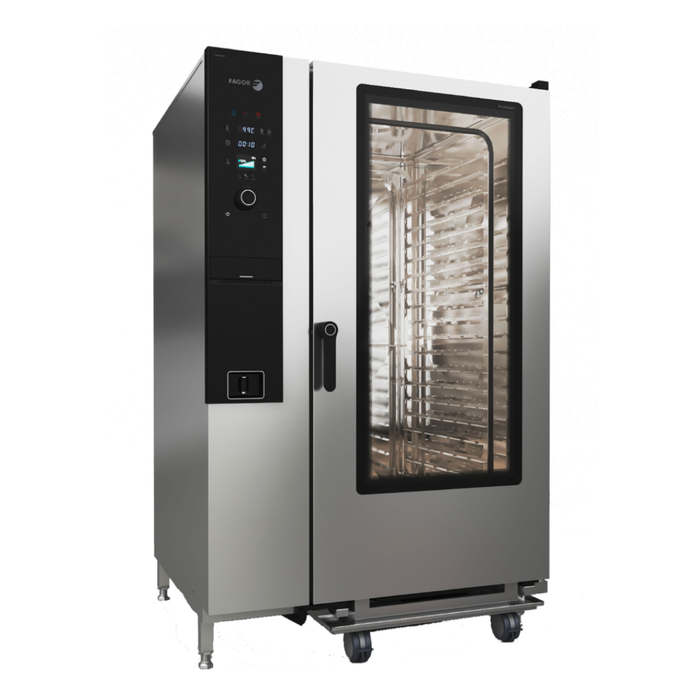

Fagor CPW-202ERLWS - iKore Concept PureSteam 20 Tray GN 2/1 Electric Combi Oven

Fagor CPW-202ERLWS - iKore Concept PureSteam 20 Tray GN 2/1 Electric Combi Oven

The Fagor CPW-202ERLWS is the largest oven in the iKore Concept PureSteam range: a floor-standing boiler combi that takes 20 GN 2/1 trays, or 40 GN 1/1. It is built for hospitals, institutions, stadiums and central kitchens that steam, roast and regenerate in bulk, with a dedicated boiler, humidity sensor control and automatic liquid washing. It doubles the tray area of the 20 tray GN 1/1 CPW-201ERLWS, and needs 67.2 kW of three-phase power.

Key features:

• 20 x GN 2/1 or 40 x GN 1/1 capacity
• PureSteam boiler for high steam output
• Cooking modes: low-temperature steam 30–98°C, steam 99°C, super steam 100–130°C, mixed and convection 30–300°C
• 2.8 inch screen with rotary knob, and 100 tested recipes in the Fagor Recipe Center
• iClima humidity sensor control, chamber dehumidification and Delta cooking
• EZ-Sensor multi-point core probe, or use an external probe
• iWashing automatic liquid washing
• Triple-glazed door, rapid air and water cool-down, and HACCP recording

Specifications:

• Model: Fagor CPW-202ERLWS
• Capacity: 20 x GN 2/1 (40 x GN 1/1) trays, pans and trays not included
• Dimensions: 1162 W x 1074 D x 1841 H mm
• Weight: 384 kg
• Temperature range: 30°C to 300°C
• Power: 67.2 kW, 415V three-phase (3N~)
• Steam: boiler (PureSteam)
• Packed size for delivery: 1180 x 1245 x 2080 mm

Good to know before you buy:

• Access: the packed oven is about 1180 x 1245mm and 2080mm tall, and it weighs 384 kg. Measure every doorway on the way in and plan for lifting equipment. Delivery is by tailgate truck to the front of your premises.
• Power: 67.2 kW is a heavy three-phase load. A licensed electrician must connect it and confirm your supply. We supply the equipment only.
• Water filter: FED states the warranty is void if the correct water filtration system is not installed and in use. A licensed plumber must connect the water and drain.
• What's not included: pans and trays are sold separately.

Compare similar models:

• Fagor CPW-201ERLWS: 20 x GN 1/1 PureSteam oven, 930mm wide, 37.2 kW
• Fagor CW-202ERSWS: same 20 x GN 2/1 size with direct steam injection and solid washing
• Fagor APW-201ERLWS: iKore Advance 20 x GN 1/1 boiler oven with 10.1 inch touchscreen

Common questions:

Does it take GN 1/1 trays?
Yes. It holds 20 GN 2/1 trays or 40 GN 1/1 trays.

Is there a loading trolley?
FED lists this oven as supplied with a trolley; please ask us to confirm when you order. Extra CEB-202 trolleys suit 202 ovens.

Do you install it?
We supply the equipment only. It must be connected by a licensed electrician and a licensed plumber in your area.

See all our commercial combi ovens.

Warranty: 2 years parts and labour, plus an extra 2 years on parts when you register the product with FED within 14 days of invoice. The warranty is void if the correct water filtration system is not installed and in use.
