Icematic C38DP-A - 38kg Under Counter Self Contained Ice Machine with Drain Pump

Icematic C38DP-A - 38kg Under Counter Self Contained Ice Machine with Drain Pump

The Icematic C38DP-A makes up to 38kg of 20g bright cubes a day and stores 11.5kg in its own bin, all in a cabinet just 400mm wide. Its integrated drain pump means you are not limited to spots with a floor waste right beside the machine, which helps in fit-outs, back bars and kiosks. It shares its size and output with the gravity-drain C38-A.

Key features:

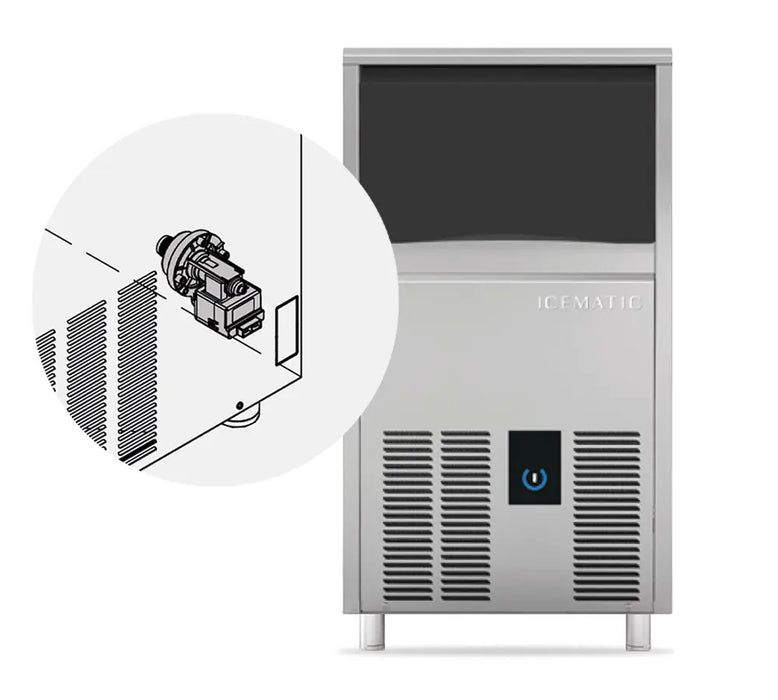

• Integrated drain pump for more flexible placement
• Up to 38kg a day of 20g bright cube ice, 11.5kg built-in bin
• Slim 400mm wide body, suitable for under bench installation
• My Ice app control by Wi-Fi or Bluetooth, plus touch controls
• Programmable ice production and external cube weight adjustment
• Rainbow Technology to help protect the evaporator
• Sanitisation cycle, alarms, HACCP alarm report and USB data download
• Removable air filter and protected front controls
• Supplied with legs, water and drain hoses, and an ice scoop

Specifications:

• Model: Icematic C38DP-A
• Production: up to 38kg per 24 hours
• Ice type: 20g bright cube, approx. 37 x 35 x 32 mm
• Built-in storage: 11.5kg
• Dimensions: 400 W x 540 D x 690 H mm (810 mm high on legs)
• Weight: 34 kg
• Drain: integrated drain pump
• Power: 0.37 kW, 240V single phase, 10 amp
• Refrigerant: R290
• Cooling: air-cooled
• Operating range: room 10–40°C, water 5–35°C, water pressure 1–10 bar
• Construction: stainless steel
• Made in Italy
• Packed size for delivery: 460 W x 600 D x 850 H mm, 40 kg

Good to know before you buy:

• Water and drain: it needs a cold water supply and a drain point. The pump lifts waste water, so the drain doesn't have to be below the machine. A licensed plumber must make both connections. A water filter is recommended by Icematic's Australian distributor. We supply the equipment only.
• Power: runs on a standard 240V, 10 amp single-phase supply (0.37 kW).
• Space: 810 mm high on legs and 540 mm deep, so check under-bench height and depth.
• Airflow: keep the air filter and vents clear for best output.

Compare similar models:

• Icematic C38-A: same machine with a gravity drain
• Icematic C28DPPLUS-A: smaller 28kg drain pump model, 7kg bin
• Icematic C46DP-A: 46kg a day drain pump model with a 15kg bin
• Icematic C54DP-A: 54kg a day, 22kg bin, on castors

Common questions:

Why choose the drain pump version?
If your drain point is higher than the machine or not directly below it, the pump moves the waste water there. If you have a floor waste right under the machine, the gravity-drain C38-A does the same job.

What size are the cubes?
Each bright cube weighs about 20g and measures roughly 37 x 35 x 32 mm.

Do you install it?
We supply the equipment only. It must be connected to water and drain by a licensed plumber in your area.

See all our ice machines.

Warranty: 2 years parts and 2 years labour (24 months each) through Icematic's Australian distributor, Scots Ice. Exclusions apply.
