Icematic C90DP-A - 90kg Under Counter Self Contained Ice Machine with Drain Pump

Icematic C90DP-A - 90kg Under Counter Self Contained Ice Machine with Drain Pump

The Icematic C90DP-A is the top of the Cherry bright cube range: up to 90kg of 20g cubes every 24 hours, with a 42kg bin built in. That makes it an all-in-one choice for pubs, clubs, hotels and function venues that want high output without buying a separate head and storage bin. It shares its 700mm wide cabinet with the C70DP-A, but makes 20kg more ice a day, and it has an integrated drain pump.

Key features:

• Highest output in the Cherry range: up to 90kg a day of 20g bright cubes
• 42kg built-in storage bin, so no separate bin to buy

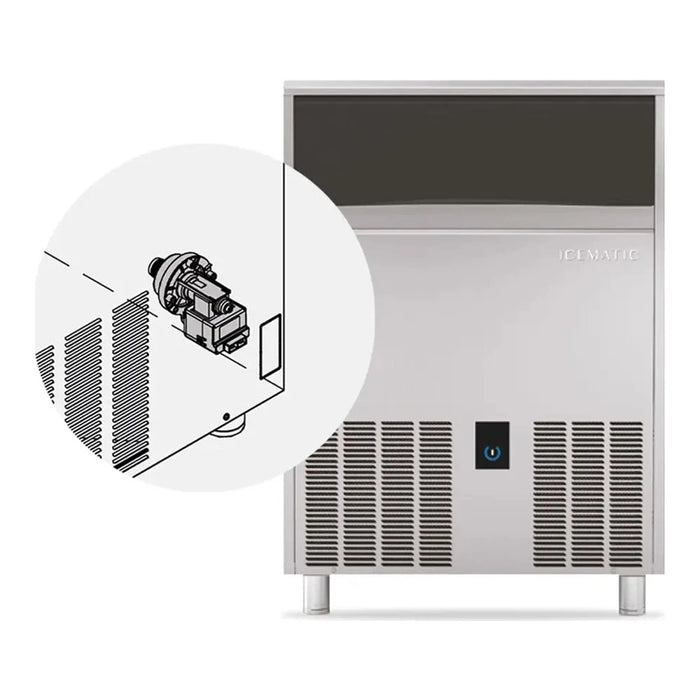

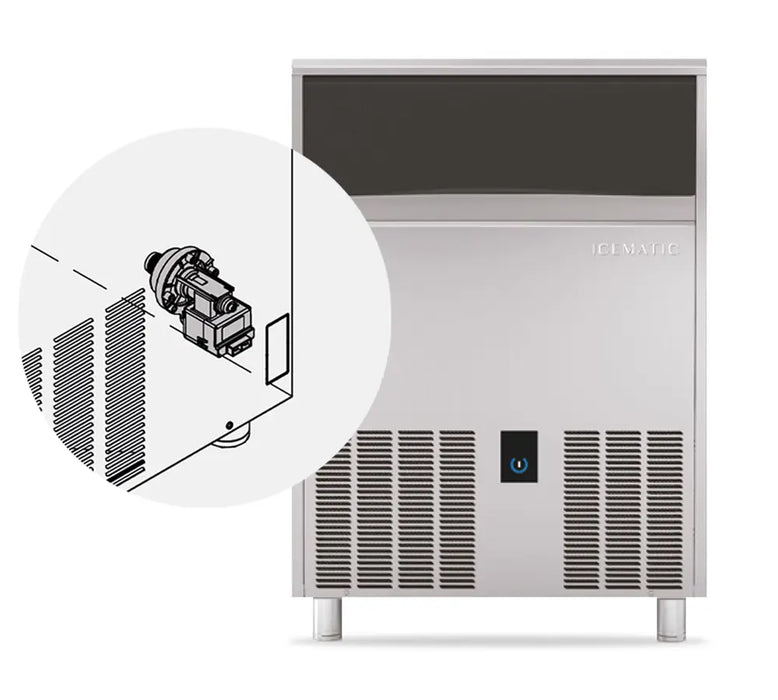

• Integrated drain pump
• My Ice app (Wi-Fi and Bluetooth) with touch controls and programmable production
• Rainbow Technology to protect the evaporator
• Sanitisation cycle, audible and light alarms, HACCP alarm report
• USB connection for software updates and HACCP data download
• Removable air filter and protected front controls
• Supplied with legs, water and drain hoses, and an ice scoop

Specifications:

• Model: Icematic C90DP-A
• Production: up to 90kg per 24 hours
• Ice type: 20g bright cube, approx. 37 x 35 x 32 mm
• Built-in storage: 42kg
• Dimensions: 700 W x 580 D x 910 H mm (995 mm high on legs)
• Weight: 54 kg
• Drain: integrated drain pump
• Power: 0.67 kW, 240V single phase, 10 amp
• Refrigerant: R290
• Cooling: air-cooled
• Operating range: room 10–40°C, water 5–35°C, water pressure 1–10 bar
• Construction: stainless steel
• Made in Italy
• Packed size for delivery: 760 W x 640 D x 1080 H mm, 63 kg

Good to know before you buy:

• Water and drain: it needs a cold water supply and a drain point, and the pump allows the drain to be higher than the machine. Both must be connected by a licensed plumber. A water filter is recommended by Icematic's Australian distributor. We supply the equipment only.
• Power: standard 240V, 10 amp single-phase supply (0.67 kW).
• Airflow: a hot, enclosed space will cut daily output, so keep the air filter and vents clear and the room as cool as practical.
• Access: packed at 760 x 640 x 1080 mm and 63 kg, delivered by tailgate truck to the front of your premises.

Compare similar models:

• Icematic C70DP-A: same cabinet and 42kg bin, up to 70kg a day
• Icematic C54DP-A: 54kg a day with a 22kg bin, under-bench height on castors
• Icematic M145-A: modular dice cube head making up to 145kg a day (bin sold separately)

Common questions:

Should I get this or a modular head and bin?
The C90DP-A is a single unit with its own 42kg bin. If you need more than 90kg a day or a larger store of ice, a modular head such as the M145-A on a separate bin gives you more capacity.

Can I check on it remotely?
Yes. The My Ice app connects by Wi-Fi or Bluetooth so you can check its status and schedule production.

Do you install it?
We supply the equipment only. It must be connected to water and drain by a licensed plumber in your area.

See all our ice machines.

Warranty: 2 years parts and 2 years labour (24 months each) through Icematic's Australian distributor, Scots Ice. Exclusions apply.
