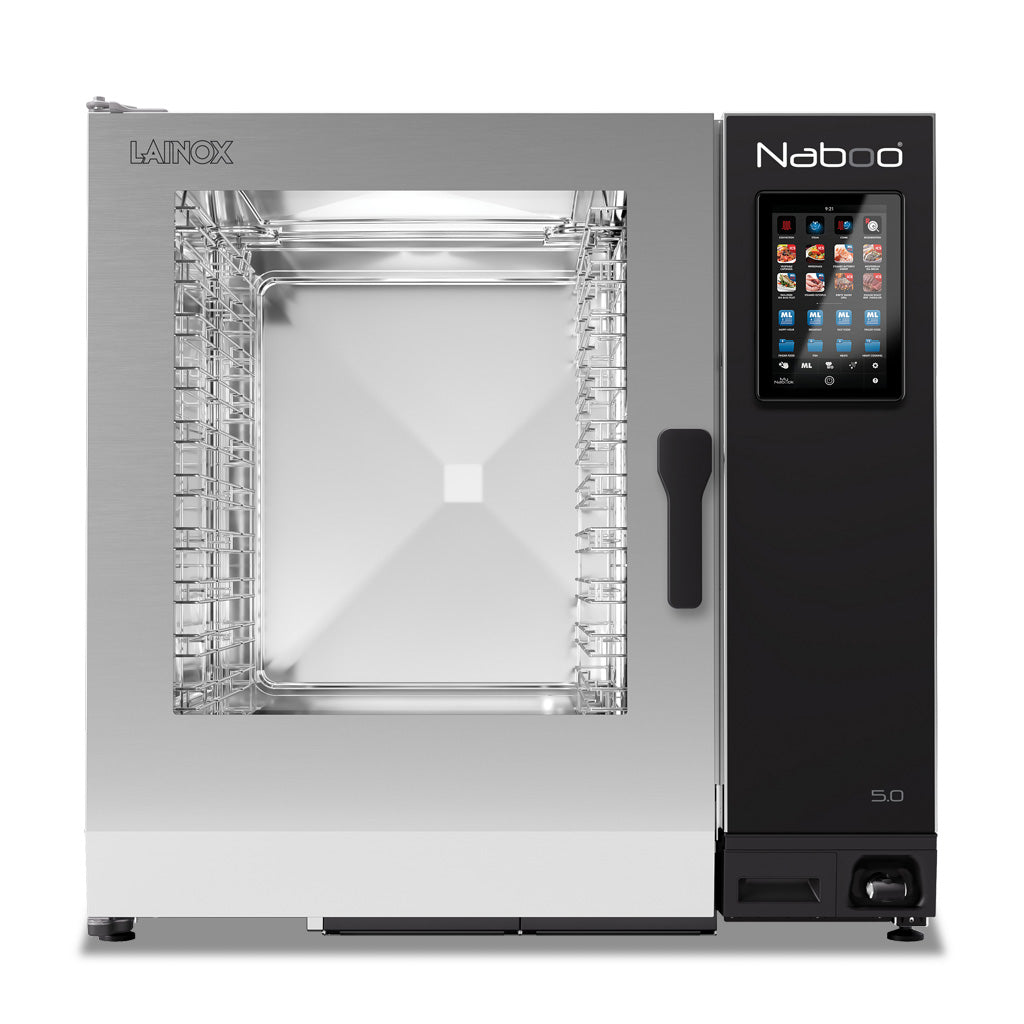

Lainox Naboo NAE102B - 10 x 2/1 GN Electric Combi Oven

Lainox Naboo NAE102B - 10 x 2/1 GN Electric Combi Oven

The Lainox Naboo NAE102B takes 10 large 2/1 GN pans, or 20 x 1/1 GN laid two across, making it a big-batch benchtop combi for hotels, clubs, function centres and institutional kitchens. Each level carries up to 25 kg, and the oven handles up to 90 kg per load. It has the same Naboo 5.0 touch screen, Wi-Fi recipe cloud and vapour cleaning as the NAE101B, in a wider 1072 x 907mm body with roughly double the power at 36.7 kW.

Key features:

• 10 x 2/1 GN or 20 x 1/1 GN at 70mm spacing, up to 90 kg per load
• Convection and combination 30–300°C, steam 30–130°C, with boosted preheating to 320°C
• 10 inch touch screen with 227 recipes and ICS one-touch automatic cooking
• Just in Time, Multilevel Plus and low-temperature night cooking
• Autoclima, Fast-Dry Boosted and up to 6 fan speeds with auto reverse
• Built-in Wi-Fi to Nabook for recipes, menus, food costing and remote HACCP
• VCS Vapor Cleaning System with 7 automatic wash programmes and a retractable hand shower
• Fixed multipoint core probe and a 5 micron water filter supplied
• Steam generator (boiler) version available as an option to request when ordering (OB102E)

Specifications:

• Model: Lainox NAE102B
• Capacity: 10 x 2/1 GN or 20 x 1/1 GN, 70mm apart (max. load 90 kg, 25 kg per tray)
• Dimensions: 1072 W x 907 D x 1055 H mm
• Temperature: convection and combi 30–300°C, steam 30–130°C, preheat to 320°C
• Power: 400 V three phase (3N), 50/60 Hz, 55 A, 36.7 kW, with 3 m cable
• Water: 3/4 inch cold and 3/4 inch softened water inlets, 2–5 bar
• Drain: 50mm
• Cooking chamber: 1mm AISI 304 stainless steel with long rounded edges
• Origin: Italy
• Packed size for delivery: 1210 W x 1050 D x 1260 H mm

Good to know before you buy:

• Power: at 36.7 kW and 55 A on three-phase 400 V, this is a heavy electrical load. A licensed electrician must connect it and confirm your switchboard can supply it. Lainox specifies a type B RCD. We supply the equipment only.
• Water / drain: it needs a 2–5 bar water supply and a 50mm drain, connected by a licensed plumber.
• Clearances: allow at least 50mm on the left and rear, and 500mm on the right-hand side.
• Access: packed, it is 1210mm wide and 1050mm deep. It is delivered by tailgate truck to the front of your premises, and standard delivery doesn't include bringing it inside or up stairs, so check doorway widths.

Compare similar models:

• Lainox Naboo NAE101B: 10 x 1/1 GN, 852mm wide, 18.7 kW
• Lainox Naboo NAE202B: 20 x 2/1 GN floor model with a roll-in trolley
• Lainox Sapiens SAE102B: same capacity with manual electronic controls

Common questions:

Can I use 1/1 GN pans in it?
Yes. Each level takes one 2/1 GN pan or two 1/1 GN pans side by side, so it holds 20 x 1/1 GN in total.

What stand suits it?
Lainox makes an open stainless steel stand with side runners for this model (NA102, 710mm high), sold separately. Ask us for a price.

Do you install it?
We supply the equipment only. It must be connected by a licensed electrician and a licensed plumber in your area.

See all our commercial combi ovens.

Warranty: 1 year parts and 1 year labour (12 months each) through Lainox's Australian distributor, Scots Ice. Exclusions apply.
