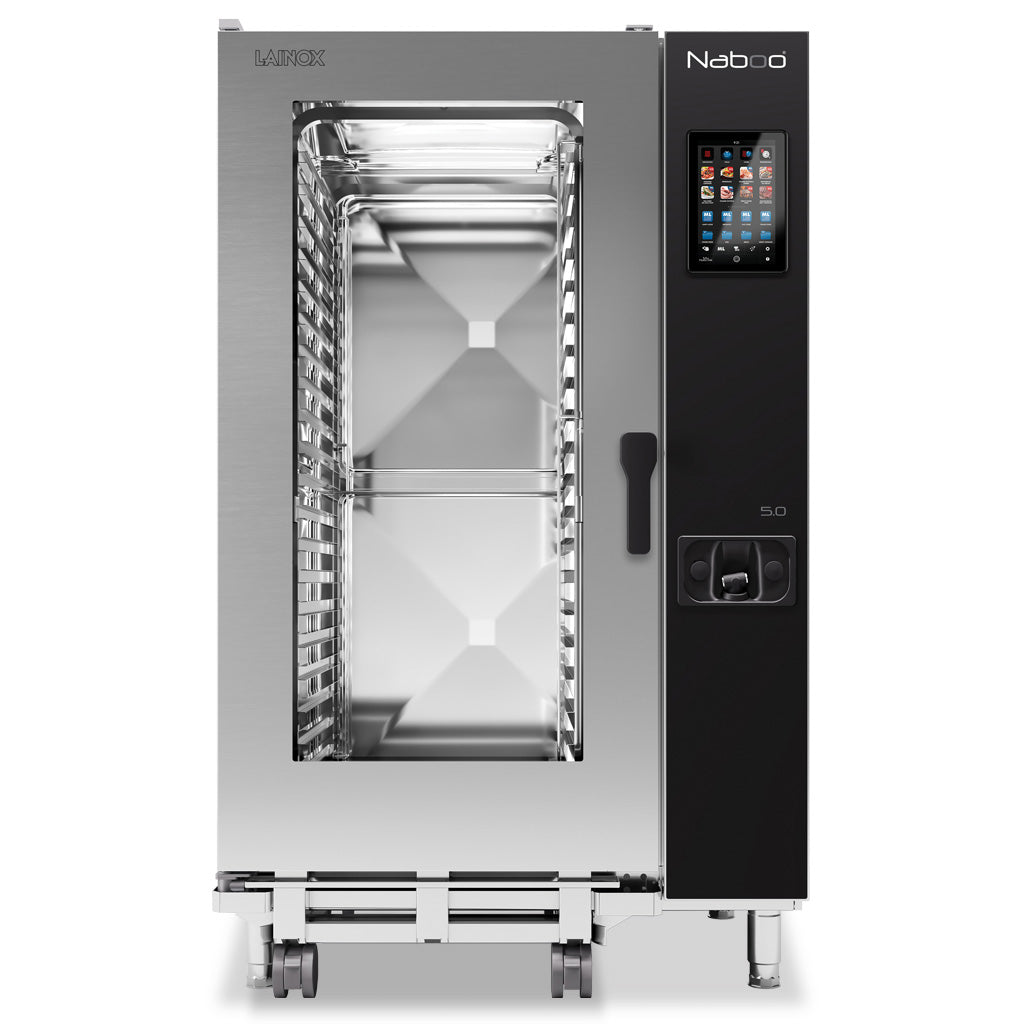

Lainox Naboo NAE202B - 20 x 2/1 GN Electric Combi Oven

Lainox Naboo NAE202B - 20 x 2/1 GN Electric Combi Oven

The Lainox Naboo NAE202B is the largest Naboo 5.0 combi we list: a floor-standing combi with a roll-in trolley for 20 x 2/1 GN, or 40 x 1/1 GN, and up to 180 kg per load. It is built for high-volume operations such as large hotels, catering companies and central production kitchens. Compared with the NAE201B it doubles the pan area by taking 2/1 GN, and it needs a much bigger power supply at 73.2 kW.

Key features:

• 20 x 2/1 GN or 40 x 1/1 GN at 63mm spacing on the supplied roll-in trolley
• Up to 180 kg per load, 25 kg per level
• Convection and combination 30–300°C, steam 30–130°C, boosted preheating to 320°C
• 10 inch touch screen with 227 recipes and ICS one-touch automatic cooking
• Just in Time, Multilevel Plus and night cooking for overnight roasting
• Wi-Fi to the Nabook cloud for recipe sync across ovens, remote HACCP and consumption monitoring
• Up to 6 fan speeds with auto reverse, Autoclima and Fast-Dry Boosted
• Multipoint core probe with external connector and a retractable hand shower
• VCS Vapor Cleaning System with 7 programmes; 5 micron water filter supplied

Specifications:

• Model: Lainox NAE202B
• Capacity: 20 x 2/1 GN or 40 x 1/1 GN, 63mm apart (max. load 180 kg)
• Dimensions: 1102 W x 932 D x 1812 H mm
• Weight: 315 kg
• Temperature: convection and combi 30–300°C, steam 30–130°C, preheat to 320°C
• Power: 400 V three phase (3N), 50/60 Hz, 110 A, 73.2 kW
• Water: 3/4 inch cold and 3/4 inch softened water inlets, 2–5 bar
• Drain: 50mm
• Included: 1 x roll-in trolley for 20 x 2/1 GN
• Origin: Italy
• Packed size for delivery: 1290 W x 1180 D x 2040 H mm, 364 kg

Good to know before you buy:

• Power: 73.2 kW at 110 A on three-phase 400 V is a very large load. Have a licensed electrician check your supply and switchboard before ordering, and connect it. Lainox specifies a type B RCD. We supply the equipment only.
• Access: packed at 1290 x 1180 x 2040mm and 364 kg. Delivery is by tailgate truck to the front of your premises, and standard delivery doesn't include moving it inside, up stairs or unpacking. You will need suitable doorways and lifting equipment.
• Water / drain: a licensed plumber must connect the water (2–5 bar) and the 50mm drain.
• Clearances: Lainox asks for 50mm at the left and rear, and 500mm on the right-hand side.

Compare similar models:

• Lainox Naboo NAE201B: 20 x 1/1 GN, 892mm wide, 37.2 kW
• Lainox Sapiens SAE202B: same 20 x 2/1 GN capacity with manual electronic controls
• Lainox Naboo NAE102B: 10 x 2/1 GN benchtop model, 36.7 kW

Common questions:

Can I run plated banquets through it?
Yes. Lainox makes a banqueting trolley for 100 plates of 310mm (KKP202), and an additional 20 x 2/1 GN trolley (KKS202) so you can load one while the other cooks. Ask us for prices.

Is a heavy-duty trolley available?
Lainox lists a heavy-duty 20 x 2/1 GN trolley (KKS202HD) as an option to request when ordering. Ask us about it.

Do you install it?
We supply the equipment only. It must be connected by a licensed electrician and a licensed plumber in your area.

See all our commercial combi ovens.

Warranty: 1 year parts and 1 year labour (12 months each) through Lainox's Australian distributor, Scots Ice. Exclusions apply.
