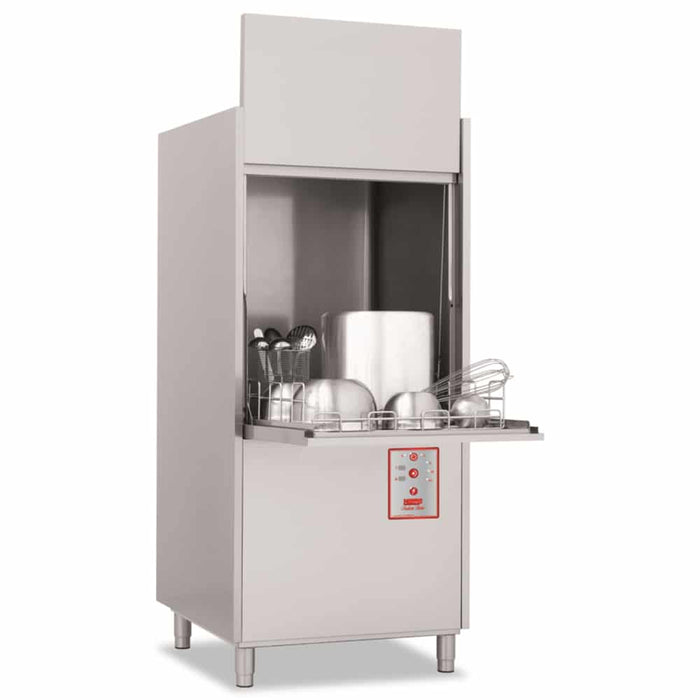

Norris Madison IM85 - Upright Pot Washer

Norris Madison IM85 - Upright Pot Washer

The Norris Madison IM85 is the middleweight of the Italian-made Madison pot washer range, built for busy restaurant kitchens that wash large or awkwardly shaped pots, pans and trays. Its square 700 x 700mm basket sits behind an 850mm door opening, with 820mm of usable wash height and a powerful 3000 W wash pump. It steps up from the compact IM65 (550 x 610mm basket) while staying much narrower than the IM1000, at 855mm wide.

Key features:

• 850mm door opening with 820mm usable wash height
• Square 700 x 700mm basket for large or odd-shaped items
• 2, 4, 6 and 12 minute wash cycles, up to 30 loads per hour
• 3000 W wash pump and 8 kW rinse element
• Low water use: 5 litres per rack
• Automatic detergent and rinse aid injection
• Energy saving mode, quick ready function and self-diagnostic system
• Double-skinned door to reduce heat and noise

Specifications:

• Model: Norris Madison IM85 (Norris part 25-300)
• Basket: 700 x 700mm; usable wash height 820mm
• Dimensions: 855 W x 850 D mm; 1900–1960 mm high on legs, 2220–2280 mm with the hood raised; 1398 mm deep with the door open
• Output: up to 30 loads per hour
• Water use: 5 litres per rack
• Wash tank 68 litres (6 kW) at 60°C; rinse tank 7 litres (8 kW), rinse at 82°C
• Pumps: 3000 W wash, 200 W rinse
• Power: 400V 50Hz three phase plus neutral, 20 amps per phase
• Water connection: 3/4 inch BSP hot water; drain: gravity
• Included: steel basket (700 x 700mm), water hose, operating manual

Good to know before you buy:

• Height: allow up to 2280mm for the hood to open, plus about 1.4 m of depth in front with the door open.
• Power: it needs a three-phase supply (20 A per phase) and must be connected by a licensed electrician. We supply the equipment only.
• Water and drain: it connects to hot water and drains by gravity, connected by a licensed plumber.
• Access: an 855mm wide, nearly 2 m tall machine, delivered by tailgate truck to the front of your premises. Check doorways and the route into your kitchen.

Compare similar models:

• Norris Madison IM85R: same basket with a steam condenser, 4 litres per rack
• Norris Madison IM65: compact 720mm wide pot washer, 550 x 610mm basket
• Norris Madison IM1000: largest 1320 x 700mm basket, 1465mm wide

Common questions:

Will my largest stock pot fit?
The basket is 700 x 700mm with 820mm of usable height behind an 850mm door opening. Measure your largest pot against those figures.

Can I choose short cycles for light loads?
Yes. There are 2, 4, 6 and 12 minute cycles, so quick loads turn around fast and heavy soiling gets a longer wash.

Do you install it?
We supply the equipment only. It must be connected by a licensed electrician and a licensed plumber in your area.

See all our commercial utensil and pot washers.

Warranty: 2 years parts and labour, plus 3 years on the control board and cabinet, from Norris. Norris extends this to 4 years on the whole machine when Zexa ware-washing chemicals are used consistently (proof of purchase may be required). Exclusions apply.
