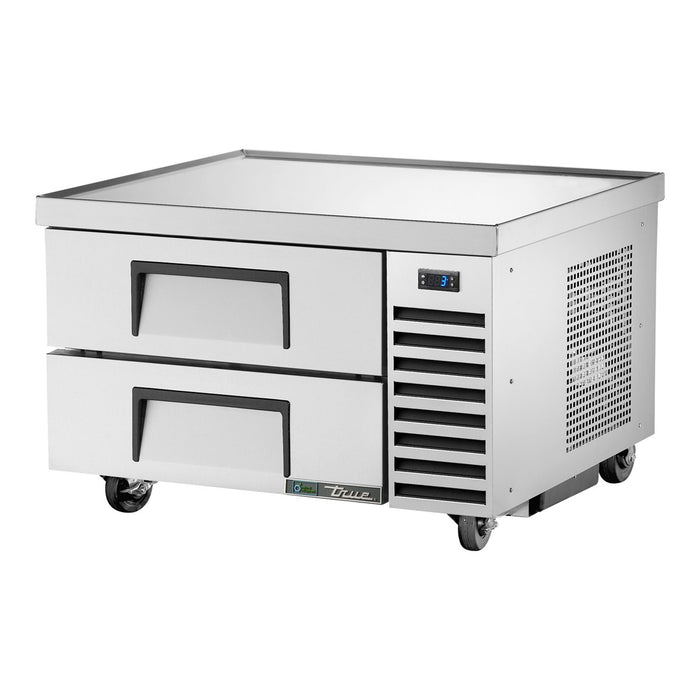

True TRCB-36-HC - 2 Drawer Refrigerated Chef Base 924mm

True TRCB-36-HC - 2 Drawer Refrigerated Chef Base 924mm

The True TRCB-36-HC is the most compact chef base in True's range: a 924 mm refrigerated stand that sits under a single griddle, char grill or similar countertop appliance and keeps chilled ingredients right where you cook. Each of its two drawers takes one 1/1 GN pan plus three 1/6 GN pans, a handy mix for proteins alongside smaller garnishes. It is certified Climate Class 5 for kitchens up to 40°C, supports up to 326 kg on its insulated stainless steel top, and carries a 5-star energy rating (True's price list). Need more pan space? The TRCB-48-HC takes two full 1/1 pans per drawer.

Key features:

• Built to sit directly under grills and griddles, with chilled storage at the point of cooking
• One-piece, reinforced stainless steel top, insulated to stop heat transferring into the cabinet
• Drip-resistant "V" edge on the top to help contain grease spills; flat tops can be specified
• 2 drawers, each taking 1 x 1/1 GN and 3 x 1/6 GN pans up to 100 mm deep
• Climate Class 5 certified for ambient temperatures up to 40°C
• Digital temperature control holding 0.5°C to 3.3°C
• Condenser coil reached from the front, plus True's patented RCU feature to help reduce debris build-up
• Heavy-duty lock-in-place 102 mm castors
• R290 refrigerant and automatic defrost

Specifications:

• Model: True TRCB-36-HC
• Capacity: 35 litres net, 167 litres gross
• Drawers: 2, each holding 1 x 1/1 GN + 3 x 1/6 GN pans, maximum 100 mm deep (pans not included)
• Dimensions: 924 W x 816 D x 648 H mm (depth excludes 26 mm rear bumpers)
• Weight: 102 kg
• Maximum weight supported on the top: 326 kg
• Temperature range: 0.5°C to 3.3°C
• Maximum room temperature: 40°C (Climate Class 5, EN 16825)
• Refrigerant: R290
• Power: single-phase 220–240 V, 50–60 Hz, 1.1 A running current, 253 W, supplied with a 2.13 m power cord
• Energy use: 2.027 kWh per 24 hours, 740 kWh per year; 5-star energy rating (True's price list)
• Construction: stainless steel front and top, aluminium sides and rear; clear-coated aluminium interior with stainless steel base
• Airflow: air intake at the front, ventilation on the right side
• Castors: heavy-duty lock-in-place, 102 mm diameter (127 mm high)
• Packed size for delivery: 1067 x 889 x 749 mm, 113 kg

Good to know before you buy:

• Cooking equipment on top: True requires at least 102 mm between the bottom of the cooking equipment's heating element and the chef base top, and the top supports up to 326 kg. Any gas or electrical connection for that equipment must be made by a licensed gas fitter or electrician. We supply the equipment only.
• Clearances: leave 26 mm at the rear and 26 mm on the right side, where the unit vents.
• Pans: GN pans are not included, and the drawers suit pans up to 100 mm deep.
• Access: packed, it is 1067 x 889 x 749 mm and 113 kg. Delivery is by tailgate truck to the front of your premises; standard delivery does not include bringing it inside or unpacking.
• Pricing: This model is priced on application. Ask us for a quote.

Compare similar models:

• True TRCB-48-HC: 1227 mm, 2 drawers each taking 2 x 1/1 GN pans
• True TRCB-52-HC: 1318 mm, 2 drawers each taking 3 x 1/1 GN pans
• True TRCB-72-HC: 1839 mm with 4 drawers

Common questions:

Are the GN pans included?
No. Each drawer is set up for one 1/1 GN pan and three 1/6 GN pans, up to 100 mm deep, and pans are sold separately. Ask us if you need pans to suit.

Will it cope with the heat of the cook line?
Yes. True certifies its chef bases to Climate Class 5, tested at 40°C and 40% relative humidity, and the top is insulated against heat from the equipment above.

Can I get drawer locks?
Locks are not standard, but they are available as a build option when the unit is ordered. Ask us.

See all our chef drawers.

Warranty: True 5-year parts and labour warranty, including the compressor.
