True TRCB-48-HC - 2 Drawer Refrigerated Chef Base 1227mm
Contact us for current pricing and lead times. Click Get a Quote below.
Rather rent than pay upfront? Silver Chef Rent-Try-Buy finance is available on most of our range.Apply nowHow it works
Finance provided by Silver Chef, subject to approval.

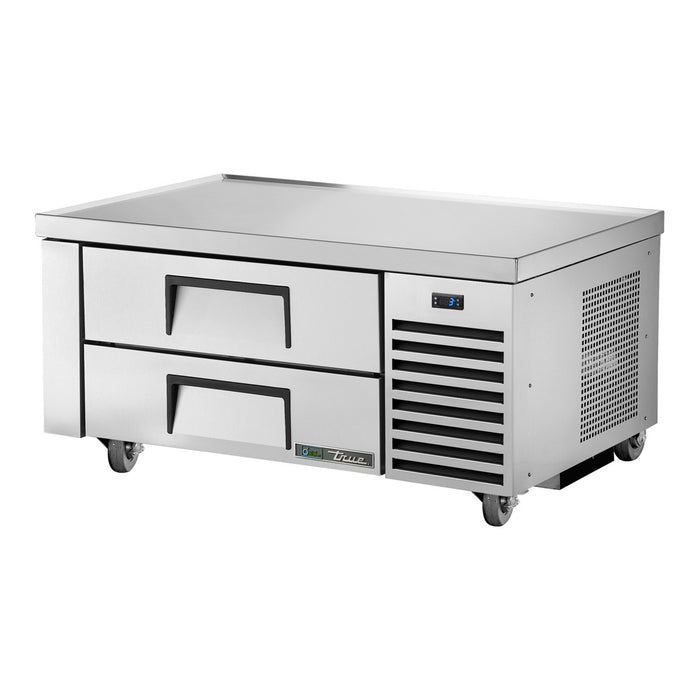

True TRCB-48-HC - 2 Drawer Refrigerated Chef Base 1227mm
Put a 1.2 metre griddle or grill on top of the True TRCB-48-HC and your cook has two refrigerated drawers of mise en place right below the cooking surface. Each drawer holds two full-size 1/1 GN pans, so the whole base takes four, with 52 litres net and 252 litres gross inside. It runs 0.5°C to 3.3°C, is Climate Class 5 certified for 40°C kitchens and has a 5-star energy rating (True's price list). Compared with the 924 mm TRCB-36-HC it trades the 1/6 pan inserts for a second full-size pan in each drawer.
Key features:
- Refrigerated stand designed to go directly under grills and griddles
- 2 drawers, each taking 2 x 1/1 GN pans up to 100 mm deep
- Insulated, one-piece reinforced stainless steel top that supports up to 326 kg
- Drip-resistant "V" edge to help stop grease running off the top; a flat top can be specified
- Climate Class 5 certified, for kitchens up to 40°C
- Digital control and automatic defrost
- Front access to the condenser coil, with True's patented RCU feature
- Lock-in-place 102 mm heavy-duty castors
- R290 hydrocarbon refrigerant
Specifications:
- Model: True TRCB-48-HC
- Capacity: 52 litres net, 252 litres gross
- Drawers: 2, each holding 2 x 1/1 GN pans, maximum 100 mm deep (pans not included)
- Dimensions: 1227 W x 816 D x 648 H mm (depth excludes 26 mm rear bumpers)
- Weight: 118 kg
- Maximum weight supported on the top: 326 kg
- Temperature range: 0.5°C to 3.3°C
- Maximum room temperature: 40°C (Climate Class 5, EN 16825)
- Refrigerant: R290
- Power: single-phase 220–240 V, 50–60 Hz, 1.1 A running current, 253 W, supplied with a 2.13 m power cord
- Energy use: 2.235 kWh per 24 hours, 816 kWh per year; 5-star energy rating (True's price list)
- Construction: stainless steel front and top, aluminium sides and rear; clear-coated aluminium interior with stainless steel base
- Airflow: front air intake, right-side ventilation
- Castors: 102 mm diameter, lock-in-place (127 mm high)
- Packed size for delivery: 1372 x 889 x 749 mm, 129 kg
Good to know before you buy:
- Cooking equipment on top: keep at least 102 mm between the bottom of the appliance's heating element and the chef base top, and stay within the 326 kg weight limit. The appliance itself must be connected by a licensed gas fitter or electrician. We supply the equipment only.
- Clearances: True asks for 26 mm at the back and 26 mm on the right side for ventilation.
- Power: single-phase 220–240 V, 1.1 A running current, 2.13 m power cord.
- Access: the packed unit measures 1372 x 889 x 749 mm and weighs 129 kg. Delivery is by tailgate truck to the front of your premises; standard delivery does not include bringing it inside or unpacking.
- Pricing: This model is priced on application. Ask us for a quote.
Compare similar models:
- True TRCB-52-HC: 1318 mm, takes 3 x 1/1 GN pans per drawer
- True TRCB-52-60-HC: 3 pans per drawer under an extended 1524 mm top
- True TRCB-36-HC: smaller 924 mm base, 1 x 1/1 + 3 x 1/6 GN per drawer
- True TRCB-72-HC: 1839 mm with 4 drawers
Common questions:
Can I fit a bigger pan in the drawer?
No. True moulds these drawers specifically for 1/1 GN pans, which strengthens the drawer, so even if the space looks larger, use 1/1 GN pans up to 100 mm deep. Pans are sold separately.
How much energy does it use?
True rates it at 2.235 kWh per 24 hours (816 kWh a year), with a 5-star energy rating (True's price list).
Do you install it?
We supply the equipment only. The chef base runs on single-phase power with a 2.13 m cord, and the cooking equipment you put on top must be connected by a licensed gas fitter or electrician.
See all our chef drawers.
Warranty: True 5-year parts and labour warranty, including the compressor.
