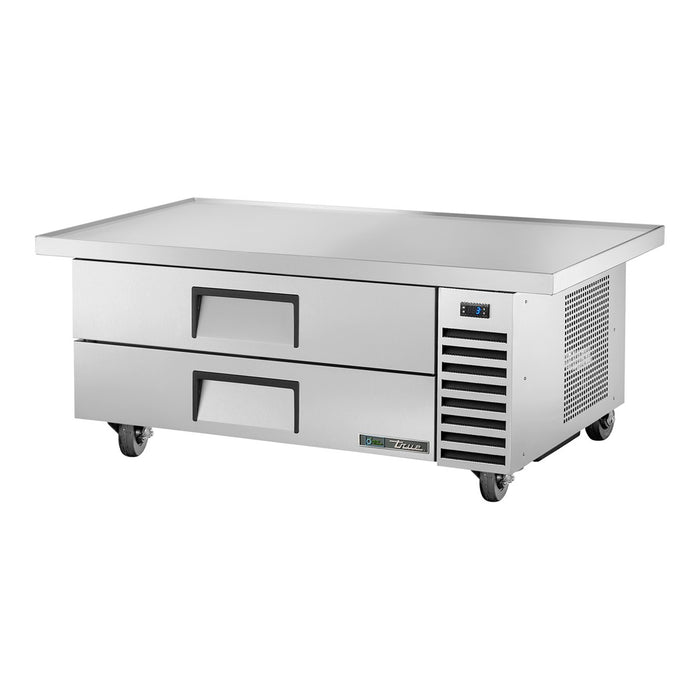

True TRCB-52-60-HC - 2 Drawer Refrigerated Chef Base, Extended Top 1524mm

True TRCB-52-60-HC - 2 Drawer Refrigerated Chef Base, Extended Top 1524mm

Cooking equipment does not always match the fridge underneath, and the True TRCB-52-60-HC solves that with an oversized 1524 mm top over a two-drawer refrigerated base. Underneath, it is the same as the TRCB-52-HC: two drawers that each take three 1/1 GN pans, 78 litres net and 280 litres gross, held at 0.5°C to 3.3°C. True offers the extended top for compatibility with more sizes of hot equipment, so it suits a 1.5 metre griddle or grill line where a 1318 mm top would fall short. It is Climate Class 5 certified for 40°C kitchens.

Key features:

• Extended 1524 mm top, for greater compatibility with more sizes of cooking equipment
• 2 drawers, each holding 3 x 1/1 GN pans up to 100 mm deep
• Reinforced one-piece stainless steel top, insulated to stop heat transfer into the cabinet
• Drip-resistant "V" edge helps keep grease off the floor; flat tops can be specified
• Climate Class 5 certified, tested at 40°C and 40% relative humidity
• Digital control and automatic defrost
• Improved condenser coil access from the front, plus True's patented RCU feature
• Heavy-duty 102 mm lock-in-place castors
• R290 refrigerant

Specifications:

• Model: True TRCB-52-60-HC
• Capacity: 78 litres net, 280 litres gross
• Drawers: 2, each holding 3 x 1/1 GN pans, maximum 100 mm deep (pans not included)
• Dimensions: 1524 W x 816 D x 648 H mm overall (depth excludes 26 mm rear bumpers)
• Weight: 127 kg
• Maximum weight supported on the top: 326 kg
• Temperature range: 0.5°C to 3.3°C
• Maximum room temperature: 40°C (Climate Class 5, EN 16825)
• Refrigerant: R290
• Power: single-phase 220–240 V, 50–60 Hz, 1.1 A running current, 253 W, supplied with a 2.13 m power cord
• Energy use: 2.575 kWh per 24 hours, 940 kWh per year; 4-star energy rating (True's price list)
• Construction: stainless steel front and top, aluminium sides and rear; clear-coated aluminium interior with stainless steel base
• Airflow: air intake at the front, ventilation on the right side
• Packed size for delivery: 1651 x 914 x 762 mm, 138 kg

Good to know before you buy:

• Cooking equipment on top: leave at least 102 mm between the bottom of the appliance's heating element and the top, and keep the load under 326 kg. A licensed gas fitter or electrician must connect the appliance. We supply the equipment only.
• Clearances: True lists 26 mm at the rear for this extended-top model.
• Pans: GN pans are sold separately; the drawers are moulded for 1/1 GN pans up to 100 mm deep.
• Access: packed, it is 1651 mm long, 914 mm deep and 762 mm high, at 138 kg. Delivery is by tailgate truck to the front of your premises; standard delivery does not include bringing it inside or unpacking.
• Pricing: This model is priced on application. Ask us for a quote.

Compare similar models:

• True TRCB-52-HC: the same base with a standard 1318 mm top
• True TRCB-48-HC: 1227 mm, 2 x 1/1 GN pans per drawer
• True TRCB-72-HC: 1839 mm with 4 drawers

Common questions:

What does the "52-60" in the model mean?
It is the TRCB-52 refrigerated base fitted with a longer top, 1524 mm overall instead of 1318 mm. Drawers, capacity and energy use are the same as the TRCB-52-HC.

Can I get a flat top instead of the "V" edge?
The drip-resistant "V" edge is standard, and True says flat tops can be specified. Ask us before you order.

Can I lock the drawers?
Locks are not standard. They are available as a build option, so they need to be requested when ordering.

See all our chef drawers.

Warranty: True 5-year parts and labour warranty, including the compressor.
