Williams Aztra LAZ5UCSS-HC - 1 Door Stainless Steel Undercounter Freezer 660mm 131L
SKU: LAZ5UCSS-HC
Prefer to talk? Call 0447 483 035 Mon–Fri, 9am–5pm (Sydney time)
- Australia-wide delivery, usually 2–5 business days to Sydney, Melbourne, Brisbane and Adelaide. Delivery info
- Price-Beat Guarantee. Found it cheaper? Send us the link
- Warranty: Williams 24-month parts and labour warranty from the date of invoice on this self-contained unit, carried out by Williams authorised service agents on the Australian mainland. Warranty repairs must be logged with Williams first. Warranty claims
- Tax invoice with our ABN for every order
- Secure checkout
Before it arrives
- Size: 660 W x 609 D x 830 H mm. Check doorways and access on the way in.
- Weight: 150 kg. Delivered by tailgate truck to your door, so plan for help or a trolley to move it inside.
- Power: 10 amp plug, 2 m cable, 2.46 A running current.
- Installation type: Under counter.
We supply the equipment only. Connection and installation are by your own licensed trades. Full specifications are in the product details below.
Product details

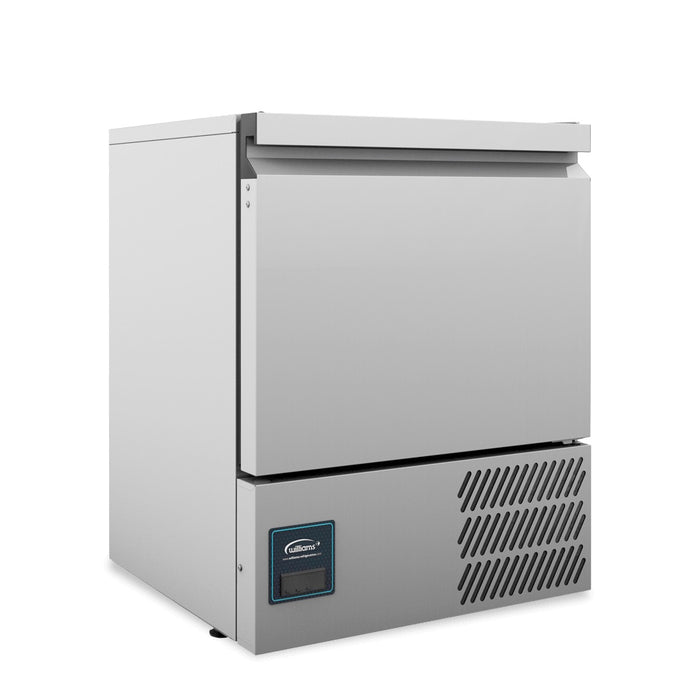

Williams Aztra LAZ5UCSS-HC - 1 Door Stainless Steel Undercounter Freezer 660mm 131L
The Williams Aztra LAZ5UCSS-HC is a compact undercounter freezer for kitchens where space is at a premium: 660mm wide, 609mm deep and 131 litres, holding –18°C to –22°C in rooms up to 43°C. It is the freezer twin of the HAZ5UCSS-HC fridge, with the same 1/1 Gastronorm-compatible racking, self-closing door with grab handle, front-vented refrigeration and 10 amp plug, but it runs on R290 hydrocarbon refrigerant and is tested at 4.1 kWh per 24 hours. Williams builds the Aztra range in the UK. If you would rather have drawers than a door, see the LAZ5UCSSDR2-HC.
Key features:
- 131 litre freezer in a 660mm wide footprint, 1/1 GN compatible, holding –18°C to –22°C
- Designed for high-ambient kitchens up to 43°C, tested to EN 16825 at climate class 4
- R290 natural hydrocarbon refrigerant with low GWP, zero ODP polyurethane insulation
- Energy-saving CoolSmart controller for tight temperature control
- 2 x 1/1 GN nylon-coated wire shelves as standard, on a removable racking system with anti-tilt slides
- Self-closing solid door with an integral grab handle and an easy-clean, replaceable magnetic balloon gasket
- Front-vented refrigeration, so it can be built in under a bench
- Enhanced airflow design for uniform cooling with no warm spots
- Castors at the rear and adjustable feet at the front; stainless steel interior and exterior
Specifications:
- Model: Williams LAZ5UCSS-HC
- Capacity: 131 litres
- Temperature range: –18°C to –22°C
- Maximum room temperature: 43°C
- Dimensions: 660 W x 609 D x 830 H mm on castors
- Weight: 150 kg unpacked (as listed by Williams)
- Refrigerant: R290 hydrocarbon
- Power: 10 amp plug, 2 m cable, 2.46 A running current
- Energy use: 4.1 kWh per 24 hours, tested to EN 16825 (climate class 4, L1)
- Door: 1 solid door, right-hand hinged as standard
- Finish: stainless steel interior and exterior, excluding rear and underside
- Shelves: 2 nylon-coated wire shelves, 1/1 GN
- Origin: made in the UK
Good to know before you buy:
- Power: plugs into a standard 10 amp outlet. No electrician needed.
- Access: 660mm wide, 609mm deep and 830mm high on its castors, delivered by tailgate truck to the front of your premises. Check the clear height under the bench it will sit beneath.
- Airflow: front vented, so keep the front grille clear and it can be built in with no side or rear gap.
- Door hinge: right-hand hinged as standard. A left-hand hinge must be requested when you order.
Compare similar models:
- Williams HAZ5UCSS-HC: the same compact cabinet as a +1°C to +4°C fridge
- Williams LAZ5UCSSDR2-HC: the same freezer with two drawers instead of a door
- Williams Amber LA135SS-HC: slightly smaller 606mm one-door freezer, 135 litres, with a door lock
- Williams Opal LO1USS / LO1RSS: Australian-made 927mm one-door freezer, 190 litres
Common questions:
Does it need its own power point?
It runs on a standard 10 amp plug and draws 2.46 A while running, so it can share a circuit with light loads. Avoid plugging it into a board alongside cooking equipment.
Will 1/1 GN pans fit?
Yes. The Aztra is a 1/1 GN cabinet with two wire shelves as standard, or anti-tilt tray slides that hold 1/1 GN containers directly. The racking lifts out for cleaning.
Do you install it?
We supply the equipment only. This is a plug-in freezer: unpack it, let it stand, plug it into a 10 amp outlet and set the controller. No trade installation is needed.
See all our undercounter freezers.
Warranty: Williams 24-month parts and labour warranty from the date of invoice on this self-contained unit, carried out by Williams authorised service agents on the Australian mainland. Warranty repairs must be logged with Williams first.
