Norris Madison IM5 - Underbench Dishwasher

Norris Madison IM5 - Underbench Dishwasher

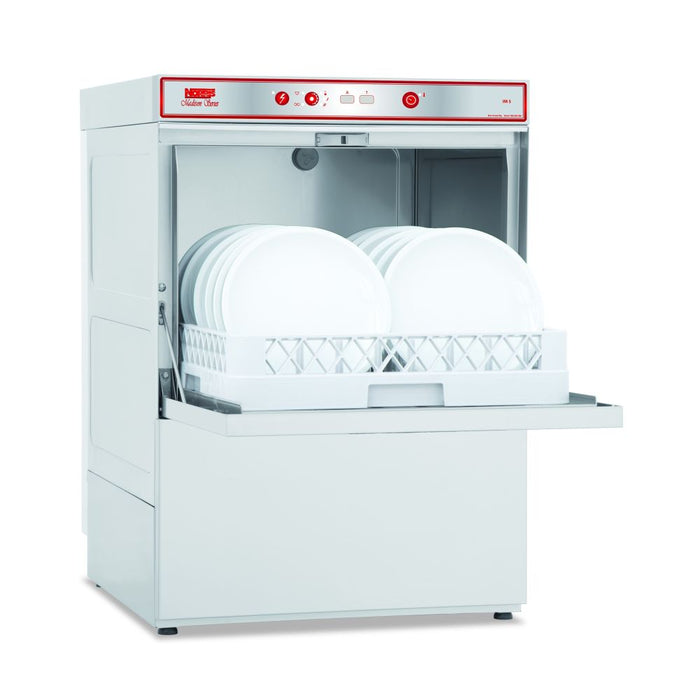

The Norris Madison IM5 is a compact underbench dishwasher for small to medium cafes, restaurants and bars that want commercial washing results without giving up much floor space. It washes up to 500 plates an hour, takes plates up to 33cm and glasses up to 33.5cm, and uses just 2.7 litres of water per cycle. It shares its body and rack with the Madison Bantam, but runs on 15 amps with larger elements, handles up to 30 loads an hour and adds automatic rinse aid injection.

Key features:

• Up to 500 plates per hour (depending on incoming water temperature and pressure)
• 1, 2 and 3 minute wash cycles
• Recirculating wash system using 2.7 litres per cycle
• Automatic detergent and rinse aid injection
• Pump-out drain as standard
• Takes plates up to 33cm and glasses up to 33.5cm
• Simple push-button operation
• Stainless steel finish, easy to clean

Specifications:

• Model: Norris Madison IM5 (Norris part 25-200-2)
• Output: up to 30 loads per hour
• Rack size: 500 x 500mm
• Dimensions: 575 W x 615 D x 810 H mm (840 mm on legs); 1008 mm deep with the door open
• Water use: 2.7 litres per cycle
• Wash tank 20 litres at 60°C; boiler 6 litres, rinse at 82°C
• Elements: 2100 W wash, 2600 W boiler; 500 W wash pump
• Power: 240V 50Hz, 15 amp
• Water connection: 3/4 inch BSP hot water, 10 L/min at 200–400 kPa
• Drain: pump out
• Included: flat rack insert and plate rack insert (500 x 500mm), cutlery container, braided hose, water hose, drain hose, operating manual

Good to know before you buy:

• Power: it needs a 15 A outlet. Have a licensed electrician check your circuit. If you only have 10 A power, the Madison Bantam is built for that.
• Water and drain: it connects to hot water and pumps out to your drain, connected by a licensed plumber. We supply the equipment only.
• Bench height: it is 810mm high (840mm on its legs), so check the space under your bench.

Compare similar models:

• Norris Madison Bantam: same size on 10 amps, up to 20 loads per hour, no rinse aid injection
• Norris Madison IM17: 15 amp glasswasher, 435mm wide
• Norris Madison IM7: upright pass-through dishwasher, up to 700 plates per hour

Common questions:

IM5 or Bantam?
Choose the IM5 if you have a 15 A outlet. It has bigger elements, up to 30 loads an hour and automatic rinse aid. The Bantam suits sites limited to 10 A.

Does it come with racks?
Yes. It includes a flat rack insert, a plate rack insert and a cutlery container. Ask us about extra racks.

Do you install it?
We supply the equipment only. It must be connected by a licensed plumber and a licensed electrician in your area.

See all our commercial underbench dishwashers.

Warranty: 2 years parts and labour, plus 3 years on the control board and cabinet, from Norris. Norris extends this to 4 years on the whole machine when Zexa ware-washing chemicals are used consistently (proof of purchase may be required). Exclusions apply.
