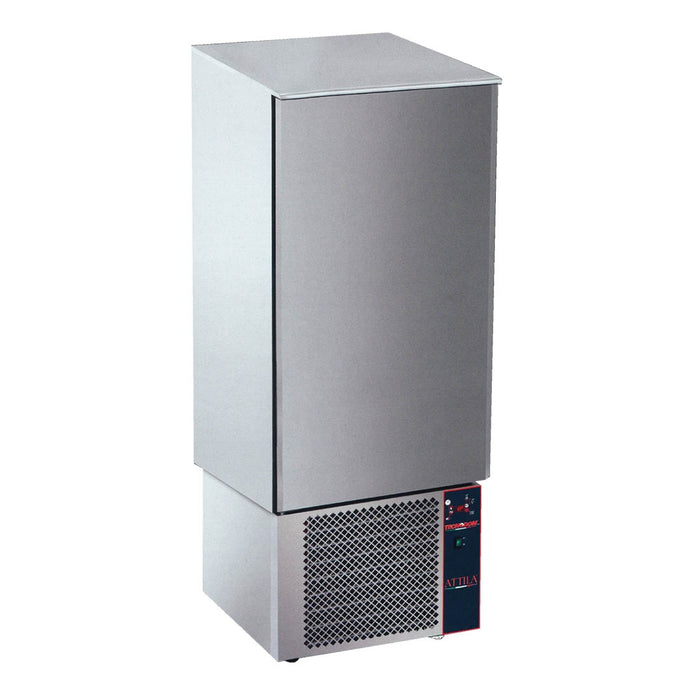

Tecnodom DO20 - 20 Tray Blast Chiller & Shock Freezer, GN 1/1, 10A

Tecnodom DO20 - 20 Tray Blast Chiller & Shock Freezer, GN 1/1, 10A

The Tecnodom DO20 is a tall, reach-in blast chiller and shock freezer for high-volume kitchens, caterers and food production. It holds 20 GN 1/1 pans or grids in a 340 litre stainless steel chamber, with 65 mm between grids. Standard cycles blast chill to +3°C or freeze to -18°C at the food core, and deep freezing can be programmed down to -40°C. FED rates it to work in rooms up to 43°C and 65% humidity. It is the big brother of the 10 tray DO10EA, taking twice the pans in a similar 750 mm footprint.

Key features:

• Holds 20 x GN 1/1 pans or grids (FHE also lists 600 x 400 mm trays)
• Blast chilling to +3°C and blast freezing to -18°C core, with programmable deep freezing to -40°C
• Rated for ambient temperatures up to 43°C at 65% relative humidity

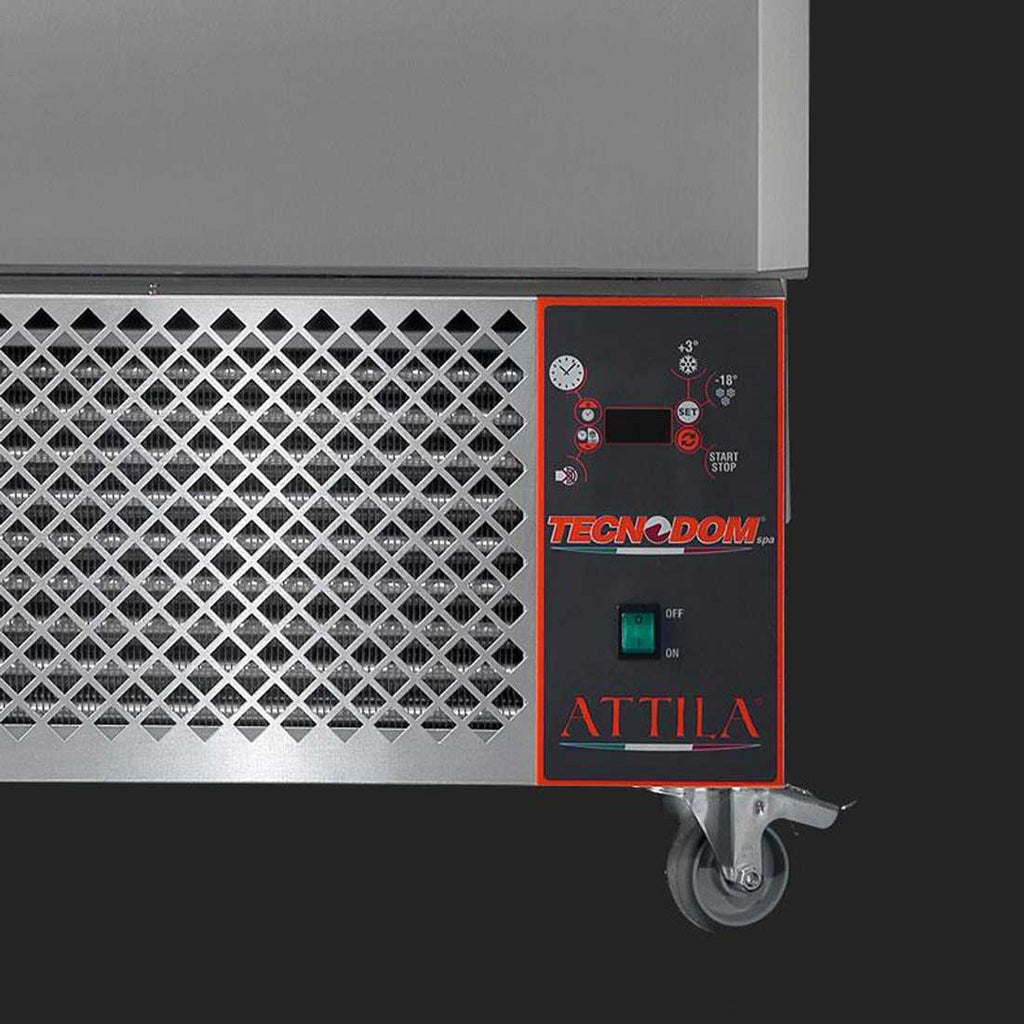

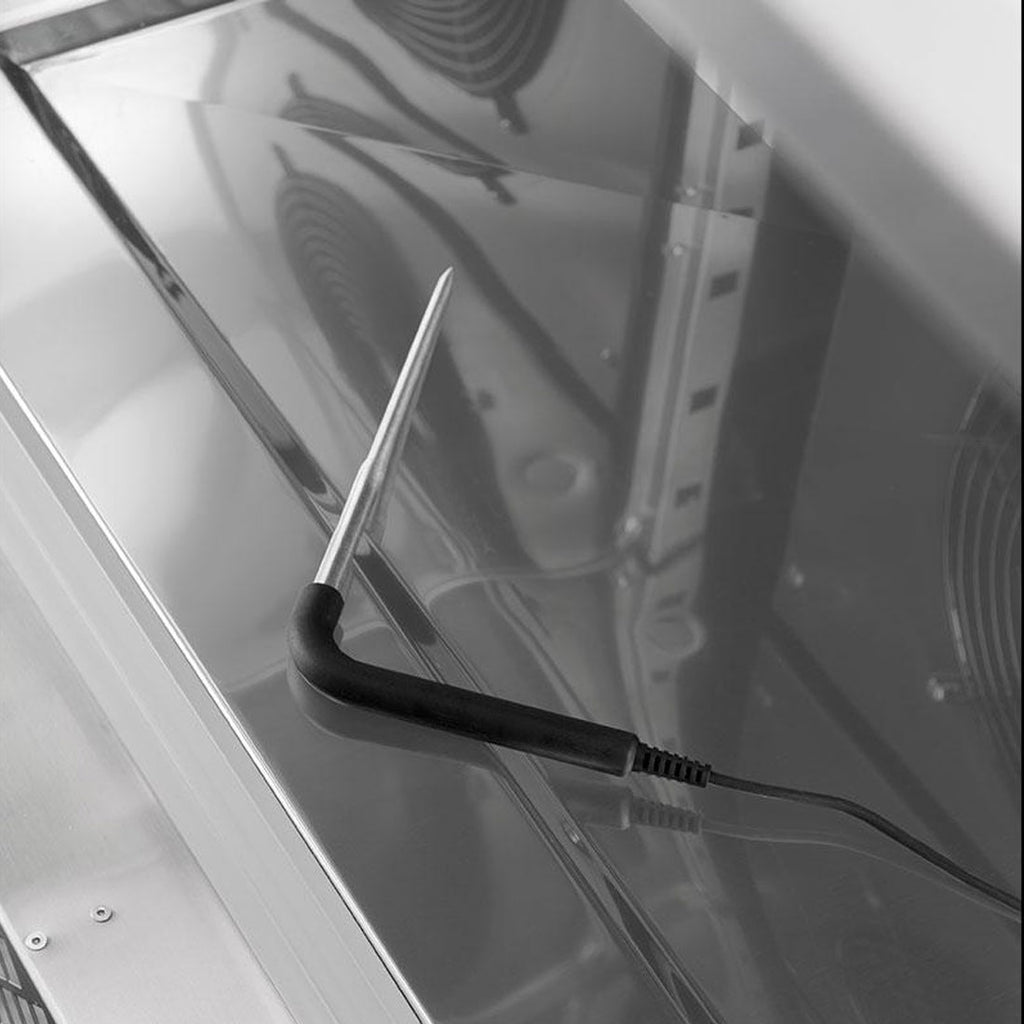

• Digital controller with core probe, chamber probe and temperature display
• Stainless steel inside and out (galvanised external base) with rounded internal corners
• CFC-free polyurethane insulation
• Self-closing door hinged on the left, with magnetic gasket

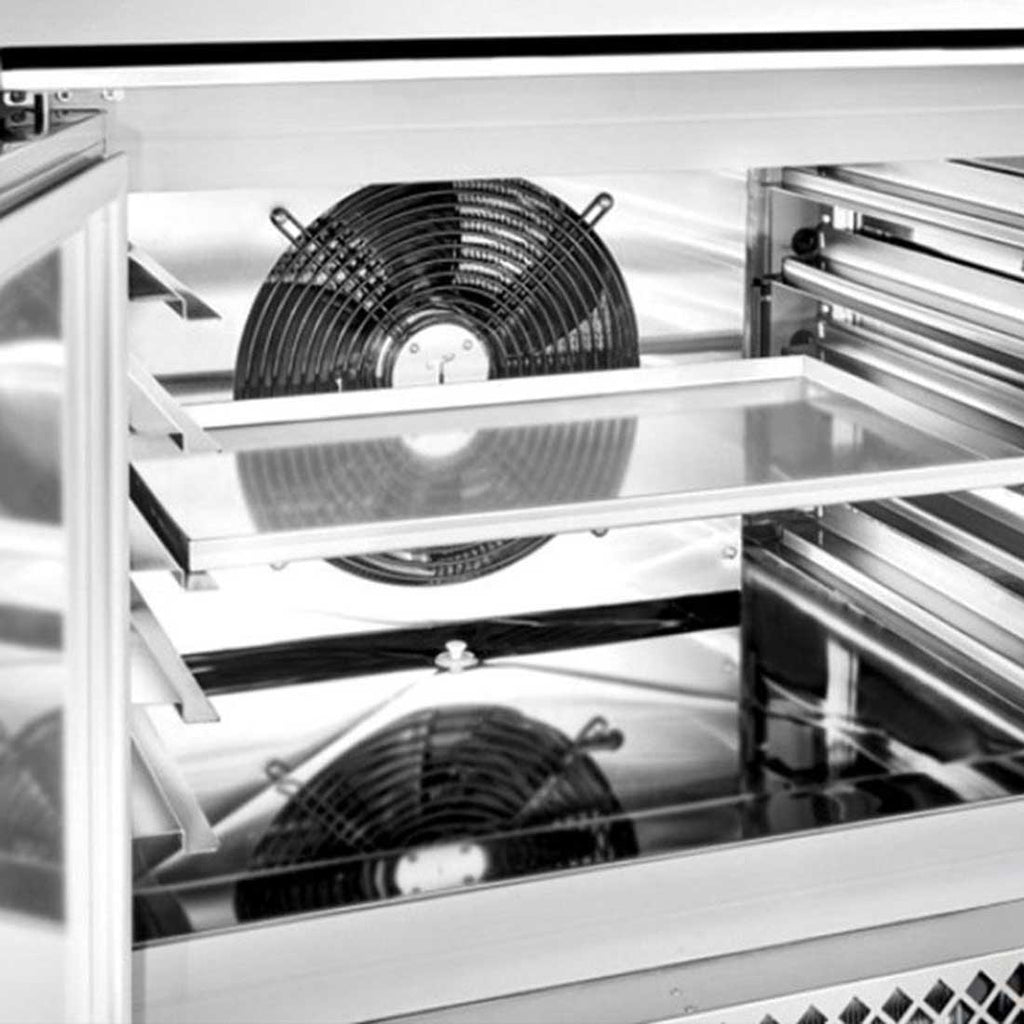

• Universal stainless steel pan grids with 65 mm spacing
• Adjustable stainless steel feet

Specifications:

• Model: Tecnodom DO20
• Capacity: 20 x GN 1/1; internal volume 340 litres
• Grid spacing: 65 mm
• Cycles: +3°C chill, -18°C freeze, programmable to -40°C
• Maximum room temperature: 43°C at 65% RH
• Dimensions: 750 W x 750 D x 2080 H mm
• Weight: 225 kg
• Power: 2.25 kW (see the power note below)
• Packed size for delivery: 770 x 780 x 2190 mm

Good to know before you buy:

• Power: FED's price list and product page show a 2250 W, 10 A supply, but FED's 2027 price guide and Tecnodom's 20 tray data sheet show a three-phase supply. Please ask us to confirm the power requirement before you order. Any hard-wired or three-phase connection must be done by a licensed electrician. We supply the equipment only.
• Access: packed, it is 2190 mm tall and about 225 kg, so check ceiling height, doorways and the route in. Delivery is by tailgate truck to the front of your premises.
• Airflow: leave room around the unit and keep its vents clear, especially in a hot kitchen.

Compare similar models:

• Tecnodom DO10EA: 10 trays, R290, single phase
• Tecnodom DO5EA: 5 trays, R290, 10 A outlet
• FED Thermaster D14: 14 tray blast chiller and shock freezer

Common questions:

Will it cope with a hot kitchen?
FED rates it for ambient temperatures up to 43°C at 65% relative humidity.

How cold can it go?
Standard freezing is to -18°C at the core, with programmable deep freezing down to -40°C.

Do you install it?
We supply the equipment only. Confirm the power supply with us first; if it needs a three-phase or hard-wired connection, a licensed electrician must do it.

See all our blast chillers.

Warranty: 2 years parts and labour (FED).
