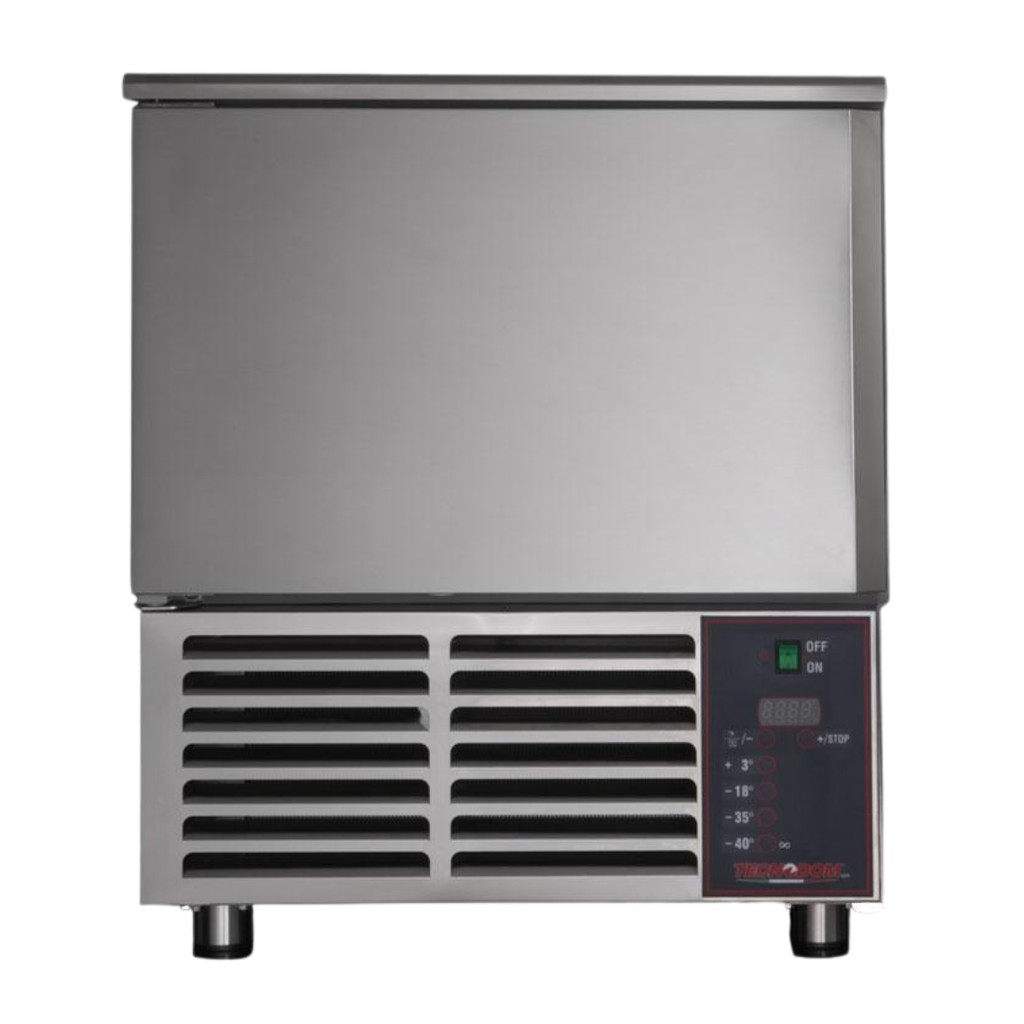

Tecnodom DO5EA - 5 Tray Blast Chiller & Shock Freezer, R290, 10A

Tecnodom DO5EA - 5 Tray Blast Chiller & Shock Freezer, R290, 10A

The Tecnodom DO5EA is a 5 tray Aladino blast chiller and shock freezer, made in Italy for restaurants, cafes and caterers that cook ahead in bigger batches. Tecnodom rates it to chill a 20 kg full load from +65°C to +10°C in 81 minutes, and it can shock freeze with core-probe cycles down to -40°C. It holds GN 1/1 grids or 600 x 400 mm bakery trays, uses R290 natural refrigerant and still plugs into a standard 10 A outlet. It sits between the 3 tray DO3EA and the 10 tray DO10EA.

Key features:

• Made in Italy and built to HACCP specification
• Blast chills from +65°C to +3°C or shock freezes, with core-probe cycles at +3°C, -18°C, -35°C and -40°C
• R290 natural refrigerant (GWP 3)

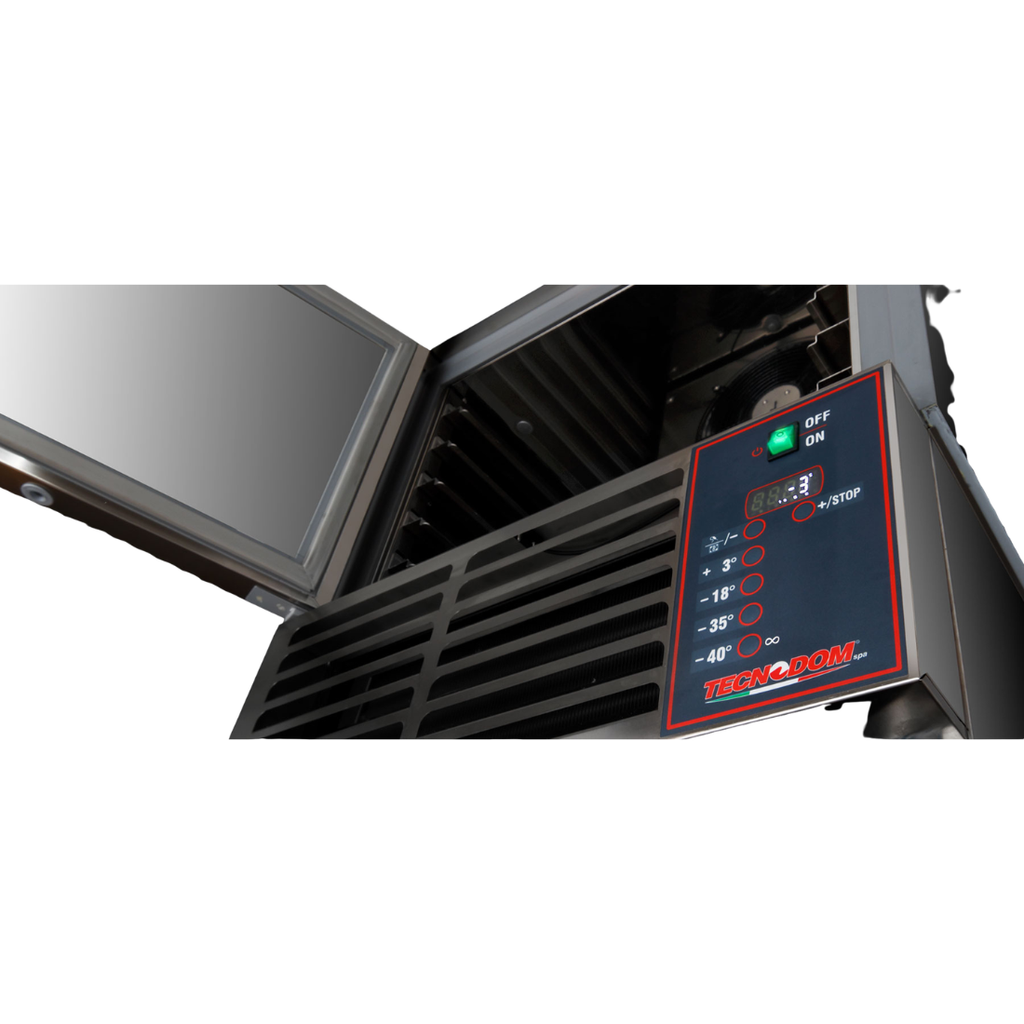

• Digital electronic control with core probe, chamber probe and temperature display
• Ventilated cooling for rapid, even temperature reduction
• Open-door defrost with no heating elements or hot gas
• Self-evaporating drainage and removable condensate tray
• Tropicalised (climate class 4); stainless steel inside and out (galvanised base) with rounded internal corners and 60 mm CFC-free insulation
• Self-closing left-hinged door with magnetic gasket; adjustable stainless feet (60–80 mm)

Specifications:

• Model: Tecnodom DO5EA
• Capacity: 5 x GN 1/1 or 600 x 400 mm trays (5 pairs of universal runners included)
• Chilling: 20 kg full load, +65°C to +10°C in 81 minutes
• Freezing: 12 kg full load, +65°C to -18°C in 179 minutes
• Minimum temperature: -40°C (in a 30°C, 60% RH room)
• Refrigerant: R290
• Dimensions: 750 W x 750 D x 890–910 H mm (depending on feet height)
• Weight: 92 kg
• Power: 1292 W, 230–240V single phase, 10 A outlet
• Packed size for delivery: 770 x 770 x 1050 mm, 98 kg

Good to know before you buy:

• Power: plugs into a standard 10 A single-phase outlet.
• Airflow: keep the front grid over the condensing unit clear and clean, especially in a hot kitchen.
• What's included: core probe, chamber probe and 5 pairs of universal stainless steel runners. Trays and pans are not listed as included.
• Access: packed, it is 770 x 770 x 1050 mm and about 98 kg, delivered by tailgate truck to the front of your premises.

Compare similar models:

• Tecnodom DO3EA: compact 3 tray model, 12 kg chilling load
• Tecnodom DO10EA: 10 trays, 25 kg chilling load
• Tecnodom DO20: 20 x GN 1/1 for high-volume production

Common questions:

How much can it chill at once?
Tecnodom rates it at a 20 kg full load from +65°C to +10°C in 81 minutes, or 12 kg frozen from +65°C to -18°C in 179 minutes.

Can it sit under a bench?
It is 890–910 mm tall depending on the feet setting, so measure under your bench first and leave the front grid clear.

What plug does it need?
A standard 10 A single-phase outlet.

See all our blast chillers.

Warranty: 2 years parts and labour (FED).
