FED Thermaster D14 - 14 Tray Blast Chiller & Shock Freezer
FED Thermaster D14 - 14 Tray Blast Chiller & Shock Freezer
SKU: D14
Prefer to talk? Call 0447 483 035 Mon–Fri, 9am–5pm (Sydney time)
- Australia-wide delivery, usually 2–5 business days to Sydney, Melbourne, Brisbane and Adelaide. Delivery info
- Price-Beat Guarantee. Found it cheaper? Send us the link
- Warranty: 2 years parts and labour. Warranty claims
- Tax invoice with our ABN for every order
- Secure checkout
Before it arrives
- Size: 800 W x 818 D x 2110 H mm. Check doorways and access on the way in.
- Weight: 210 kg. Delivered by tailgate truck to your door, so plan for help or a trolley to move it inside.
- Power: 2 kW, 415V three-phase (3N~). Three-phase power needs a licensed electrician to connect.
We supply the equipment only. Connection and installation are by your own licensed trades. Full specifications are in the product details below.
Product details

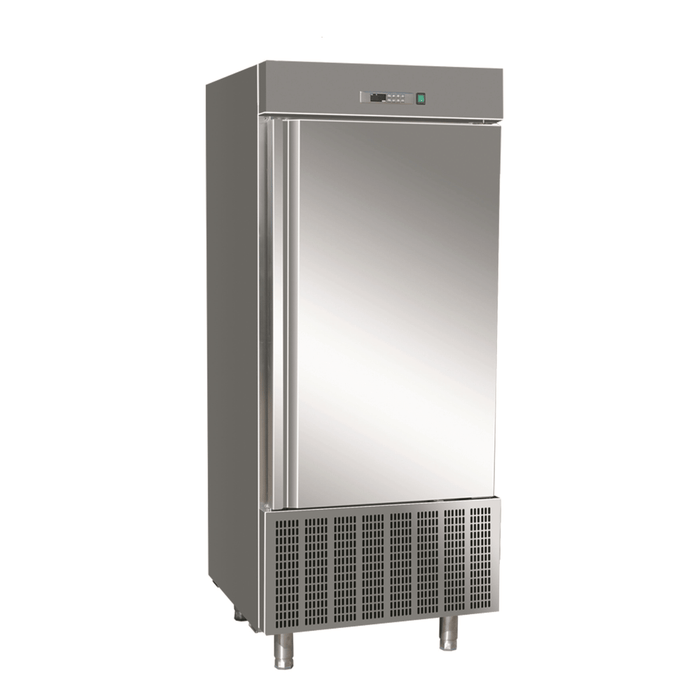

FED Thermaster D14 - 14 Tray Blast Chiller & Shock Freezer
The FED Thermaster D14 is an upright reach-in blast chiller and shock freezer that takes 14 x GN 1/1 or 600 x 400mm trays (40mm deep), for restaurants, caterers, bakeries and production kitchens that cook in volume. It chills up to 56 kg per cycle, has a digital controller with a food probe, and is built to HACCP specification with a special blast process that stops ice crystals forming. It is the largest Thermaster blast chiller and, unlike the 10 A plug-in D-G7 and D-GT3, it needs a 415V three-phase supply.
Key features:
- Holds 14 x GN 1/1 or 600 x 400mm trays, 40mm deep
- Chilling capacity of 56 kg per cycle
- Built to HACCP specification
- Special blast process prevents ice crystallisation, for quicker temperature reduction
- Digital controller with probe and temperature display
- Fan-forced evaporator cooling with European condenser and evaporator fans
- Auto defrost and self-evaporating drainage
- Rounded internal corners for hygiene and easy cleaning, and a self-closing door
Specifications:
- Model: FED Thermaster D14
- Capacity: 494 litres gross, 266 litres net
- Tray capacity: 14 x GN 1/1 or 600 x 400mm, 40mm deep
- Chilling capacity: 56 kg per cycle
- Internal dimensions: 660 W x 420 D x 1150 H mm
- Dimensions: 800 W x 818 D x 2110 H mm
- Weight: 210 kg
- Temperature range: -22°C to -18°C
- Maximum room temperature: 40°C at 40% relative humidity
- Power: 2 kW, 415V three-phase (3N~)
- Construction: stainless steel
- Packed size for delivery: 870 x 900 x 2270 mm
Good to know before you buy:
- Power: it runs on 415V three-phase power and must be connected by a licensed electrician. We supply the equipment only.
- Access: it stands 2110mm tall, weighs 210 kg, and the carton is about 870 x 900 x 2270 mm. It is delivered by tailgate truck to the front of your premises, and standard delivery doesn't include bringing it inside, up stairs or unpacking, so check door heights and widths before you order.
- Airflow: keep the condenser vents clear and leave room around the cabinet so it can reject heat, especially in a hot kitchen.
- Drainage: self-evaporating drainage means no drain connection is needed.
Compare similar models:
- FED Thermaster D-G7: 7 tray blast chiller and shock freezer, 850mm high, runs on a 10 A plug
- FED Thermaster D-GT3: compact 3 tray countertop model, 33 litres
- Tecnodom DO20: 20 tray GN 1/1 blast chiller and shock freezer
- Tecnodom DO10EA: 10 tray blast chiller and shock freezer, R290, 10 A
Common questions:
What power supply does it need?
A 415V three-phase supply (2 kW). It must be connected by a licensed electrician.
Will it take bakery trays?
Yes. It holds 14 x 600 x 400mm trays or 14 x GN 1/1 pans, 40mm deep.
Do you install it?
We supply the equipment only. It must be connected by a licensed electrician in your area.
See all our blast chillers.
Warranty: 2 years parts and labour.
