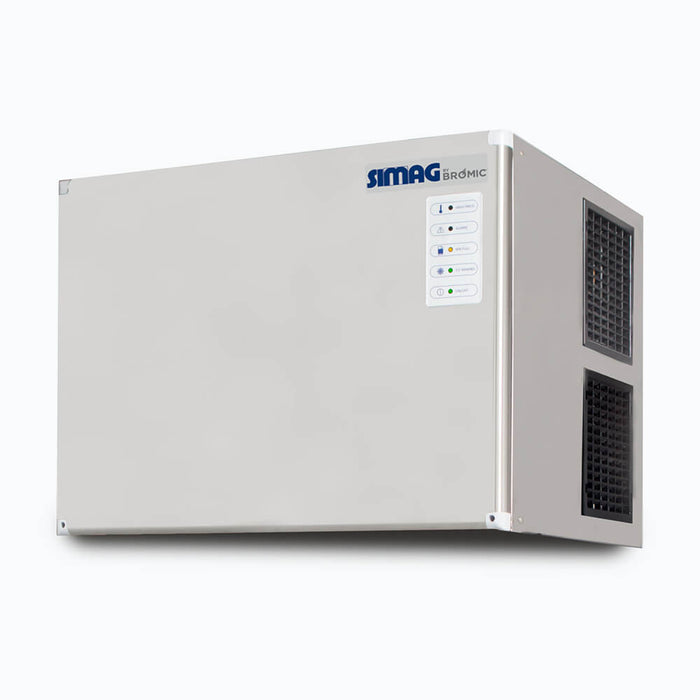

Bromic IM0320HDM - Modular Ice Machine, Half Dice, 320kg/24h, 760mm

Bromic IM0320HDM - Modular Ice Machine, Half Dice, 320kg/24h, 760mm

The Bromic IM0320HDM moves up to the wider 760mm head size and is rated at 320 kg of half dice ice per 24 hours, for high-volume bars, clubs, hotels and function venues. Like every modular head it makes the ice and drops it into a separate storage bin, so it needs a compatible bin to work. It sits directly on the 768mm-wide SB178 or the taller SB243, and can go on the 406 kg SB406 with the CBT48EAMCD adaptor. At 575mm it is also the lowest of Bromic's four half dice heads, which helps when ceiling height is limited.

Key features:

• Rated at 320 kg of half dice ice per 24 hours
• Economical 10 g half dice cubes for blending and general use
• Low-profile 575mm-high head
• Sits directly on the SB178 and SB243 bins with no adaptor
• Can be paired with the large SB406 bin using the CBT48EAMCD adaptor
• Vented cooling system that Bromic says needs less clearance around and above it
• Agion antimicrobial-treated materials
• PCB controller and stainless steel construction

Specifications:

• Model: Bromic IM0320HDM (modular head)
• Ice type: half dice, 10 g ice weight
• Ice production: 320 kg per 24 hours
• Ice storage: none in the head; it needs a separate storage bin
• Head dimensions: 760 W x 620 D x 575 H mm
• Head weight: 73 kg
• Maximum room temperature: 40°C
• Refrigerant: R404a
• Refrigeration capacity: 1600 W
• Power: 220–240V, 50Hz single phase, 16 A plug (as listed by Bromic) at the rear, bottom right
• Energy use: 16.3 kWh per 24 hours
• Water consumption: 15.6 litres per hour
• Head packed size: 830 W x 690 D x 770 H mm, 78 kg
• Option, head only (no bin): for buyers who already have a compatible bin
• Option, with SB178: holds 178 kg of ice, 768 W x 843 D x 1043 H mm, fits directly
• Option, with SB243: holds 243 kg, 770 W x 873 D x 1268 H mm, fits directly
• Option, with SB406 + CBT48EAMCD adaptor: holds 406 kg, 1235 W x 865 D x 1268 H mm
• Bin heights exclude feet

Good to know before you buy:

• Storage bin: the head doesn't store ice, so it needs a bin underneath. "Ice machine head only" is for buyers who already have a compatible bin. The SB178 and SB243 fit directly; the SB406 option includes the CBT48EAMCD adaptor. Bin capacity means how much ice the bin holds at once, which is less than the 320 kg the head can make in 24 hours for every bin except the SB406.
• Height: head plus bin is about 1618mm on the SB178 and 1843mm on the SB243 or SB406, not counting the bin's feet or the adaptor.
• Power: Bromic lists a 16 A plug, which won't fit a standard 10 amp power point. A licensed electrician should confirm and fit the matching outlet before delivery.
• Water / drain: it needs a cold water supply and a drain, both connected by a licensed plumber. We supply the equipment only. For a water filtration kit, ask us.

Compare similar models:

• Bromic IM0485HDM: same 760mm width and bin choices, 485 kg per 24 hours
• Bromic IM0250HDM: narrower 558mm head, 250 kg per 24 hours, fits the SB129 directly
• Bromic IM0300FM-NR: flake ice head, 300 kg per 24 hours, 10 amp plug

Common questions:

Will it fit on the small SB129 bin?
No. Bromic's compatibility chart lists the SB178, SB243 and SB406 for this head, not the SB129. If you want the 560mm-wide SB129, look at the IM0160HDM or IM0250HDM.

What power does it need?
Bromic lists single-phase 220–240V with a 16 A plug. Have a licensed electrician check your supply and fit the right outlet.

Do you install it?
We supply the equipment only. A licensed plumber connects the water and drain, and a licensed electrician should handle the power outlet.

See all our ice machines.

Warranty: Bromic 5-year Extra Care warranty, covering parts and labour. Warranty repairs are carried out through Bromic's national service network.
